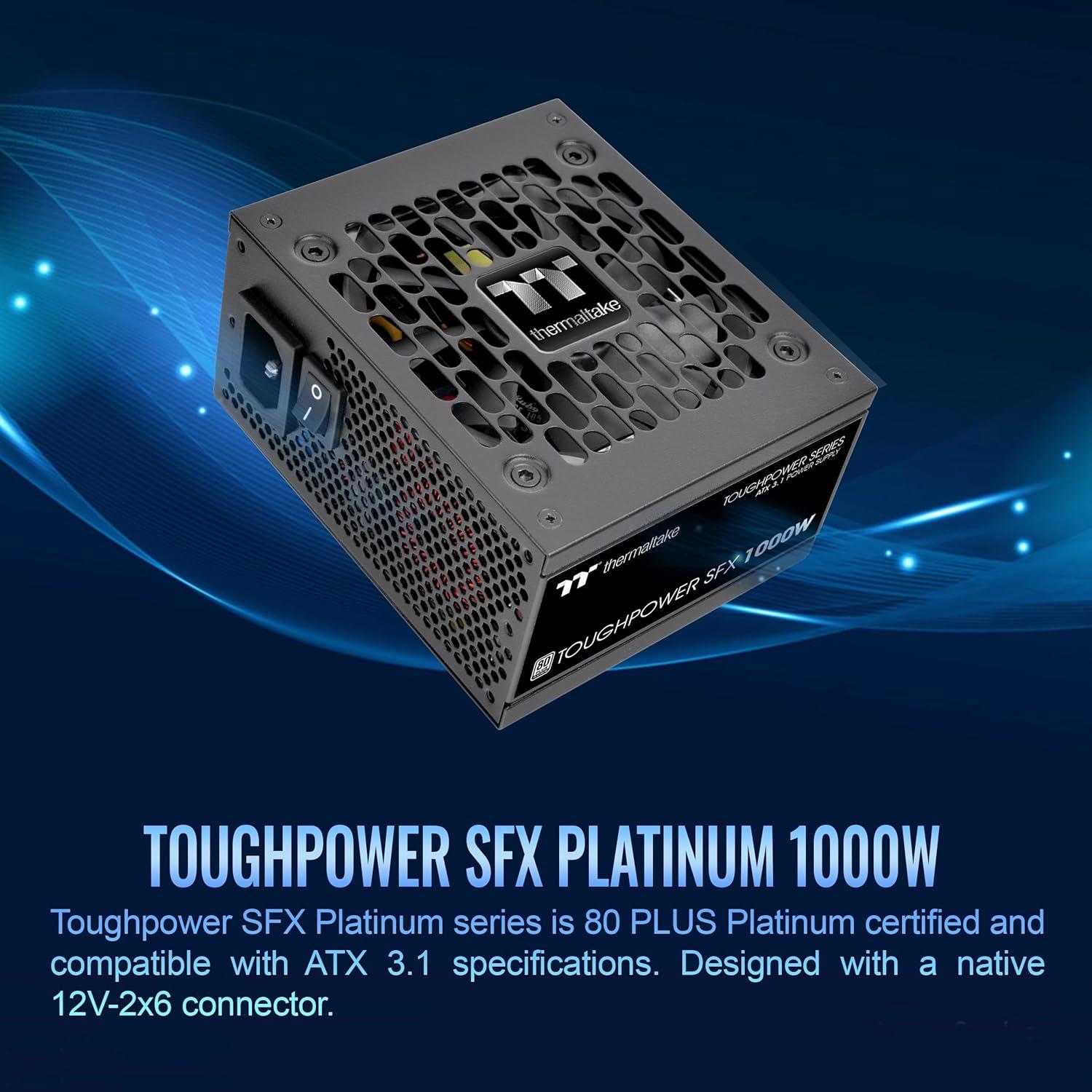

Thermaltake Toughpower SFX 1000W 80Plus Platinum ATX 3.1
Thermaltake Toughpower SFX 1000W 80Plus Platinum ATX 3.1 Review & Specifications
The Thermaltake Toughpower SFX 1000W 80Plus Platinum ATX 3.1 by Thermaltake (Model: PS-STP-1000FNFAPU-1) is a power supply unit that provides 1000 watts of power output. This unit follows the 3.1 standard and comes in a SFX size. It is certified with 80 PLUS® Platinum and rated at Platinum efficiency, reaching a peak efficiency of 92%. It features a 90 mm cooling fan with fan stop support, and is actively cooled. This PSU is modular . It delivers:
- 83 A on the 12V rail (1 rail(s))
- 18 A on the 5V rail
- 18 A on the 3.3V rail
Power Supply Performance
The Thermaltake Toughpower SFX 1000W 80Plus Platinum ATX 3.1 is a high power PSU, sufficient for mainstream gaming systems and content creation workstations. It provides sufficient power for systems with modern multi-core CPUs and performance-class GPUs, offering headroom for overclocking and future upgrades.
This PSU provides a very high efficiency of 92%, rated as Platinum. It offers superior energy conversion and lower heat output, making it ideal for performance systems. The included 7-year warranty suggests strong build quality and long-term reliability.
This PSU offers moderate value, priced at $190.0 per kilowatt. It delivers decent performance and efficiency, making it a solid mid-range choice for most PC builds. It strikes a good balance between performance and cost, especially for builders prioritizing stability without overspending.
General Information
| Manufacturer | Thermaltake |
|---|---|
| Power Supply Name | Thermaltake Toughpower SFX 1000W 80Plus Platinum ATX 3.1 |
| Part Number | PS-STP-1000FNFAPU-1 |
| Current Price Amazon | $190 |
| Amazon Price Updated | 1 day, 6 hours ago. |
| Power Supply Available | True |
Specification
| Power Output | 1000 W |
|---|---|
| ATX Version / Form Factor | 3.1 / SFX |
| Certifications | 80 PLUS® Platinum |
| Efficiency Rating | Platinum |
| Modular / Fanless | True / False |
| Fan Size / Fan Stop | 90 mm / True |

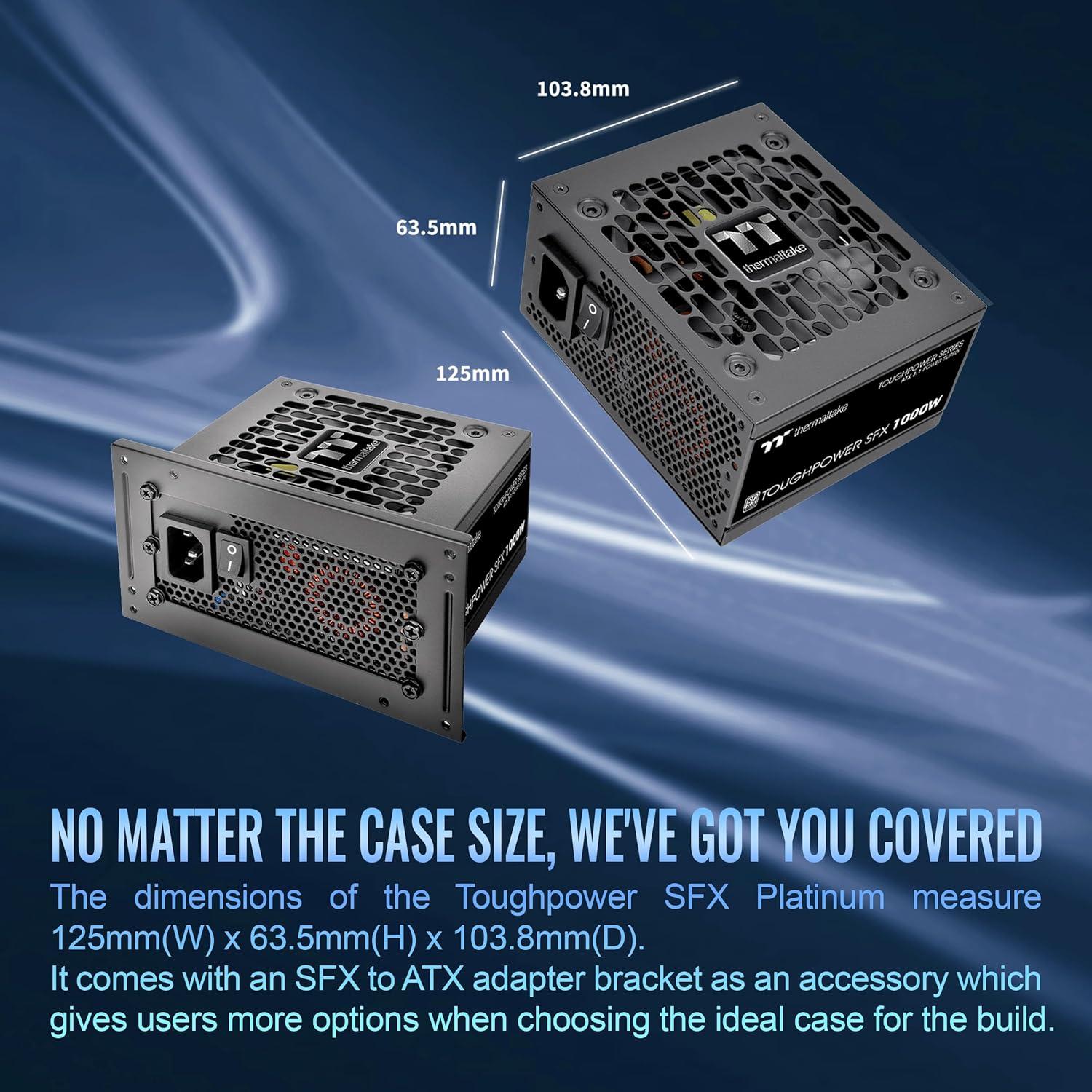

| Dimensions | 125mm(W)x63.5mm(H)x103.8mm(D) |
| Warranty | 7 years |
Performance
| Input Voltage | 100-240 V |
|---|---|
| Number of 12 V Rails | 1 |
| Output 12V / 5V / 3.3V | 83 A / 18 A / 18 A |
| Maximum Efficiency | 92% |
| Price per kW | 190.0 USD/kW |
Thermaltake Toughpower SFX 1000W 80Plus Platinum ATX 3.1 Compared to Similar Performance PSUs
Power Supply Price / Performance Table
| Power_Supply (Desc) | Price (Desc) | Quality_&_Perf (Desc) | Q&P/Price (Desc) | USD/Kilowatt (Desc) |
|---|---|---|---|---|
|
$384
|
↓
-16.8%
|
73.5%
|
19.1%
|
590.8
590.8
|
|
|
$102
|
↓
-28.2%
|
73.5%
|
72.2%
|
156.6
156.6
|
|
|
$76
|
0.0%
|
72.8%
|
95.8%
|
116.9
116.9
|
|
|
$99
|
↑
25.3%
|
72.8%
|
73.6%
|
152.3
152.3
|
|
|
$190
|
0.0%
|
72.3%
|
38.0%
|
190.0
190.0
|
|
|
$228
|
↑
73.6%
|
71.9%
|
31.5%
|
414.5
414.5
|
|
|
$142
|
↓
-0.7%
|
71.6%
|
50.4%
|
142.0
142.0
|
|
|
$118
|
0.0%
|
71.6%
|
60.6%
|
118.1
118.1
|
|
|
$97
|
↓
-20.8%
|
71.3%
|
73.8%
|
113.7
113.7
|
PSU Comparison and Detail Specifications Table
| Specification |
No image available |
Perf Chart | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Price |
$384
↓
-16.8%
|
$102❗
↓
-28.2%
|
$76
0.0%
|
$99❗
↑
25.3%
|
$190
0.0%
|
$228❗
↑
73.6%
|
$142
↓
-0.7%
|
$118❗
0.0%
|
$97
↓
-20.8%
|
| Price per kW | 590.8 USD/kW | 156.6 USD/kW | 116.9 USD/kW | 152.3 USD/kW | 190.0 USD/kW | 414.5 USD/kW | 142.0 USD/kW | 118.1 USD/kW | 113.7 USD/kW |
| Manufacturer | be quiet! | be quiet! | MSI | Thermaltake | Thermaltake | be quiet! | Corsair | Thermaltake | ASUS |
| Wattage | 650 W | 650 W | 650 W | 650 W | 1000 W | 550 W | 1000 W | 1000 W | 850 W |
| Ver. / FF | 3.0 / ATX | 3.1 / ATX | 3.1 / ATX | 3.0 / ATX | 3.1 / SFX | 3.1 / ATX | 3.1 / ATX | 3.0 / SFX | 3.1 / ATX |
| Efficiency | Gold (92%) | Gold (92%) | Gold (90%) | Gold (90%) | Platinum (92%) | Gold (93%) | Gold (90%) | Gold (90%) | Gold (90%) |
| 12V Rails | 2 / 32 A | 1 / 54 A | 1 / 54 A | 1 / 51 A | 1 / 83 A | 1 / 46 A | 1 / 83 A | 1 / 83 A | 1 / 70 A |
| 12V/5V/3.3V | 60 A / 20 A / 20 A | 54 A / 20 A / 20 A | 54 A / 20 A / 20 A | 51 A / 20 A / 20 A | 83 A / 18 A / 18 A | 45 A / 20 A / 20 A | 83 A / 20 A / 20 A | 83 A / 20 A / 20 A | 70 A / 20 A / 20 A |
| Fan Size | 120 mm | 120 mm | 120 mm | 120 mm | 90 mm | 120 mm | 140 mm | 92 mm | 135 mm |
| Modular | ✔️ | ❌ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Fan Stop | ❌ | ❌ | ❌ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ❌ |
| Fanless | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
| Dimensions | 160 x 150 x 86 | 160 x 86 x 150 | 140 x 150 x 86 mm | 150mm(W)x86mm(H)x140mm(D) | 125mm(W)x63.5mm(H)x103.8mm(D) | 160 x 150 x 86 | 140x150x86 | 125mm(W)x63.5mm(H)x100mm(D) | 150 x 150 x 86 mm |
| Warranty | 10 years | 10 years | 10 years | 10 years | 7 years | 10 years | 7 years | 7 years | 8 years |
%201000%20Gallery/46405_pNszImw.jpg)
Power Supply Specification Table
| Power_Supply (Desc) | Wattage (Desc) | ATX Ver / FF / Modular | Efficiency | 12V Rails / Amp | Output 12V/5V/3.3V | Warranty |
|---|---|---|---|---|---|---|
| 650 W | 3.0 / ATX / True | Gold, 92% | 2 / 32.00 A | 60 A / 20 A / 20 A | 10 years | |
| 650 W | 3.1 / ATX / False | Gold, 92% | 1 / 54.00 A | 54 A / 20 A / 20 A | 10 years | |
| 650 W | 3.1 / ATX / True | Gold, 90% | 1 / 54.00 A | 54 A / 20 A / 20 A | 10 years | |
| 650 W | 3.0 / ATX / True | Gold, 90% | 1 / 51.00 A | 51 A / 20 A / 20 A | 10 years | |
| 1000 W | 3.1 / SFX / True | Platinum, 92% | 1 / 83.00 A | 83 A / 18 A / 18 A | 7 years | |
| 550 W | 3.1 / ATX / True | Gold, 93% | 1 / 45.80 A | 45 A / 20 A / 20 A | 10 years | |
| 1000 W | 3.1 / ATX / True | Gold, 90% | 1 / 83.00 A | 83 A / 20 A / 20 A | 7 years | |
| 1000 W | 3.0 / SFX / True | Gold, 90% | 1 / 83.00 A | 83 A / 20 A / 20 A | 7 years | |
| 850 W | 3.1 / ATX / True | Gold, 90% | 1 / 70.00 A | 70 A / 20 A / 20 A | 8 years |
