Thermalright AXP90-X53
Thermalright AXP90-X53 Review & Specifications
The Thermalright AXP90-X53 by Thermalright is a Air CPU cooler designed for compatibility with LGA 1700, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1851, AM4, AM5 sockets.

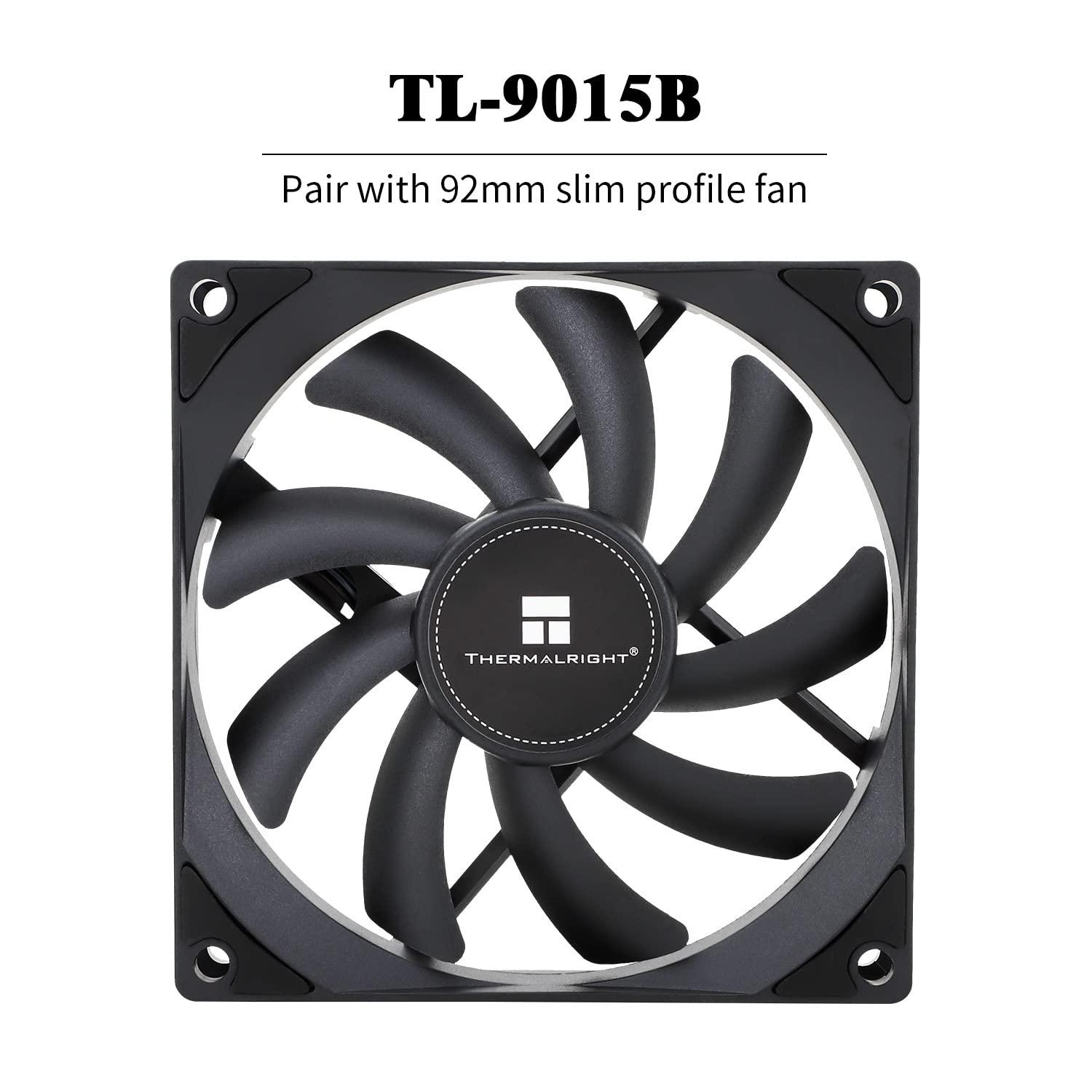

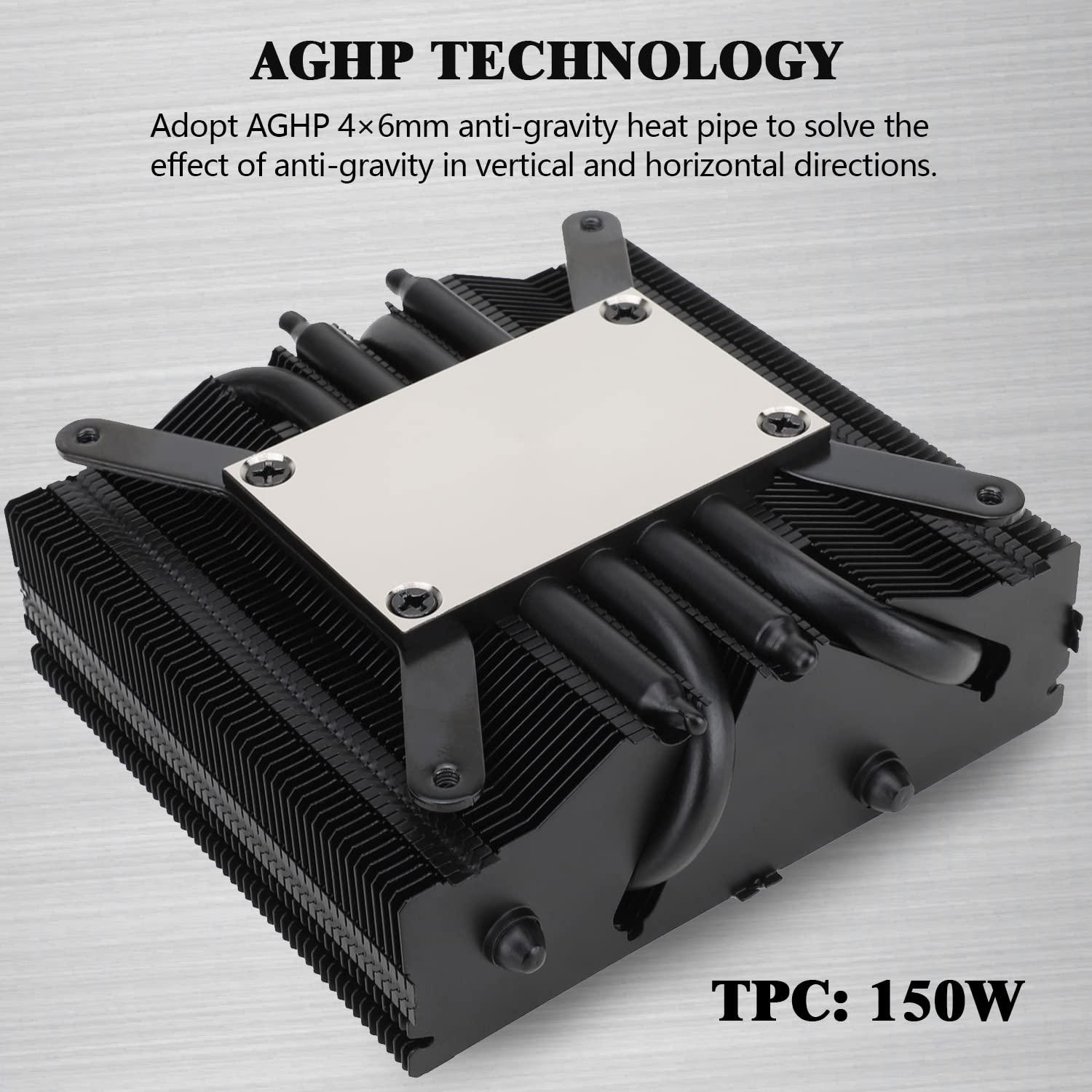

This air cooler features a heatsink with a CPU contact base made of Copper, which is typically nickel-plated to prevent oxidation and ensure long-term durability while maintaining the superior thermal conductivity of the underlying copper. While some coolers use a solid nickel-plated copper base for maximum surface area and durability, others, usally lower to midrange coolers, utilize direct-touch heatpipes to transfer heat immediately from the CPU into the cooling system. It includes 1 fan(s), each sized at 92 mm. These fan(s) can reach up to 2700.0 RPM and operate at a noise level of 22.4 dBA, delivering a combined airflow of 42.6 CFM. The total height of the cooler is 53 mm . Please ensure your PC case supports this cooler’s height. You can verify compatibility using our PC Builder, which filters compatible cases based on CPU cooler dimensions. This cooler does not include RGB lighting, focusing instead on performance, reliability, and low acoustic output. The cooler is backed by a 5-year warranty, providing long-term reliability and manufacturer support.
Performance
Thermalright AXP90-X53 is an entry-level air CPU cooler suitable for CPUs with TDPs up to 100 W, delivering a relative cooling performance score of 57.00%. It is a good choice for low-power gaming systems and lower-power workstation PCs where high reliability and silent operation are desirable. The air-based design ensures long-term durability with minimal risk and maintenance.
Cost-Effectiveness
In terms of performance per dollar, the Thermalright AXP90-X53 offers exceptional value for an air cooler, achieving 112.5% efficiency relative to the best-performing CPU cooler in the performance-per-price category. It stands out as an excellent choice for budget-conscious users seeking strong thermal performance.
General Information
| Manufacturer | Thermalright |
|---|---|
| Cooler Name | Thermalright AXP90-X53 |
| Current Price Amazon | $22 |
| Amazon Price Updated | 1 day, 8 hours ago. |
| Cooler Available | True |
Specification
| Cooler Type | Air |
|---|---|
| Socket Compatibility | LGA 1700, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1851, AM4, AM5 |
| CPU Block | Copper |
| Fan Size / Number | 92 mm / 1 fan/s |

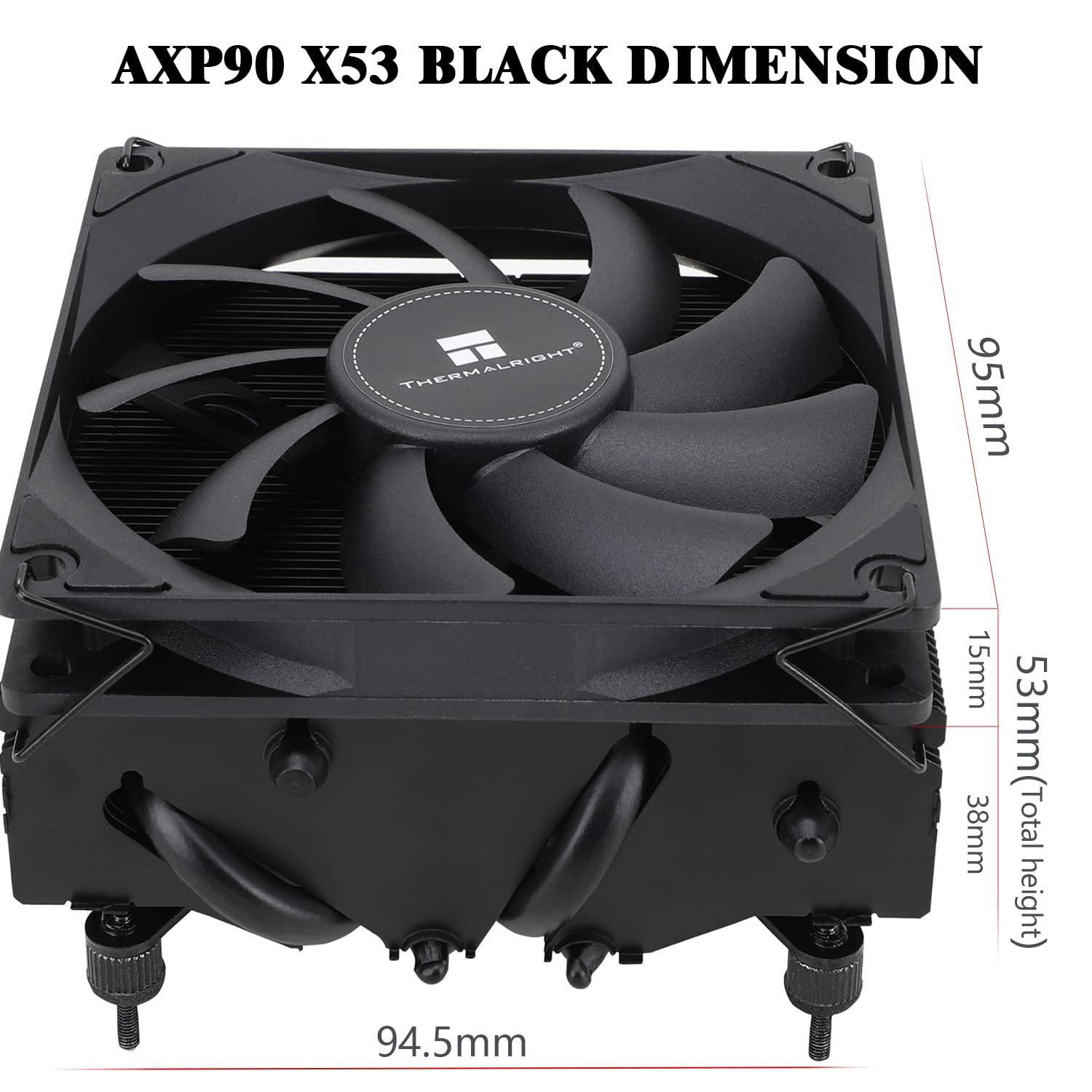

| Cooler Dimensions | 95 x 95 x 38 mm |

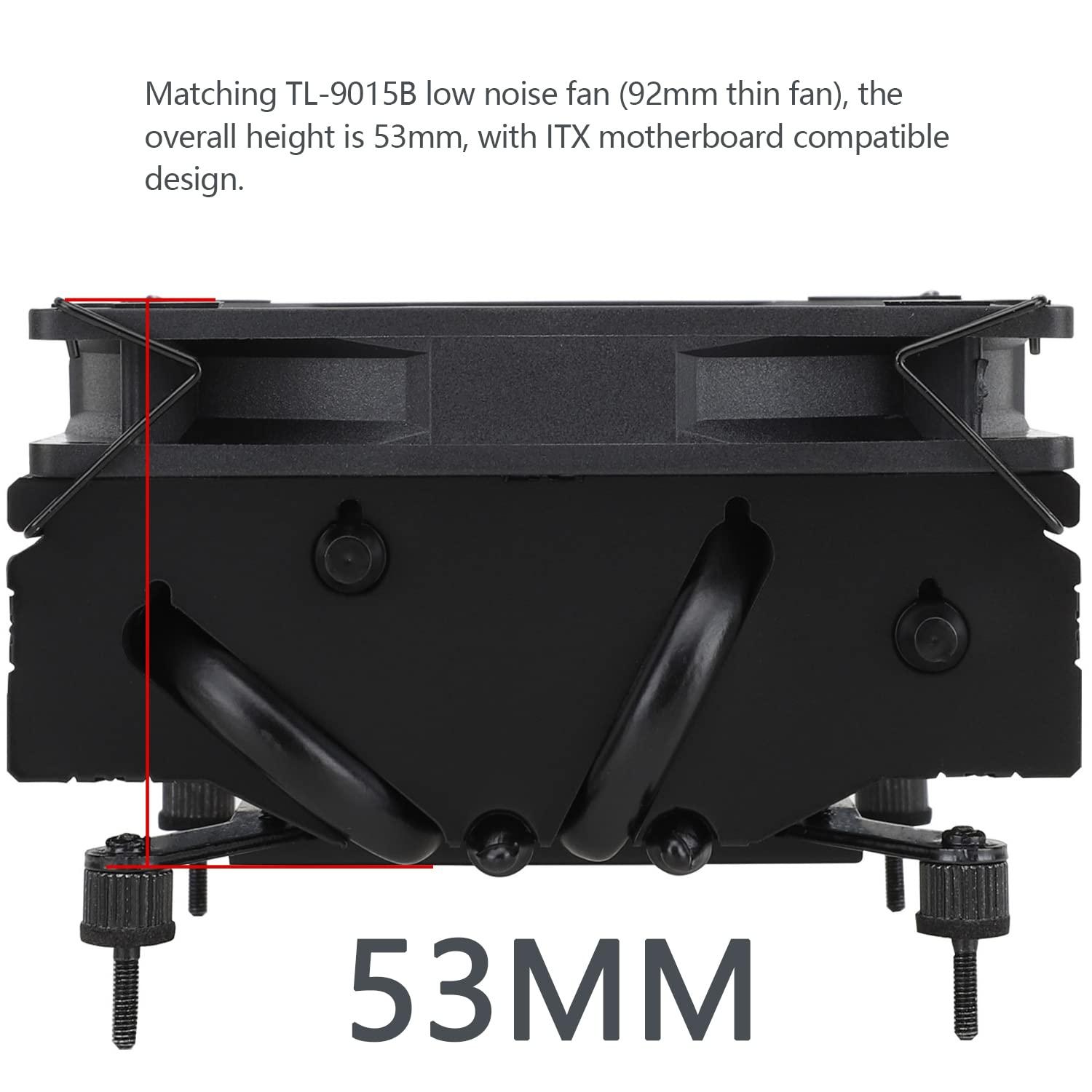

| Cooler Height | 53 mm |
| Warranty | 5 years |
Performance
| Fan Speed | 2700.0 rpm |
|---|---|
| Noise | 22.4 dBA |
| Airflow | 42.6 CFM |
| Relative Performance | 57.00% |
Thermalright AXP90-X53 Compared to CPU Coolers with Similar Performance
CPU Cooler Price / Performance Table
| CPU_Cooler (Desc) | Price (Desc) | Performance (Desc) | Perf/Price (Desc) |
|---|---|---|---|
|
$25
|
↓
-3.9%
|
58.0%
|
102.1%
|
|
|
$31
|
0.0%
|
58.0%
|
82.6%
|
|
|
$9
|
↓
-76.3%
|
58.0%
|
268.9%
|
|
|
$31
|
0.0%
|
58.0%
|
82.6%
|
|
|
$22
|
0.0%
|
57.0%
|
112.5%
|
|
|
$40
|
0.0%
|
55.0%
|
61.3%
|
|
|
$80
|
0.0%
|
55.0%
|
30.3%
|
|
|
$70
|
0.0%
|
55.0%
|
34.6%
|
|
|
$50
|
0.0%
|
53.0%
|
46.7%
|
CPU Cooler Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Price |
$25
↓
-3.9%
|
$31
0.0%
|
$9
↓
-76.3%
|
$31
0.0%
|
$22
0.0%
|
$40
0.0%
|
$80
0.0%
|
$70
0.0%
|
$50
0.0%
|
| Cooling Type | Air | Air | Air | Air | Air | Air | Air | Air | Air |
| Radiator Size | 123.9 x 76.1 x 162.9 mm | 123.5 x 120 x 52 mm | 159 x 120 x 75 mm | 123.5 x 120 x 52 mm | 95 x 95 x 38 mm | 92 x 92 x 30 | 51 x 95 x 95 mm | 51 x 95 x 95 mm | 23 x 114 x 114 mm |
| Height | 162 mm | 77 mm | 159 mm | 77 mm | 53 mm | 30 mm | 65 mm | 65 mm | 37 mm |
| Fan Specs | 120 mm / 2600 rpm / 74.0 CFM | 120 mm / 1800.0 rpm / 59.0 CFM | 120 mm / 2000 rpm / 73.0 CFM | 120 mm / 1800.0 rpm / 59.0 CFM | 92 mm / 2700.0 rpm / 42.6 CFM | 92 mm / 2500.0 rpm / 33.0 CFM | 92 mm / 2500.0 rpm / 29.72 CFM | 92 mm / 2500.0 rpm / 29.72 CFM | 92 mm / 2500.0 rpm / 29.72 CFM |
| Noise Level | 32.0 dBA | 26.1 dBA | 32.0 dBA | 26.1 dBA | 22.4 dBA | 30.6 dBA | 23.6 dBA | 23.6 dBA | 23.6 dBA |
| Sockets |
LGA 1851, LGA 1700, LGA 1200, LGA 1150, LGA 1155, LGA 1156, AM5, AM4,
|
LGA 1700, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1851, AM4, AM5
|
LGA 1851, LGA 1700, LGA 1200, LGA 1150, LGA 1155, LGA 1156, AM5, AM4,
|
LGA 1700, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1851, AM4, AM5
|
LGA 1700, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1851, AM4, AM5
|
1700 , 1200, 1150, 1151, 1155, AM4, AM5
|
AM5, AM4, LGA 1700, LGA 1851, LGA 1954, LGA 1156, LGA 1155, LGA 1150, LGA 1151, LGA 1200
|
AM5, AM4, LGA 1700, LGA 1851, LGA 1954, LGA 1156, LGA 1155, LGA 1150, LGA 1151, LGA 1200
|
AM5
|
| Warranty | 1 years | 5 years | 1 years | 5 years | 5 years | 3 years | 6 years | 6 years | 6 years |
CPU Cooler Specification Table
| CPU_Cooler (Desc) | Cooler Type | Radiator Size | Height | Fan Size/Speed/Airflow | Noise |
|---|---|---|---|---|---|
| Air | 123.9 x 76.1 x 162.9 mm | 162 mm | 120 mm / 2600 rpm / 74.0 CFM | 32.0 dBA | |
| Air | 123.5 x 120 x 52 mm | 77 mm | 120 mm / 1800.0 rpm / 59.0 CFM | 26.1 dBA | |
| Air | 159 x 120 x 75 mm | 159 mm | 120 mm / 2000 rpm / 73.0 CFM | 32.0 dBA | |
| Air | 123.5 x 120 x 52 mm | 77 mm | 120 mm / 1800.0 rpm / 59.0 CFM | 26.1 dBA | |
| Air | 95 x 95 x 38 mm | 53 mm | 92 mm / 2700.0 rpm / 42.6 CFM | 22.4 dBA | |
| Air | 92 x 92 x 30 | 30 mm | 92 mm / 2500.0 rpm / 33.0 CFM | 30.6 dBA | |
| Air | 51 x 95 x 95 mm | 65 mm | 92 mm / 2500.0 rpm / 29.72 CFM | 23.6 dBA | |
| Air | 51 x 95 x 95 mm | 65 mm | 92 mm / 2500.0 rpm / 29.72 CFM | 23.6 dBA | |
| Air | 23 x 114 x 114 mm | 37 mm | 92 mm / 2500.0 rpm / 29.72 CFM | 23.6 dBA |
