ASUS Dual Radeon™ RX 9060 XT 8GB GDDR6

Written analysis

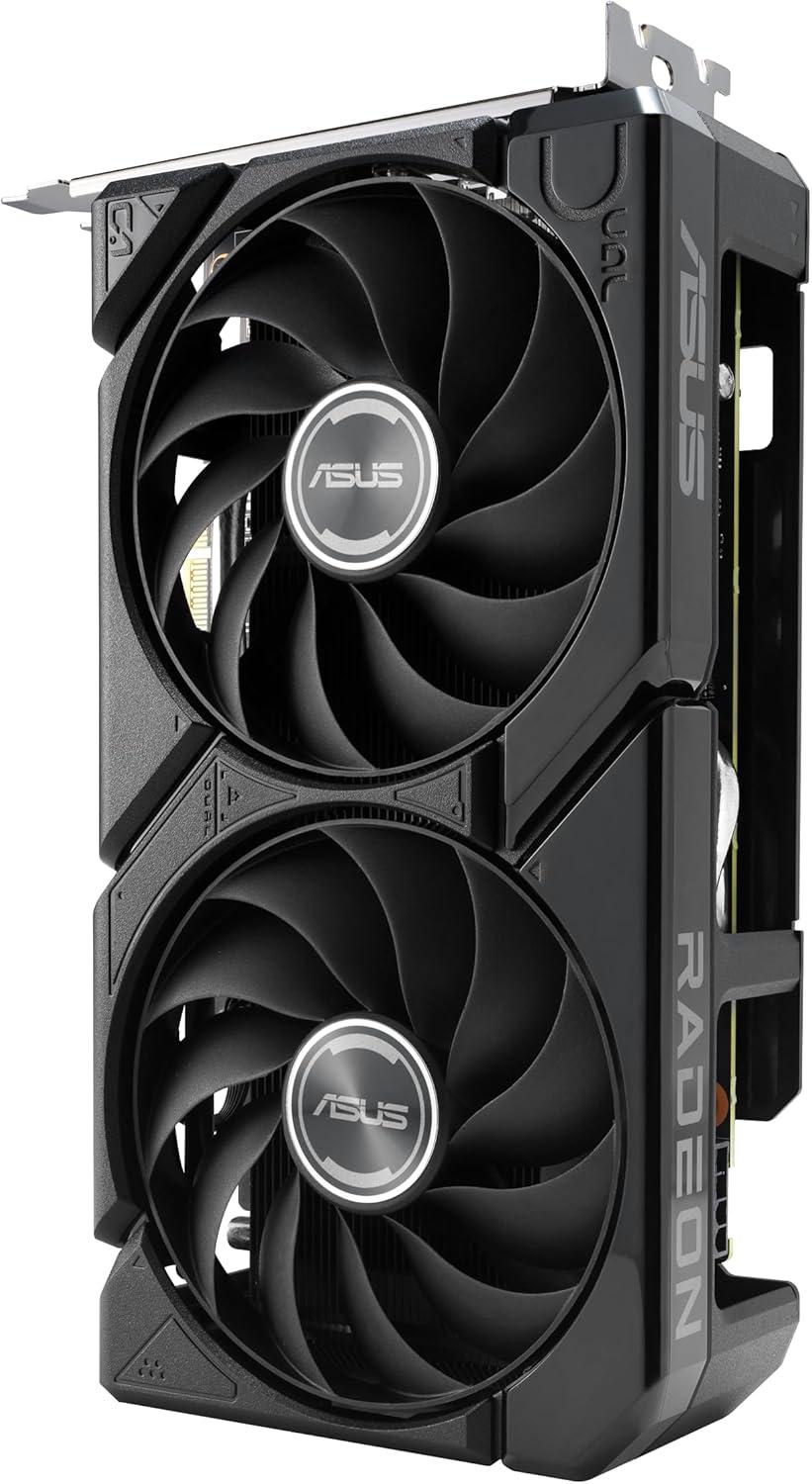

ASUS Dual Radeon™ RX 9060 XT 8GB GDDR6 at a glance

The ASUS Dual Radeon™ RX 9060 XT 8GB GDDR6 is a ASUS retail card of the RX 9060 XT 8GB on RDNA 4.0. It is not marked as a factory-overclocked board ; the GPU’s reference boost is 3130 MHz.

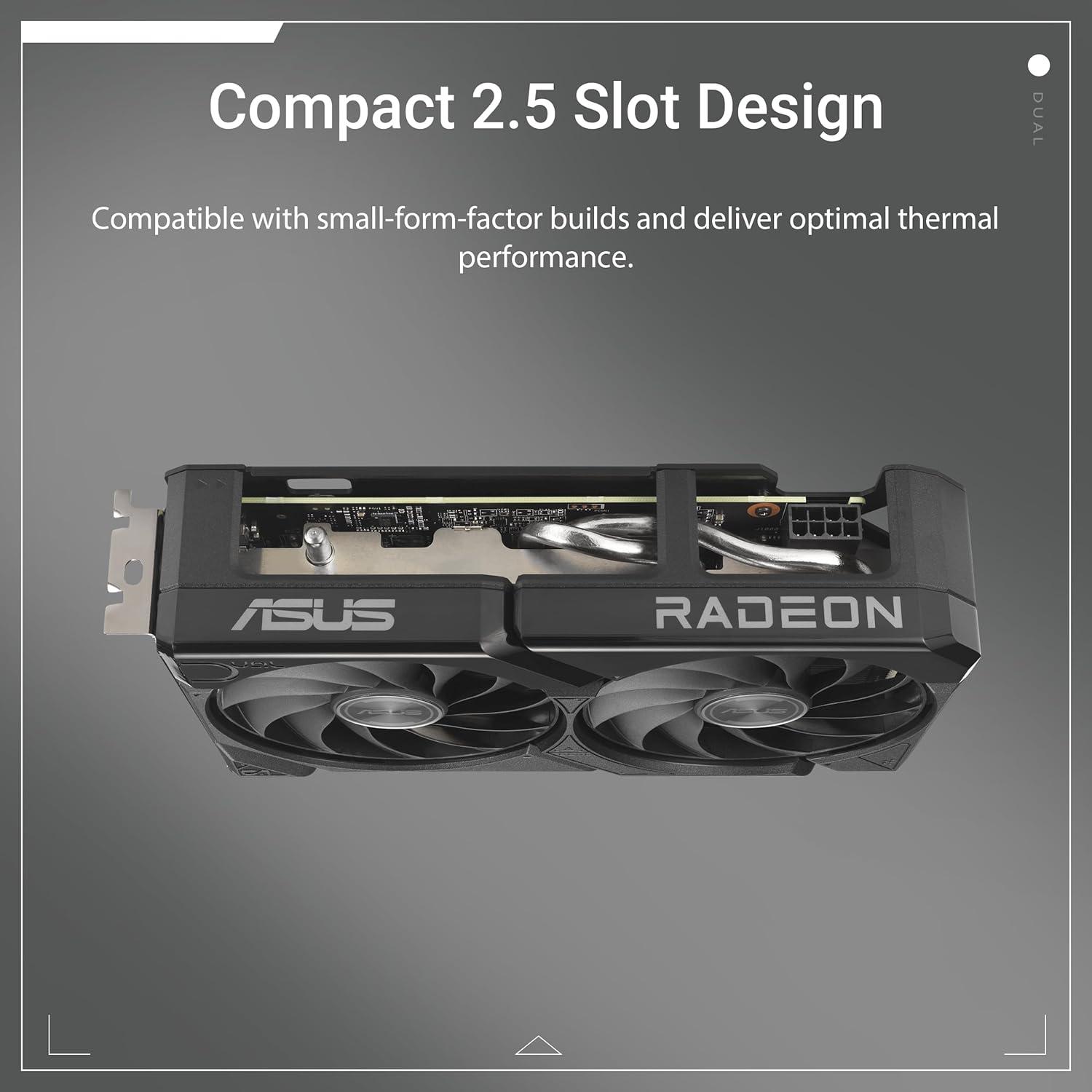

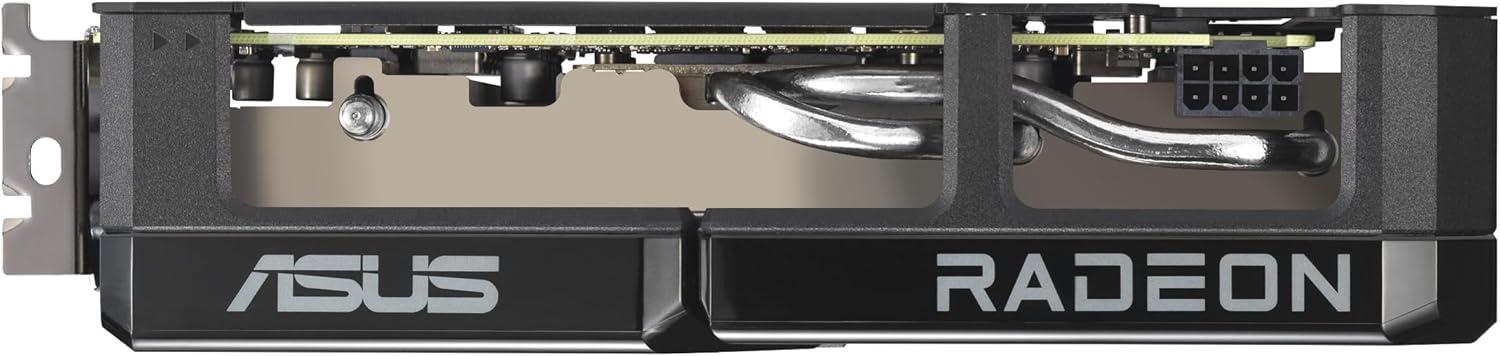

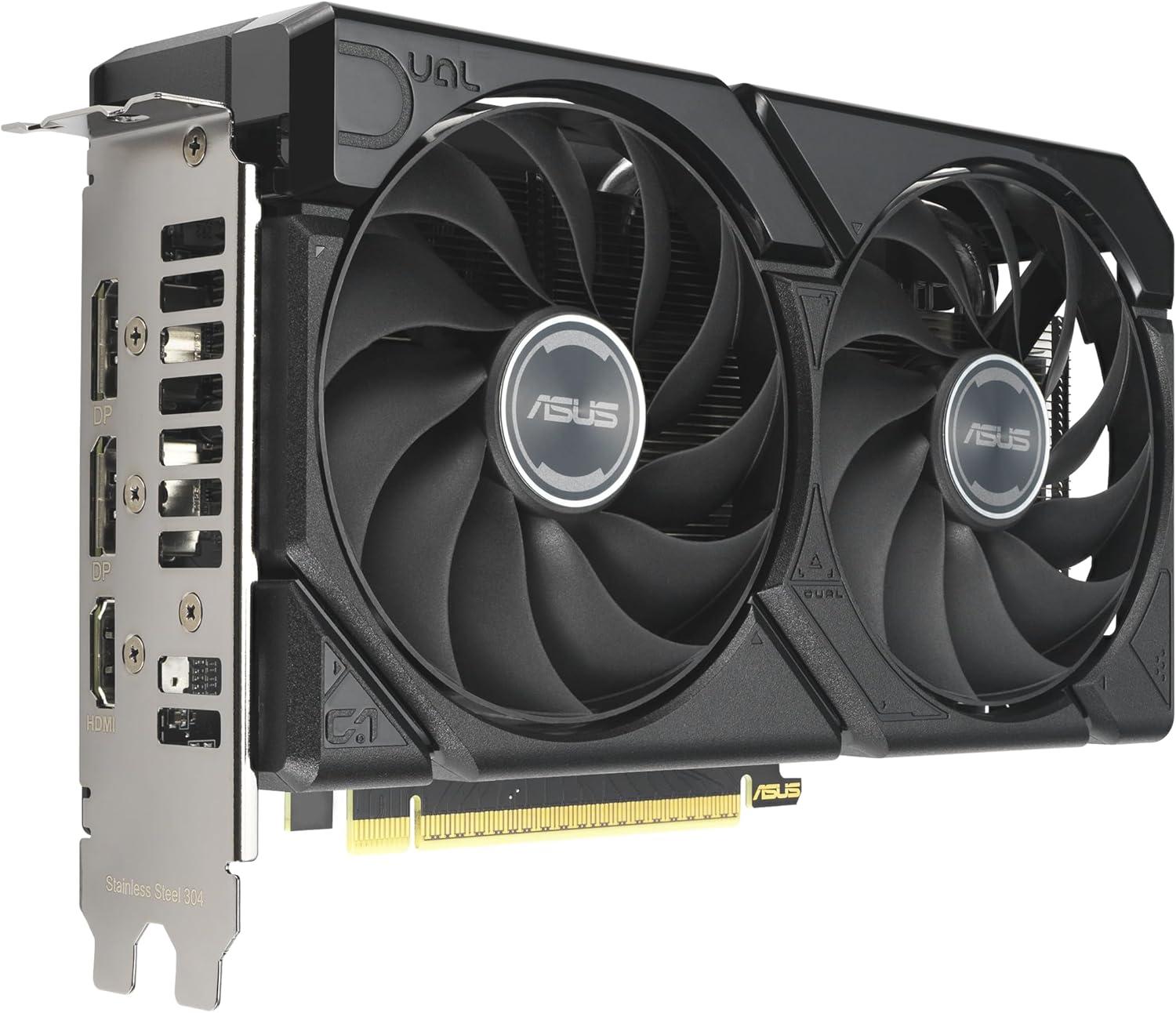

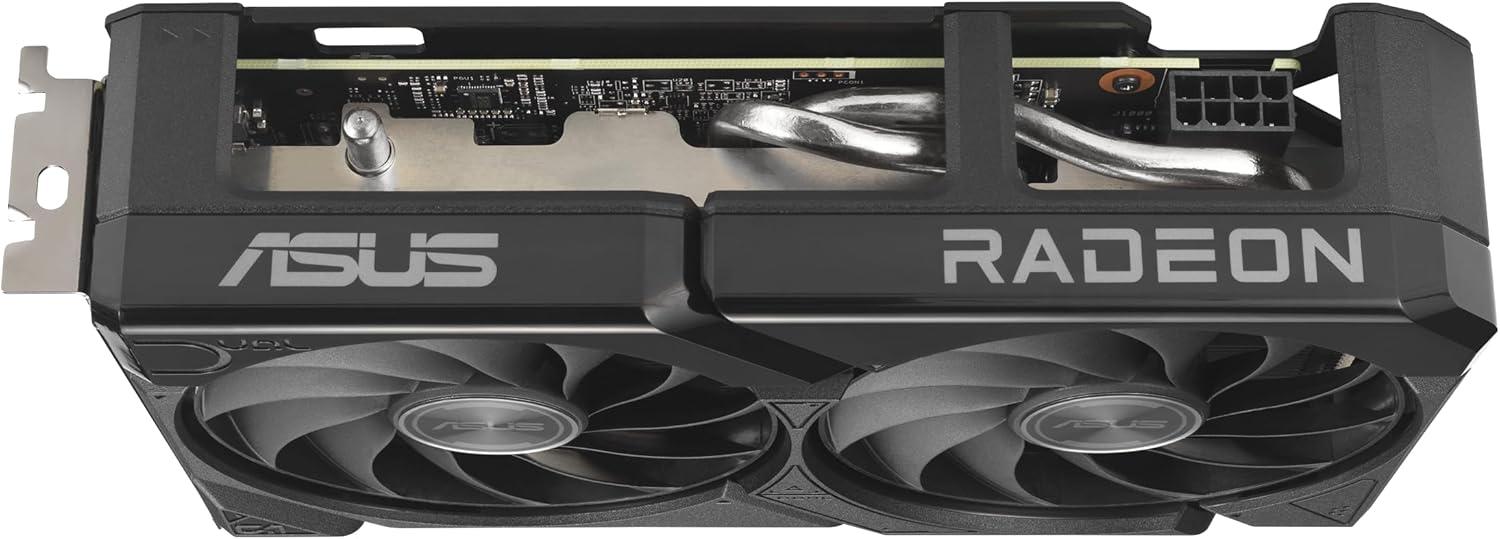

Length is 202 mm and it occupies 2.5 slots (202 x 120 x 49mm). Board power is 150 W with 8 pin x 1. Outputs: Yes x 1 (Native HDMI 2.1b) Yes x 2 (Native DisplayPort 2.1a). Warranty is 36 months.

This is a short card and is a better candidate for compact cases than most RX 9060 XT 8GB partners.

Best fit: Compact builds that need this GPU in a shorter board design, subject to slot-width clearance.

Inherited GPU performance

Raster scores come from the RX 9060 XT 8GB, not from this cooler. At 1440p that is 33.17% of the dataset’s best (budget), with 41% at 1080p and 26% at 4K. The chip uses 8 GB GDDR6.

This card’s 1440p value is excellent at 82.1 performance per dollar.

Compare other ASUS and partner boards of this GPU in the RX 9060 XT 8GB retail-card table.
