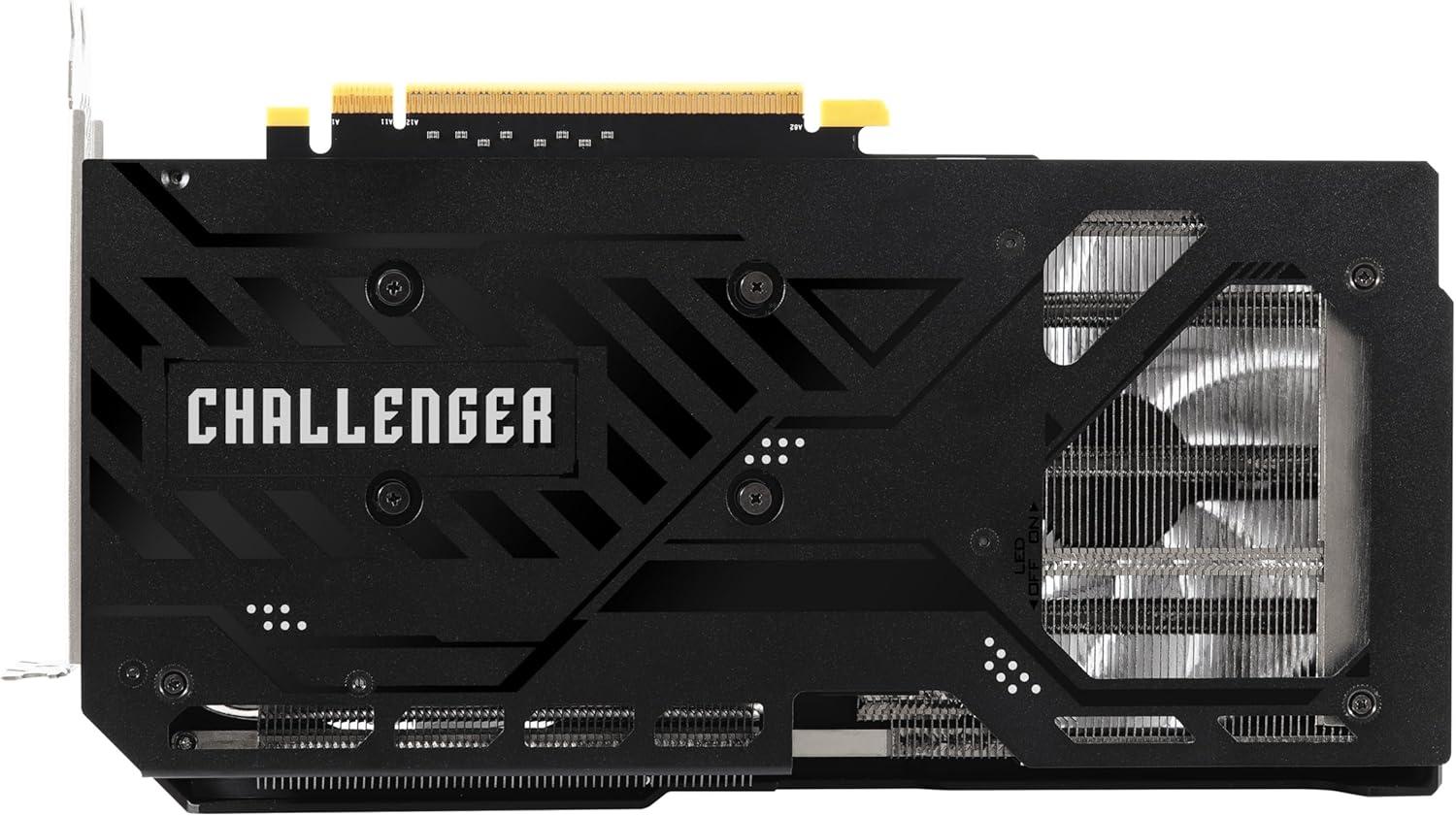

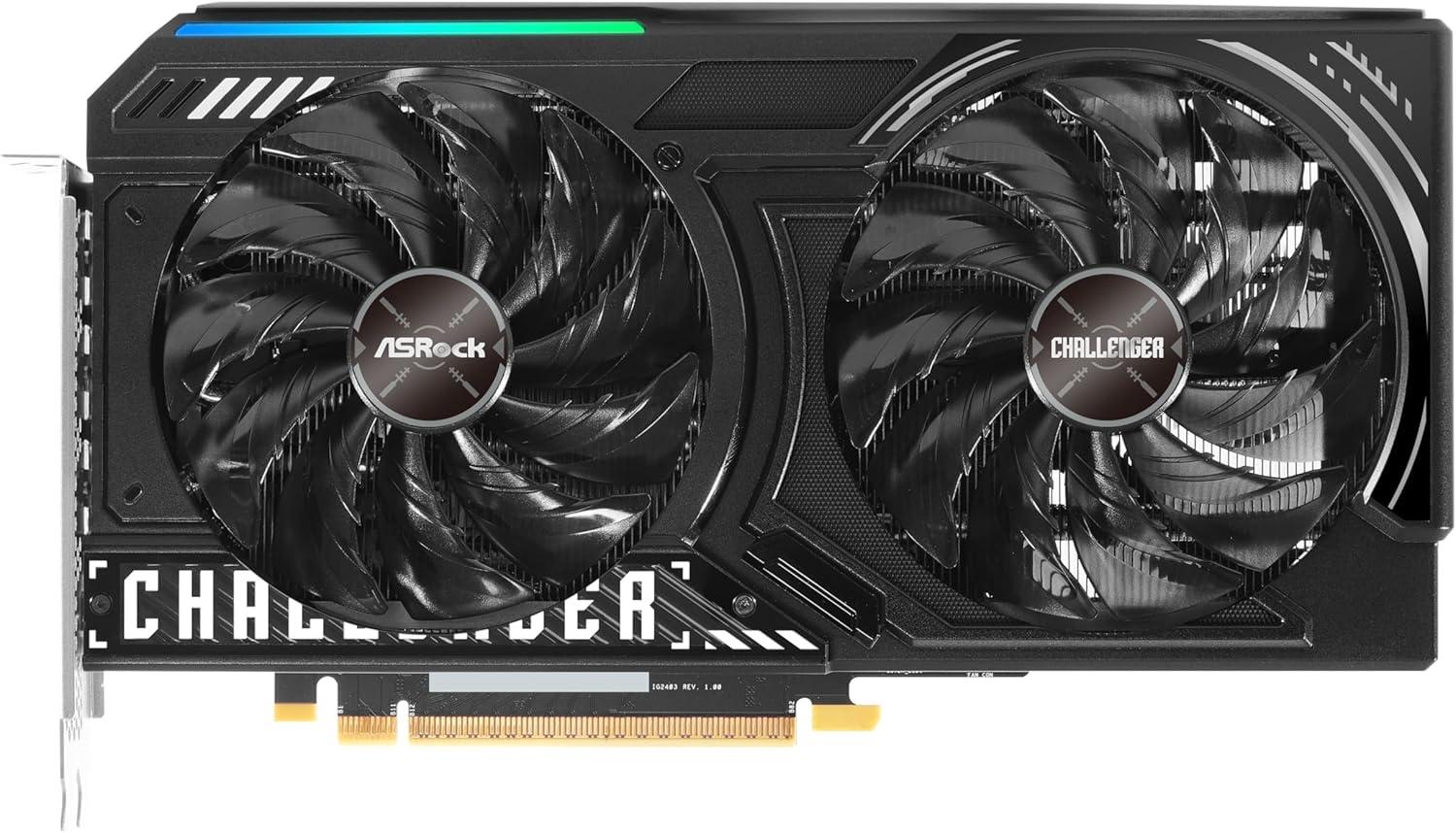

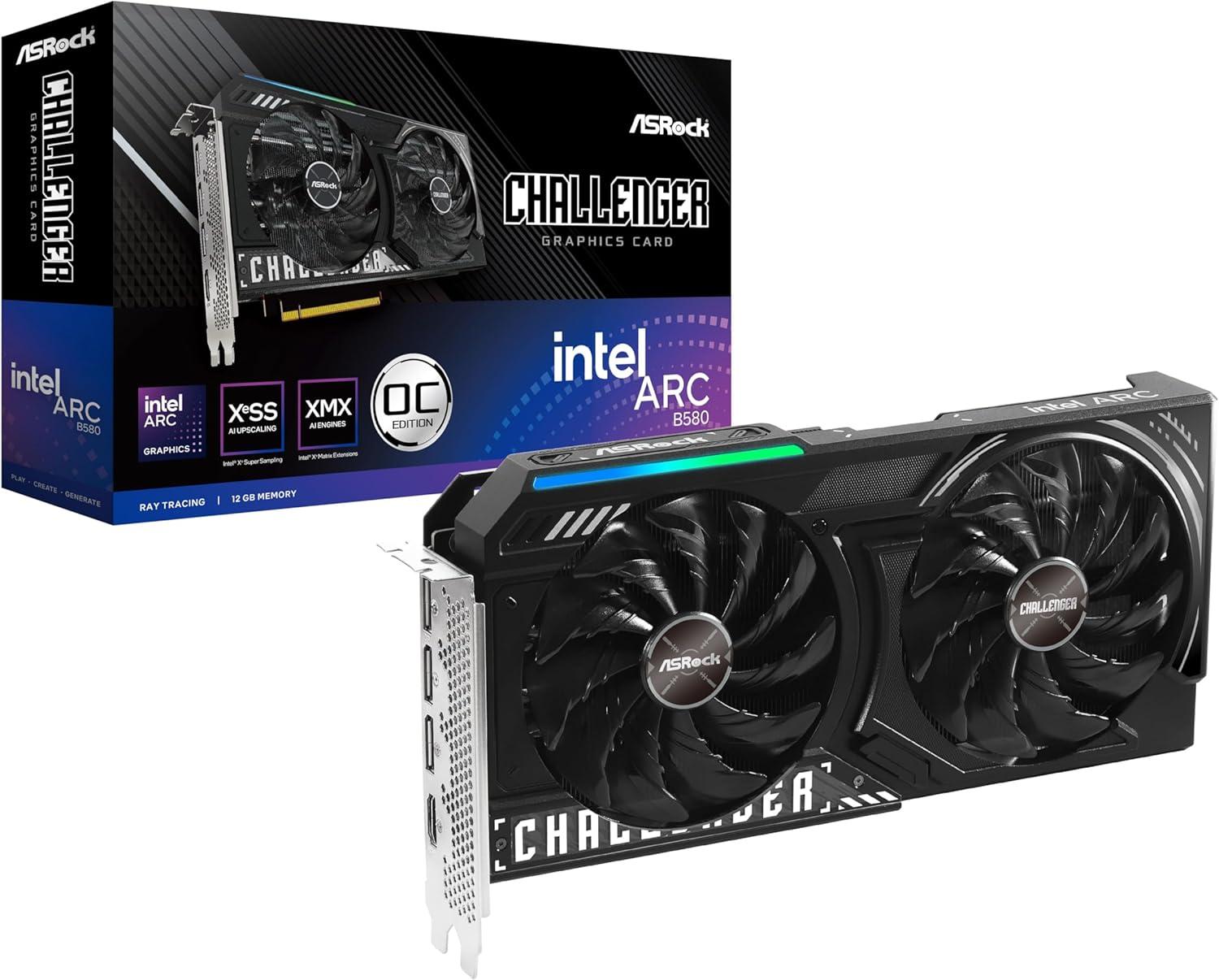

ASRock Intel Arc B580 Challenger 12GB OC

Written analysis

ASRock Intel Arc B580 Challenger 12GB OC at a glance

The ASRock Intel Arc B580 Challenger 12GB OC is a ASRock retail card of the Arc B580 on Xe2. It is not marked as a factory-overclocked board ; the GPU’s reference boost is 2670 MHz.

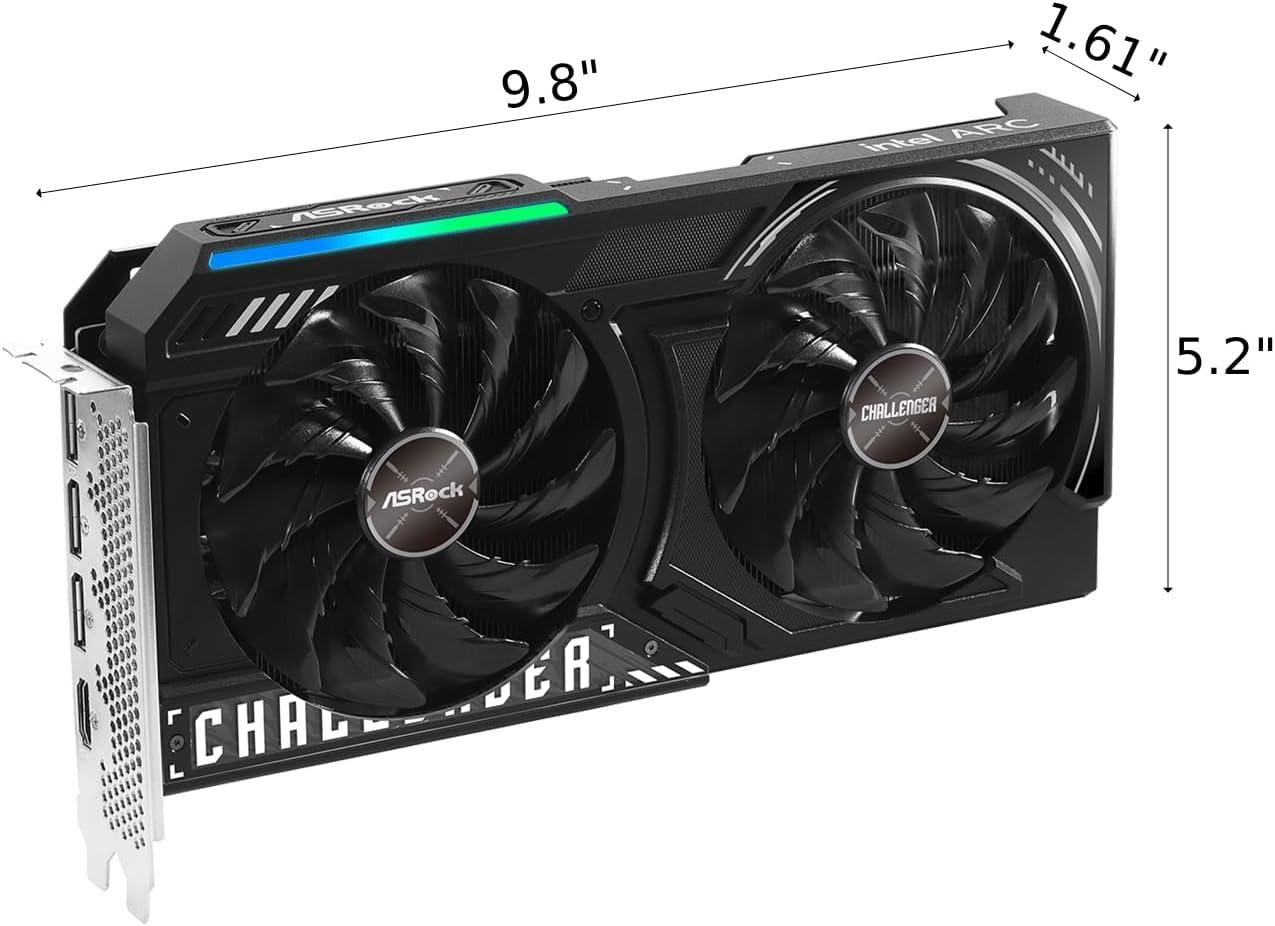

Length is 249 mm and it occupies 2.0 slots (249 mm (L) x 132 mm (W) x 41 mm (H)). Board power is 190 W with 1 x 8-pin. Outputs: 3x DisplayPort™ 2.1 / 1x HDMI™ 2.1a. Warranty is 36 months.

This is a short card and is a better candidate for compact cases than most Arc B580 partners.

Best fit: Compact builds that need this GPU in a shorter board design, subject to slot-width clearance.

Inherited GPU performance

Raster scores come from the Arc B580, not from this cooler. At 1440p that is 29.51% of the dataset’s best (budget), with 33% at 1080p and 25% at 4K. The chip uses 12 GB GDDR6.

This card’s 1440p value is excellent at 88.5 performance per dollar.

Compare other ASRock and partner boards of this GPU in the Arc B580 retail-card table.
