GIGABYTE · AM5 · B850

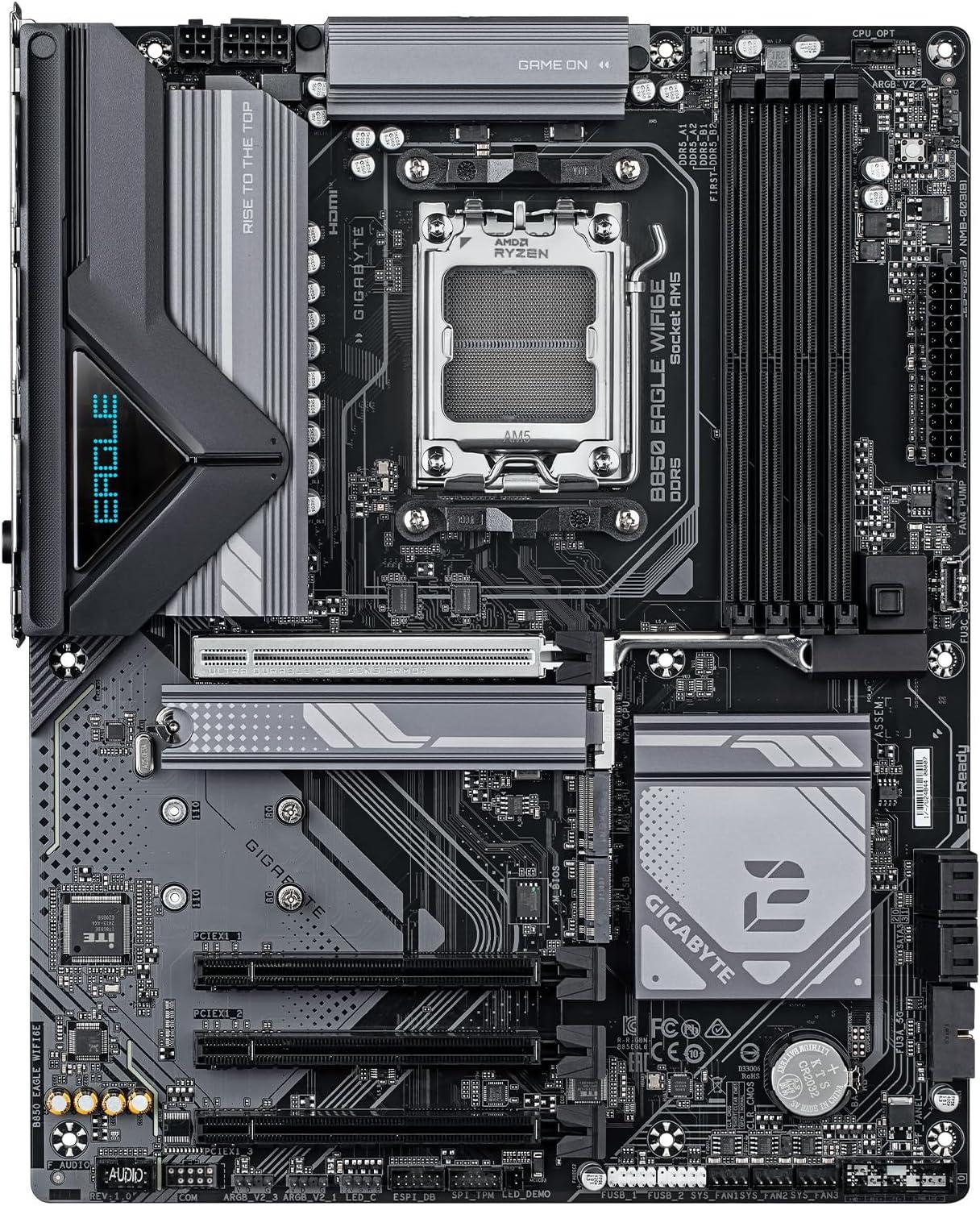

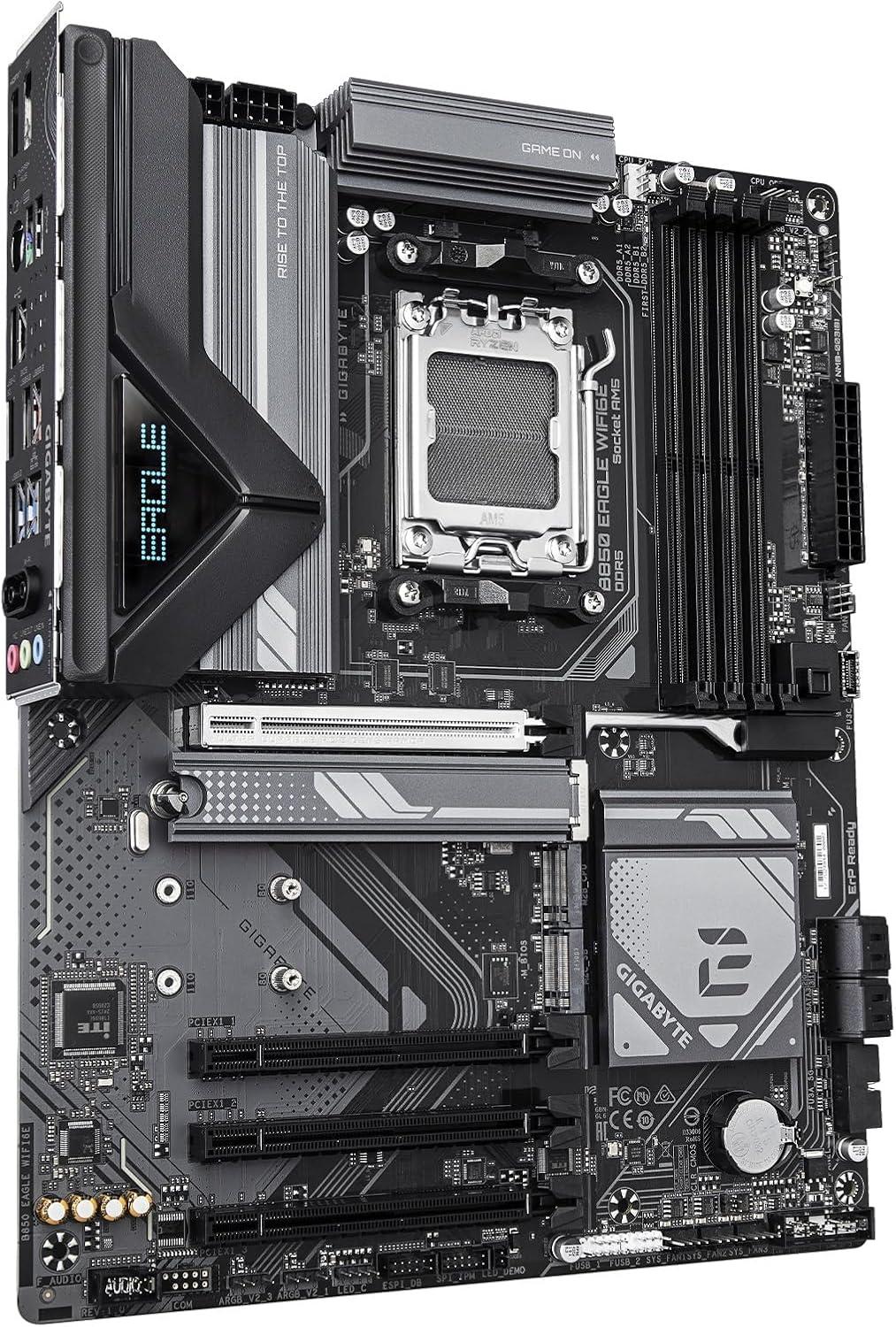

GIGABYTE B850 Eagle WIFI6E

ATX · DDR5 · 4 DIMMs · 8-phase VRM · 6E

Quality
56
VRM
24
Value
71
Amazon
$152
GIGABYTE B850 Eagle WIFI6E
View GIGABYTE B850 Eagle WIFI6E Gallery in high resolution
$152
Unavailable Updated 1 month ago Prime FBA
Overall56.4
VRM24.0
Chipset80.0
Expansion / storage84.0
Connectivity54.0
Audio40.0
Quality / price70.5
$152 on Amazon Motherboard table Compare this motherboard

Build with this motherboardSelect a CPU first so the Builder can confirm the socket and unlock this board. Choose the CPU first

Written analysis

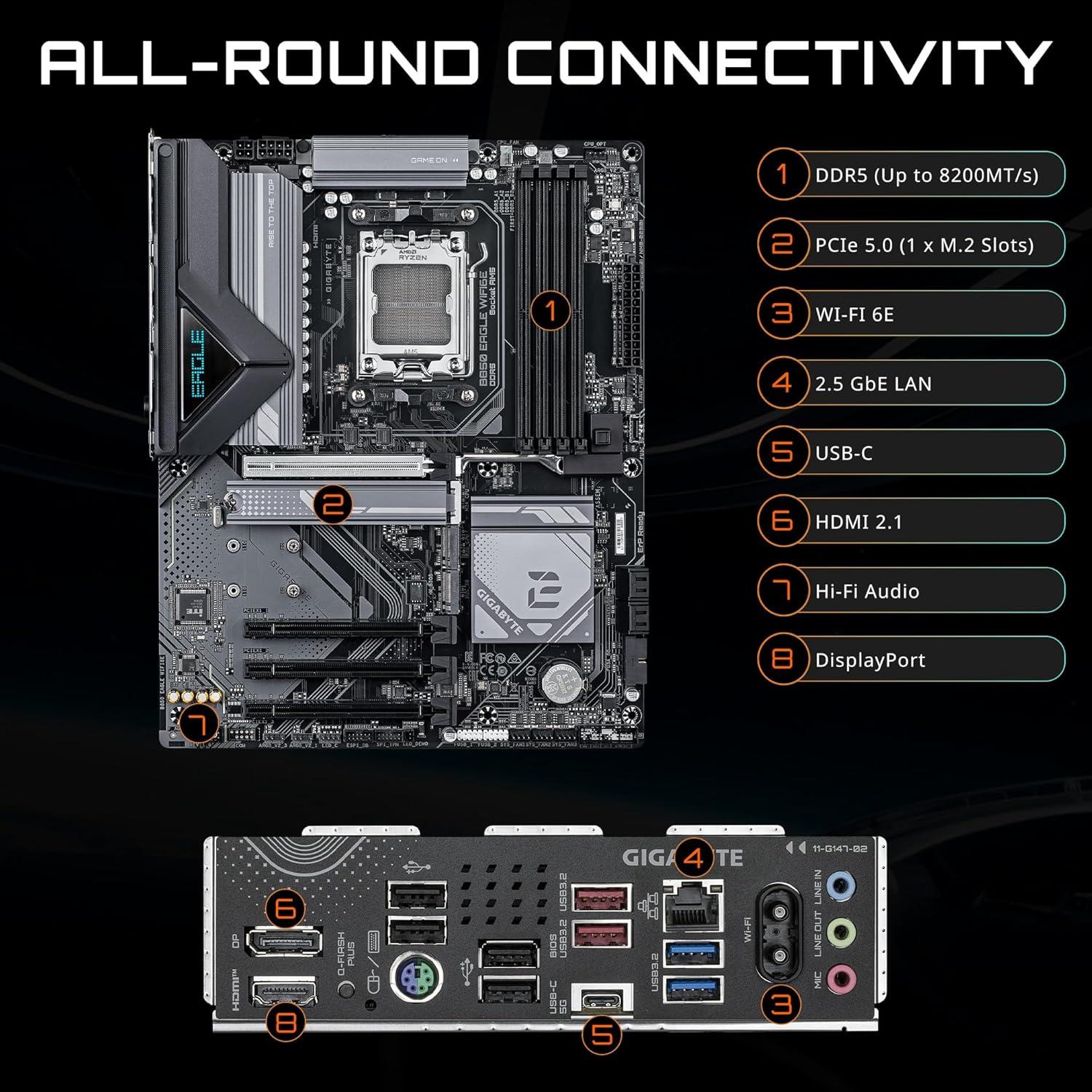

GIGABYTE B850 Eagle WIFI6E at a glance

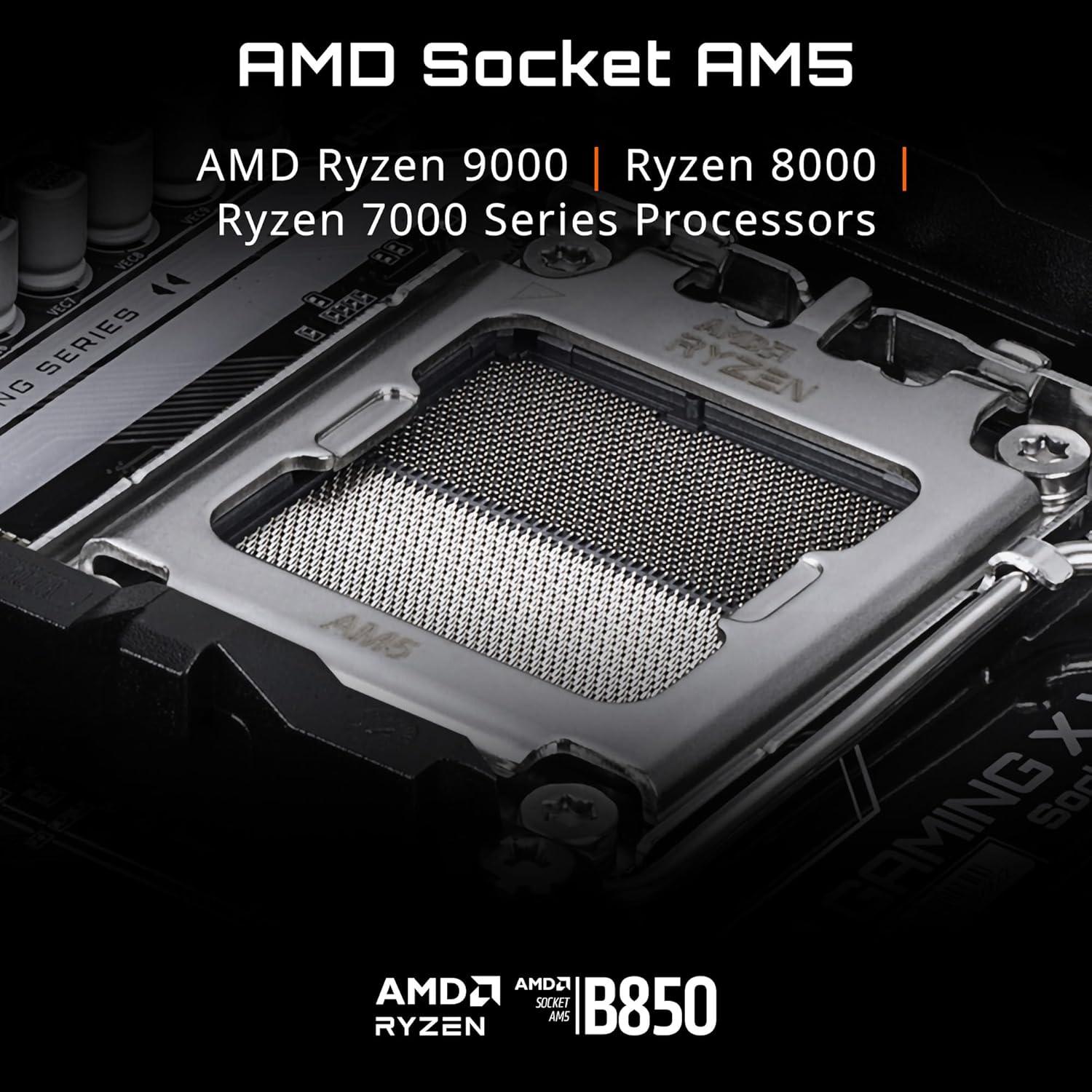

The GIGABYTE B850 Eagle WIFI6E uses the ATX form factor, AM5 socket, and B850 chipset. This is a balanced mainstream platform: enough expansion and connectivity for a performance PC without paying only for flagship extras.

Memory support is DDR5 across 4 DIMM slots, with up to 256 GB and rated overclocked speeds up to 8200 MT/s. XMP / EXPO memory-profile support is recorded for easier tuning.

Best fit: a mainstream gaming, home, or office system with moderate expansion needs.

Power delivery

The calculated VRM score is 24.0, placing the power delivery in the basic class. The board lists 8 CPU power phases, 60 A power stages in a 8+2+2 layout. CPU power input is listed as 2. Keep it paired with lower-power processors and avoid sustained overclocked loads.

Expansion and storage

The expansion and storage score is 84.0: well equipped . The platform supports PCIe 5.0. Physical expansion includes 4 ×16 slots.

On-board storage consists of 3 M.2 slots supporting 5.0, 4.0 and 4 SATA ports. Supported M.2 lengths are listed as 22110, 2280. That is enough NVMe capacity for a multi-drive gaming or creator setup without immediately relying on an add-in card.

Connectivity and rear I/O

The connectivity score is 54.0, rated adequate . Wireless networking is Wi-Fi 6E ; wired networking is Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) at up to 1000 Mbps. Bluetooth 5.3 is included. The recorded USB provision is 9 rear connections and 7 front-panel connections. The specification sheet below separates every USB speed and connector type.

Display connectivity includes HDMI 2.1, DisplayPort 1.4. These motherboard outputs require a processor with integrated graphics.

Audio

The audio score is 40.0. This is a standard onboard solution using Realtek® Audio CODEC. It covers normal gaming and communication; demanding headphones or production work still benefit from an external interface. The rear panel has 3 analogue jacks.

Buying verdict

Overall quality is 56.40, a mainstream result. The essential platform features are covered, while premium I/O and tuning extras are more selective.

At the recorded Amazon price, the quality-to-price score is 70.5—an excellent value relative to the other boards in the catalog.

Board data

Full specifications

Platform, expansion, storage, rear I/O, internal headers, networking, audio, and board controls in one sheet.

General

Manufacturer
GIGABYTE
Motherboard
GIGABYTE B850 Eagle WIFI6E
Chipset / socket
B850 / AM5
Form factor
ATX
Launch price
—
Amazon price
$152
Availability
Unavailable
Price updated
1 month ago

VRM

CPU phases
8 (60 A)
Power design
8+2+2
EPS connector
2

Memory

Type / slots
DDR5 / 4 DIMMs
Max capacity / OC
256 GB / 8200 MT/s
Per DIMM
64 GB
XMP / EXPO
Yes

PCIe

Supported version
PCIe 5.0
x16 physical
4
x16 Gen 5
1
x16 Gen 3
3

Storage

M.2 slots
3
M.2 lengths
22110, 2280
M.2 modes
5.0, 4.0
SATA ports
4

Display outputs

HDMI
Yes · 2.1 · 4096x2160@60 Hz
DisplayPort
Yes · 1.4 · 3840x2160@144 Hz
USB-C DisplayPort
No

USB

Rear USB 2.0
4
Rear USB 3.2 Gen 1 Type-A 5 Gbps
2
Rear USB 3.2 Gen 1 Type-C 5 Gbps
1
Rear USB 3.2 Gen 2 Type-A 10 Gbps
2
Front USB 2.0
4
Front USB 3.2 Gen 1 Type-A 5 Gbps
2
Front USB 3.2 Gen 1 Type-C 5 Gbps
1
Header USB 2.0
4
Header USB 3.2 Gen 1 Type-A 5 Gbps
2

Networking

Ethernet
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
LAN ports
1
LAN speed
1000 Mbps
Wi-Fi
6E
Wi-Fi bandwidth
160MHz
Bands
2.4/5/6 GHz
Antenna connectors
2
Bluetooth
5.3

Audio

Chipset
Realtek® Audio CODEC
Analog jacks
3
Gold-plated jacks
No
Optical S/PDIF
No
Spatial audio
No

Buttons

BIOS flashback
No
Clear CMOS
No
Q-Flash Plus
Yes
Smart button
No
Onboard start / reset
Reset

Additional information

Memory notes
Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Also supports AMD EXtended Profiles for Overclocking (AMD EXPO™). The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to the 'Memory Support List' on GIGABYTE's website for more information.
Display notes
Integrated Graphics Processor with AMD Radeon™ Graphics support. DisplayPort supports HDR. HDMI supports HDCP 2.3, HDR, and native HDMI 2.1 TMDS compatible ports. Graphics specifications may vary depending on CPU support.
Expansion notes
The primary PCIEX16 slot's mode is dependent on the installed CPU: Ryzen 9000/7000 Series support PCIe 5.0 x16 mode, Ryzen 8000 Series-Phoenix 1 support PCIe 4.0 x8 mode, and Ryzen 8000 Series-Phoenix 2 support PCIe 4.0 x4 mode. The three other physical x16 slots are from the chipset, supporting PCIe 3.0 and running at x1 speed.
M2A_CPU
5.0 4 · 22110, 2280 · CPU — Supported mode depends on the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 1/2 Processors support PCIe 4.0 x4/x2 SSDs.
M2B_CPU
4.0 4 · 22110, 2280 · CPU — Supported mode depends on the CPU: AMD Ryzen™ 9000/7000/8000-Phoenix 1 Series Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs.
M2C_SB
4.0 2 · 22110, 2280 · Chipset
RAID
SATA / PCIe (0, 1, 5, 10 (NVMe); 0, 1, 10 (SATA))
Storage notes
RAID 5 for NVMe SSD storage devices is only available on AMD Ryzen™ 9000 Series Processors.
USB notes
The 4 internal USB 2.0 ports are provided via a Chipset+USB 2.0 Hub.
Audio notes
High Definition Audio, 2/4/5.1/7.1-channel support. The functionality of an audio jack can be changed using the audio software to configure 7.1-channel audio.
Networking notes
Wi-Fi module varies by PCB revision: Intel® Wi-Fi 6E AX210 (rev. 1.0) or Realtek® Wi-Fi 6E RTL8852CE (rev. 1.1). Actual data rate may vary depending on environment and equipment.
Button notes
The board includes a reset button. It also features a reset jumper and a Clear CMOS jumper.
Fan / RGB headers
1 CPU · 1 OPT · 2 AIO · 4 chassis · 3 ARGB · 1 RGB
Other headers
Front audio · System panel · TPM
Dimensions
30.5 cm x 24.4 cm

Extracted notes sit here. Official manufacturer copy is at the bottom of the page.

Amazon

Price history

Nearby quality

Similar motherboards

Boards on AM5 close to GIGABYTE B850 Eagle WIFI6E on overall quality. Open the motherboard table to sort, filter, and compare side by side.

Compare these in the motherboard table

VRM fit

VRM-appropriate CPUs

AM5 processors whose TDP sits in this board’s VRM window. Socket match is required; chipset extras still matter on sTR5. This is a power-delivery filter, not a ranked CPU guide.

Open AM5 CPUs in the CPU table

Discussion

Comments on GIGABYTE B850 Eagle WIFI6E

No comments yet.

Vendor copy

Official manufacturer data

Raw manufacturer text kept for reference. Structured specs above are extracted from this copy and are the source for scores and tables.

Memory

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)

Expansion slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)

Storage

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

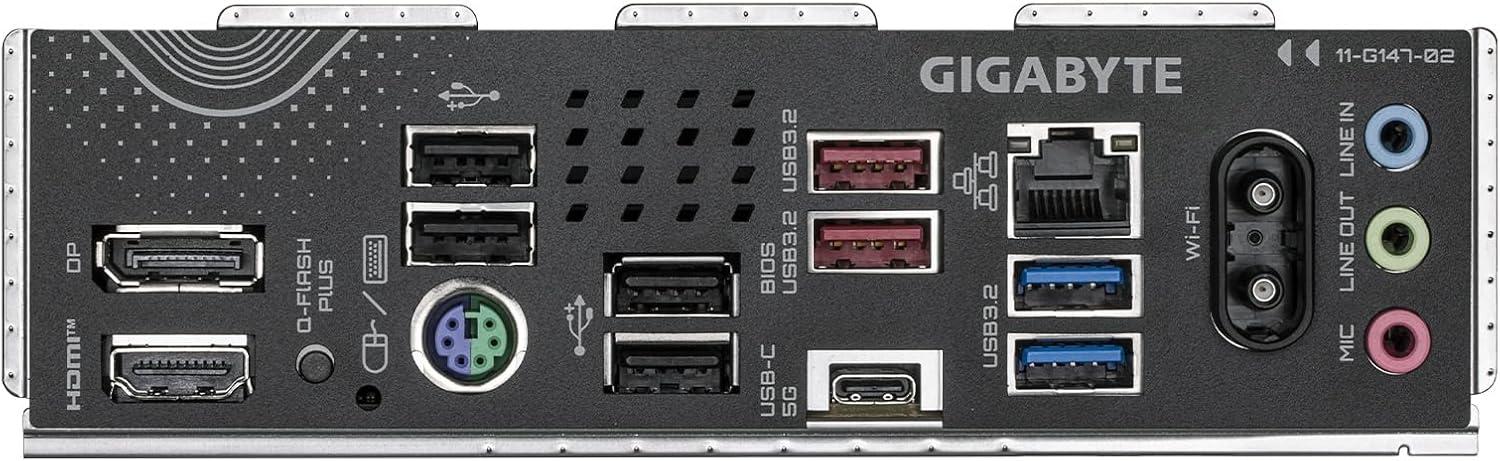

Rear I/O

1 x DisplayPort*
1 x HDMI port*
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x RJ-45 port
2 x USB 3.2 Gen 1 ports
2 x antenna connectors (2T2R)
3 x audio jacks

* Actual support may vary by CPU.

Wireless

Intel® Wi-Fi 6E AX210 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard

Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Special features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
