TUF GAMING B850M-E WIFI
TUF GAMING B850M-E WIFI Specifications Review

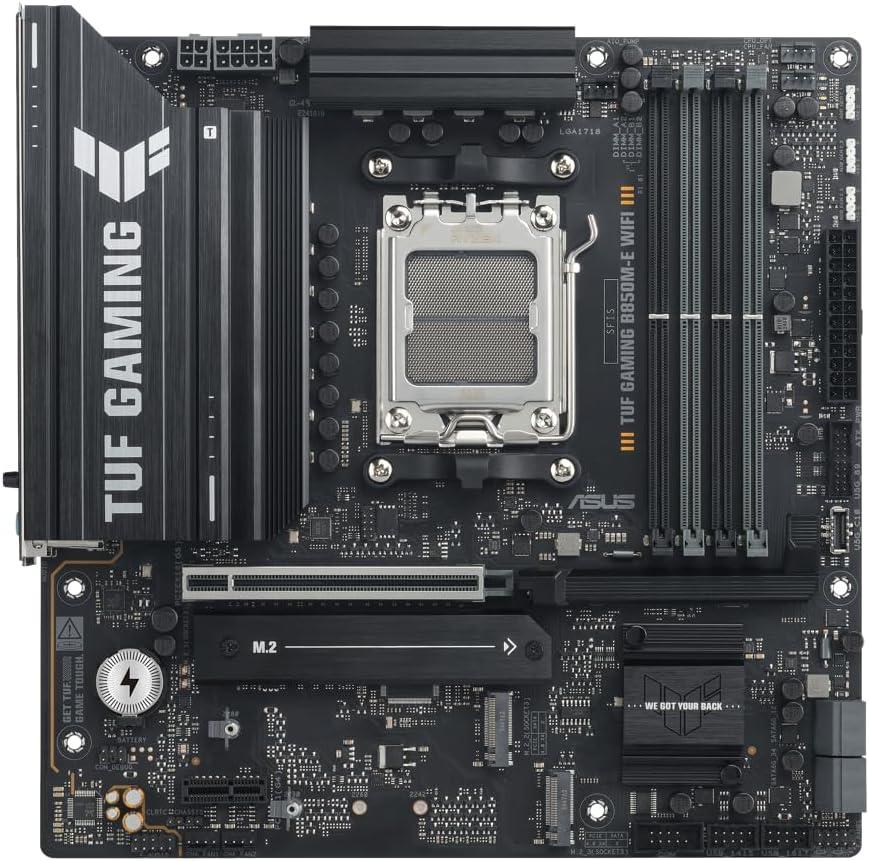

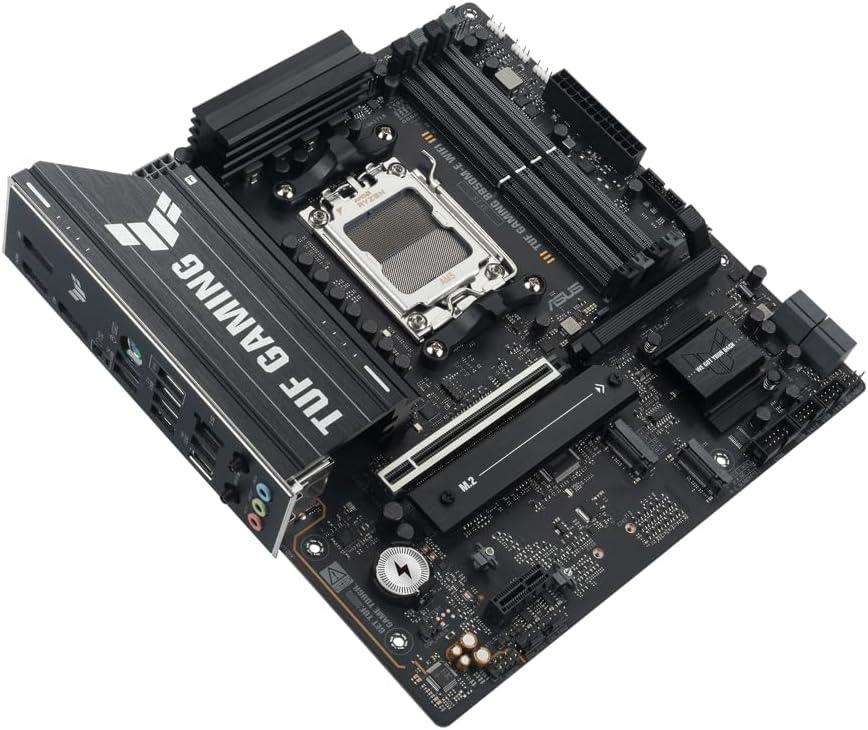

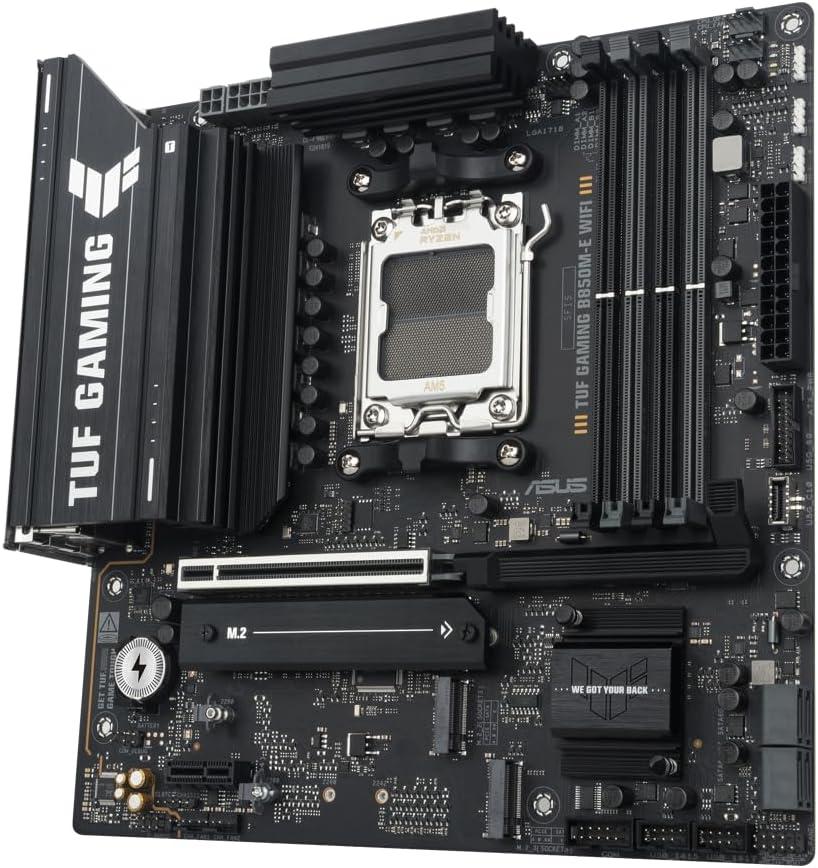

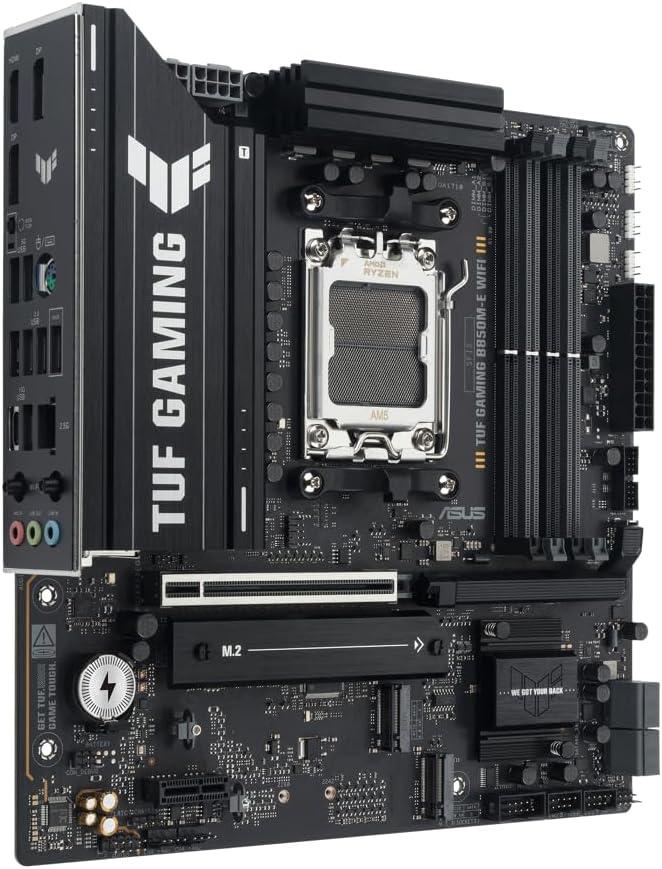

TUF GAMING B850M-E WIFI by ASUS is a Micro-ATX form factor motherboard based on the mid-range AMD B850 Chipset chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8000 MHz. It features channels, a voltage of V and supports Error-Correcting Code (ECC) memory.
VRM Quality
The TUF GAMING B850M-E WIFI comes with an entry-level VRM setup, delivering 80 A across 8 phases. Works best with CPUs in the ~65–105 W TDP range. Can technically run higher-TDP processors at stock, but will likely experience thermal throttling under sustained heavy loads. Suited for budget gaming, office PCs, and home builds without heavy CPU demands.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The TUF GAMING B850M-E WIFI offers a balanced expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 1 x16 slot , and 1 x1 slot. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 3 M.2 slots (PCIe 5.0, PCIe 4.0) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wireless networking with the wireless Wi-Fi 6E (802.11ax) and wired 1 x Realtek 2.5Gb EthernetTUF LANGuard ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek 7.1 Surround Sound High Definition Audio CODEC*) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
TUF GAMING B850M-E WIFI is a dependable choice with a respectable overall quality score of 56.20. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard has a solid 64.5% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | TUF GAMING B850M-E WIFI |
| Current Price Amazon | $166 |
| Amazon Price Updated | 1Â minute ago. |
| Motherboard Available | True |
| Chipset / Socket | AMD B850 Chipset / AM5 |
| Form Factor | Micro-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 8 (80 A) |
|---|---|
| Power Design | 8 + 2 + 1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8000 MHz |
| ECC Support | ✔️ ECC (Error-Correcting Code) Supported |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 1 | 1 | 0 |
| x1 | 1 | 0 | 1 |
Storage Configuration
| M.2 Slot Count | 3 slots |
|---|---|
| M.2 Supported Lengths | 2242, 2260, 2280 |
| M.2 PCIe Modes | PCIe 5.0, PCIe 4.0 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
|---|---|
| Analog Audio Jacks | 3 jacks |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 8K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 1 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Front USB Ports
| USB 3.2 Gen 1 Type-C (5 Gbps) | 1 |
|---|
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: 1 x Realtek 2.5Gb EthernetTUF LANGuard LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 6E (802.11ax) Frequency Bands: 2.4 GHz / 5 GHz / 6 GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS |
|---|
Quality & Features
Additional Information
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
|---|---|
| OS Support | Windows 11 Â (22H2 & later), Windows 10 64-bit(21H2 & later) |
| RAM | Supports AMD EXPO (Extended Profiles for Overclocking) and ASUS Enhanced Memory Profile (AEMP). Supported memory types, speeds, and number of DRAM modules vary by CPU and memory configuration (refer to CPU/Memory Support list on the product support site); adjustments may be made based on mass-produced memory product specifications. Maximum OC speeds listed (8000+ MT/s) apply with Ryzen 9000, 8000, and 7000 Series processors. Non-ECC un-buffered DDR5 also supports On-Die ECC function. |
| Display | 2 x DisplayPort and 1 x HDMI port. Graphics specifications may vary between CPU types—refer to AMD CPU specifications. No DisplayPort over USB-C is indicated in the provided text. |
| Expansion | Maximum supported PCIe generation is PCIe 5.0 (approx. ~4 GB/s per lane, ~64 GB/s for an x16 slot), backward compatible with earlier PCIe versions. The board has one physical x16 slot (counts as PCIe 5.0 x16 at its highest capability) and one PCIe 4.0 x1 slot. Note: the x16 slot’s actual generation and lane configuration depend on the CPU: with AMD Ryzen 9000/7000 it provides PCIe 5.0 x16; with AMD Ryzen 8000 it is PCIe 4.0 x16 and may operate in x8/x4 mode. Refer to the PCIe bifurcation table and ASUS support for detailed lane bifurcation, bandwidth-sharing, and CPU-specific limitations: https://www.asus.com/support/FAQ/1037507/. |
| Storage |
M.2 Slot Details:
Total: 3 M.2 slots and 4 SATA 6Gb/s ports. M.2_1 and M.2_2 are CPU-provided and their PCIe version/lanes vary by CPU family; M.2_3 is provided by the B650 chipset. AMD RAIDXpert2 technology supported; specifications vary by CPU types. |
| Audio | Supports jack-detection, multi-streaming, front panel jack-retasking; up to 24‑Bit/192 kHz playback. Audio shielding, premium audio capacitors, dedicated audio PCB layers. Note: a chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Networking | On-board Realtek 2.5Gb Ethernet with TUF LANGuard. Wi‑Fi is 2x2 Wi‑Fi 6E; 6 GHz support and regulatory availability may vary by country and requires Windows 11 or later. 1 x Wi‑Fi module listed. Bluetooth version may vary; refer to the Wi‑Fi module manufacturer's website. Ethernet entry appears listed twice in source (likely a single Realtek 2.5Gb port). |
| Buttons | Rear I/O and headers: 2x USB 10Gbps (1 Type-A, 1 Type-C), 2x USB 5Gbps (Type-A), 4x USB 2.0 (Type-A), 2x DisplayPort, 1x HDMI, Wi‑Fi module, Realtek 2.5Gb Ethernet, 3 audio jacks, 1 PS/2 combo. Onboard headers: 1x USB 5Gbps connector (supports Type-C), 1x USB 5Gbps header (adds 2x USB 5Gbps), 2x USB 2.0 headers (add 4x USB2.0). Cooling: 1x 4‑pin CPU fan, 1x 4‑pin CPU OPT fan, 1x 4‑pin AIO pump, 2x 4‑pin chassis fans. Power: 1x 24‑pin main, 1x 8‑pin +12V CPU, 1x 4‑pin +12V CPU. Storage: 3x M.2 (Key M), 4x SATA 6Gb/s. Miscellaneous headers: 3x Addressable RGB Gen2, COM port header, Front Panel Audio (F_AUDIO), 10‑1 front panel system header, Chassis Intrusion header. No Smart button or Q-Flash Plus button mentioned. |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x TUF Gaming sticker 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide |
| Dimensions | micro-ATX Form Factor9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
TUF GAMING B850M-E WIFI Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$288
|
0.0%
|
58.0%
|
37.0%
|
80.0%
|
71.0%
|
62.0%
|
40.0%
|
38.3%
|
|
|
$180
|
↑
0.2%
|
57.8%
|
25.0%
|
84.0%
|
81.0%
|
54.0%
|
45.0%
|
61.0%
|
|
|
$147
|
0.0%
|
56.6%
|
22.0%
|
86.0%
|
74.0%
|
56.0%
|
45.0%
|
73.4%
|
|
|
$138âť—
|
↓
-13.7%
|
56.4%
|
24.0%
|
80.0%
|
84.0%
|
54.0%
|
40.0%
|
77.7%
|
|
|
$162
|
↑
2.6%
|
56.2%
|
25.0%
|
73.0%
|
78.0%
|
60.0%
|
45.0%
|
65.9%
|
|
|
$124
|
0.0%
|
56.2%
|
41.0%
|
68.0%
|
76.0%
|
56.0%
|
40.0%
|
86.0%
|
|
|
$166
|
↓
-3.0%
|
56.2%
|
32.0%
|
89.0%
|
66.0%
|
54.0%
|
40.0%
|
64.5%
|
|
|
$176
|
↓
-7.6%
|
55.8%
|
37.0%
|
76.0%
|
59.0%
|
67.0%
|
40.0%
|
60.4%
|
|
|
$92
|
↓
-36.9%
|
55.8%
|
37.0%
|
76.0%
|
59.0%
|
67.0%
|
40.0%
|
115.1%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$288
|
0.0%
|
$180
|
↑
0.2%
|
$147
|
0.0%
|
$138âť—
|
↓
-13.7%
|
$162
|
↑
2.6%
|
$124
|
0.0%
|
$166
|
↓
-3.0%
|
$176
|
↓
-7.6%
|
$92
|
↓
-36.9%
|
||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Gigabyte | ASUS | MSI | GIGABYTE | ASUS | ASRock | ASUS | MSI | MSI | ||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B850 / AM5 | AMD B850 / AM5 | B850M / AM5 | B850 / AM5 | B840 / AM5 | B650 / AM5 | AMD B850 Chipset / AM5 | B650 / AM5 | B650 / AM5 | ||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Micro-ATX | Micro-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Micro-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 12 (60 A) | 8 (60 A) | 7 (60 A) | 8 (60 A) | 8 (60 A) | 14 (60 A) | 8 (80 A) | 12 (60 A) | 12 (60 A) | ||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 12+2+2 | 8 + 2 + 1 | 7+2 + 1 | 8+2+2 | 8+2+1 | 14+2+1 | 8 + 2 + 1 | 12+2+1 | 12+2+1 | ||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8200 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | 256 GB / 8200 MHz | 256 GB / 7600 MHz | 256 GB / 7200 MHz | 256 GB / 8000 MHz | 256 GB / 7200 MHz | 256 GB / 7200 MHz | ||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | PCIe 4.0 | PCIe 4.0 | ||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 3x16 Gen3 | 1x16 Gen5 | 3x16 Gen3 | 1x16 Gen4 | 3x16 Gen3 | 1x1 Gen3 | 2x16 Gen4 | 2x1 Gen4 | 1x16 Gen5 | 1x1 Gen4 | 2x16 Gen4 | 1x1 Gen3 | 2x16 Gen4 | 1x1 Gen3 | ||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 2 | 2 | ||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek ALC897 Audio Codec | Realtek 7.1 Surround Sound Hi… | Realtek® ALC897 Codec | Realtek® ALC897 | ||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5GbE LAN (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | Realtek® GbE LAN chip (1… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® 8125BG 2.5G LAN (1 ports) | Realtek® 8125BG 2.5G (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 6E | Wi-Fi 6E | ❌ | Wi-Fi 6E | Wi-Fi 6E | ❌ | Wi-Fi Wi-Fi 6E (802.11ax) | Wi-Fi 6E | Wi-Fi Wi-Fi 6E | ||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.3 | v5.3 | ❌ | v5.3 | v5.3 | ❌ | v5.3 | v5.3 | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
❌ |
|
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103âť—
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics:
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Storage:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
* Specifications vary by CPU types.
Expansion Slots:
1 x PCIe 5.0 x16 slot**
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B650 Chipset
1 x PCIe 4.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
USB:
2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
1 x Chassis Intrusion header

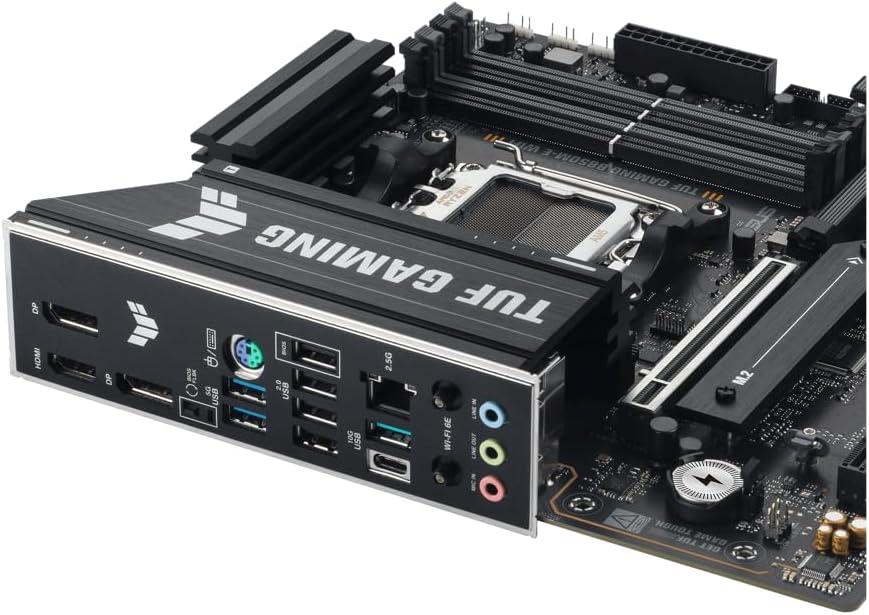

Back Panel I/O:
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™  button
1 x PS/2 keyboard/mouse combo port
WiFi:
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio:
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Special Features:
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 headers
Add Comment on TUF GAMING B850M-E WIFI
