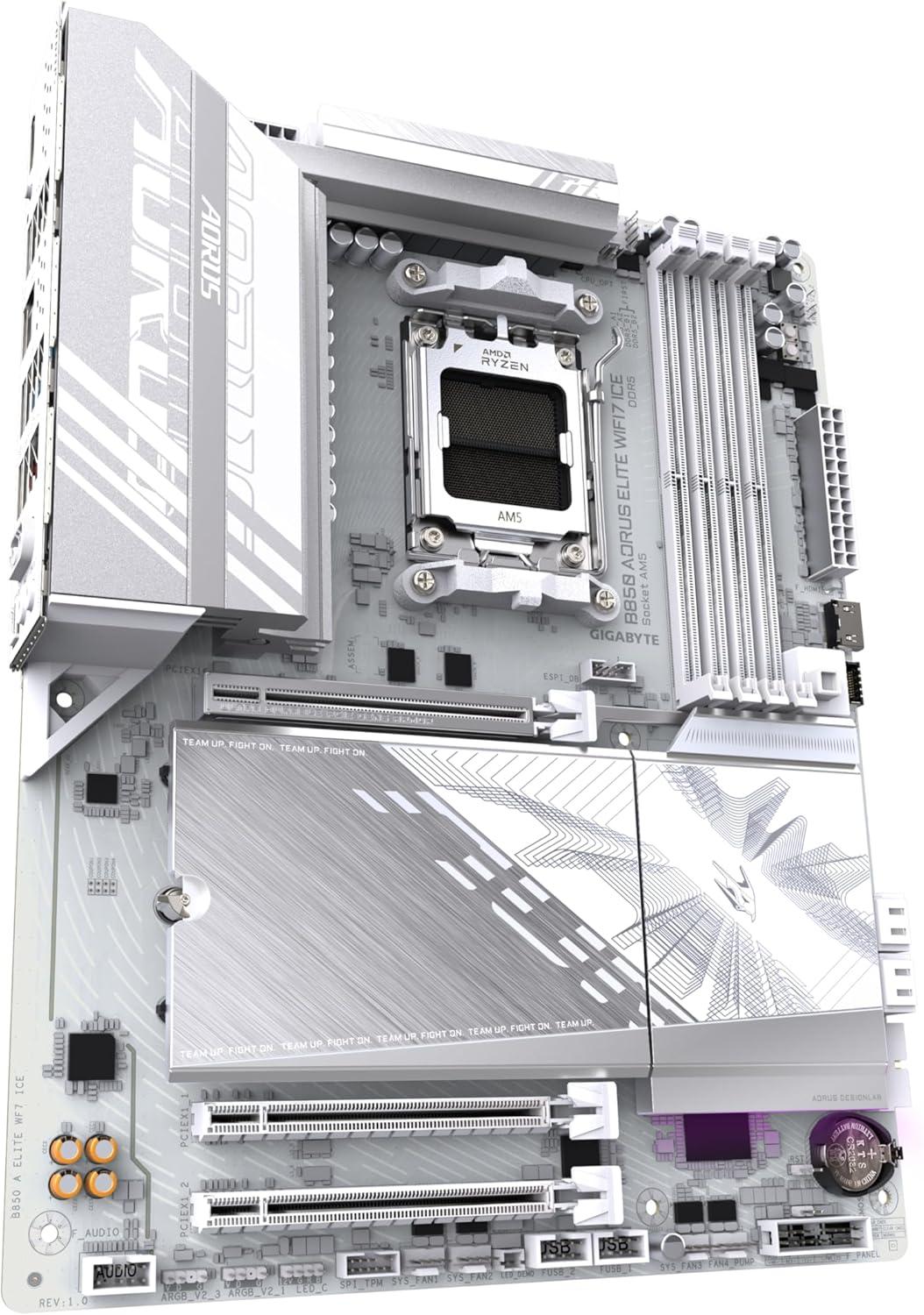

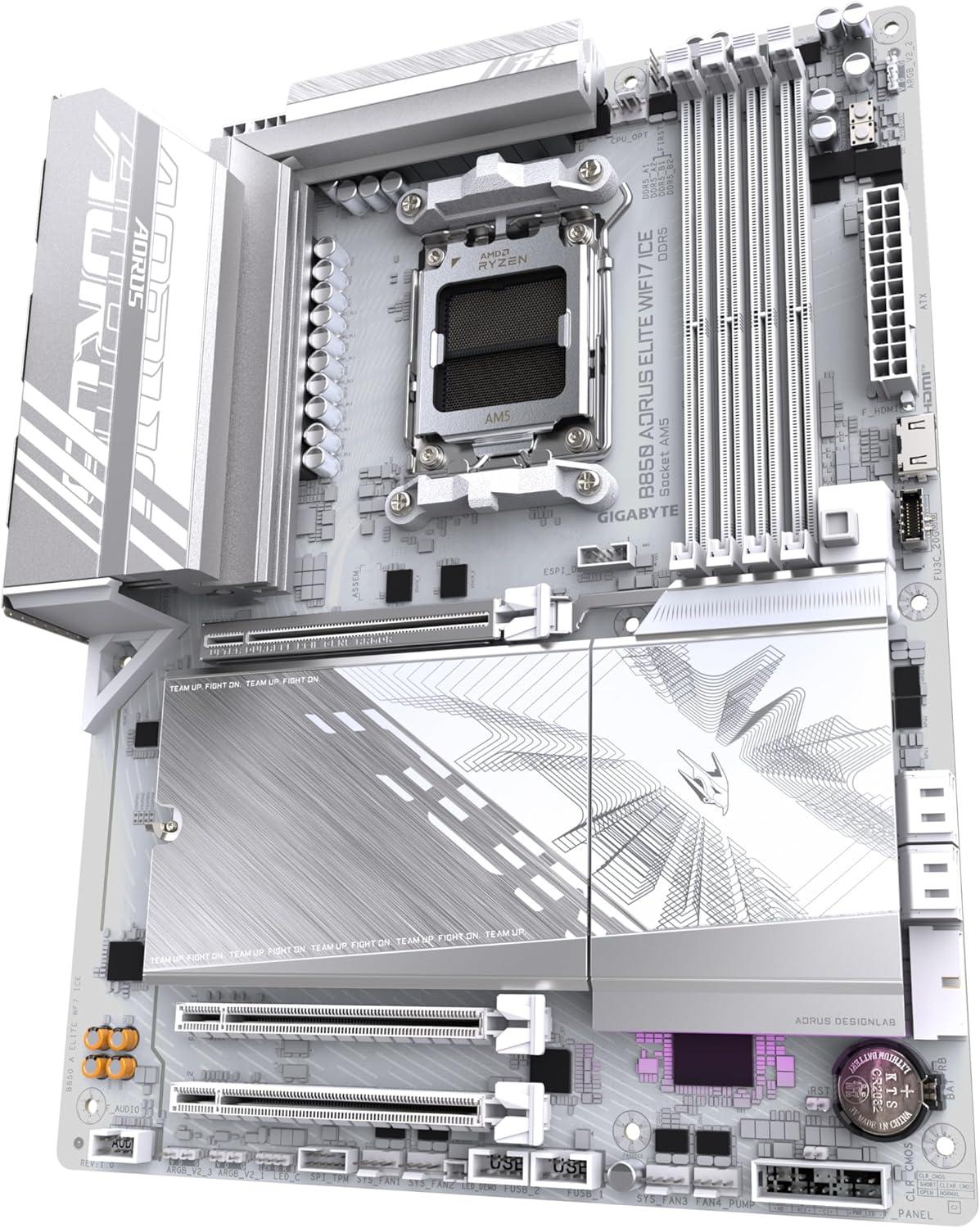

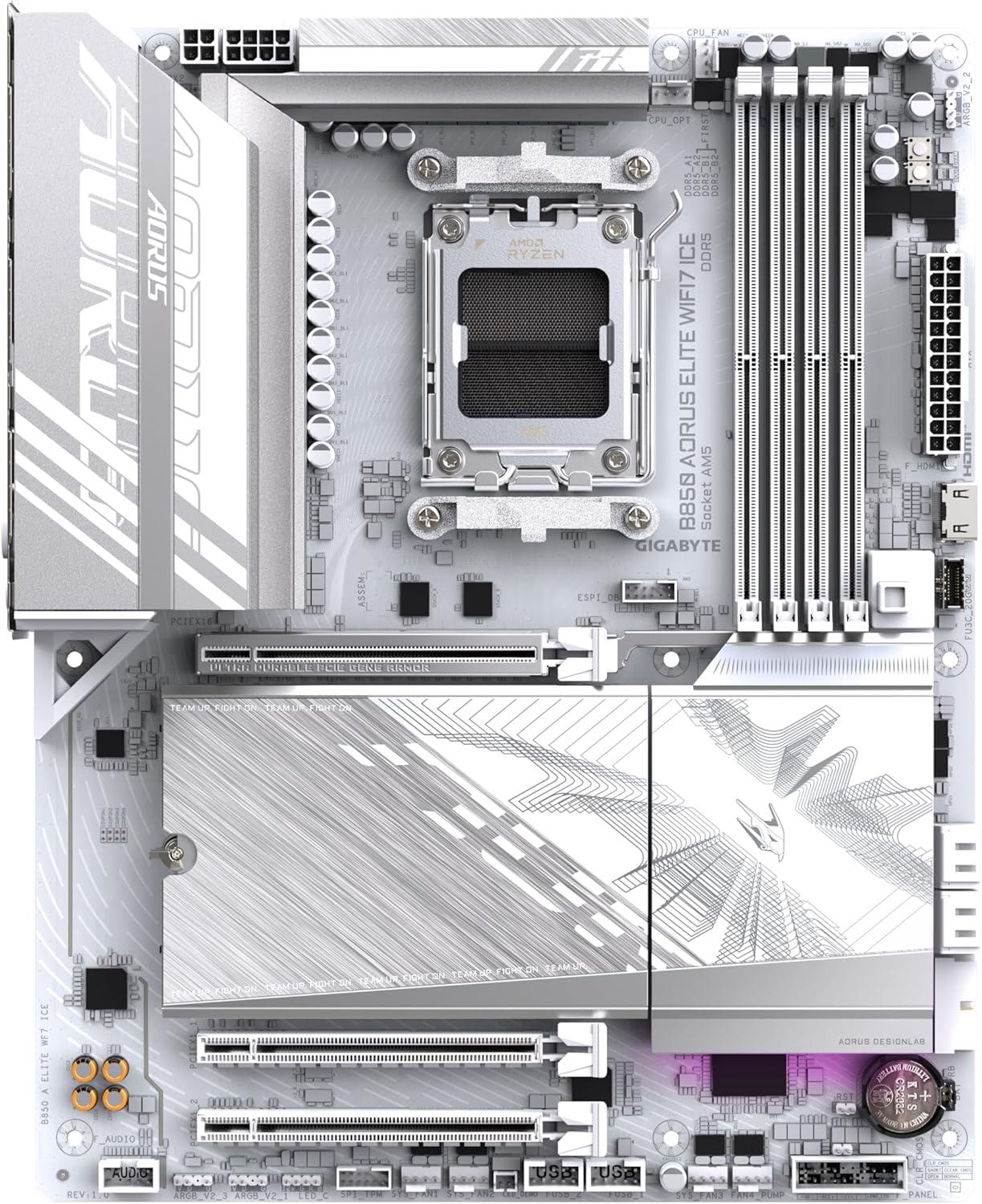

GIGABYTE B850 AORUS Elite WIFI7 ICE
GIGABYTE B850 AORUS Elite WIFI7 ICE Specifications Review
GIGABYTE B850 AORUS Elite WIFI7 ICE by GIGABYTE is a Standard-ATX form factor motherboard based on the mid-range B650 chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8000 MHz.
VRM Quality
The GIGABYTE B850 AORUS Elite WIFI7 ICE has a mid-range VRM configuration, providing 70 A over 14 phases. Suitable for CPUs in the ~140 W TDP range, it can power higher-TDP chips at stock, but sustained overclocking is not recommended due to thermal and voltage ripple considerations. Ideal for mainstream gaming, light workstation work, and general-purpose builds.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The GIGABYTE B850 AORUS Elite WIFI7 ICE offers a balanced expansion and storage configuration with PCIe 4.0 support, meaning it uses PCI Express 4.0, fast enough for modern GPUs and high-speed NVMe SSDs. It also includes 3 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 3 M.2 slots (5.0, 4.0) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the Wi-Fi 6E standard, and wired Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek® Audio CODEC) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
GIGABYTE B850 AORUS Elite WIFI7 ICE is a dependable choice with a respectable overall quality score of 60.40. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard has a solid 50.1% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | GIGABYTE |
|---|---|
| Motherboard Name | GIGABYTE B850 AORUS Elite WIFI7 ICE |
| Current Price Amazon | $229 |
| Amazon Price Updated | 12 hours, 33 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | B650 / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 14 (70 A) |
|---|---|
| Power Design | 14+2+2 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8000 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 4.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen4 | Gen3 |
|---|---|---|---|
| x16 | 3 | 1 | 2 |
Storage Configuration
| M.2 Slot Count | 3 slots |
|---|---|
| M.2 Supported Lengths | 25110, 22110, 2580, 2280 |
| M.2 PCIe Modes | 5.0, 4.0 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® Audio CODEC |
|---|---|
| Analog Audio Jacks | 3 jacks |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4096x2160@60 Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 3840x2160@144 Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 5 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 6E Bandwidth: 160MHz Frequency Bands: 2.4/5/6 GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
Q-Flash Plus Reset Button |
|---|
Quality & Features
Additional Information
| RAM | Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Also supports AMD EXtended Profiles for Overclocking (AMD EXPO™). |
|---|---|
| Display | DisplayPort supports HDR. HDMI supports HDCP 2.3 and features native HDMI 2.1 TMDS compatible ports. |
| Expansion | The main PCIEX16 slot's operating mode depends on the CPU: it supports PCIe 4.0 x16 with Ryzen 7000/9000 Series, PCIe 4.0 x8 with Ryzen 8000 Series-Phoenix 1, and PCIe 4.0 x4 with Ryzen 8000 Series-Phoenix 2. This slot can only support a graphics card or an NVMe SSD. The other two physical x16 slots (PCIEX1_1/2) are connected to the chipset, support PCIe 3.0, and run at x1 speed. |
| Storage |
M.2 Slot Details:
|
| Audio | High Definition Audio. Supports 2/4/5.1/7.1-channel audio. The functionality of an audio jack can be changed using the audio software to configure 7.1-channel audio. |
| Networking | Wi-Fi/Bluetooth module varies by PCB revision: AMD Wi-Fi 6E RZ616 (MT7922A22M) with Bluetooth 5.2 for rev. 1.0, and Intel Wi-Fi 6E AX210 with Bluetooth 5.3 for rev. 1.1. Antenna configuration is 2T2R. |
| Buttons | The text also lists a reset button, a reset jumper, and a Clear CMOS jumper. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
GIGABYTE B850 AORUS Elite WIFI7 ICE Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$190
|
0.0%
|
62.2%
|
24.0%
|
88.0%
|
77.0%
|
77.0%
|
45.0%
|
62.2%
|
|
|
$242
|
↑
21.2%
|
61.6%
|
37.0%
|
77.0%
|
76.0%
|
78.0%
|
40.0%
|
48.3%
|
|
|
$173
|
↑
3.0%
|
61.6%
|
25.0%
|
84.0%
|
93.0%
|
66.0%
|
40.0%
|
67.5%
|
|
|
$260
|
0.0%
|
60.8%
|
31.0%
|
75.0%
|
54.0%
|
59.0%
|
85.0%
|
44.4%
|
|
|
$209
|
0.0%
|
60.4%
|
48.0%
|
74.0%
|
66.0%
|
74.0%
|
40.0%
|
54.9%
|
|
|
$140
|
0.0%
|
60.4%
|
48.0%
|
74.0%
|
66.0%
|
74.0%
|
40.0%
|
82.0%
|
|
|
$229
|
↑
0.0%
|
60.4%
|
48.0%
|
74.0%
|
66.0%
|
74.0%
|
40.0%
|
50.1%
|
|
|
$166
|
↑
0.5%
|
60.2%
|
25.0%
|
81.0%
|
90.0%
|
60.0%
|
45.0%
|
69.0%
|
|
|
$170
|
0.0%
|
59.8%
|
37.0%
|
80.0%
|
65.0%
|
74.0%
|
43.0%
|
66.8%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$190
|
0.0%
|
$242
|
↑
21.2%
|
$173
|
↑
3.0%
|
$260
|
0.0%
|
$209
|
0.0%
|
$140
|
0.0%
|
$229
|
↑
0.0%
|
$166
|
↑
0.5%
|
$170
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | GIGABYTE | ASUS | GIGABYTE | GIGABYTE | GIGABYTE | GIGABYTE | ASUS | GIGABYTE | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | X870 / AM5 | B650E / AM5 | AMD B850 / AM5 | B850I / AM5 | B650 / AM5 | B650 / AM5 | B650 / AM5 | B650E / AM5 | B850M / AM5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Mini-ITX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Micro-ATX | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 8 (60 A) | 12 (60 A) | 8 (60 A) | 8 (80 A) | 14 (70 A) | 14 (70 A) | 14 (70 A) | 8 (60 A) | 12 (60 A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 8+2+2 | 12+2+2 | 8 + 2 + 1 | 8+2+1 | 14+2+2 | 14+2+2 | 14+2+2 | 8+2+1 | 12+2+2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8200 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 128 GB / 8400 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 2x16 Gen3 | 1x16 Gen5 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 3 | 3 | 2 | 3 | 3 | 3 | 3 | 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 2 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC892/ALC897 | Realtek® Audio CODEC | Realtek 7.1 Surround Sound Hi… | Realtek® ALC4080 CODEC | Realtek® Audio CODEC | Realtek® Audio CODEC | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek® Audio CODEC | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® 2.5GbE LAN (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 6 | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi 7 | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6E | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.3 | v5.3 | v5.3 | v5.4 | v5.2 / 5.3 | v5.2 / 5.3 | v5.3 | v5.3 | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
❌ |
❌ |
|
|
|
❌ |
|
|
❌ |
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Graphics:
* Support for DisplayPort 1.4 version and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Storage:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Expansion Slots:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
USB:
Internal I/O:
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

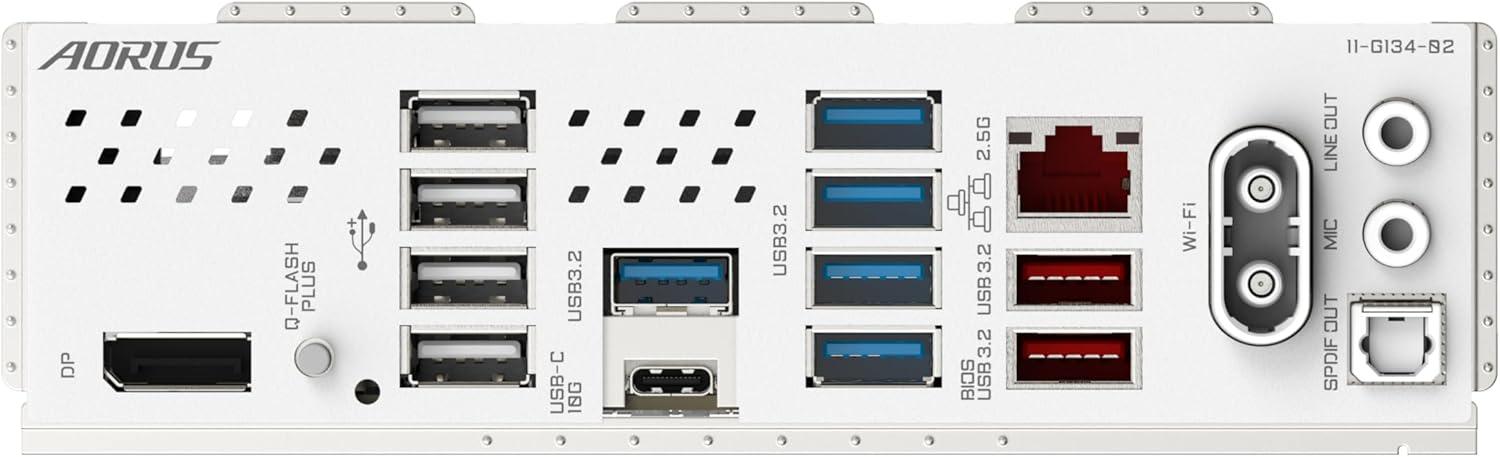

Back Panel I/O:
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
WiFi:
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard
Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Audio:
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Special Features:
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Add Comment on GIGABYTE B850 AORUS Elite WIFI7 ICE
