MSI · AM5 · B650

MSI MPG B650 Edge WiFi

ATX · DDR5 · 4 DIMMs · 14-phase VRM · Wi-Fi 6E

Quality
73
VRM
54
Value
45
Amazon
$308
MSI MPG B650 Edge WiFi

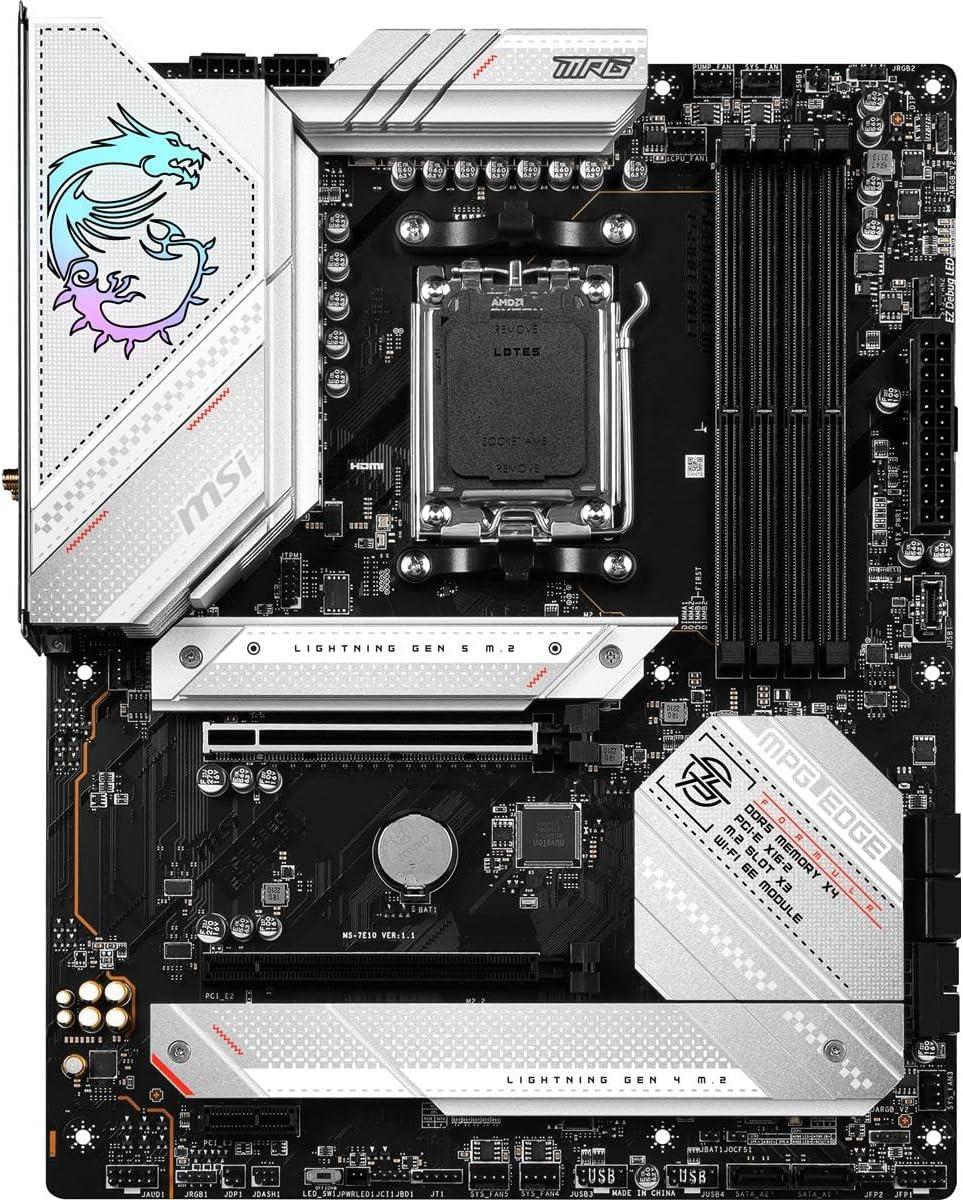

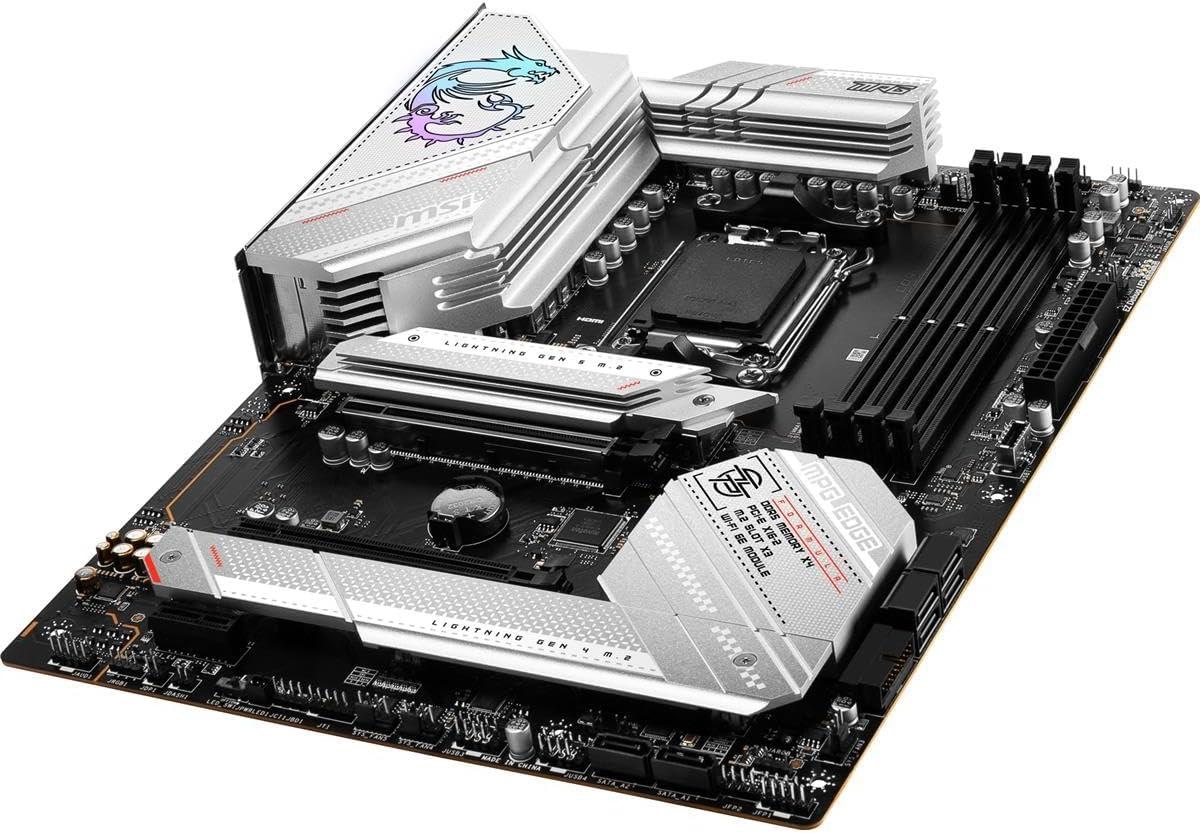

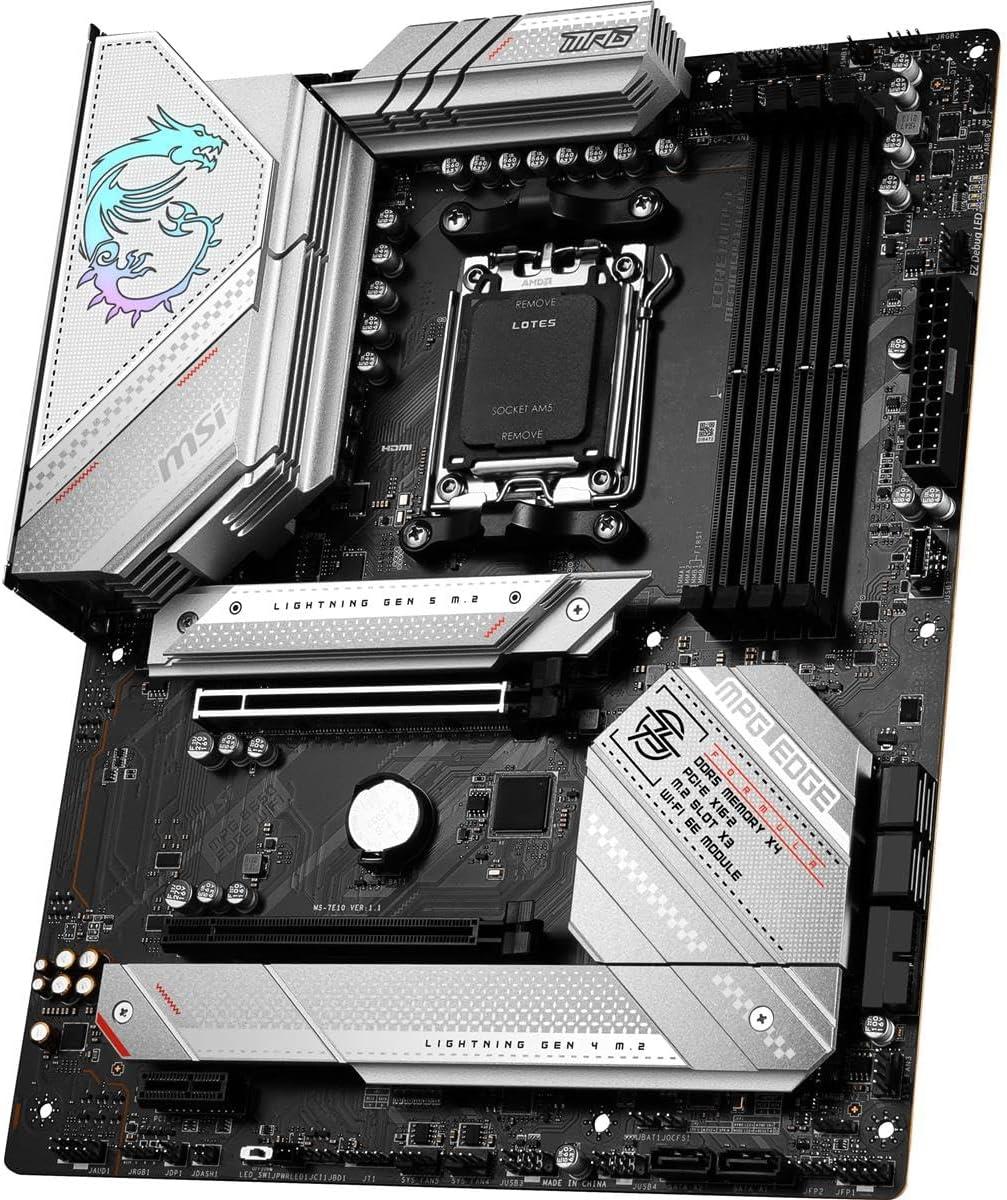

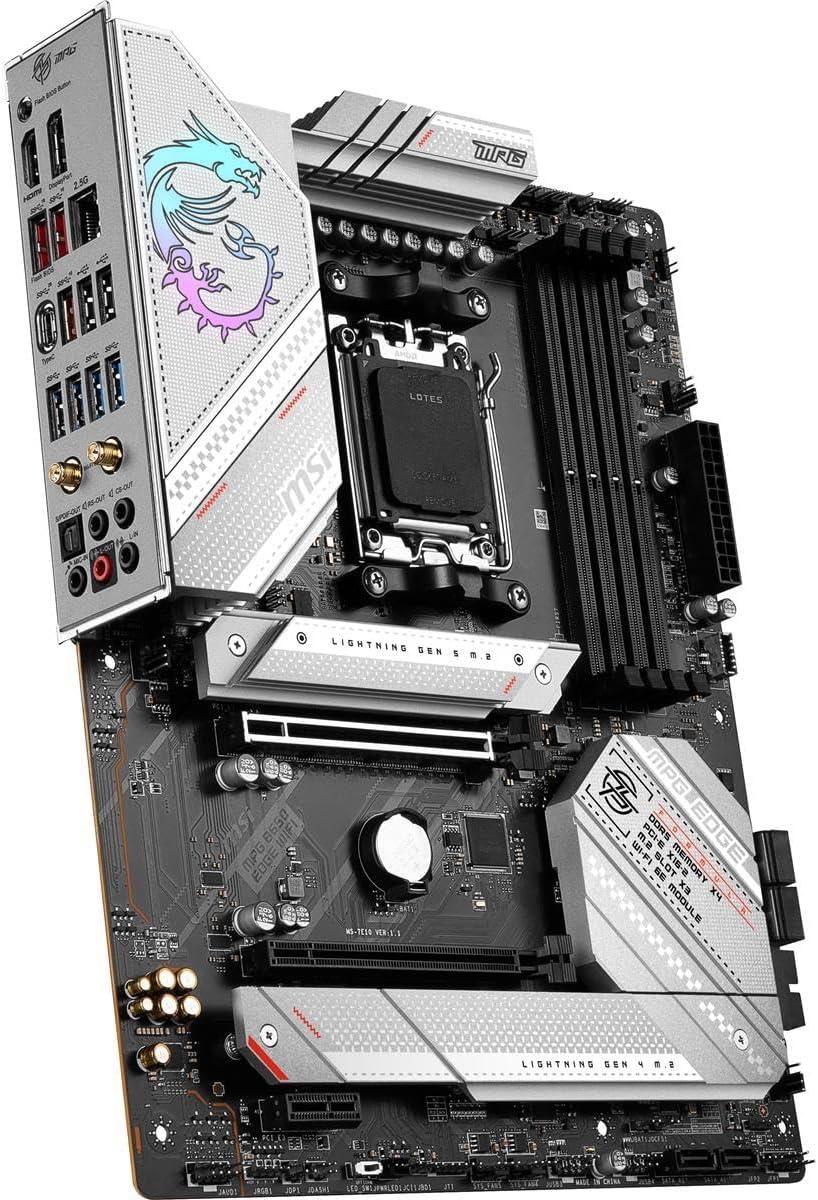

View MSI MPG B650 Edge WiFi Gallery in high resolution
$308
Available Updated 2 days, 11 hours ago Prime FBA
Overall72.6
VRM54.0
Chipset76.0
Expansion / storage71.0
Connectivity71.0
Audio91.0
Quality / price44.7
$308 on Amazon Motherboard table Compare this motherboard

Build with this motherboardSelect a CPU first so the Builder can confirm the socket and unlock this board. Choose the CPU first

Written analysis

MSI MPG B650 Edge WiFi at a glance

The MSI MPG B650 Edge WiFi uses the ATX form factor, AM5 socket, and B650 chipset. This is a balanced mainstream platform: enough expansion and connectivity for a performance PC without paying only for flagship extras.

Memory support is DDR5 across 4 DIMM slots, with up to 256 GB and rated overclocked speeds up to 7800 MT/s. XMP / EXPO memory-profile support is recorded for easier tuning.

Best fit: a performance gaming and productivity PC that needs a balanced board without workstation-class excess.

Power delivery

The calculated VRM score is 54.0, placing the power delivery in the mid-range class. The board lists 14 CPU power phases, 80 A power stages in a 14+2+1 layout. CPU power input is listed as 2. It is a sensible match for mainstream processors, with conservative tuning on higher-power chips.

Expansion and storage

The expansion and storage score is 71.0: well equipped . The platform supports PCIe 4.0. Physical expansion includes 2 ×16 slots, and 1 ×1.

On-board storage consists of 3 M.2 slots and 6 SATA ports. Supported M.2 lengths are listed as 2280, 2260. That is enough NVMe capacity for a multi-drive gaming or creator setup without immediately relying on an add-in card.

Connectivity and rear I/O

The connectivity score is 71.0, rated strong . Wireless networking is Wi-Fi 6E ; wired networking is Realtek® RTL8125BG 2.5Gbps LAN at up to 2500 Mbps. Bluetooth 5.3 is included. The recorded USB provision is 10 rear connections and 7 front-panel connections. The specification sheet below separates every USB speed and connector type.

Display connectivity includes HDMI 2.1, DisplayPort 1.4. These motherboard outputs require a processor with integrated graphics.

Audio

The audio score is 91.0. This is an ultra-premium onboard implementation based on Realtek® ALC4080 Codec, aimed at users who want strong analogue output without immediately adding a USB DAC. The rear panel has 5 analogue jacks. Optical S/PDIF is present for digital audio equipment.

Buying verdict

Overall quality is 72.60, a strong performance-class result. This is the practical sweet spot for a powerful gaming or productivity PC without paying for every flagship extra.

At the recorded Amazon price, the quality-to-price score is 44.7. The nearby-board comparison below may reveal a better-equipped option at a similar price.

Board data

Full specifications

Platform, expansion, storage, rear I/O, internal headers, networking, audio, and board controls in one sheet.

General

Manufacturer
MSI
Motherboard
MSI MPG B650 Edge WiFi
Chipset / socket
B650 / AM5
Form factor
ATX
Launch price
—
Amazon price
$308
Availability
In stock
Price updated
2 days, 11 hours ago

VRM

CPU phases
14 (80 A)
Power design
14+2+1
EPS connector
2

Memory

Type / slots
DDR5 / 4 DIMMs
Max capacity / OC
256 GB / 7800 MT/s
Per DIMM
64 GB
XMP / EXPO
Yes

PCIe

Supported version
PCIe 4.0
x16 physical
2
x16 Gen 4
2
x1 physical
1
x1 Gen 3
1

Storage

M.2 slots
3
M.2 lengths
2280, 2260
SATA ports
6

Display outputs

HDMI
Yes · 2.1 · 4K 60Hz
DisplayPort
Yes · 1.4 · 8K 60Hz
USB-C DisplayPort
No

USB

Rear USB 2.0
2
Rear USB 3.2 Gen 1 Type-A 5 Gbps
4
Rear USB 3.2 Gen 2 Type-A 10 Gbps
3
Rear USB 3.2 Gen 2×2 Type-C 20 Gbps
1
Front USB 2.0
4
Front USB 3.2 Gen 1 Type-A 5 Gbps
2
Front USB 3.2 Gen 2 Type-C 10 Gbps
1
Header USB 2.0
4
Header USB 3.2 Gen 1 Type-A 5 Gbps
2
Header USB 3.2 Gen 2 Type-A 10 Gbps
1

Networking

Ethernet
Realtek® RTL8125BG 2.5Gbps LAN
LAN ports
1
LAN speed
2500 Mbps
Wi-Fi
Wi-Fi 6E
Wi-Fi bandwidth
20/40/80/160MHz
Bands
2.4GHz, 5GHz, 6GHz
Bluetooth
5.3

Audio

Chipset
Realtek® ALC4080 Codec
Analog jacks
5
Gold-plated jacks
No
Optical S/PDIF
Yes
Spatial audio
No

Buttons

BIOS flashback
Yes
Clear CMOS
No
Q-Flash Plus
No
Smart button
No
Onboard start / reset
No

Additional information

Memory notes
Supports non-ECC, un-buffered memory. Supports AMD EXPO™. The base JEDEC speed is 4800 MHz. Maximum overclocking frequency varies by configuration: 1DPC 1R up to 7800+ MHz, 1DPC 2R up to 6400+ MHz, 2DPC 1R up to 6400+ MHz, and 2DPC 2R up to 5400+ MHz.
Display notes
HDMI supports HDR. DisplayPort supports HBR3. Video outputs are available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion notes
Supports x16/x2 (For Ryzen™ 9000/ 7000 Series processors). Supports x8/x2 (For Ryzen™ 8700/ 8600/ 8400 Series processors). Supports x4/x2 (For Ryzen™ 8500/ 8300 Series processors). PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU). PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset). PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset).
M.2_1
5.0 4 · 2280, 2260 · CPU
M.2_2
4.0 4 · 2280, 2260 · CPU — The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor.
M.2_3
4.0 4 · 2280, 2260 · Chipset
Audio notes
7.1-Channel USB High Performance Audio. Supports up to 32-Bit/384 kHz playback on front panel.
Networking notes
The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Fan / RGB headers
1 CPU · — OPT · 1 AIO · 6 chassis · 2 ARGB · 2 RGB
Other headers
Front audio · System panel · TPM
Dimensions
30.5 cm x 24.4 cm

Extracted notes sit here. Official manufacturer copy is at the bottom of the page.

Amazon

Price history

Nearby quality

Similar motherboards

Boards on AM5 close to MSI MPG B650 Edge WiFi on overall quality. Open the motherboard table to sort, filter, and compare side by side.

Compare these in the motherboard table

VRM fit

VRM-appropriate CPUs

AM5 processors whose TDP sits in this board’s VRM window. Socket match is required; chipset extras still matter on sTR5. This is a power-delivery filter, not a ranked CPU guide.

Open AM5 CPUs in the CPU table

Discussion

Comments on MSI MPG B650 Edge WiFi

No comments yet.

Vendor copy

Official manufacturer data

Raw manufacturer text kept for reference. Structured specs above are extracted from this copy and are the source for scores and tables.

Memory

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™

Graphics

1x HDMI™
Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4 HBR3, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion slots

2x PCI-E x16 slot
• Supports x16/x2 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x2 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x2 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G
• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor

USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Internal I/O

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

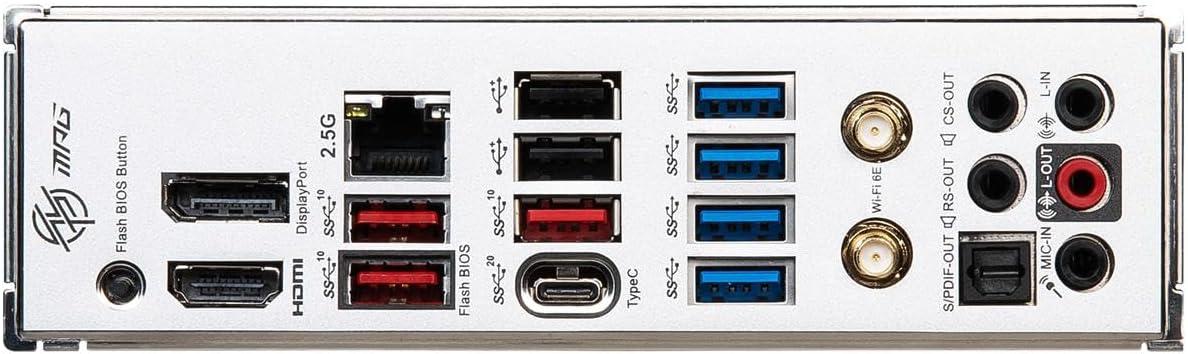

Rear I/O

Display Port
2.5G LAN
USB 2.0 (Type-A)
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps (Type-A)
USB 20Gbps (Type-C)
USB 5Gbps (Type-A)
Optical S/PDIF Out

Wireless

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Audio

Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
