PRIME X870-P-CSM
PRIME X870-P-CSM Specifications Review
PRIME X870-P-CSM by ASUS is a Standard-ATX form factor motherboard based on the high-end AMD X870 Chipset chipset and AM5 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8000 MHz.
VRM Quality
The PRIME X870-P-CSM includes an upper mid-range VRM configuration, delivering 80 A through 14 phases. This tier comfortably supports CPUs in the ~170 W TDP range and can run high-wattage CPUs at stock settings, though sustained heavy overclocking may reduce stability. A good choice for performance-oriented gamers and productivity users who don’t require extreme tuning.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The PRIME X870-P-CSM offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 4 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots and 2 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wired 1 x Realtek 2.5Gb EthernetASUS LANGuard ethernet supporting speeds up to 2500 Gbps. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek 7.1 Surround Sound High Definition Audio CODEC) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
PRIME X870-P-CSM delivers a strong overall quality score of 73.60. It offers reliable performance, durable construction, and a comprehensive set of features suitable for demanding workloads, gaming, and productivity, without venturing into the extreme performance segment of premium boards.
This motherboard has a solid 55.9% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | PRIME X870-P-CSM |
| Current Price Amazon | $250 |
| Amazon Price Updated | 7Â hours, 11Â minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | AMD X870 Chipset / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 14 (80 A) |
|---|---|
| Power Design | 14+2+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8000 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 4 | 1 | 3 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 2242, 2260, 2280 |
| SATA Ports | 2 |
Onboard Audio Features
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC |
|---|---|
| Analog Audio Jacks | 3 jacks |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DP over USB-C | DisplayPort over USB-C - Version 1.4a (Max: 4K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 3 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 1 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 2 |
Front USB Ports
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
|---|---|
| Power Delivery (W) | 15W |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: 1 x Realtek 2.5Gb EthernetASUS LANGuard LAN Ports: 2 |
|---|---|
| Wi-Fi |
Module: Not Included |
| Bluetooth | Supported: No |
Button Features
| Buttons |
BIOS Flashback |
|---|
Quality & Features
Additional Information
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
|---|---|
| OS Support | Windows 11, Windows 10 64-bit |
| RAM | 4 x un-buffered DIMM slots; supports ECC and Non-ECC modules (Non-ECC DDR5 supports On-Die ECC). Supports AMD EXPO and ASUS Enhanced Memory Profile (AEMP) for overclocking. OC speeds up to 8000+ MT/s when used with Ryzen 7000/8000/9000 series processors. Adjustments to supported modules, speeds, and module counts depend on mass-produced memory product specifications, CPU, and memory configuration. Refer to the product support/CPU & memory compatibility list for detailed, model-specific support. |

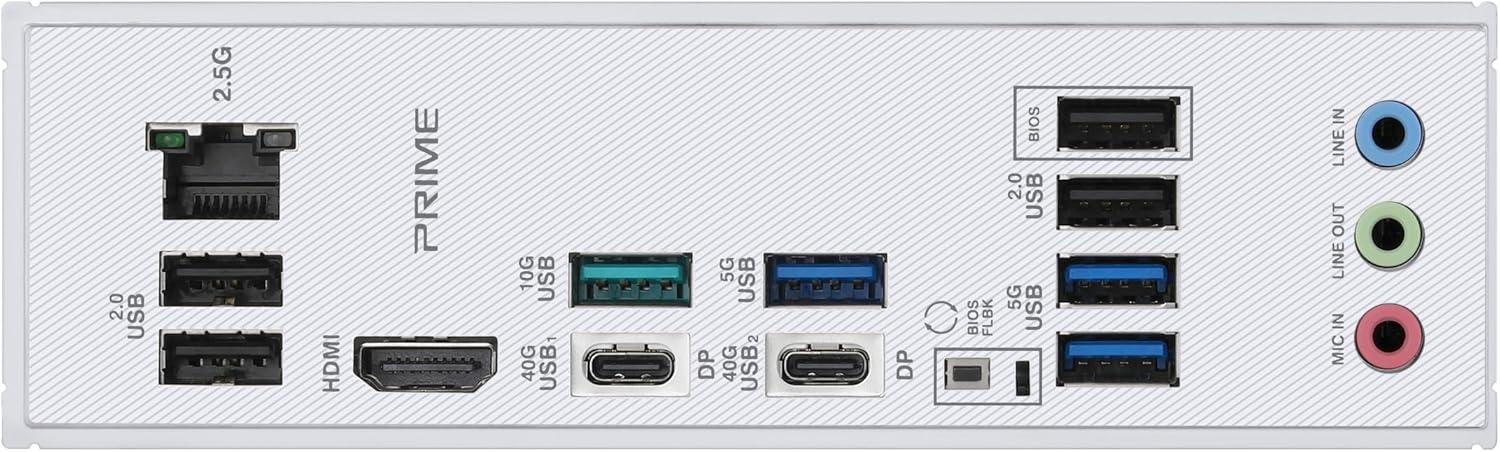

| Display | Rear I/O includes 1 x HDMI port and 2 x USB4 (40Gbps) Type-C ports that support DisplayPort over Type-C. Graphics specifications may vary by CPU model (refer to AMD CPU specs). VGA resolution support depends on the processor or discrete graphics card capabilities. HDMI support specified as 4K@60Hz per HDMI 2.1; DisplayPort over Type-C supports up to 4K@60Hz per DisplayPort 1.4a. |
| Expansion | Maximum PCIe generation: PCIe 5.0 (one physical PCIe 5.0 x16 slot). PCIe 5.0 offers roughly up to ~64 GB/s total bandwidth for an x16 slot and is backward compatible with earlier PCIe versions. Slot summary: 4 physical x16 slots total — 1x PCIe 5.0 x16 (Ryzen 9000/7000), 1x PCIe 4.0 x16 (Ryzen 8000, can operate at x8/x4 electrical modes), and 2x PCIe 4.0 x16 (X870 chipset). Note: PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3 and will be disabled when M.2_3 is active. Refer to the ASUS PCIe bifurcation table and the support pages for detailed lane-splitting/bifurcation and compatibility information. |
| Storage |
M.2 Slot Details:
Board supports 4 M.2 slots and 2 SATA 6Gb/s ports. M.2_1 is CPU-attached and its PCIe generation depends on the CPU family (Ryzen 9000/7000 = PCIe5.0 x4; Ryzen 8000 = PCIe4.0 x4). M.2_2/3/4 are provided by the AMD X870 chipset. M.2_3 disables PCIEX16(G4)_1 and PCIEX16(G4)_2 when populated/active. M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2 and will be disabled if either SATA port is used. AMD RAIDXpert2 technology provides RAID support as listed per CPU family. |
| Audio | Supports jack-detection, multi-streaming, front panel jack-retasking; supports up to 24-Bit/192 kHz playback; audio shielding, premium audio capacitors, dedicated audio PCB layers; a chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Networking | ASUS LANGuard mentioned; two entries for Realtek 2.5Gb Ethernet (appears as two 2.5Gb ports). High-speed USB ports available that can serve networking adapters: 2 x USB4 (40Gbps, Type-C), 1 x USB 10Gbps (Type-A), 3 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A). |
| Buttons | BIOS FlashBack button is present. There is a Clear CMOS header (not listed as a dedicated button). Miscellaneous headers: 3x Addressable Gen2 headers, COM port header, Front Panel Audio (F_AUDIO), S/PDIF Out, SPI TPM (14-1 pin), 10-1 pin System Panel header. Multiple USB/port details: 2x USB4 (40Gbps, Type-C), 1x USB 10Gbps (Type-A) plus 1x USB 10Gbps connector supporting Type-C, 3x USB 5Gbps ports and a header supporting 2 additional 5Gbps ports, 4x USB 2.0 ports and headers supporting 4 additional USB 2.0 ports. Also includes fan headers, power connectors, M.2 slots and SATA ports. No Smart Button or Q-Flash Plus button mentioned. |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 rubber package 2 x Screw packages for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x Quick start guide |
| Dimensions | ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
PRIME X870-P-CSM Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$257
|
↓
-1.2%
|
74.8%
|
54.0%
|
80.0%
|
81.0%
|
78.0%
|
81.0%
|
55.3%
|
|
|
$340
|
0.0%
|
74.4%
|
41.0%
|
100.0%
|
59.0%
|
84.0%
|
88.0%
|
41.6%
|
|
|
$147
|
↓
-2.1%
|
74.2%
|
38.0%
|
78.0%
|
100.0%
|
67.0%
|
88.0%
|
96.0%
|
|
|
$250
|
0.0%
|
73.6%
|
60.0%
|
93.0%
|
107.0%
|
68.0%
|
40.0%
|
55.9%
|
|
|
$163
|
0.0%
|
73.6%
|
60.0%
|
84.0%
|
69.0%
|
74.0%
|
81.0%
|
86.1%
|
|
|
$140
|
↓
-33.3%
|
72.6%
|
54.0%
|
76.0%
|
71.0%
|
71.0%
|
91.0%
|
98.5%
|
|
|
$195
|
↓
-14.9%
|
72.4%
|
46.0%
|
93.0%
|
110.0%
|
73.0%
|
40.0%
|
70.5%
|
|
|
$176
|
0.0%
|
72.0%
|
54.0%
|
76.0%
|
71.0%
|
71.0%
|
88.0%
|
77.7%
|
|
|
$110
|
0.0%
|
72.0%
|
54.0%
|
76.0%
|
71.0%
|
71.0%
|
88.0%
|
124.4%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$257
|
↓
-1.2%
|
$340
|
0.0%
|
$147
|
↓
-2.1%
|
$250
|
0.0%
|
$163
|
0.0%
|
$140
|
↓
-33.3%
|
$195
|
↓
-14.9%
|
$176
|
0.0%
|
$110
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | MSI | ASUS | ASUS | ASUS | MSI | False | MSI | MSI | ||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | AMD B850 / AM5 | AMD X870 / AM5 | B650 / AM5 | AMD X870 Chipset / AM5 | B850M / AM5 | B650 / AM5 | AMD X870 Chipset / AM5 | B650 / AM5 | B650 / AM5 | ||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Mini-ITX | Standard-ATX | Standard-ATX | Micro-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 14 (80 A) | 8 (110 A) | 12 (60 A) | 14 (80 A) | 14 (80 A) | 14 (80 A) | 12 (80 A) | 14 (80 A) | 14 (80 A) | ||||||||||||||||||||||||||||||||||||||||
| PWR Design | 14 + 2 + 2 | 8 + 2 + 1 | 12+2+1 | 14+2+1 | 14+2+1 | 14+2+1 | 12+2+1 | 14+2+1 | 14+2+1 | ||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8200 MHz | 128 GB / 10000 MHz | 192 GB / 7600 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 7800 MHz | 256 GB / 8000 MHz | 256 GB / 7600 MHz | 256 GB / 7600 MHz | ||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 (when used with Ryzen 9000/7000 CPUs) | PCIe 5.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | PCIe 5.0 | PCIe 4.0 | PCIe 4.0 | ||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 3x16 Gen4 | 2x1 Gen4 | 1x16 Gen5 | 3x16 Gen4 | 1x16 Gen5 | 1x1 Gen4 | 2x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 3x16 Gen4 | 1x16 Gen3 | 2x16 Gen4 | 1x1 Gen3 | 2x16 Gen4 | 1x1 Gen3 | ||||||||||||||||||||||||||||||||||||||||
| M.2 | 4 | 3 | 3 | 4 | 3 | 3 | 3 | 3 | 3 | ||||||||||||||||||||||||||||||||||||||||
| SATA | 2 | 2 | 4 | 2 | 4 | 6 | 4 | 6 | 6 | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC1220 CODEC | Realtek ® ALC4080 Codec | ROG SupremeFX 7.1 Surround So… | Realtek 7.1 Surround Sound Hi… | Realtek ALC1220P | Realtek® ALC4080 Codec | Realtek 7.1 Surround Sound Hi… | Realtek® ALC4080 Codec | Realtek® ALC4080 Codec | ||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ❌ | ❌ | ❌ | ✔️ | ❌ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ✔️ (None) | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4a) | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 5GbE LAN chip (… (1 ports) | 1x Realtek ® 8126 5G LAN (1 ports) | 1 x Intel® 2.5Gb Ethern… (1 ports) | 1 x Realtek 2.5Gb Ethern… (2 ports) | Realtek 2.5Gb Ethernet (1 ports) | Realtek® RTL8125BG 2.5Gb… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® RTL8125BG 2.5Gb… (1 ports) | Realtek® RTL8125BG 2.5G … (1 ports) | ||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi Wi‑Fi 7 (RTL8922AE); 802.11a/b/g/n/ac/ax; 11be | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 6E | ❌ | Wi-Fi 6E (802.11ax) | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 6 (802.11ax) | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 6E | ||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.2 | ❌ | v5.3 | v5.3 | v5.2 | v5.3 | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||
| USB Headers |
|
❌ |
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||
| Front USB |
❌ |
|
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$500
|
0.0%
|
76.1%
|
92.0%
|
120 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103âť—
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None |
Official Manufacturer Data
Memory:
Supports up to 8000+MT/s(OC) with Ryzen™
9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™
)
ASUS Enhanced Memory Profile (AEMP)
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/
.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics:
port**
2 x USB4®
(40Gbps) ports support USB Type-C®
display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
*** VGA resolution support depends on processors' or graphic cards' resolution.
Storage:
AMD Ryzen™
9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™
8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**
2 x SATA 6Gb/s ports**
* PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.
** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
AMD RAIDXpert2 Technology
Ryzen™
9000 Series Processors: RAID 0/1/5/10
Ryzen™
8000 Series Processors: RAID 0/1
Ryzen™
7000 Series Processors: RAID 0/1/10
Expansion Slots:
9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™
8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)***
* Please check the PCIe bifurcation table on the support site (
https://www.asus.com/support/FAQ/1037507/
).
** Specifications vary by CPU types.
*** PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/
for the list of supported peripherals.
USB:
2 x USB4®
(40Gbps) ports (2 x USB Type-C®
)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®
)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C®
power delivery output: max. 5V/3A
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®
)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header

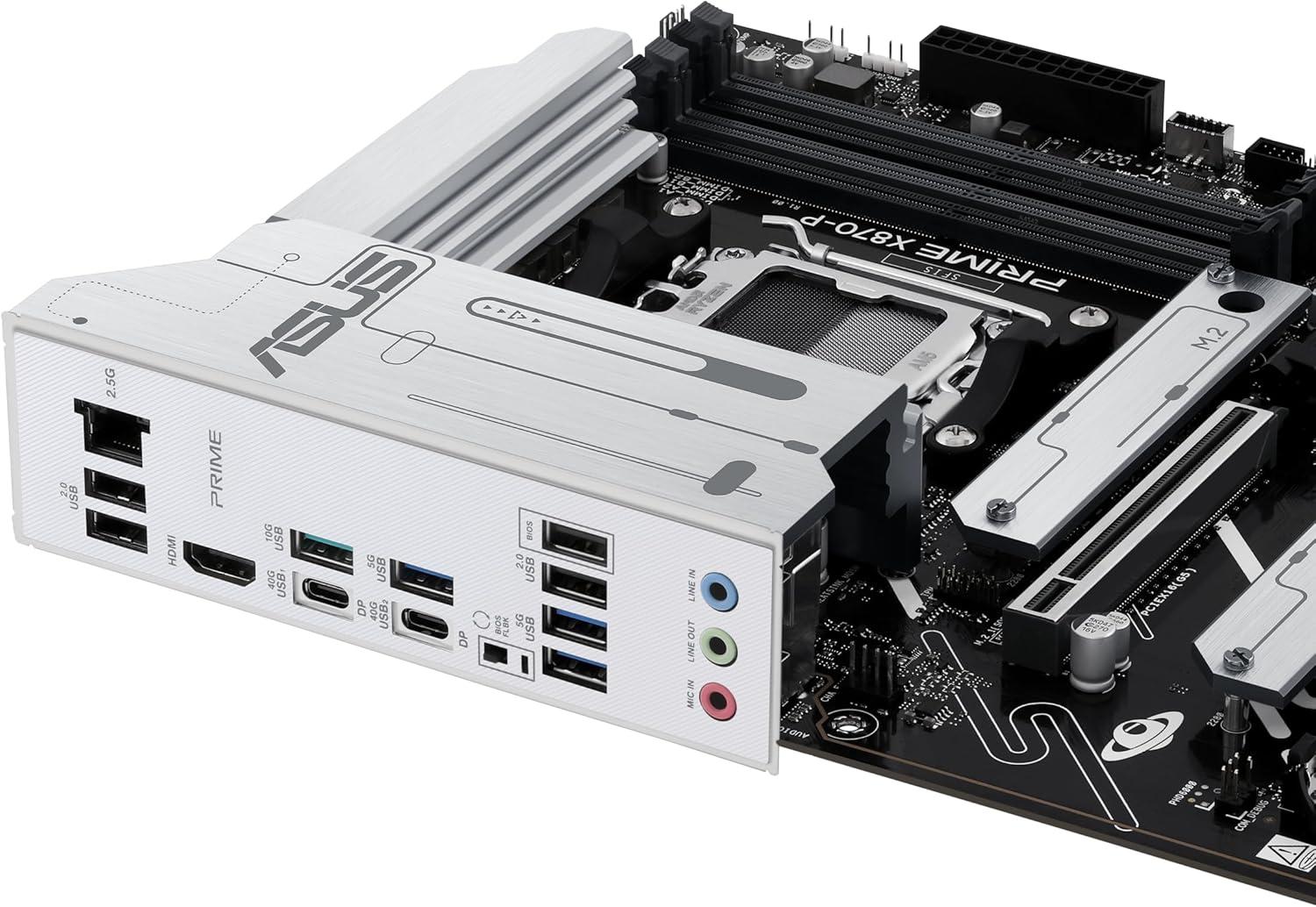

Back Panel I/O:
(40Gbps) ports (2 x USB Type-C®
)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI™
port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™
button
Audio:
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Special Features:
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™
button
- BIOS FlashBack™
LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable Gen 2 headers
Add Comment on PRIME X870-P-CSM
