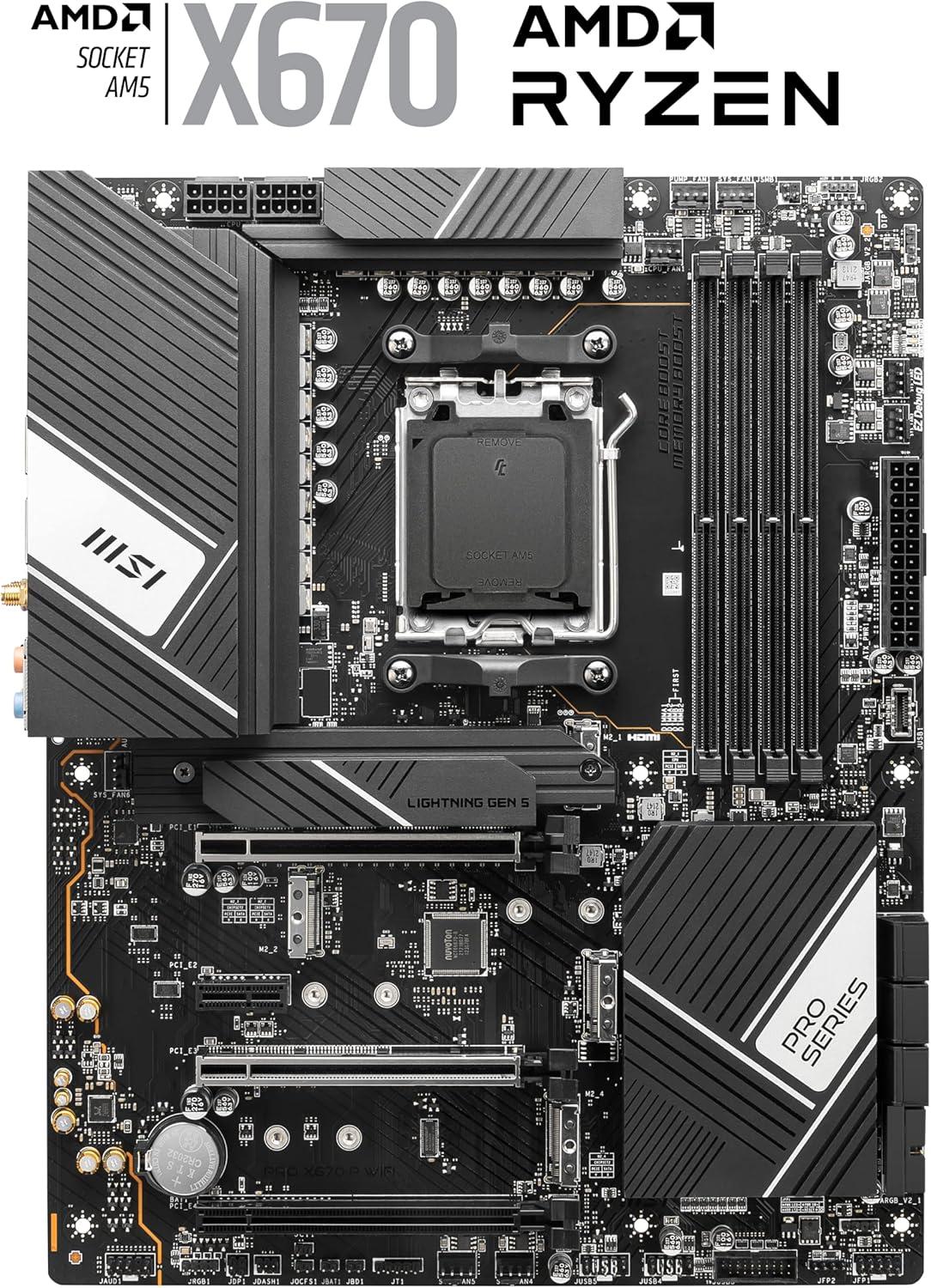

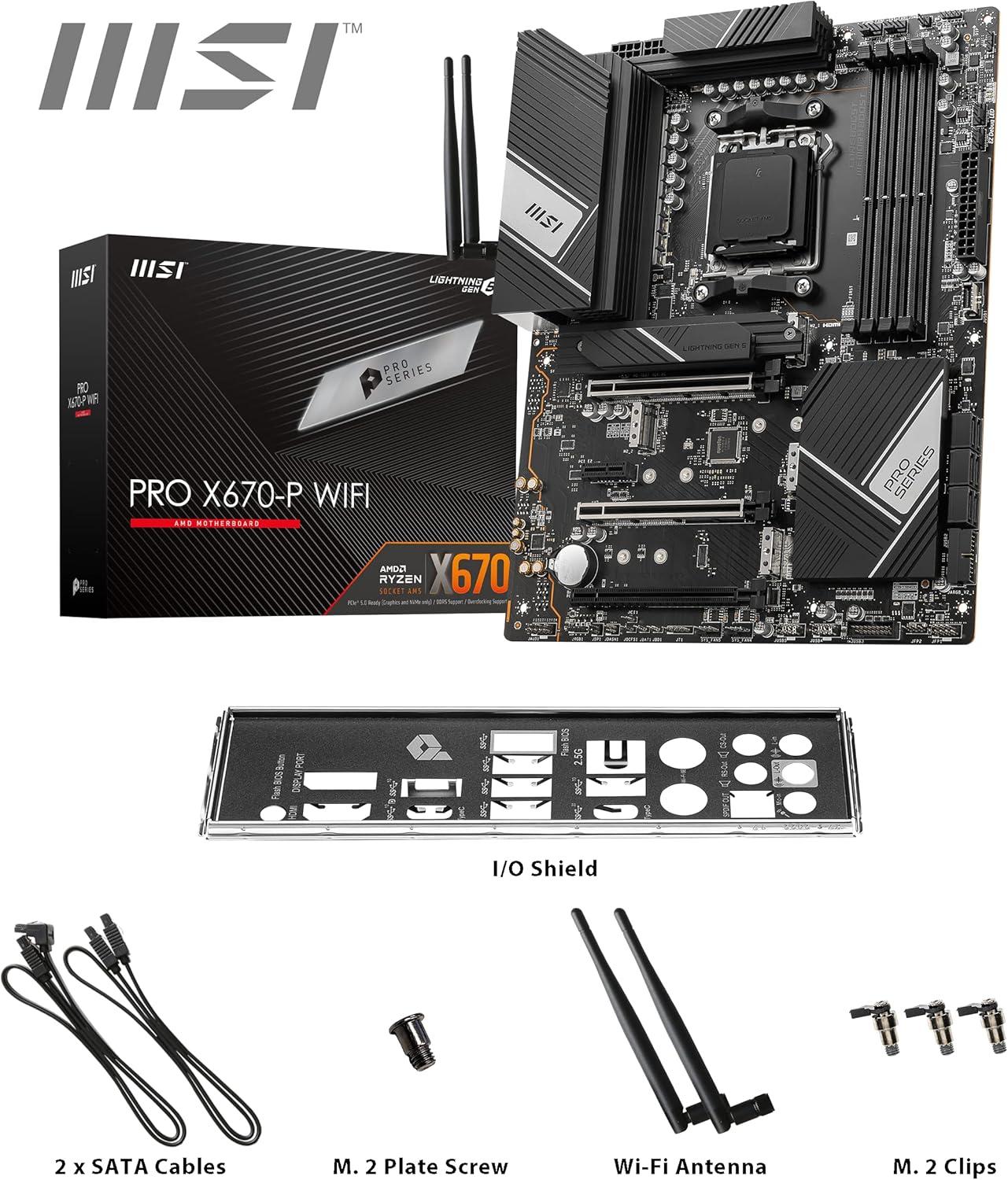

MSI PRO X670-P WiFi
MSI PRO X670-P WiFi Specifications Review
MSI PRO X670-P WiFi by ZXKLXYY is a Standard-ATX form factor motherboard based on the high-end X670-P chipset and AM5 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 7800 MHz.
VRM Quality
The MSI PRO X670-P WiFi has a mid-range VRM configuration, providing 80 A over 14 phases. Suitable for CPUs in the ~140 W TDP range, it can power higher-TDP chips at stock, but sustained overclocking is not recommended due to thermal and voltage ripple considerations. Ideal for mainstream gaming, light workstation work, and general-purpose builds.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The MSI PRO X670-P WiFi offers a very extensive expansion and storage configuration with PCIe 4.0 support, meaning it uses PCI Express 4.0, fast enough for modern GPUs and high-speed NVMe SSDs. It also includes 3 x16 slots , and 1 x1 slot. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots and 6 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the wireless Wi-Fi 6E and wired Realtek® RTL8125BG 2.5G LAN ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the Realtek® ALC4080 Codec — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
MSI PRO X670-P WiFi delivers a strong overall quality score of 79.40. It offers reliable performance, durable construction, and a comprehensive set of features suitable for demanding workloads, gaming, and productivity, without venturing into the extreme performance segment of premium boards.
This motherboard shows a 25.8% value score indicating less favorable price-to-performance compared to mainstream models. For budget-conscious buyers, there may be better value options available at this price point.
General Information
| Manufacturer | ZXKLXYY |
|---|---|
| Motherboard Name | MSI PRO X670-P WiFi |
| Current Price Amazon | $585 |
| Amazon Price Updated | 1 day, 22 hours ago. |
| Motherboard Available | True |
| Chipset / Socket | X670-P / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 14 (80 A) |
|---|---|
| Power Design | 14+2+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 7800 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 4.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen4 | Gen3 |
|---|---|---|---|
| x16 | 3 | 3 | 0 |
| x1 | 1 | 0 | 1 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260 |
| SATA Ports | 6 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC4080 Codec |
|---|---|
| Optical S/PDIF Output | ✔️ Present |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K 120Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 4K 60Hz) |
| DP over USB-C | DisplayPort over USB-C - Version 1.4 (Max: 4K 120Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
| USB 3.2 Gen 2 Header (10 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: Realtek® RTL8125BG 2.5G LAN LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 6E Bandwidth: 20MHz, 40MHz, 80MHz, 160MHz Frequency Bands: 2.4GHz, 5GHz, 6GHz |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
BIOS Flashback |
|---|
Quality & Features
Additional Information
| RAM | Supports AMD EXPO™. Supports un-buffered memory. The base JEDEC speed is 4800 MHz. Maximum overclocking frequency varies by configuration: 1DPC 1R up to 7800+ MHz, 1DPC 2R up to 6400+ MHz, 2DPC 1R up to 6400+ MHz, and 2DPC 2R up to 5400+ MHz. |
|---|---|
| Display | HDMI supports 2.1 FRL. Type-C DisplayPort supports DisplayPort 1.4 with HBR3. Video outputs are available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Expansion | Supports x16/x4/x2 (For Ryzen™ 9000/ 7000 Series processors). Supports x8/x4/x2 (For Ryzen™ 8700/ 8600/ 8400 Series processors). Supports x4/x2/x2 (For Ryzen™ 8500/ 8300 Series processors). PCI_E1 supports up to x16 (From CPU). PCI_E2 supports up to x1 (From Chipset). PCI_E3 supports up to x4 (From CPU). PCI_E4 supports up to x2 (From Chipset). PCI_E4 & M2_4 share the bandwidth. The PCI_E4 slot will be unavailable when installing devices into the M2_4 slot. |
| Storage |
M.2 Slot Details:
|
| Audio | 7.1-Channel USB High Performance Audio. Supports up to 32-Bit/384 kHz playback on front panel. |
| Networking | The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
MSI PRO X670-P WiFi Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$150
|
0.0%
|
81.2%
|
53.0%
|
96.0%
|
96.0%
|
76.0%
|
85.0%
|
102.9%
|
|
|
$280
|
0.0%
|
80.8%
|
48.0%
|
92.0%
|
94.0%
|
89.0%
|
81.0%
|
54.8%
|
|
|
$148
|
↓
-55.2%
|
80.2%
|
53.0%
|
91.0%
|
96.0%
|
76.0%
|
85.0%
|
103.0%
|
|
|
$250
|
0.0%
|
79.6%
|
54.0%
|
81.0%
|
84.0%
|
91.0%
|
88.0%
|
60.5%
|
|
|
$240
|
0.0%
|
79.4%
|
60.0%
|
89.0%
|
81.0%
|
79.0%
|
88.0%
|
62.9%
|
|
|
$585
|
↓
-1.9%
|
79.4%
|
54.0%
|
91.0%
|
93.0%
|
71.0%
|
88.0%
|
25.8%
|
|
|
$200❗
|
0.0%
|
78.8%
|
54.0%
|
86.0%
|
72.0%
|
86.0%
|
96.0%
|
74.9%
|
|
|
$180
|
0.0%
|
78.8%
|
54.0%
|
86.0%
|
72.0%
|
86.0%
|
96.0%
|
83.2%
|
|
|
$210
|
0.0%
|
77.6%
|
54.0%
|
81.0%
|
84.0%
|
81.0%
|
88.0%
|
70.2%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$150
|
0.0%
|
$280
|
0.0%
|
$148
|
↓
-55.2%
|
$250
|
0.0%
|
$240
|
0.0%
|
$585
|
↓
-1.9%
|
$200❗
|
0.0%
|
$180
|
0.0%
|
$210
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASUS | GIGABYTE | ASUS | MSI | ASUS | ZXKLXYY | ASRock | ASRock | MSI | ||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | X670E / AM5 | X870E / AM5 | X670E / AM5 | B850 / AM5 | B850-A / AM5 | X670-P / AM5 | X870 / AM5 | X870 / AM5 | B850 / AM5 | ||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 14 (70 A) | 16 (60 A) | 14 (70 A) | 14 (80 A) | 14 (80 A) | 14 (80 A) | 14 (80 A) | 14 (80 A) | 14 (80 A) | ||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 14(70A)+2(70A)+2 | 16+2+2 | 14(70A)+2(70A)+2 | 14+2+1 | 14+2+2 | 14+2+1 | 14+2+1 | 14+2+1 | 14+2+1 | ||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 192 GB / 8000 MHz | 256 GB / 8200 MHz | 192 GB / 8000 MHz | 256 GB / 8400 MHz | 256 GB / 8000 MHz | 256 GB / 7800 MHz | 192 GB / 7800 MHz | 256 GB / 8000 MHz | 256 GB / 8400 MHz | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen4 | 1x4 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x4 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 3x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | ||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 4 | 4 | 4 | 4 | 4 | 4 | 3 | 3 | 4 | ||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 2 | 6 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek S1220A | Realtek® ALC1220 CODEC | Realtek S1220A | Realtek® ALC4080 Codec | ROG SupremeFX ALC4080, Savite… | Realtek® ALC4080 Codec | Realtek ALC4082 | Realtek ALC4082 Audio Codec | Realtek® ALC4080 Codec | ||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ✔️ | ❌ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ❌ | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ❌ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||
| LAN | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek 2.5Gb Ethernet (1 ports) | 1x Realtek® 8126 5G LAN … (2 ports) | Intel® 2.5Gb Ethernet (1 ports) | Realtek® RTL8125BG 2.5G … (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 7 | Wi-Fi 6E | Wi-Fi Wi-Fi 7 | Wi-Fi 7 | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.2 | v5.4 | v5.2 | v5.4 | v5.4 | v5.3 | v5.4 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
❌ |
||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
❌ |
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Graphics:
Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*
1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage:
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G
* PCI_E4 & M2_4 share the bandwidth. The PCI_E4 slot will be unavailable when installing devices into the M2_4 slot.
Expansion Slots:
• Supports x16/x4/x2 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x4/x2 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x2/x2 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU)
PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset)
* PCI_E4 & M2_4 share the bandwidth. The PCI_E4 slot will be unavailable when installing devices into the M2_4 slot.
USB:
4x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
Internal I/O:
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Back Panel I/O:
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 3.2 Gen 2 10Gbps (Type-C Display port)
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
S/PDIF-OUT
WiFi:
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz, 160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio:
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Special Features:
Add Comment on MSI PRO X670-P WiFi
