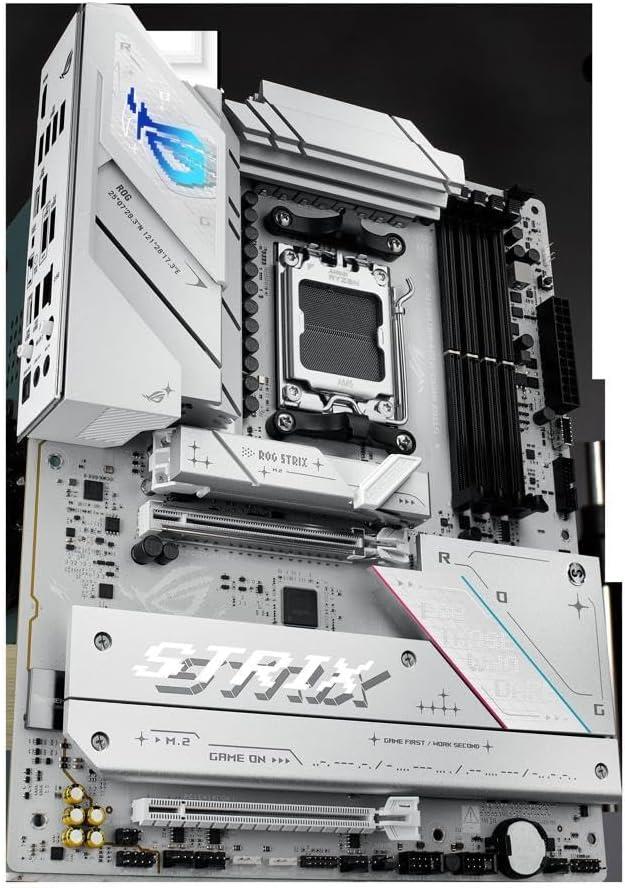

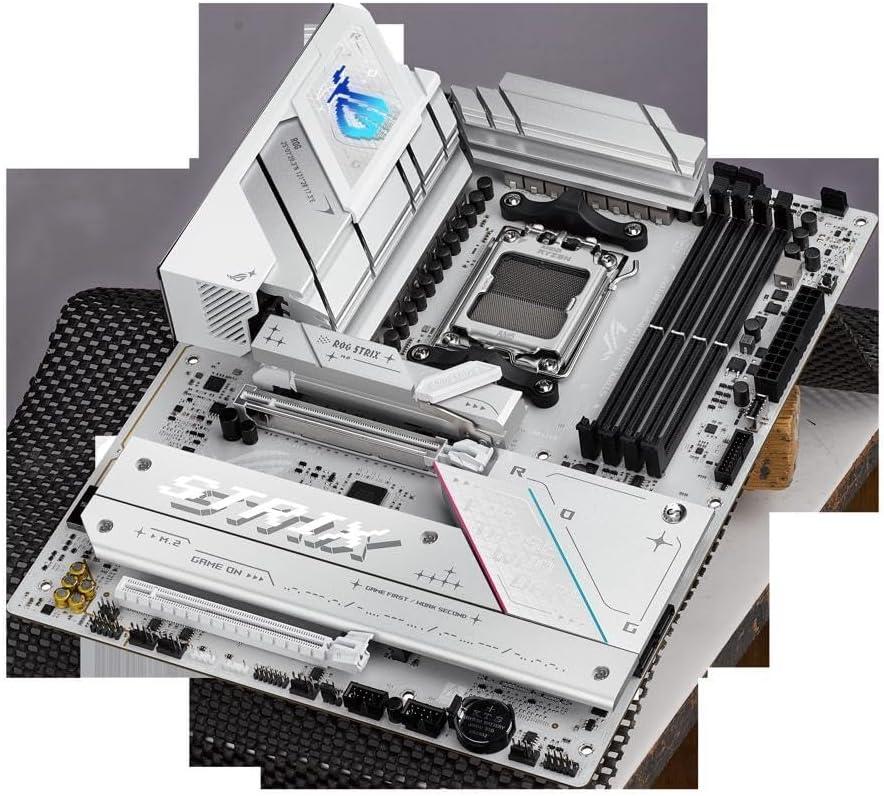

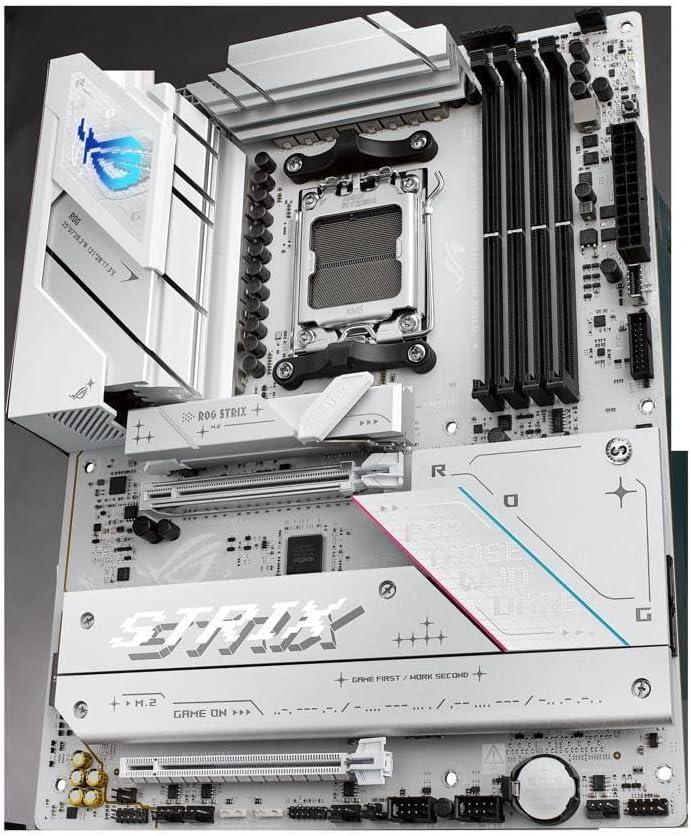

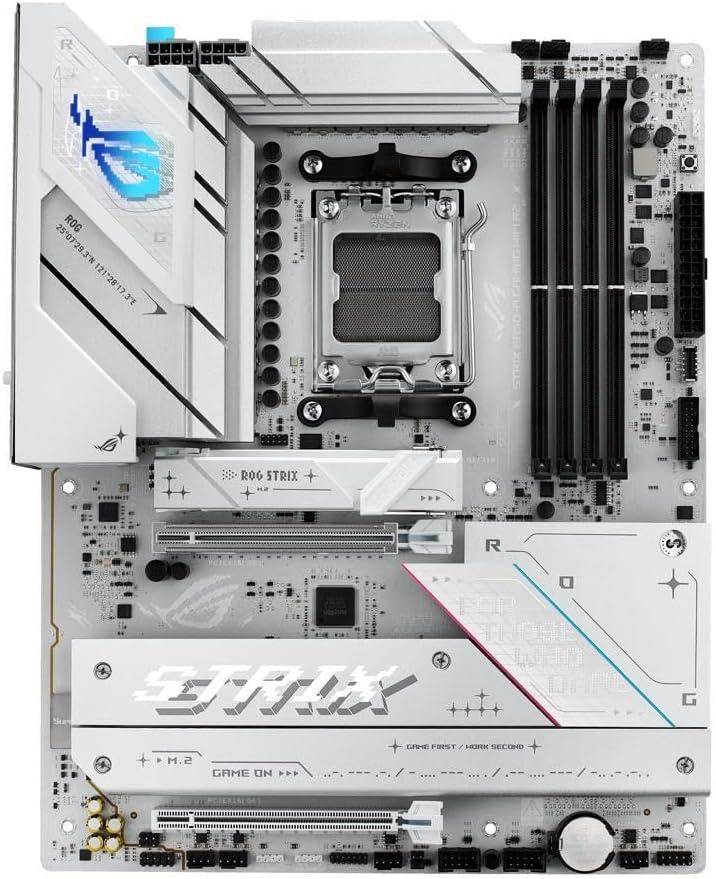

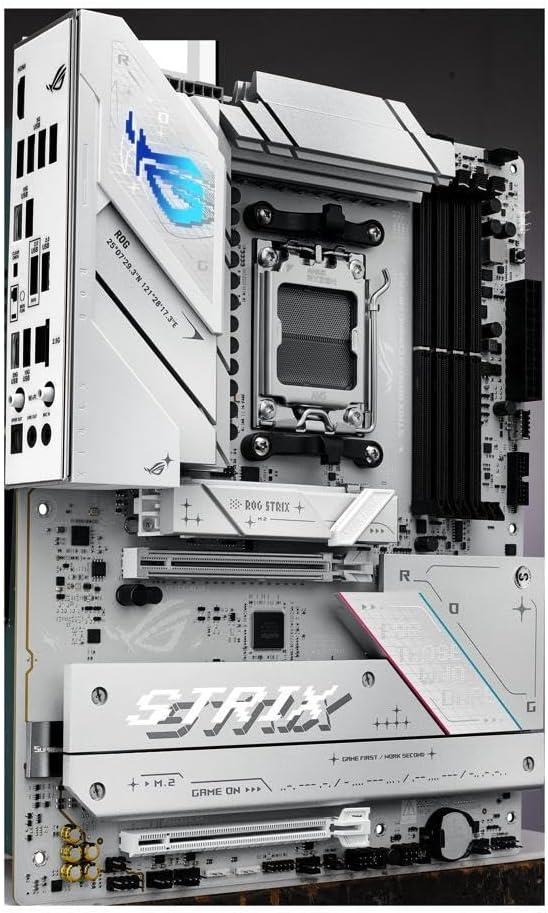

ROG STRIX B850-A GAMING WIFI
ROG STRIX B850-A GAMING WIFI Specifications Review
ROG STRIX B850-A GAMING WIFI by ASUS is a Standard-ATX form factor motherboard based on the mid-range AMD B850 Chipset chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8000 MHz.
VRM Quality
The ROG STRIX B850-A GAMING WIFI includes an upper mid-range VRM configuration, delivering 80 A through 14 phases. This tier comfortably supports CPUs in the ~170 W TDP range and can run high-wattage CPUs at stock settings, though sustained heavy overclocking may reduce stability. A good choice for performance-oriented gamers and productivity users who don’t require extreme tuning.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ROG STRIX B850-A GAMING WIFI offers a well-equipped expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2) and 2 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the wireless Wi-Fi 7 (802.11be) and wired 1 x Intel ® 2.5Gb EthernetASUS LANGuard ethernet supporting speeds up to 2500 Gbps. Bluetooth v5.4 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
ROG STRIX B850-A GAMING WIFI delivers a strong overall quality score of 77.60. It offers reliable performance, durable construction, and a comprehensive set of features suitable for demanding workloads, gaming, and productivity, without venturing into the extreme performance segment of premium boards.
This motherboard offers an impressive 73.7% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | ROG STRIX B850-A GAMING WIFI |
| Current Price Amazon | $200 |
| Amazon Price Updated | 2 days ago. |
| Motherboard Available | True |
| Chipset / Socket | AMD B850 Chipset / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 14 (80 A) |
|---|---|
| Power Design | 14+2+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8000 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 2 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| M.2 PCIe Modes | PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2 |
| SATA Ports | 2 |
Onboard Audio Features
| Audio Chipset | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 8K@30Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Front USB Ports
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
|---|---|
| Power Delivery (W) | 15W |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: 1 x Intel ® 2.5Gb EthernetASUS LANGuard LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 7 (802.11be) Bandwidth: 160MHz Frequency Bands: ['2.4 GHz', '5 GHz', '6 GHz'] Antenna Connectors: 2 |
| Bluetooth |
Version: v5.4 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Start Button |
|---|
Quality & Features
Additional Information
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
|---|---|
| OS Support | Windows 11 |
| RAM | DDR5 support. OC speeds up to 8000+ MT/s with Ryzen 9000, 8000 & 7000 series processors. Supports both ECC and Non-ECC un-buffered DIMMs; Non-ECC un-buffered DDR5 supports On-Die ECC (not necessarily full ECC mode). Supports AMD EXPO (Extended Profiles for Overclocking) and ASUS Enhanced Memory Profile (AEMP). Supported memory types, data rates, and module counts vary by CPU and memory configuration — see CPU/Memory Support list or https://www.asus.com/support/download-center/. |
| Display | Onboard connectors: 1 x DisplayPort and 1 x HDMI. Graphics specifications may vary between CPU types—refer to AMD CPU specifications. VGA resolution support depends on the processor or discrete graphics card. DisplayPort supports up to 8K@30Hz (DP 1.4); HDMI supports up to 4K@60Hz (HDMI 2.1). |
| Expansion | Supports PCIe 5.0 as the maximum generation (up to 64 GB/s total bandwidth for a full x16 PCIe 5.0 slot), backward compatible with earlier PCIe versions. Slot breakdown: one CPU-connected PCIe 5.0 x16 physical slot (counts as Gen5 x16) and one chipset-provided PCIe 4.0 x16 physical slot (counts as Gen4 x16). Notes: the PCIe 5.0 x16 slot may operate at reduced widths/speeds depending on CPU (text indicates with AMD Ryzen 8000 series it can run as PCIe 4.0 x8 or x4), and the AMD B850 chipset PCIEX16(G4) slot supports x4 mode and shares bandwidth with M.2_3. Specifications vary by CPU; consult the vendor support list for device compatibility. |
| Storage |
M.2 Slot Details:
Total: 4 M.2 slots and 2 x SATA 6Gb/s ports. M.2_1 and M.2_2 behaviors/specs vary by CPU generation (see per-slot notes). M.2_3 is chipset-provided and will be disabled when PCIEX16(G4) is in use. Specifications note that features vary by CPU types. AMD RAIDXpert2 provides RAID functionality with levels dependent on CPU series. |
| Audio | Impedance sense for front and rear headphone outputs; supports jack-detection, multi-streaming, and front-panel MIC jack-retasking; 120 dB SNR stereo playback and 110 dB SNR recording; supports up to 32-Bit/384 kHz playback on front panel; SupremeFX shielding technology; Savitech SV3H712 AMP; premium audio capacitors and audio cover; chassis front HD audio module required to support 7.1 output; rear LINE OUT does not support spatial audio (use front-panel jack or USB audio device for spatial audio). |
| Networking | ASUS LANGuard; 2x2 Wi-Fi 7 supports up to 2.9 Gbps transfer rate; Wi-Fi features vary by OS (Wi-Fi 7 requires Windows 11 24H2 or later for full functions; Windows 11 21H2/22H2/23H2 support Wi-Fi 6E only; Windows 10 has no driver). Bluetooth version may vary by Wi-Fi module vendor. |
| Buttons | Power button present; no Smart Button or Q-Flash Plus button mentioned. Other related headers/features: 10-1 Front System Panel header (front panel connectors), Front Panel Audio (F_AUDIO), CPU Over voltage jumper, Thermal Sensor header, Thunderbolt (USB4) header, 3 x Addressable Gen2 headers. Numerous USB ports/headers and the listed BIOS FlashBack and Clear CMOS buttons are present. |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubbers Documentation 1 x Quick start guide |
| Dimensions | ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ROG STRIX B850-A GAMING WIFI Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$240
|
0.0%
|
79.4%
|
60.0%
|
89.0%
|
81.0%
|
79.0%
|
88.0%
|
62.9%
|
|
|
$200❗
|
0.0%
|
78.8%
|
54.0%
|
86.0%
|
72.0%
|
86.0%
|
96.0%
|
74.9%
|
|
|
$180
|
0.0%
|
78.8%
|
54.0%
|
86.0%
|
72.0%
|
86.0%
|
96.0%
|
83.2%
|
|
|
$163
|
0.0%
|
77.6%
|
50.0%
|
81.0%
|
94.0%
|
75.0%
|
88.0%
|
90.3%
|
|
|
$200
|
0.0%
|
77.6%
|
60.0%
|
89.0%
|
78.0%
|
73.0%
|
88.0%
|
73.7%
|
|
|
$210
|
0.0%
|
77.6%
|
54.0%
|
81.0%
|
84.0%
|
81.0%
|
88.0%
|
70.2%
|
|
|
$135
|
0.0%
|
76.6%
|
54.0%
|
93.0%
|
97.0%
|
71.0%
|
68.0%
|
107.8%
|
|
|
$416
|
0.0%
|
76.2%
|
56.0%
|
98.0%
|
52.0%
|
80.0%
|
95.0%
|
34.8%
|
|
|
$190
|
0.0%
|
75.8%
|
54.0%
|
78.0%
|
82.0%
|
81.0%
|
84.0%
|
75.8%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$240
|
0.0%
|
$200❗
|
0.0%
|
$180
|
0.0%
|
$163
|
0.0%
|
$200
|
0.0%
|
$210
|
0.0%
|
$135
|
0.0%
|
$416
|
0.0%
|
$190
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASUS | ASRock | ASRock | ASUS | ASUS | MSI | MSI | ASUS | ASRock | ||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B850-A / AM5 | X870 / AM5 | X870 / AM5 | B650E-F / AM5 | AMD B850 Chipset / AM5 | B850 / AM5 | X670E / AM5 | X870-I / AM5 | B850 / AM5 | ||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Mini-ITX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 14 (80 A) | 14 (80 A) | 14 (80 A) | 12 (80 A) | 14 (80 A) | 14 (80 A) | 14 (80 A) | 10 (110 A) | 14 (80 A) | ||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 14+2+2 | 14+2+1 | 14+2+1 | 12+2+1 | 14+2+1 | 14+2+1 | 14+2+1 | 10(110A)+ 2(110A)+ 1(80A) | 14+2+1 | ||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8000 MHz | 192 GB / 7800 MHz | 256 GB / 8000 MHz | 192 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8400 MHz | 256 GB / 7800 MHz | 128 GB / 8600 MHz | 256 GB / 8000 MHz | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 2x1 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 2x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen5 | 2x16 Gen4 | ||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 4 | 3 | 3 | 3 | 4 | 4 | 4 | 2 | 3 | ||||||||||||||||||||||||||||||||||||||||||||
| SATA | 2 | 4 | 4 | 4 | 2 | 4 | 4 | 2 | 2 | ||||||||||||||||||||||||||||||||||||||||||||
| Audio | ROG SupremeFX ALC4080, Savite… | Realtek ALC4082 | Realtek ALC4082 Audio Codec | ROG SupremeFX 7.1 Surround So… | ROG SupremeFX 7.1 Surround So… | Realtek® ALC4080 Codec | Realtek® ALC1200 Codec | ESS® SABRE9260Q DAC | Realtek ALC1220 | ||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ❌ | ✔️ | ✔️ | ✔️ | ❌ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ❌ | ❌ | ✔️ (1.4) | ✔️ (1.4) | ❌ | ✔️ (1.4) | ❌ | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||
| LAN | Intel® 2.5Gb Ethernet (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | 1 x Intel ® 2.5Gb Ethern… (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | Realtek® RTL8125BG 2.5Gb… (1 ports) | 1 x Intel® 2.5Gb Ethern… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 6E | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi Wi-Fi 6E | Wi-Fi 7 (802.11be) | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.2 | vv5.4 | v5.4 | v5.3 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
❌ |
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$500
|
0.0%
|
76.1%
|
92.0%
|
120 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None |
Official Manufacturer Data
Memory:
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO ™ )
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics:
1 x HDMI™ port**
- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
* Supports max. 8K@30Hz as specified in DisplayPort 1.4
** Supports 4K@60Hz as specified in HDMI 2.1
*** VGA resolution support depends on processors' or graphic cards' resolution.
Storage:
AMD Ryzen™ 7000 & 9000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)**
M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
2 x SATA 6Gb/s ports
* Specifications vary by CPU types.
** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
Expansion Slots:
1 x PCIe 5.0 x16 slot with Q-Release Slim
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)*
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)**
* Specifications vary by CPU types.
** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
USB:
1 x USB 20Gbps port (1 x USB Type-C ® )
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C ® )
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C ® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C ® power delivery output: max. 5V/3A
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C ® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Power button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4 ® ) header
Back Panel I/O:
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C ® )
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel ® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack ™ button
1 x Clear CMOS button
WiFi:
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth ® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth ® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio:
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Special Features:
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Add Comment on ROG STRIX B850-A GAMING WIFI
