ASUS · AM5 · X870

ASUS Prime X670-P WiFi

ATX · DDR5 · 4 DIMMs · 12-phase VRM · 6

Quality
69
VRM
38
Value
50
Amazon
$263
ASUS Prime X670-P WiFi
View ASUS Prime X670-P WiFi Gallery in high resolution
$263
Available Updated 3 days, 19 hours ago
Overall68.8
VRM38.0
Chipset93.0
Expansion / storage110.0
Connectivity63.0
Audio40.0
Quality / price49.7
$263 on Amazon Motherboard table Compare this motherboard

Build with this motherboardSelect a CPU first so the Builder can confirm the socket and unlock this board. Choose the CPU first

Written analysis

ASUS Prime X670-P WiFi at a glance

The ASUS Prime X670-P WiFi uses the ATX form factor, AM5 socket, and X870 chipset. This is a high-end platform with the feature headroom expected in an enthusiast gaming or productivity build.

Memory support is DDR5 across 4 DIMM slots, with up to 192 GB and rated overclocked speeds up to 7600 MT/s. ECC modules are accepted, subject to CPU support. XMP / EXPO memory-profile support is recorded for easier tuning.

Best fit: a performance gaming and productivity PC that needs a balanced board without workstation-class excess.

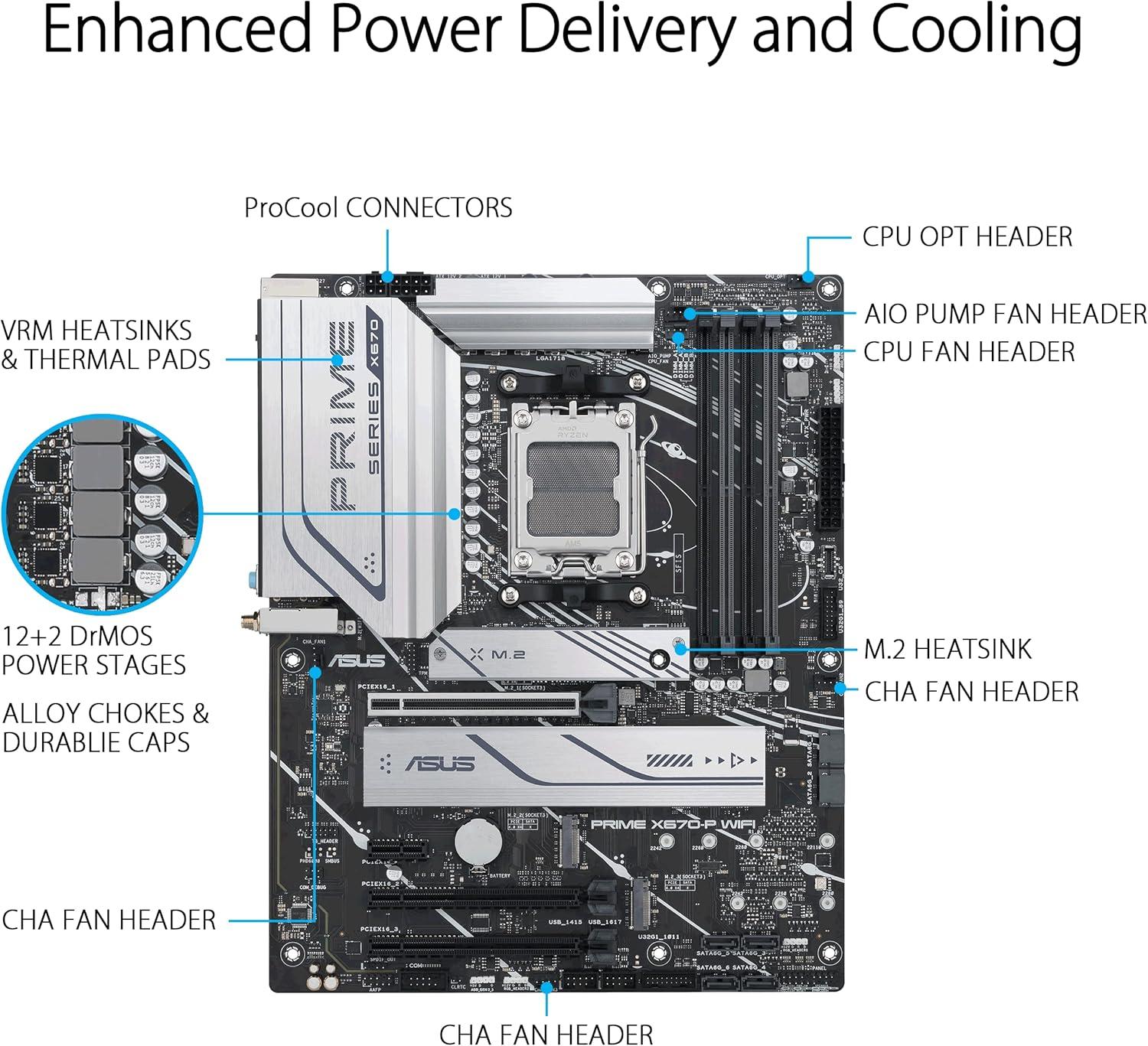

Power delivery

The calculated VRM score is 38.0, placing the power delivery in the entry-level class. The board lists 12 CPU power phases, 60 A power stages in a 12(60A)+2(60A)+1 layout. It is best paired with mainstream 65–105 W-class processors and good case airflow.

Expansion and storage

The expansion and storage score is 110.0: exceptionally well equipped . The platform supports PCIe 4.0. Physical expansion includes 4 ×16 slots, and 1 ×1.

On-board storage consists of 3 M.2 slots supporting PCIe 5.0/4.0 and 6 SATA ports. Supported M.2 lengths are listed as 22110, 2280, 2260, 2242. That is enough NVMe capacity for a multi-drive gaming or creator setup without immediately relying on an add-in card.

Connectivity and rear I/O

The connectivity score is 63.0, rated adequate . Wireless networking is Wi-Fi 6 ; wired networking is 1 x Realtek 2.5Gb Ethernet at up to 2500 Mbps. Bluetooth 5.2 is included. The recorded USB provision is 10 rear connections and 1 front-panel connections. The specification sheet below separates every USB speed and connector type.

Display connectivity includes HDMI 2.1, DisplayPort 1.4. These motherboard outputs require a processor with integrated graphics.

Audio

The audio score is 40.0. This is a standard onboard solution using Realtek 7.1 Surround Sound High Definition Audio CODEC. It covers normal gaming and communication; demanding headphones or production work still benefit from an external interface. The rear panel has 3 analogue jacks.

Buying verdict

Overall quality is 68.80, a strong performance-class result. This is the practical sweet spot for a powerful gaming or productivity PC without paying for every flagship extra.

At the recorded Amazon price, the quality-to-price score is 49.7—a balanced value for its feature class.

Board data

Full specifications

Platform, expansion, storage, rear I/O, internal headers, networking, audio, and board controls in one sheet.

General

Manufacturer
ASUS
Motherboard
ASUS Prime X670-P WiFi
Chipset / socket
X870 / AM5
Form factor
ATX
Launch price
—
Amazon price
$263
Availability
In stock
Price updated
3 days, 19 hours ago

VRM

CPU phases
12 (60 A)
Power design
12(60A)+2(60A)+1

Memory

Type / slots
DDR5 / 4 DIMMs
Max capacity / OC
192 GB / 7600 MT/s
Per DIMM
48 GB
XMP / EXPO
Yes
ECC
Modules supported

PCIe

Supported version
PCIe 4.0
x16 physical
4
x16 Gen 4
4
x1 physical
1
x1 Gen 3
1

Storage

M.2 slots
3
M.2 lengths
22110, 2280, 2260, 2242
M.2 modes
PCIe 5.0/4.0
SATA ports
6

Display outputs

HDMI
Yes · 2.1 · 4K@60Hz
DisplayPort
Yes · 1.4 · 8K@60Hz
USB-C DisplayPort
No

USB

Rear USB 2.0
2
Rear USB 3.2 Gen 1 Type-A 5 Gbps
4
Rear USB 3.2 Gen 2 Type-A 10 Gbps
3
Rear USB 3.2 Gen 2×2 Type-C 20 Gbps
1
Front USB 3.2 Gen 1 Type-C 5 Gbps
1
Front USB-C PD
15 W
Header USB 2.0
4
Header USB 3.2 Gen 1 Type-A 5 Gbps
4

Networking

Ethernet
1 x Realtek 2.5Gb Ethernet
LAN ports
1
LAN speed
2500 Mbps
Wi-Fi
6
Bands
2.4/5GHz
Antenna connectors
2
Bluetooth
5.2

Audio

Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC
Analog jacks
3
Gold-plated jacks
No
Optical S/PDIF
No
Spatial audio
No

Buttons

BIOS flashback
Yes
Clear CMOS
No
Q-Flash Plus
No
Smart button
No
Onboard start / reset
No

Additional information

Memory notes
Supports Un-buffered Memory. Features AMD Extended Profiles for Overclocking (EXPO™) and OptiMem II. Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. Supported memory types, data rate, and number of DRAM modules vary depending on the CPU and memory configuration.
Display notes
Graphics specifications may vary between CPU types.
Expansion notes
Specifications vary by CPU type. The top PCIe 4.0 x16 slot can run in x16, x8, or x4 mode depending on the processor. The two PCIe 4.0 x16 slots from the chipset support x4 mode. The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports; when the slot is in use, the SATA ports cannot be used. Please check the PCIe bifurcation table for more details.
M.2_1
5.0 x4 · 2242, 2260, 2280 · CPU — Supported PCIe version depends on the CPU: PCIe 5.0 with Ryzen 9000/7000 series, PCIe 4.0 with Ryzen 8000 series.
M.2_2
4.0 x4 · 2242, 2260, 2280, 22110 · CPU — Supported speed varies by CPU type: x4 mode with Ryzen 9000/7000 series, x4/x2 mode with Ryzen 8000 series.
M.2_3
4.0 x4 · 2242, 2260, 2280 · AMD X670 Chipset
RAID
SATA / PCIe (0, 1, 10)
Storage notes
The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. M.2 slot specifications vary depending on the installed CPU. AMD RAIDXpert2 Technology supports both NVMe and SATA RAID.
USB notes
The front USB Type-C connector supports power delivery output of max. 5V/3A (15W). The motherboard includes one internal Thunderbolt™ (USB4®) header.
Audio notes
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. Supports up to 24-Bit/192 kHz playback. Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers. A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Networking notes
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Button notes
The motherboard includes a Clear CMOS header, but not a dedicated button.
Fan / RGB headers
1 CPU · 1 OPT · 1 AIO · 3 chassis · — ARGB · 1 RGB
Other headers
Front audio · System panel
Dimensions
30.5 cm x 24.4 cm

Extracted notes sit here. Official manufacturer copy is at the bottom of the page.

Amazon

Price history

Nearby quality

Similar motherboards

Boards on AM5 close to ASUS Prime X670-P WiFi on overall quality. Open the motherboard table to sort, filter, and compare side by side.

Compare these in the motherboard table

VRM fit

VRM-appropriate CPUs

AM5 processors whose TDP sits in this board’s VRM window. Socket match is required; chipset extras still matter on sTR5. This is a power-delivery filter, not a ranked CPU guide.

Open AM5 CPUs in the CPU table

Discussion

Comments on ASUS Prime X670-P WiFi

No comments yet.

Vendor copy

Official manufacturer data

Raw manufacturer text kept for reference. Structured specs above are extracted from this copy and are the source for scores and tables.

Memory

4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.

Expansion slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X670 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot***
* Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.
** Specifications vary by CPU types.
*** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.

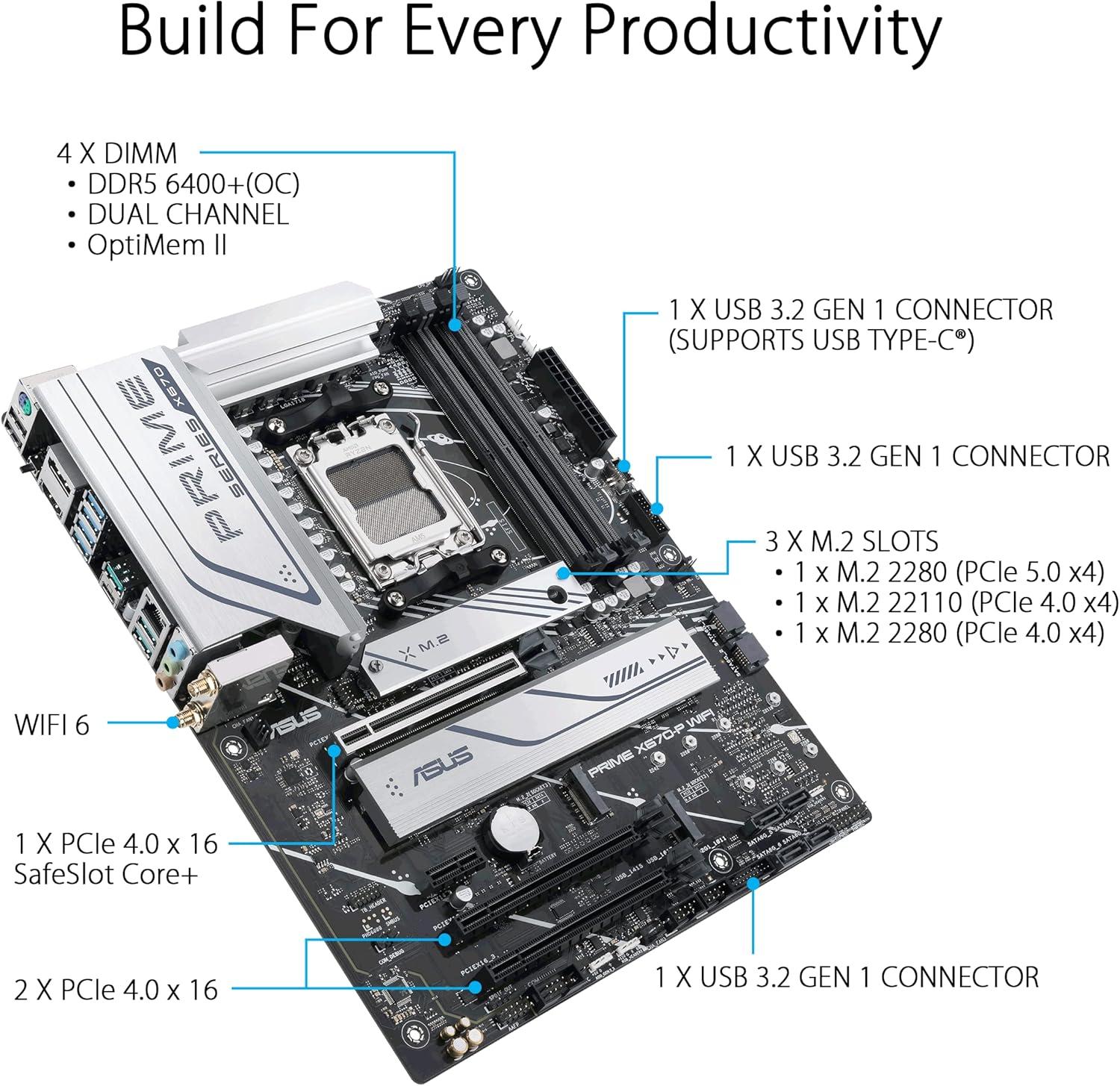

Storage

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports***
* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.
*** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.

USB

Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (3 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A

Internal I/O

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

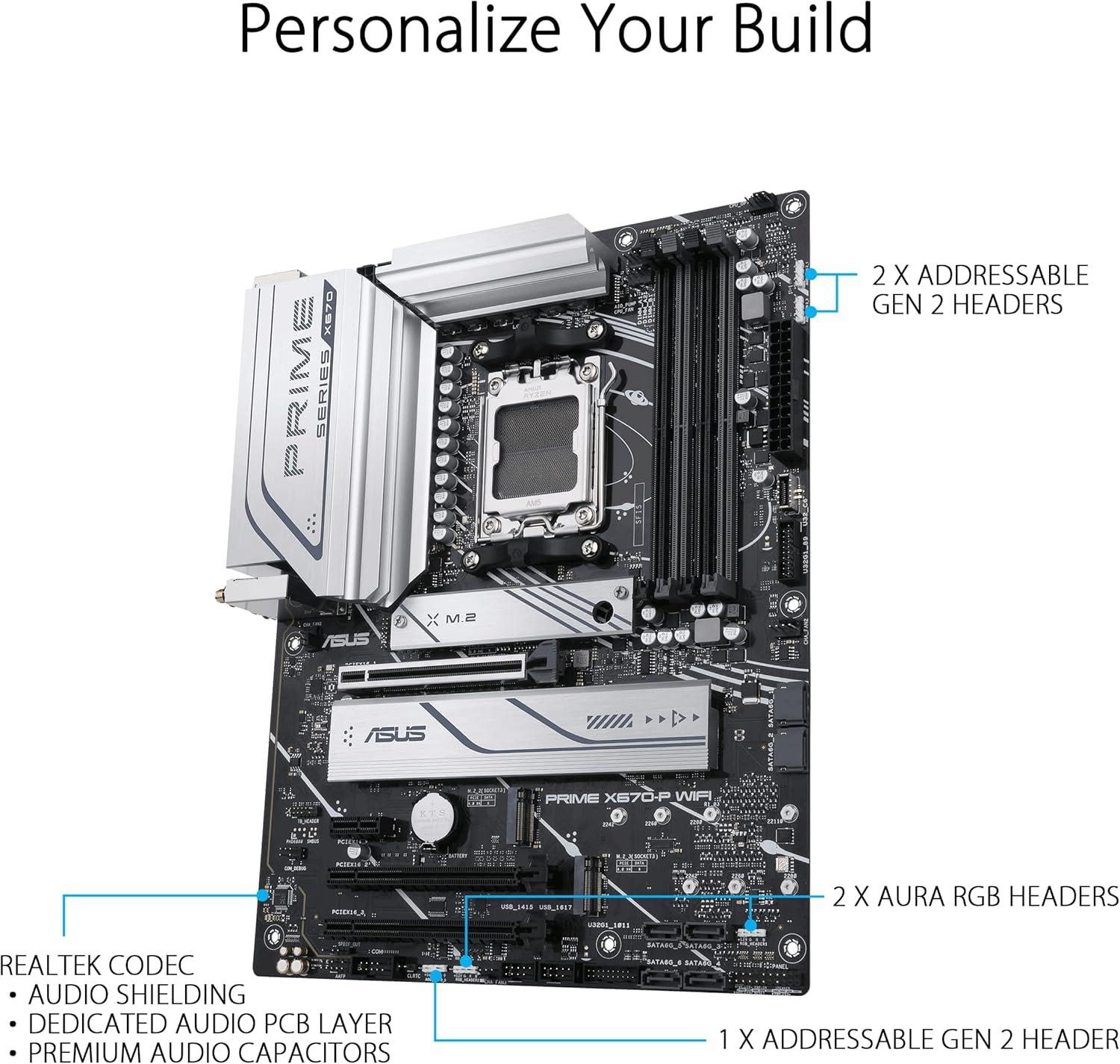

Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thunderbolt™ (USB4®) header

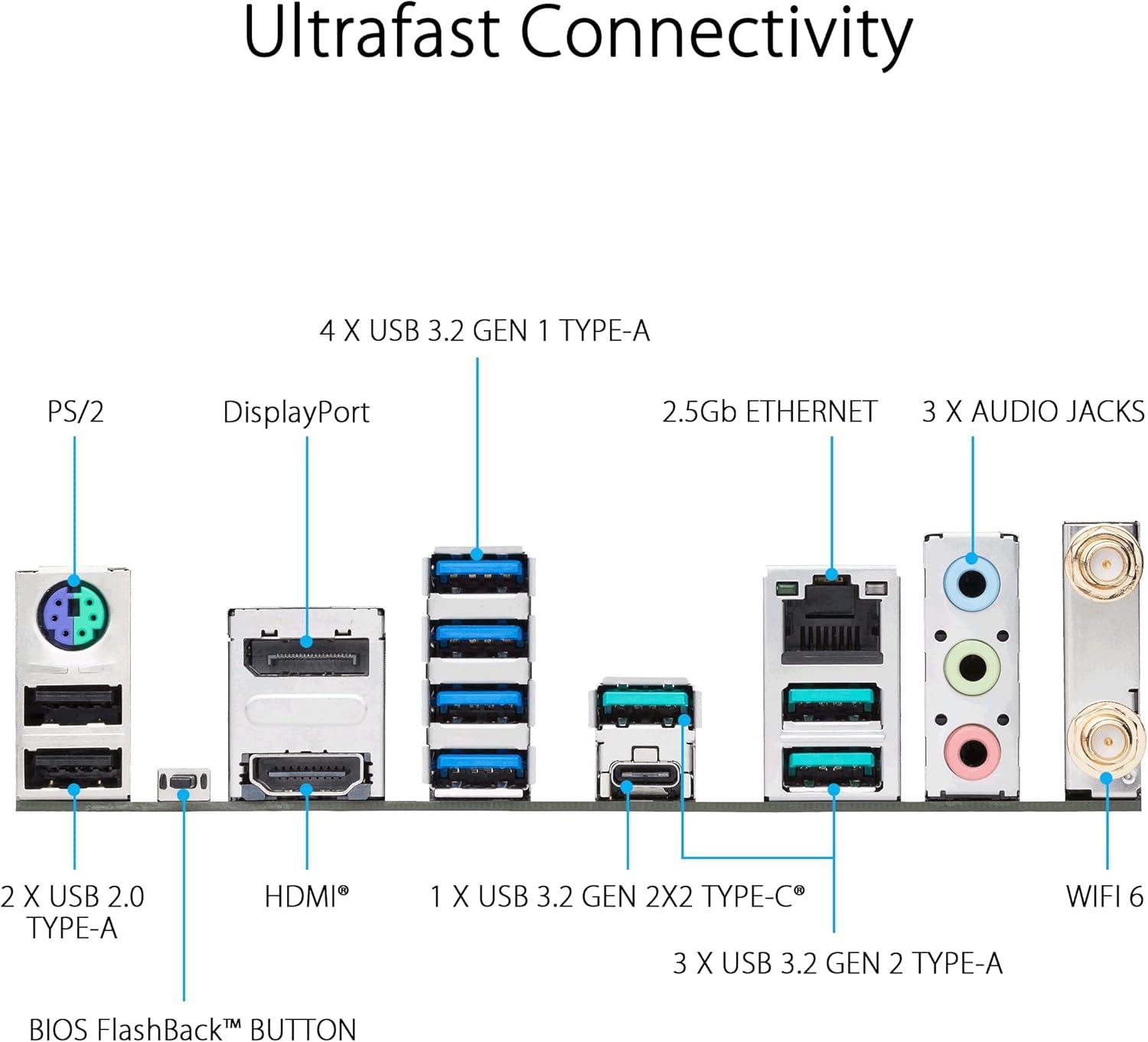

Rear I/O

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (3 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port

Wireless

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Special features

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
Aura Sync
- Aura RGB headers
- Addressable Gen 2 headers
