GIGABYTE X670E AORUS PRO X Specifications Review
GIGABYTE X670E AORUS PRO X by GIGABYTE is a Standard-ATX form factor motherboard based on the high-end X670E chipset and AM5 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8000 MHz.
VRM Quality
The GIGABYTE X670E AORUS PRO X includes an upper mid-range VRM configuration, delivering 70 A through 16 phases. This tier comfortably supports CPUs in the ~170 W TDP range and can run high-wattage CPUs at stock settings, though sustained heavy overclocking may reduce stability. A good choice for performance-oriented gamers and productivity users who don’t require extreme tuning.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The GIGABYTE X670E AORUS PRO X offers a well-equipped expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 3 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the Wi-Fi 7 standard, and wired Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek® ALC892/ALC897) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
GIGABYTE X670E AORUS PRO X delivers a strong overall quality score of 70.40. It offers reliable performance, durable construction, and a comprehensive set of features suitable for demanding workloads, gaming, and productivity, without venturing into the extreme performance segment of premium boards.
This motherboard shows a 42.9% value score indicating less favorable price-to-performance compared to mainstream models. For budget-conscious buyers, there may be better value options available at this price point.
General Information
| Manufacturer | GIGABYTE |
|---|---|
| Motherboard Name | GIGABYTE X670E AORUS PRO X |
| Current Price Amazon | $312❗N/A |
| Amazon Price Updated | 3 months, 3 weeks ago. |
| Motherboard Available | False |
| Chipset / Socket | X670E / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 16 (70 A) |
|---|---|
| Power Design | 16+2+2 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8000 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen3 |
|---|---|---|---|
| x16 | 3 | 1 | 2 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 25110, 22110, 2580, 2280 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC892/ALC897 |
|---|---|
| Analog Audio Jacks | 3 jacks |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4096x2160@60 Hz) |
|---|
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 3 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 Bandwidth: 320MHz Frequency Bands: 2.4GHz, 5GHz, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
Clear CMOS Q-Flash Plus Start Button Reset Button |
|---|
Quality & Features
Additional Information
| RAM | Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Also supports AMD EXtended Profiles for Overclocking (AMD EXPO™). The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to the 'Memory Support List' for more information. |
|---|---|
| Display | Features one rear HDMI 2.1 port supporting 4096x2160@60 Hz and HDCP 2.3. Also includes one front HDMI 1.4 port supporting a maximum resolution of 1920x1080@30 Hz. Graphics specifications may vary depending on CPU support. |
| Expansion | The primary PCIEX16 slot's mode is dependent on the installed CPU: Ryzen 7000/9000 Series support PCIe 5.0 x16, Ryzen 8000 Series-Phoenix 1 support PCIe 4.0 x8, and Ryzen 8000 Series-Phoenix 2 support PCIe 4.0 x4. The second physical x16 slot (PCIEX4) runs at PCIe 3.0 x4. The third physical x16 slot (PCIEX2) runs at PCIe 3.0 x2. The primary PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Storage |
M.2 Slot Details:
|
| Audio | High Definition Audio. Supports 2/4/5.1/7.1-channel configurations. The functionality of an audio jack can be changed using the audio software. To configure 7.1-channel audio, you must access the audio software for settings. |
| Networking | The Wi-Fi module varies by PCB revision: Qualcomm® Wi-Fi 7 QCNCM865 (rev. 1.0/1.2) or MediaTek Wi-Fi 7 MT7927, RZ738 (rev. 1.1). Antenna configuration is 2T2R. Wi-Fi 7 features require Windows 11 SV3. 6GHz band availability depends on country regulations. Actual data rate may vary. |
| Buttons | The board includes an onboard power button and a reset button. It also features a reset jumper and a Clear CMOS jumper. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
GIGABYTE X670E AORUS PRO X Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$176
|
0.0%
|
72.0%
|
54.0%
|
76.0%
|
71.0%
|
71.0%
|
88.0%
|
77.7%
|
|
|
$210
|
0.0%
|
71.8%
|
60.0%
|
89.0%
|
56.0%
|
73.0%
|
81.0%
|
65.0%
|
|
|
$170
|
0.0%
|
71.6%
|
54.0%
|
86.0%
|
72.0%
|
62.0%
|
84.0%
|
80.0%
|
|
|
$200
|
0.0%
|
70.6%
|
37.0%
|
81.0%
|
66.0%
|
78.0%
|
91.0%
|
67.1%
|
|
|
$312❗
|
0.0%
|
70.4%
|
56.0%
|
86.0%
|
82.0%
|
83.0%
|
45.0%
|
42.9%
|
|
|
$150
|
0.0%
|
68.8%
|
38.0%
|
93.0%
|
110.0%
|
63.0%
|
40.0%
|
87.2%
|
|
|
$175
|
↑
7.6%
|
68.4%
|
48.0%
|
88.0%
|
87.0%
|
79.0%
|
40.0%
|
74.3%
|
|
|
$170
|
0.0%
|
68.4%
|
37.0%
|
85.0%
|
65.0%
|
74.0%
|
81.0%
|
76.5%
|
|
|
$231
|
0.0%
|
68.0%
|
41.0%
|
95.0%
|
84.0%
|
80.0%
|
40.0%
|
56.0%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$176
|
0.0%
|
$210
|
0.0%
|
$170
|
0.0%
|
$200
|
0.0%
|
$312❗
|
0.0%
|
$150
|
0.0%
|
$175
|
↑
7.6%
|
$170
|
0.0%
|
$231
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | MSI | ASUS | ASRock | MSI | GIGABYTE | ASUS | MSI | Gigabyte | MSI | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B650 / AM5 | B850 / AM5 | X870 / AM5 | B850M / AM5 | X670E / AM5 | X870 / AM5 | X670E / AM5 | AMD B850 / AM5 | X870 / AM5 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Micro-ATX | Standard-ATX | Micro-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Micro-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 14 (80 A) | 14 (80 A) | 14 (80 A) | 12 (60 A) | 16 (70 A) | 12 (60 A) | 14 (70 A) | 12 (60 A) | 14 (60 A) | ||||||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 14+2+1 | 14+2+1 | 14+2+1 | 12+2+1 | 16+2+2 | 12(60A)+2(60A)+1 | 14+2+1 | 12 + 2 + 2 | 14+2+1 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 7600 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | 256 GB / 8000 MHz | 192 GB / 7600 MHz | 256 GB / 7800 MHz | 256 GB / 8200 MHz | 256 GB / 8200 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 2x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x4 Gen4 | 1x16 Gen5 | 2x16 Gen3 | 4x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 4 | 3 | 3 | 4 | 3 | 4 | 2 | 3 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 6 | 2 | 4 | 4 | 4 | 6 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC4080 Codec | Realtek ALC1220P | Realtek ALC1220 | Realtek® ALC4080 Codec | Realtek® ALC892/ALC897 | Realtek 7.1 Surround Sound Hi… | Realtek® ALC897 Codec | Realtek® ALC1220 CODEC (Only … | Realtek® ALC897 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ❌ | ❌ | ❌ | ✔️ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1 FRL) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ✔️ (1.4) | ❌ | ❌ | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® RTL8125BG 2.5Gb… (1 ports) | Intel® 2.5Gb Ethernet (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® RTL8125BG 2.5Gb… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 6E | Wi-Fi 7 | ❌ | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 6 | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 6E (802.11ax, RTL8852CE) | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.3 | v5.4 | ❌ | v5.4 | v5.3 | v5.2 | v5.3 | v5.3 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
❌ |
|
|
❌ |
|
%20Gallery/50a05a6872804bdeaf83_qStT9m3.jpg)
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$500
|
0.0%
|
76.1%
|
92.0%
|
120 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None |
Official Manufacturer Data
Memory:
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Graphics:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
* Support for native HDMI 2.1 TMDS compatible ports.
- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version
(Graphics specifications may vary depending on CPU support.)
Storage:
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)(M2C_SB, M2D_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Expansion Slots:
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
USB:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports on the back panel
CPU + USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back
panel, 1 port available through the internal USB header)
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 6 x USB 3.2 Gen 1 ports (2 ports on the back panel, 4 ports available through
the internal USB headers)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O:
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
2 x temperature sensor headers
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x THB_U4 add-in card connector
1 x HDMI port*
* Only available with the AMD Radeon™ Graphics Processors.
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper

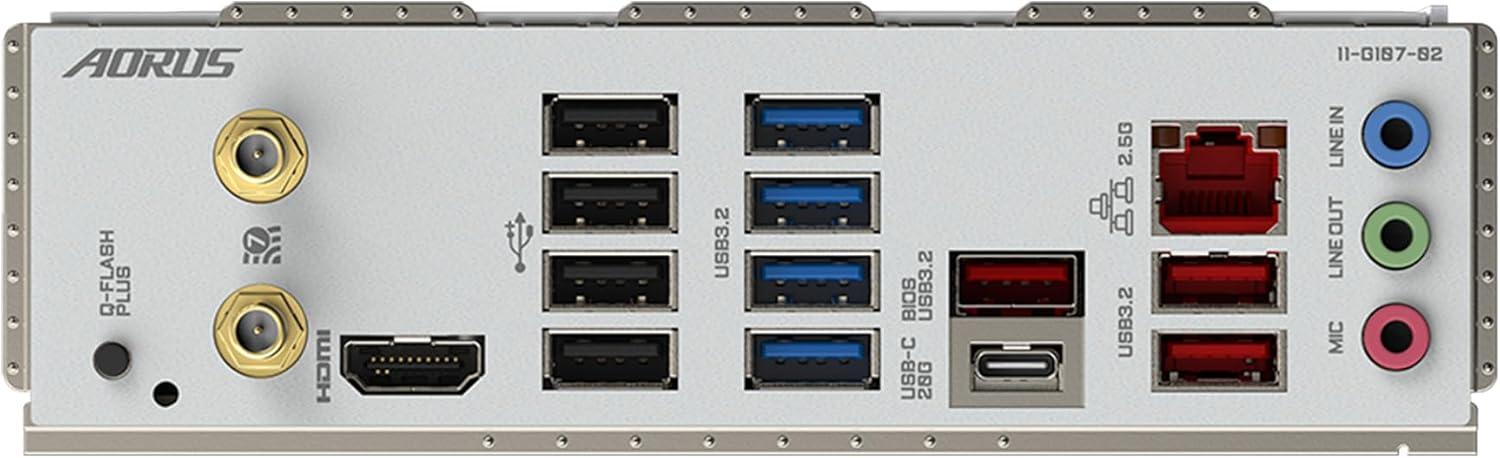

Back Panel I/O:
2 x SMA antenna connectors (2T2R)
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
3 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x RJ-45 port
3 x audio jacks
WiFi:
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Note:
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.
Audio:
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Special Features:
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Add Comment on GIGABYTE X670E AORUS PRO X
