B850 AORUS STEALTH ICE
B850 AORUS STEALTH ICE Specifications Review

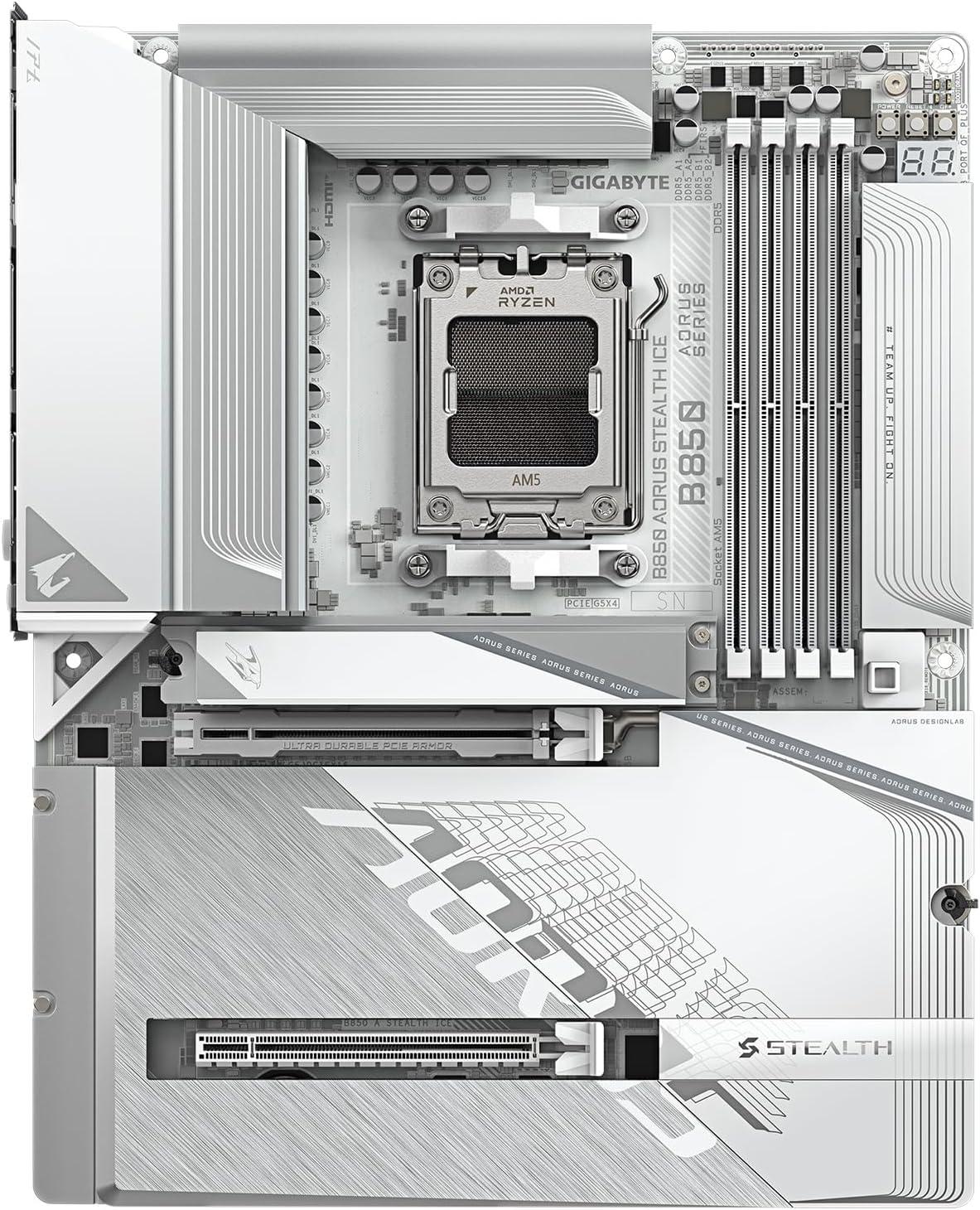

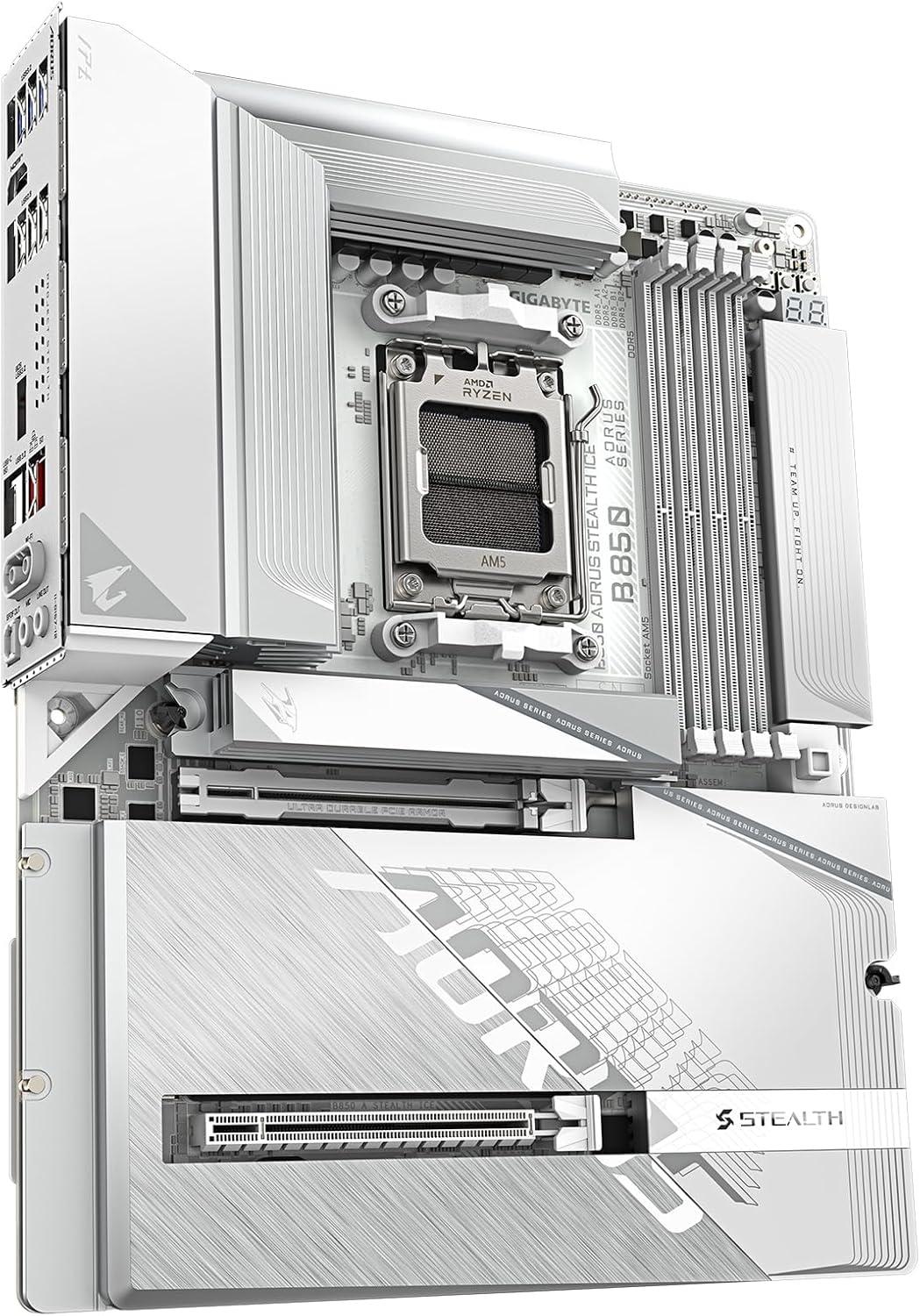

B850 AORUS STEALTH ICE by GIGABYTE is a Standard-ATX form factor motherboard based on the mid-range AMD B850 chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8200 MHz.
VRM Quality
The B850 AORUS STEALTH ICE has a mid-range VRM configuration, providing 80 A over 14 phases. Suitable for CPUs in the ~140 W TDP range, it can power higher-TDP chips at stock, but sustained overclocking is not recommended due to thermal and voltage ripple considerations. Ideal for mainstream gaming, light workstation work, and general-purpose builds.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The B850 AORUS STEALTH ICE offers a well-equipped expansion and storage configuration with PCIe 5.0 (when used with Ryzen 9000/7000 CPUs) support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots (M2A: PCIe5.0/4.0 x4/x2; M2B: PCIe5.0/4.0 x4/x2 (disabled w/ 8000 Phoenix2); M2C/D: PCIe4.0 x4/x2) and 2 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the Wi-Fi Wi‑Fi 7 (RTL8922AE); 802.11a/b/g/n/ac/ax; 11be standard, and wired Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) ethernet supporting speeds up to 5000 Gbps. Bluetooth 5.4 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the Realtek® ALC1220 CODEC — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
B850 AORUS STEALTH ICE delivers a strong overall quality score of 74.80. It offers reliable performance, durable construction, and a comprehensive set of features suitable for demanding workloads, gaming, and productivity, without venturing into the extreme performance segment of premium boards.
This motherboard has a solid 55.3% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | GIGABYTE |
|---|---|
| Motherboard Name | B850 AORUS STEALTH ICE |
| Current Price Amazon | $257 |
| Amazon Price Updated | 3 hours, 8 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | AMD B850 / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 14 (80 A) |
|---|---|
| Power Design | 14 + 2 + 2 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 (when used with Ryzen 9000/7000 CPUs) | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 2 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 25110, 22110, 2580, 2280 |
| M.2 PCIe Modes | M2A: PCIe5.0/4.0 x4/x2; M2B: PCIe5.0/4.0 x4/x2 (disabled w/ 8000 Phoenix2); M2C/D: PCIe4.0 x4/x2 |
| SATA Ports | 2 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC1220 CODEC |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4096x2160@60 Hz) |
|---|

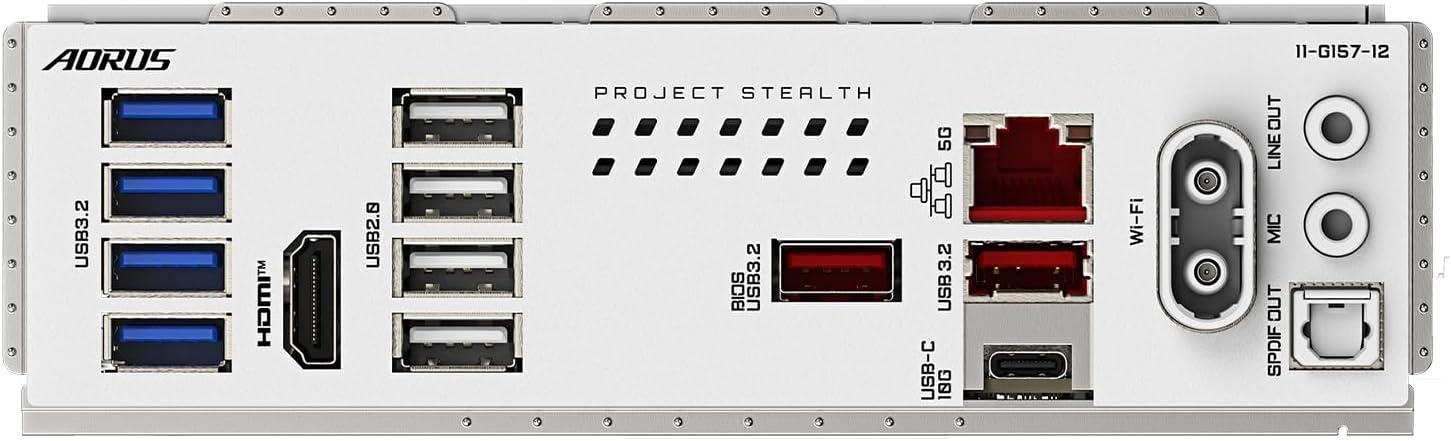

USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi‑Fi 7 (RTL8922AE); 802.11a/b/g/n/ac/ax; 11be Bandwidth: 160 MHz Frequency Bands: ['2.4 GHz', '5 GHz', '6 GHz'] Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
Clear CMOS Q-Flash Plus Start Button Reset Button |
|---|
Quality & Features
Additional Information
| CPU Support | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
|---|---|
| OS Support | Support for Windows 11 64-bit |
| RAM | 4x DDR5 DIMM sockets, up to 256 GB total (64 GB per DIMM). Supports non-ECC un-buffered DIMMs in 1Rx8/2Rx8/1Rx16 configurations. Many listed higher speeds are overclock (O.C) rates; base supported speeds include 5200/4800/4400 MT/s. Supports AMD EXPO (AMD EXtended Profiles for Overclocking) and Intel/JEDEC-compatible XMP memory modules. Actual supported memory types, speeds, and module counts depend on CPU and specific DIMM configurations — consult the motherboard "Memory Support List" on GIGABYTE's website for validated modules. |
| Display | Integrated AMD Radeon Graphics support with 1x HDMI port. Supports HDMI 2.1 features, HDCP 2.3, and HDR. Native HDMI 2.1 TMDS-compatible ports. Graphics capabilities may vary depending on CPU support. |
| Expansion | Maximum supported generation: PCIe 5.0 (requires Ryzen 9000/7000 CPU). PCIe 5.0 provides ~32 GT/s per lane (~3.94 GB/s per lane), i.e., up to ~63–64 GB/s for an x16 link, and is backward compatible with earlier PCIe versions. Slot details: CPU-integrated PCIEX16 (physical x16) — up to PCIe5.0 x16 with Ryzen 9000/7000, PCIe4.0 x8 with Ryzen 8000 Phoenix1, or PCIe4.0 x4 with Ryzen 8000 Phoenix2; note actual speed is CPU-dependent. Chipset PCIEX16 (listed as PCIEX4) is physically x16 but electrically runs at PCIe4.0 x4 and shares bandwidth with the M2D_SB M.2 connector; the PCIEX4 slot becomes unavailable when a device is installed in M2D_SB. The PCIEX16 slot is limited to a graphics card or an NVMe SSD (and a single GPU should be installed in PCIEX16). |
| Storage |
M.2 Slot Details:
4 M.2 slots (2 from CPU, 2 from chipset). M2A supports 25110/22110/2580/2280; M2B and M2C/D support 22110/2280. 2x SATA 6Gb/s. NVMe RAID 0/1/5/10 supported (RAID5 only with Ryzen 9000). SATA RAID 0/1 supported. M2B is unavailable with AMD Ryzen 8000 Series Phoenix 2 processors. |
| Audio | Back panel line-out jack supports DSD audio; High Definition Audio; supports 2/4/5.1/7.1-channel configurations; audio jacks can be reconfigured via audio software to enable 7.1-channel; actual support may vary by CPU. |
| Networking | Realtek Wi‑Fi 7 RTL8922AE (2T2R). Supports 11be 160MHz; Wi‑Fi 7 features require Windows 11 SV3 and no driver support for Windows 10. 5GbE LAN chip supports 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps. Availability of 6 GHz channels depends on country regulations. Actual data rates may vary; Bluetooth version may change with updates. |
| Buttons | Board includes: 1 power button, 1 reset button, 1 reset jumper, and 1 Clear CMOS jumper (clear_cmos_button set true). Q-Flash Plus button present (qflash_plus_button true). Other related headers/features: front panel header, front panel audio header, multiple USB headers (USB Type-C with USB 3.2 Gen2x2 support, USB Type-C with USB 3.2 Gen2 support, USB 3.2 Gen1 header, two USB 2.0 headers), noise detection header, Trusted Platform Module header (for GC-TPM2.0 SPI V2 module), and two temperature sensor headers. Note: Actual support may vary by CPU. |
| Dimensions | ATX Form Factor; 30.5cm x 24.4cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
B850 AORUS STEALTH ICE Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$124
|
0.0%
|
75.8%
|
60.0%
|
93.0%
|
110.0%
|
76.0%
|
40.0%
|
116.2%
|
|
|
$170
|
↑
5.3%
|
75.8%
|
54.0%
|
73.0%
|
78.0%
|
78.0%
|
96.0%
|
84.7%
|
|
|
$180
|
0.0%
|
75.2%
|
54.0%
|
86.0%
|
72.0%
|
80.0%
|
84.0%
|
79.4%
|
|
|
$210
|
0.0%
|
75.2%
|
50.0%
|
93.0%
|
110.0%
|
78.0%
|
45.0%
|
68.0%
|
|
|
$257
|
↓
-1.2%
|
74.8%
|
54.0%
|
80.0%
|
81.0%
|
78.0%
|
81.0%
|
55.3%
|
|
|
$340
|
0.0%
|
74.4%
|
41.0%
|
100.0%
|
59.0%
|
84.0%
|
88.0%
|
41.6%
|
|
|
$147
|
↓
-2.1%
|
74.2%
|
38.0%
|
78.0%
|
100.0%
|
67.0%
|
88.0%
|
96.0%
|
|
|
$250
|
0.0%
|
73.6%
|
60.0%
|
93.0%
|
107.0%
|
68.0%
|
40.0%
|
55.9%
|
|
|
$163
|
0.0%
|
73.6%
|
60.0%
|
84.0%
|
69.0%
|
74.0%
|
81.0%
|
86.1%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$124
|
0.0%
|
$170
|
↑
5.3%
|
$180
|
0.0%
|
$210
|
0.0%
|
$257
|
↓
-1.2%
|
$340
|
0.0%
|
$147
|
↓
-2.1%
|
$250
|
0.0%
|
$163
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASUS | ASRock | ASRock | ASUS | GIGABYTE | MSI | ASUS | ASUS | ASUS | ||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | X870-P / AM5 | B850 / AM5 | X870 / AM5 | X870 / AM5 | AMD B850 / AM5 | AMD X870 / AM5 | B650 / AM5 | AMD X870 Chipset / AM5 | B850M / AM5 | ||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Mini-ITX | Standard-ATX | Standard-ATX | Micro-ATX | ||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 14 (80 A) | 14 (80 A) | 14 (80 A) | 12 (80 A) | 14 (80 A) | 8 (110 A) | 12 (60 A) | 14 (80 A) | 14 (80 A) | ||||||||||||||||||||||||||||||||||||||||
| PWR Design | 14(80A) + 2(80A) + 1(80A) | 14+2+1 | 14+2+1 | 12+2+1 | 14 + 2 + 2 | 8 + 2 + 1 | 12+2+1 | 14+2+1 | 14+2+1 | ||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | 128 GB / 10000 MHz | 192 GB / 7600 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | ||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 (when used with Ryzen 9000/7000 CPUs) | PCIe 5.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 3x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 3x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 3x16 Gen4 | 2x1 Gen4 | 1x16 Gen5 | 3x16 Gen4 | 1x16 Gen5 | 1x1 Gen4 | ||||||||||||||||||||||||||||||||||||||||
| M.2 | 4 | 4 | 3 | 3 | 4 | 3 | 3 | 4 | 3 | ||||||||||||||||||||||||||||||||||||||||
| SATA | 2 | 4 | 4 | 4 | 2 | 2 | 4 | 2 | 4 | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek 7.1 Surround Sound Hi… | Realtek ALC4082 | Realtek ALC1220 | Realtek® ALC892/ALC897 | Realtek® ALC1220 CODEC | Realtek ® ALC4080 Codec | ROG SupremeFX 7.1 Surround So… | Realtek 7.1 Surround Sound Hi… | Realtek ALC1220P | ||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ✔️ | ✔️ | ❌ | ✔️ | ✔️ | ❌ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ❌ | ❌ | ❌ | ✔️ (None) | ✔️ (1.4) | ❌ | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||
| LAN | 1 x Realtek 2.5Gb Ethern… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek 2.5Gb Ethernet (1 ports) | Realtek® 5GbE LAN chip (… (1 ports) | 1x Realtek ® 8126 5G LAN (1 ports) | 1 x Intel® 2.5Gb Ethern… (1 ports) | 1 x Realtek 2.5Gb Ethern… (2 ports) | Realtek 2.5Gb Ethernet (1 ports) | ||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 7 | Wi-Fi 7 | Wi-Fi Wi-Fi 7 | Wi-Fi 7 | Wi-Fi Wi‑Fi 7 (RTL8922AE); 802.11a/b/g/n/ac/ax; 11be | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 6E | ❌ | Wi-Fi 6E (802.11ax) | ||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.2 | ❌ | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
❌ |
|
|
|
||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
❌ |
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Graphics:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Storage:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
* The M2B_CPU connector becomes unavailable when an AMD Ryzen™ 8000 SeriesPhoenix 2 processor is used.
2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0 and RAID 1 support for SATA storage devices
Expansion Slots:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
USB:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
CPU+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O:
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x power button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper
Back Panel I/O:
2 x antenna connectors (2T2R)
1 x USB Type-C® header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
(Note) Actual support may vary by CPU.
WiFi:
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
*** Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
Audio:
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Special Features:
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Add Comment on B850 AORUS STEALTH ICE
