MSI MAG X670E Tomahawk WiFi
MSI MAG X670E Tomahawk WiFi Specifications Review

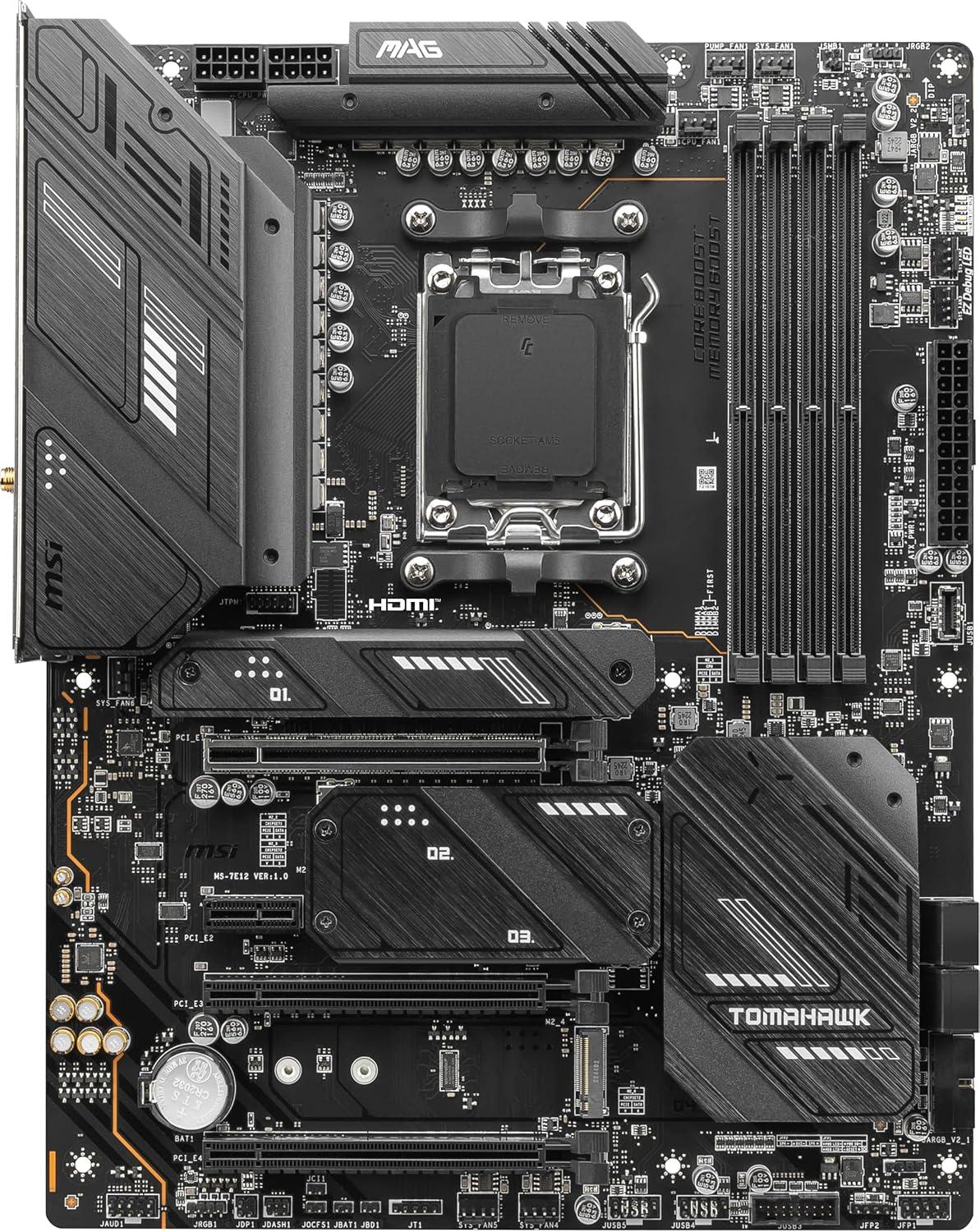

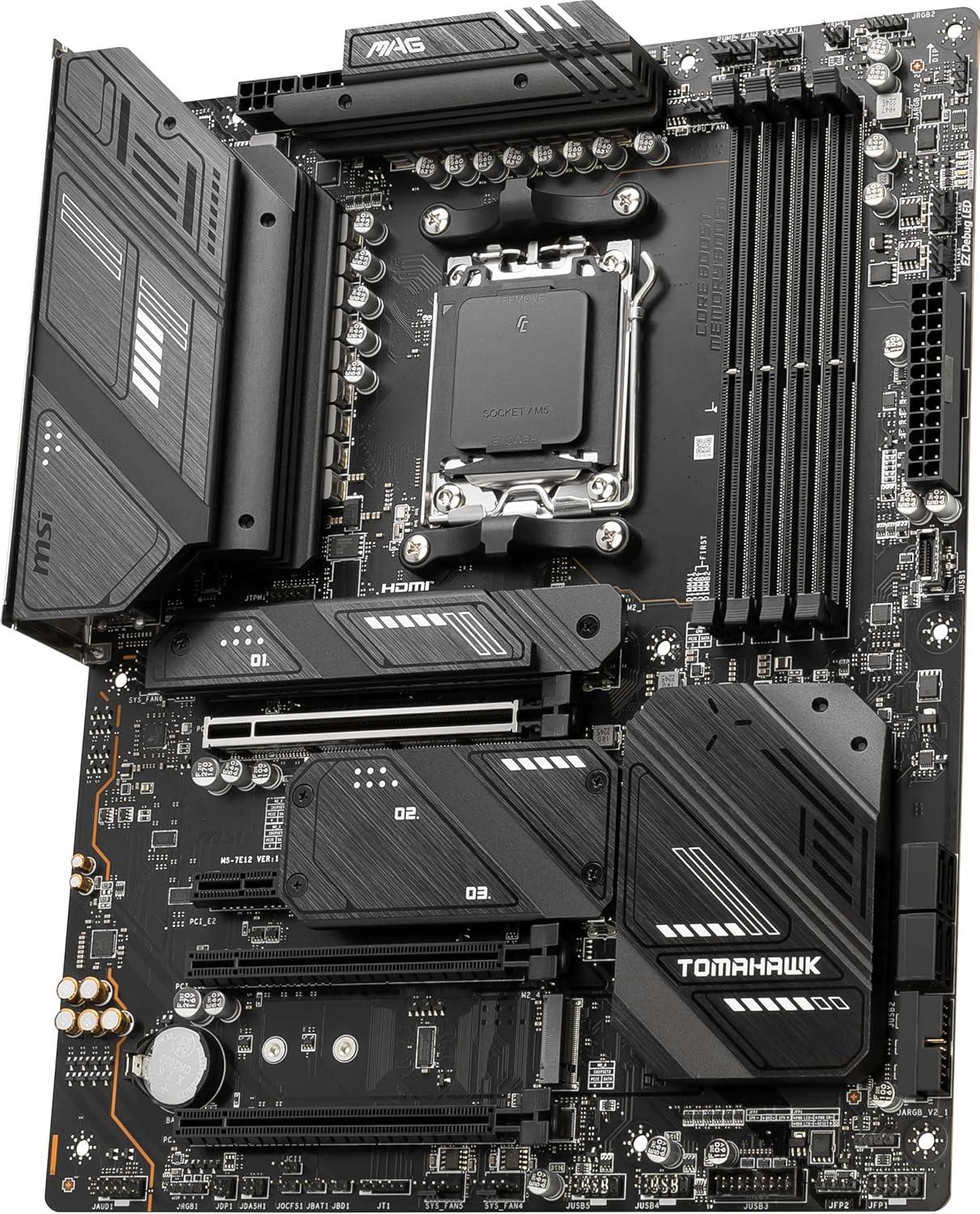

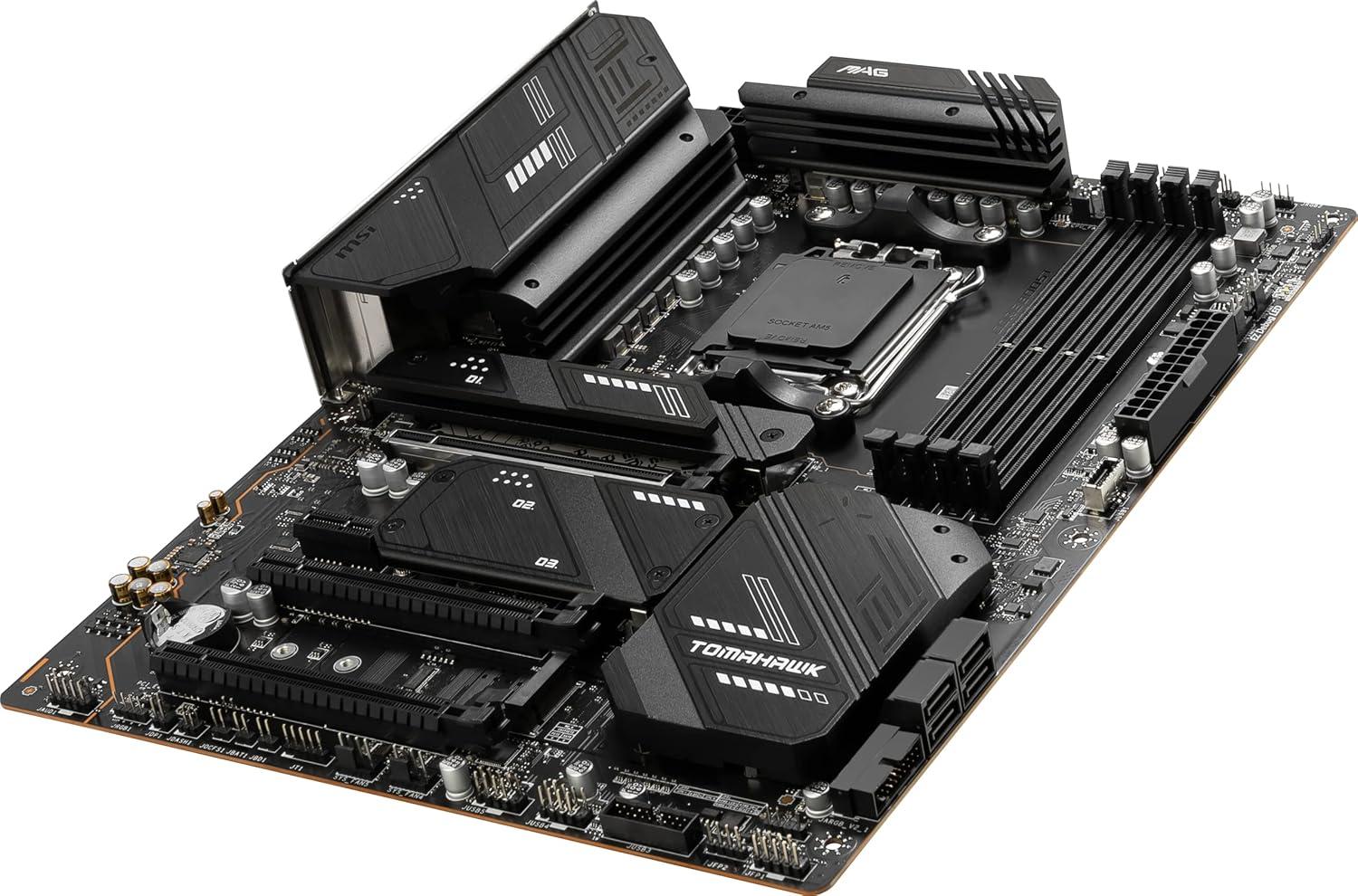

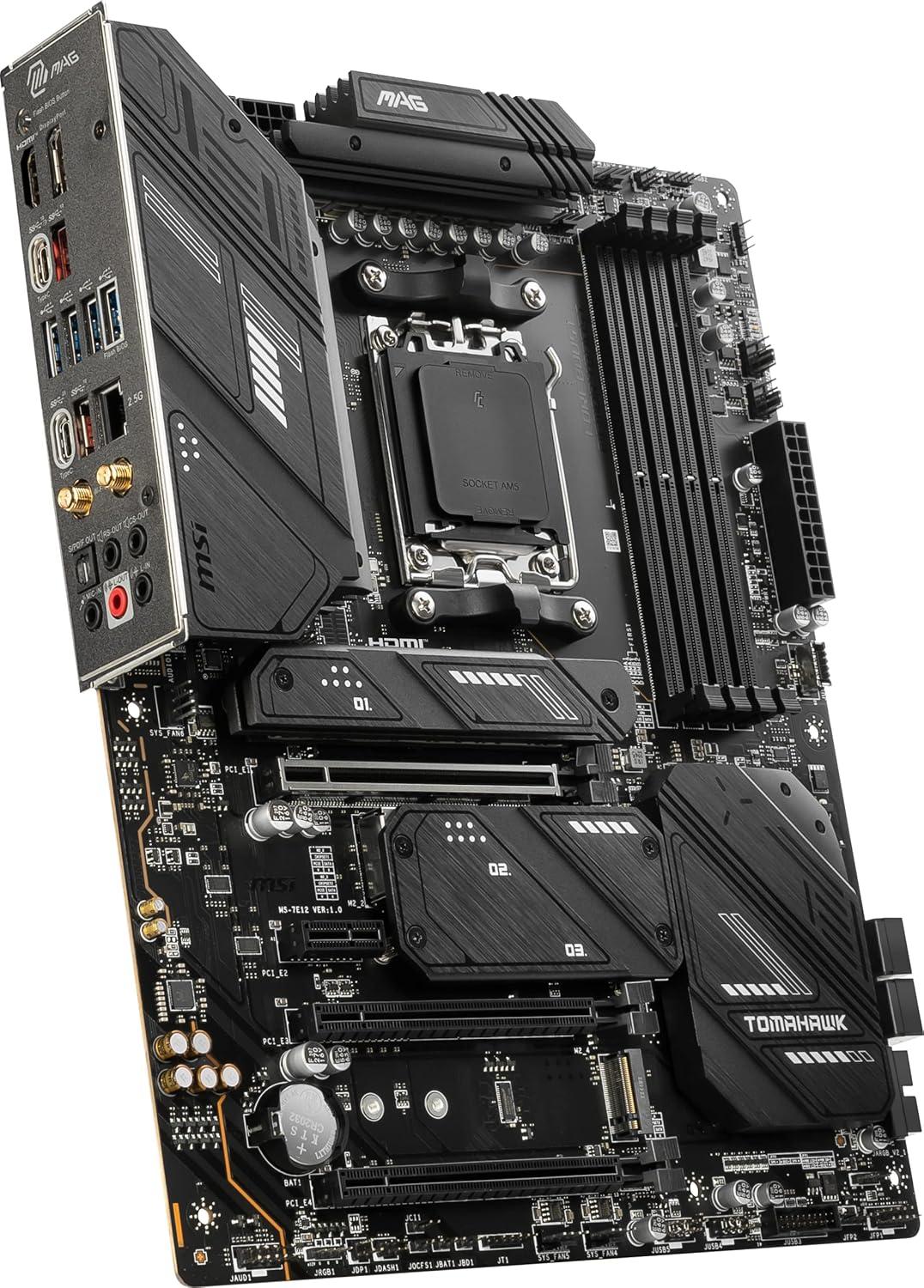

MSI MAG X670E Tomahawk WiFi by MSI is a Standard-ATX form factor motherboard based on the high-end X670E chipset and AM5 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 7800 MHz.
VRM Quality
The MSI MAG X670E Tomahawk WiFi has a mid-range VRM configuration, providing 80 A over 14 phases. Suitable for CPUs in the ~140 W TDP range, it can power higher-TDP chips at stock, but sustained overclocking is not recommended due to thermal and voltage ripple considerations. Ideal for mainstream gaming, light workstation work, and general-purpose builds.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The MSI MAG X670E Tomahawk WiFi offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 3 x16 slots , and 1 x1 slot. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the wireless Wi-Fi 6E and wired Realtek® RTL8125BG 2.5Gbps LAN ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
This motherboard features a quality mid-range audio solution (Realtek® ALC1200 Codec), offering noticeably better sound than basic implementations. With dedicated audio components, it provides detailed, dynamic sound suitable for gaming headsets, bookshelf speakers, and users who appreciate good audio without external equipment. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
MSI MAG X670E Tomahawk WiFi delivers a strong overall quality score of 76.60. It offers reliable performance, durable construction, and a comprehensive set of features suitable for demanding workloads, gaming, and productivity, without venturing into the extreme performance segment of premium boards.
This motherboard offers an impressive 107.8% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | MSI |
|---|---|
| Motherboard Name | MSI MAG X670E Tomahawk WiFi |
| Current Price Amazon | $135 |
| Amazon Price Updated | 1 day, 22 hours ago. |
| Motherboard Available | True |
| Chipset / Socket | X670E / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 14 (80 A) |
|---|---|
| Power Design | 14+2+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 7800 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 | Gen3 |
|---|---|---|---|---|
| x16 | 3 | 1 | 2 | 0 |
| x1 | 1 | 0 | 0 | 1 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC1200 Codec |
|---|---|
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K 120Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 4K 60Hz) |
| DP over USB-C | DisplayPort over USB-C - Version 1.4 (Max: 4K 120Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
| USB 3.2 Gen 2 Header (10 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: Realtek® RTL8125BG 2.5Gbps LAN LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 6E Bandwidth: 20/40/80/160MHz Frequency Bands: 2.4GHz, 5GHz, 6GHz |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
BIOS Flashback |
|---|
Quality & Features
Additional Information
| RAM | Supports un-buffered memory and AMD EXPO™. Max. overclocking frequency details: 1DPC 1R Max speed up to 7800+ MHz, 1DPC 2R Max speed up to 6400+ MHz, 2DPC 1R Max speed up to 6400+ MHz, 2DPC 2R Max speed up to 5400+ MHz. |
|---|---|
| Display | HDMI supports FRL (Fixed Rate Link). The Type-C DisplayPort supports HBR3. Video outputs are available only on processors featuring integrated graphics, and specifications may vary depending on the CPU installed. |
| Expansion | • Supports x16/x4/x2 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8/x4/x2(For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4/x2/x2 (For Ryzen™ 8500/ 8300 Series processors) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset) *PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot. |
| Storage |
M.2 Slot Details:
|
| Audio | 7.1-Channel High Definition Audio |
| Networking | The wireless module is an AMD Wi-Fi 6E, pre-installed in the M.2 (Key-E) slot. It supports MU-MIMO TX/RX. Wi-Fi 6E (6GHz) support may depend on country regulations and requires Windows 11. Bluetooth 5.3 support requires Windows 10 build 21H1 or Windows 11. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
MSI MAG X670E Tomahawk WiFi Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$200❗
|
0.0%
|
78.8%
|
54.0%
|
86.0%
|
72.0%
|
86.0%
|
96.0%
|
74.9%
|
|
|
$163
|
0.0%
|
77.6%
|
50.0%
|
81.0%
|
94.0%
|
75.0%
|
88.0%
|
90.3%
|
|
|
$200
|
0.0%
|
77.6%
|
60.0%
|
89.0%
|
78.0%
|
73.0%
|
88.0%
|
73.7%
|
|
|
$210
|
0.0%
|
77.6%
|
54.0%
|
81.0%
|
84.0%
|
81.0%
|
88.0%
|
70.2%
|
|
|
$135
|
0.0%
|
76.6%
|
54.0%
|
93.0%
|
97.0%
|
71.0%
|
68.0%
|
107.8%
|
|
|
$416
|
0.0%
|
76.2%
|
56.0%
|
98.0%
|
52.0%
|
80.0%
|
95.0%
|
34.8%
|
|
|
$124
|
0.0%
|
75.8%
|
60.0%
|
93.0%
|
110.0%
|
76.0%
|
40.0%
|
116.2%
|
|
|
$161❗
|
↓
-5.0%
|
75.8%
|
54.0%
|
73.0%
|
78.0%
|
78.0%
|
96.0%
|
89.2%
|
|
|
$190
|
0.0%
|
75.8%
|
54.0%
|
78.0%
|
82.0%
|
81.0%
|
84.0%
|
75.8%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$200❗
|
0.0%
|
$163
|
0.0%
|
$200
|
0.0%
|
$210
|
0.0%
|
$135
|
0.0%
|
$416
|
0.0%
|
$124
|
0.0%
|
$161❗
|
↓
-5.0%
|
$190
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASRock | ASUS | ASUS | MSI | MSI | ASUS | ASUS | ASRock | ASRock | ||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | X870 / AM5 | B650E-F / AM5 | AMD B850 Chipset / AM5 | B850 / AM5 | X670E / AM5 | X870-I / AM5 | X870-P / AM5 | B850 / AM5 | B850 / AM5 | ||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Mini-ITX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 14 (80 A) | 12 (80 A) | 14 (80 A) | 14 (80 A) | 14 (80 A) | 10 (110 A) | 14 (80 A) | 14 (80 A) | 14 (80 A) | ||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 14+2+1 | 12+2+1 | 14+2+1 | 14+2+1 | 14+2+1 | 10(110A)+ 2(110A)+ 1(80A) | 14(80A) + 2(80A) + 1(80A) | 14+2+1 | 14+2+1 | ||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 192 GB / 7800 MHz | 192 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8400 MHz | 256 GB / 7800 MHz | 128 GB / 8600 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 2x1 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 2x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen5 | 3x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | ||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 3 | 4 | 4 | 4 | 2 | 4 | 4 | 3 | ||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 2 | 4 | 4 | 2 | 2 | 4 | 2 | ||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek ALC4082 | ROG SupremeFX 7.1 Surround So… | ROG SupremeFX 7.1 Surround So… | Realtek® ALC4080 Codec | Realtek® ALC1200 Codec | ESS® SABRE9260Q DAC | Realtek 7.1 Surround Sound Hi… | Realtek ALC4082 | Realtek ALC1220 | ||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ❌ | ✔️ | ✔️ | ✔️ | ❌ | ❌ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ✔️ (1.4) | ✔️ (1.4) | ❌ | ✔️ (1.4) | ❌ | ❌ | ❌ | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||
| LAN | 2.5 Gigabit LAN 10/100/1… (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | 1 x Intel ® 2.5Gb Ethern… (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | Realtek® RTL8125BG 2.5Gb… (1 ports) | 1 x Intel® 2.5Gb Ethern… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 7 | Wi-Fi 6E | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi Wi-Fi 6E | Wi-Fi 7 (802.11be) | Wi-Fi Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.2 | vv5.4 | v5.4 | v5.3 | v5.4 | v5.4 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
❌ |
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Graphics:
Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage:
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
*PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot.
Expansion Slots:
• Supports x16/x4/x2 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x4/x2(For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x2/x2 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU)
PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset)
*PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot.
USB:
4x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
Internal I/O:
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

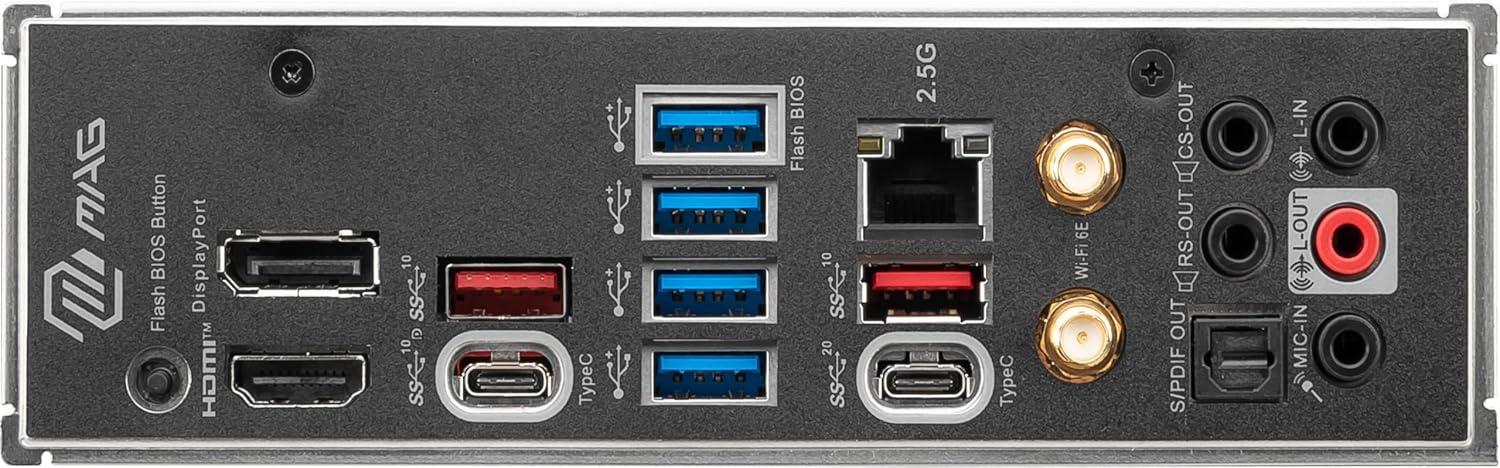

Back Panel I/O:
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 3.2 Gen 2 10Gbps (Type-C Display port)
USB 3.2 Gen 2x2 20Gbps (Type-C)
S/PDIF-Out
WiFi:
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio:
7.1-Channel High Definition Audio
Supports S/PDIF output
