ASUS ROG Strix B650E-F Gaming WiFi
ASUS ROG Strix B650E-F Gaming WiFi Specifications Review
ASUS ROG Strix B650E-F Gaming WiFi by ASUS is a Standard-ATX form factor motherboard based on the mid-range B650E-F chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 192 GB, and an overclocking speed of up to 8000 MHz.
VRM Quality
The ASUS ROG Strix B650E-F Gaming WiFi has a mid-range VRM configuration, providing 80 A over 12 phases. Suitable for CPUs in the ~140 W TDP range, it can power higher-TDP chips at stock, but sustained overclocking is not recommended due to thermal and voltage ripple considerations. Ideal for mainstream gaming, light workstation work, and general-purpose builds.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASUS ROG Strix B650E-F Gaming WiFi offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots , and 2 x1 slots. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 3 M.2 slots (5.0 x4, 4.0 x4, 4.0 x2) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the Wi-Fi 6E standard, and wired 1 x Intel® 2.5Gb Ethernet ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.2 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.

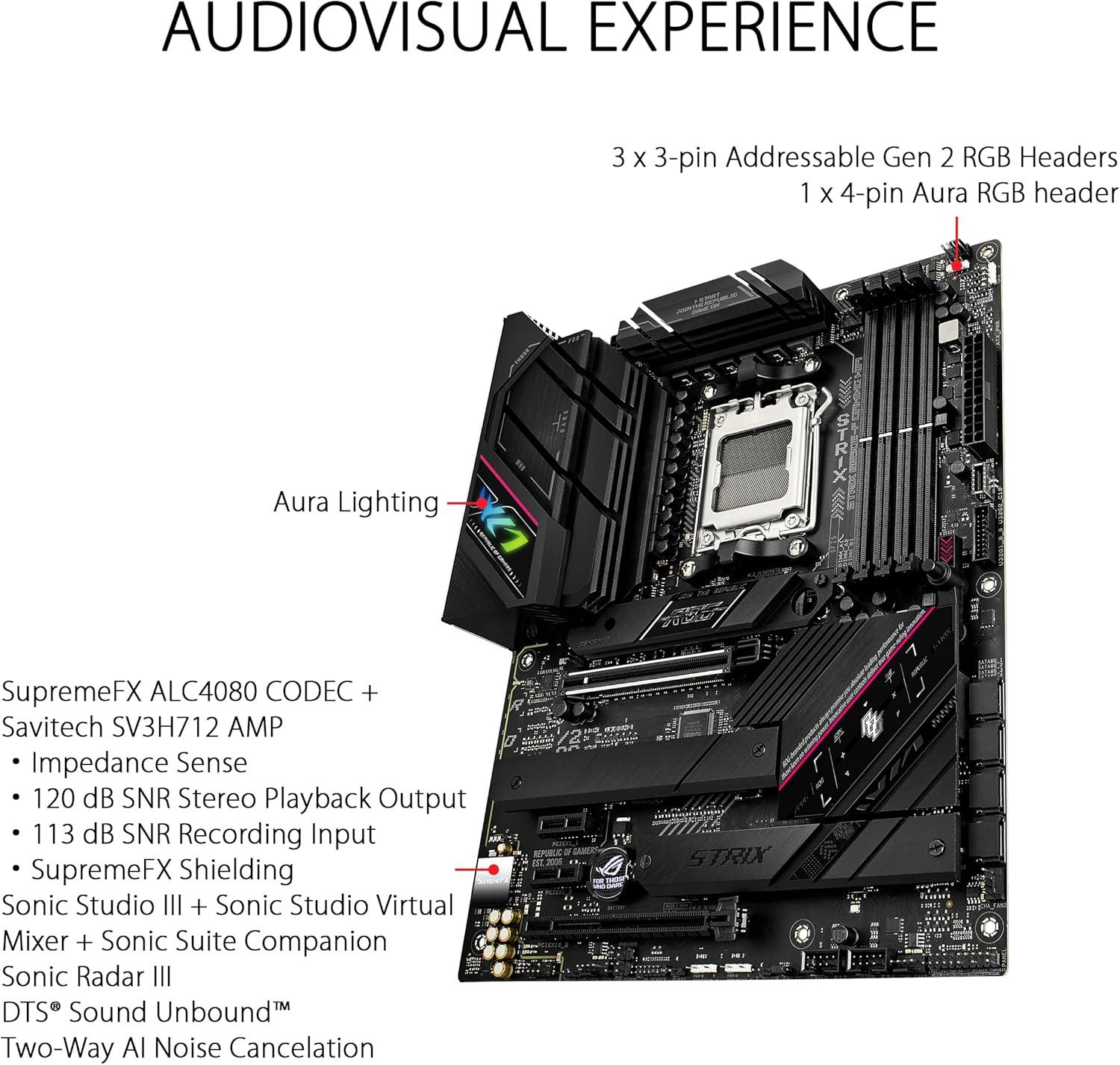

Audio Quality
Equipped with a high-end audio chipset — the ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include multiple audio jacks (5) for flexible connectivity.
Overall Quality and Value
ASUS ROG Strix B650E-F Gaming WiFi delivers a strong overall quality score of 77.60. It offers reliable performance, durable construction, and a comprehensive set of features suitable for demanding workloads, gaming, and productivity, without venturing into the extreme performance segment of premium boards.
This motherboard offers an impressive 106.7% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | ASUS ROG Strix B650E-F Gaming WiFi |
| Current Price Amazon | $138 |
| Amazon Price Updated | 1 day, 18 hours ago. |
| Motherboard Available | True |
| Chipset / Socket | B650E-F / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 12 (80 A) |
|---|---|
| Power Design | 12+2+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 192 GB / 8000 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 2 | 1 | 1 |
| x1 | 2 | 0 | 2 |
Storage Configuration
| M.2 Slot Count | 3 slots |
|---|---|
| M.2 Supported Lengths | 2242, 2260, 2280, 22110 |
| M.2 PCIe Modes | 5.0 x4, 4.0 x4, 4.0 x2 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
|---|---|
| Analog Audio Jacks | 5 jacks |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 8K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Front USB Ports
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
|---|
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: 1 x Intel® 2.5Gb Ethernet LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 6E Frequency Bands: 2.4GHz, 5GHz, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.2 |
Button Features
| Buttons |
BIOS Flashback |
|---|
Quality & Features
Additional Information
| RAM | Supports AMD EXTended Profiles for Overclocking (EXPO™) and OptiMem II. The memory is Un-buffered. Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration. |
|---|---|
| Expansion | The top PCIe slot's specification varies by CPU type: with AMD Ryzen 9000 & 7000 Series it is a PCIe 5.0 x16 slot; with AMD Ryzen 8000 Series it is a PCIe 4.0 x16 slot (supports x8/x4 mode). The second PCIe 4.0 x16 slot from the AMD B650 Chipset supports x4 mode and shares bandwidth with the M.2_3 slot. |
| Storage |
M.2 Slot Details:
AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. Specifications for M.2_1 and M.2_2 slots vary by CPU type. |
| Audio | Features impedance sense for front and rear headphone outputs, jack-detection, multi-streaming, and front panel jack-retasking. High quality 120 dB SNR stereo playback output and 113 dB SNR recording input. Supports up to 32-Bit/384 kHz playback. Includes SupremeFX Shielding Technology, Savitech SV3H712 AMP, premium audio capacitors, and an audio cover. |
| Networking | 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax). Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. |
| Buttons | The motherboard includes a Clear CMOS header, not a button. It also has a CPU Over Voltage jumper. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASUS ROG Strix B650E-F Gaming WiFi Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$200❗
|
0.0%
|
78.8%
|
54.0%
|
86.0%
|
72.0%
|
86.0%
|
96.0%
|
74.9%
|
|
|
$180
|
0.0%
|
78.8%
|
54.0%
|
86.0%
|
72.0%
|
86.0%
|
96.0%
|
83.2%
|
|
|
$138
|
↑
0.9%
|
77.6%
|
50.0%
|
81.0%
|
94.0%
|
75.0%
|
88.0%
|
106.7%
|
|
|
$210
|
0.0%
|
77.6%
|
60.0%
|
89.0%
|
78.0%
|
73.0%
|
88.0%
|
70.2%
|
|
|
$195
|
0.0%
|
77.6%
|
54.0%
|
81.0%
|
84.0%
|
81.0%
|
88.0%
|
75.6%
|
|
|
$135
|
0.0%
|
76.6%
|
54.0%
|
93.0%
|
97.0%
|
71.0%
|
68.0%
|
107.8%
|
|
|
$416
|
0.0%
|
76.2%
|
56.0%
|
98.0%
|
52.0%
|
80.0%
|
95.0%
|
34.8%
|
|
|
$170
|
0.0%
|
75.8%
|
54.0%
|
73.0%
|
78.0%
|
78.0%
|
96.0%
|
84.7%
|
|
|
$190❗
|
0.0%
|
75.8%
|
54.0%
|
78.0%
|
82.0%
|
81.0%
|
84.0%
|
75.8%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$200❗
|
0.0%
|
$180
|
0.0%
|
$138
|
↑
0.9%
|
$210
|
0.0%
|
$195
|
0.0%
|
$135
|
0.0%
|
$416
|
0.0%
|
$170
|
0.0%
|
$190❗
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASRock | ASRock | ASUS | ASUS | MSI | MSI | ASUS | ASRock | ASRock | ||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | X870 / AM5 | X870 / AM5 | B650E-F / AM5 | AMD B850 Chipset / AM5 | B850 / AM5 | X670E / AM5 | X870-I / AM5 | B850 / AM5 | B850 / AM5 | ||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Mini-ITX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 14 (80 A) | 14 (80 A) | 12 (80 A) | 14 (80 A) | 14 (80 A) | 14 (80 A) | 10 (110 A) | 14 (80 A) | 14 (80 A) | ||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 14+2+1 | 14+2+1 | 12+2+1 | 14+2+1 | 14+2+1 | 14+2+1 | 10(110A)+ 2(110A)+ 1(80A) | 14+2+1 | 14+2+1 | ||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 192 GB / 7800 MHz | 256 GB / 8000 MHz | 192 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8400 MHz | 256 GB / 7800 MHz | 128 GB / 8600 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | ||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 2x1 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 2x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | ||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 3 | 3 | 4 | 4 | 4 | 2 | 4 | 3 | ||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 2 | 4 | 4 | 2 | 4 | 2 | ||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek ALC4082 | Realtek ALC4082 Audio Codec | ROG SupremeFX 7.1 Surround So… | ROG SupremeFX 7.1 Surround So… | Realtek® ALC4080 Codec | Realtek® ALC1200 Codec | ESS® SABRE9260Q DAC | Realtek ALC4082 | Realtek ALC1220 | ||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ❌ | ✔️ | ✔️ | ✔️ | ❌ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ✔️ (1.4) | ✔️ (1.4) | ❌ | ✔️ (1.4) | ❌ | ❌ | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||||
| LAN | 2.5 Gigabit LAN 10/100/1… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | 1 x Intel ® 2.5Gb Ethern… (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | Realtek® RTL8125BG 2.5Gb… (1 ports) | 1 x Intel® 2.5Gb Ethern… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 6E | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi Wi-Fi 6E | Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.2 | vv5.4 | v5.4 | v5.3 | v5.4 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
❌ |
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$329
|
↓
-6.6%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$316
|
↓
-1.3%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$489
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
↓
-0.9%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
↓
-0.7%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
↓
-2.1%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$299
|
0.0%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
0.0%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
↓
-2.1%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$170
|
↓
-5.0%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$170
|
↓
-5.0%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$140
|
↓
-6.1%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$153
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics:
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**Supports 4K@60Hz as specified in HDMI 2.1.
Storage:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
4 x SATA 6Gb/s port
* AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** Specification vary by CPU types.
*** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.

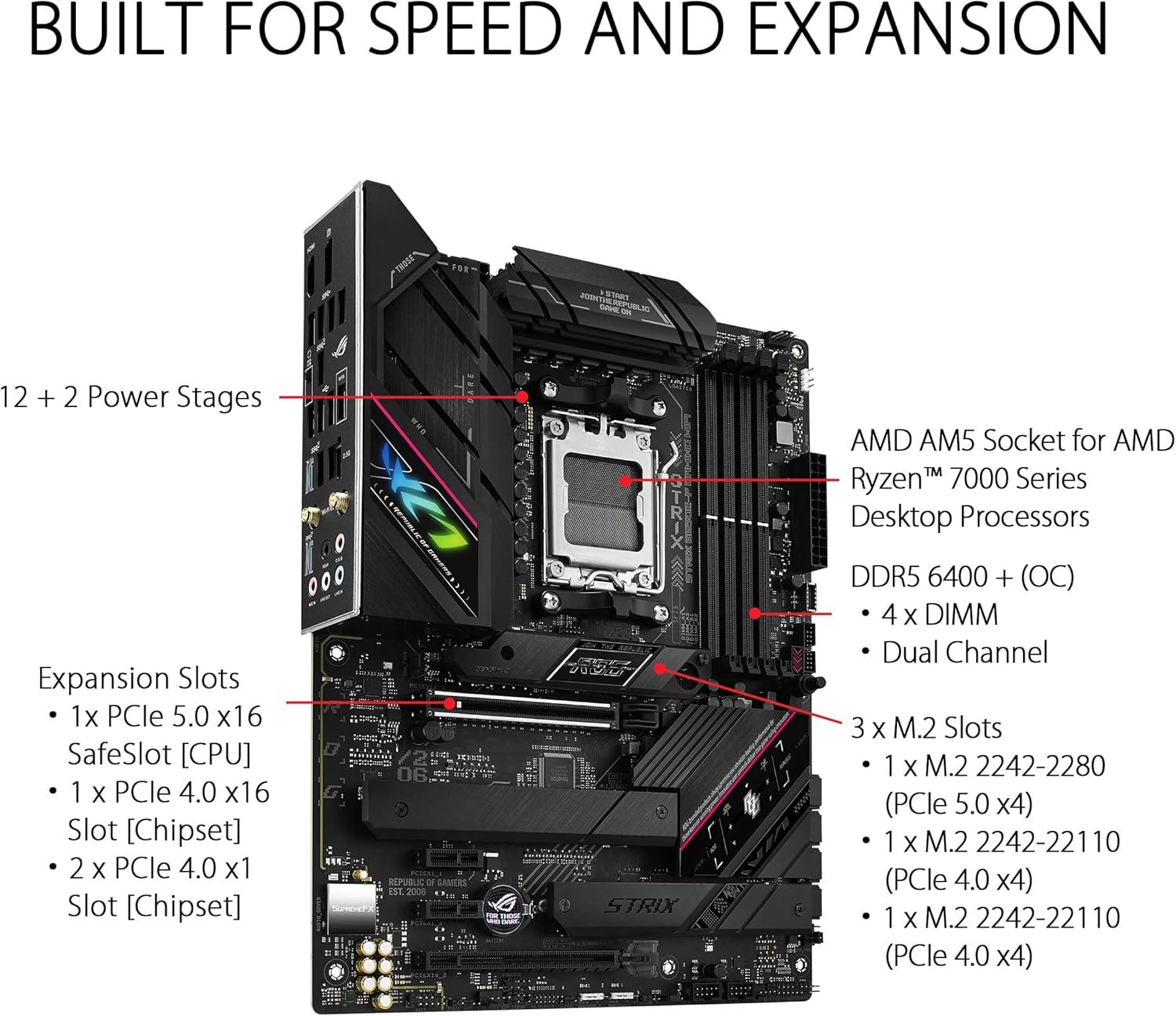

Expansion Slots:
1 x PCIe 5.0 x16 slot
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (support x8/x4 mode)*
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)**
2 x PCIe 4.0/3.0 x1 slots
*Specification vary by CPU types.*
** PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.
USB:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 port (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports

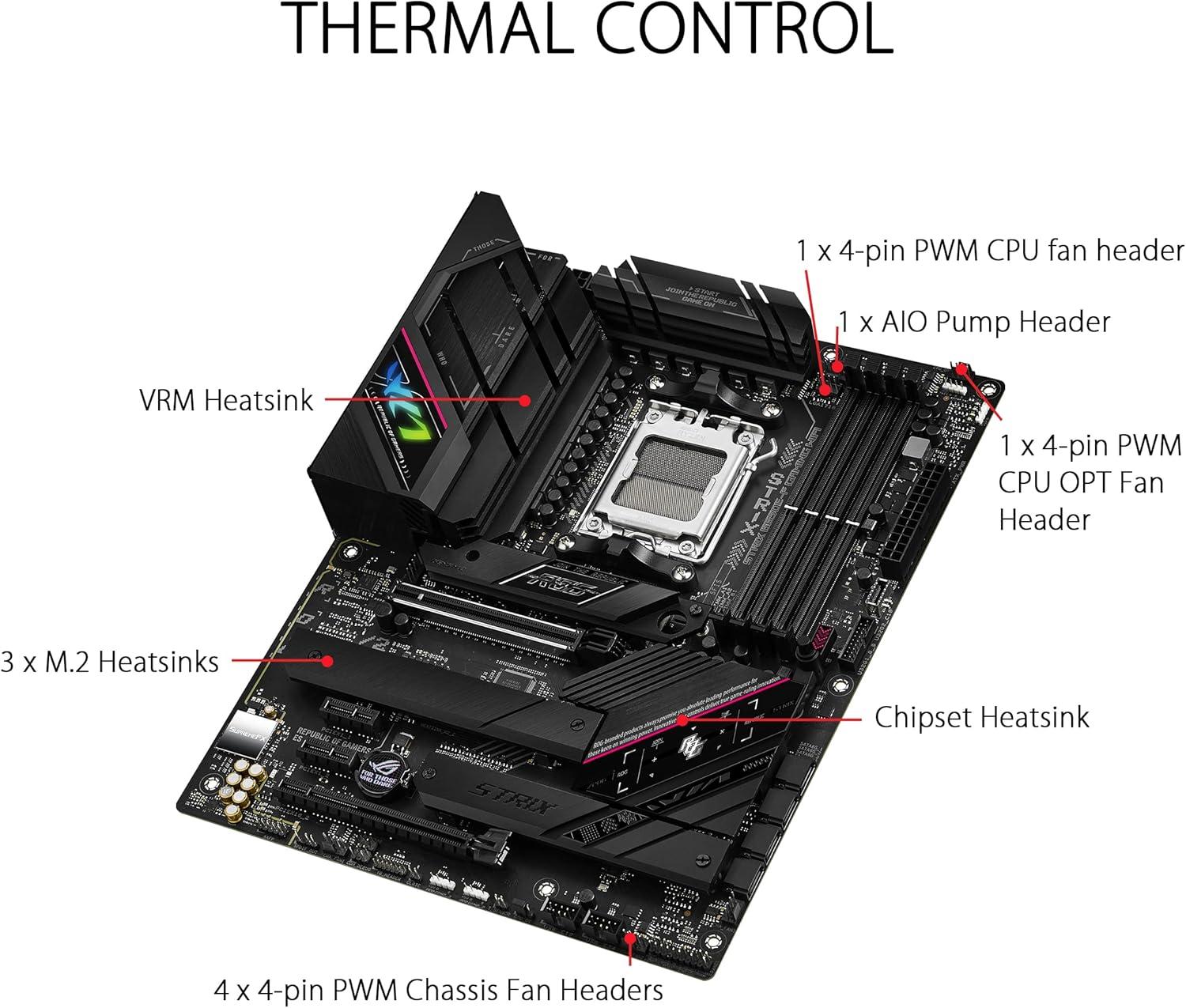

Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™header
1 x COM_DEBUGheader

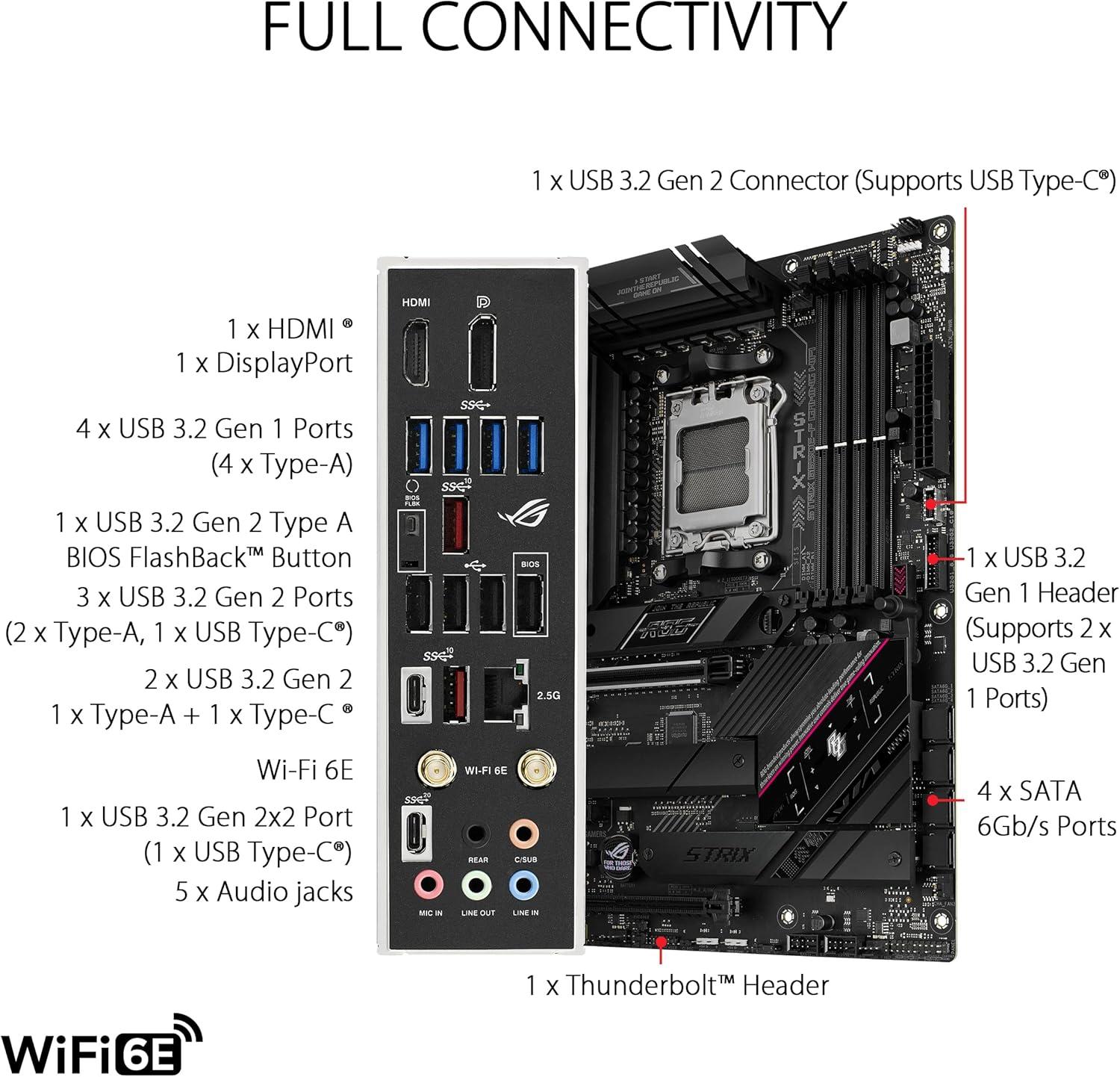

Back Panel I/O:
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
WiFi:
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
* Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be
ready in Windows 11 or later.
Audio:
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
- Audio cover
Special Features:
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-LED
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Add Comment on ASUS ROG Strix B650E-F Gaming WiFi
