ASRock AMD B850M Phantom Gaming Riptide Specifications Review

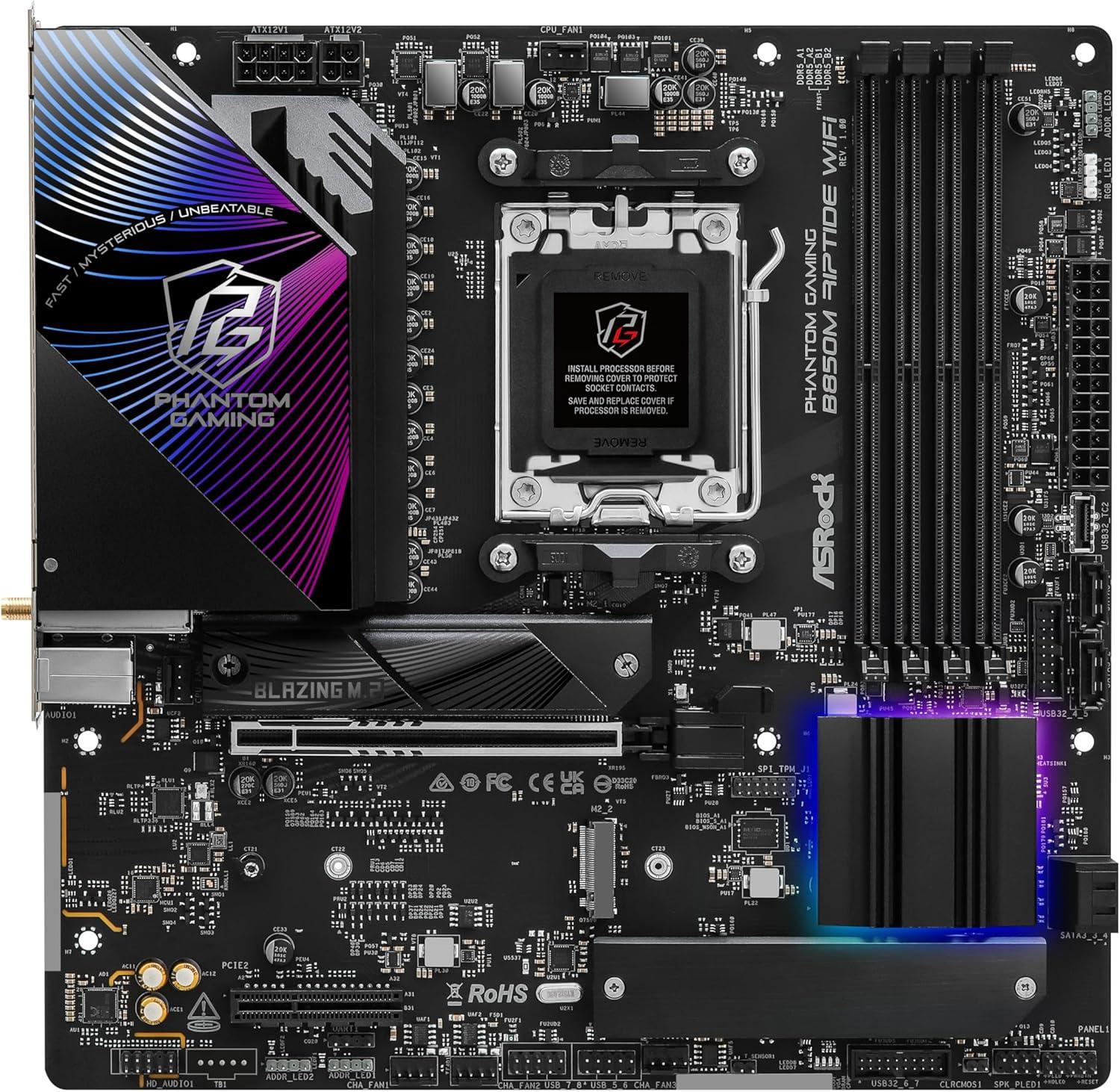

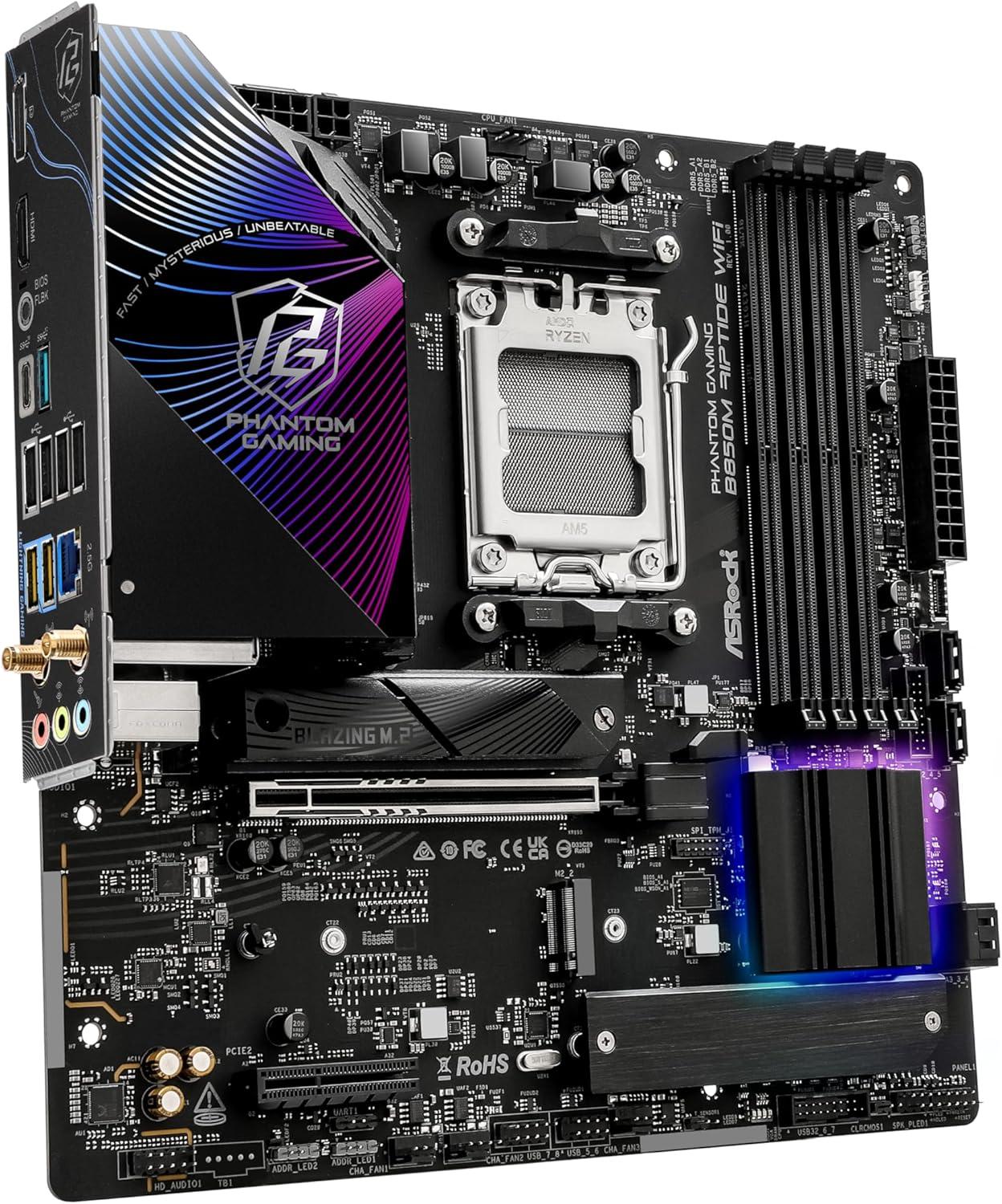

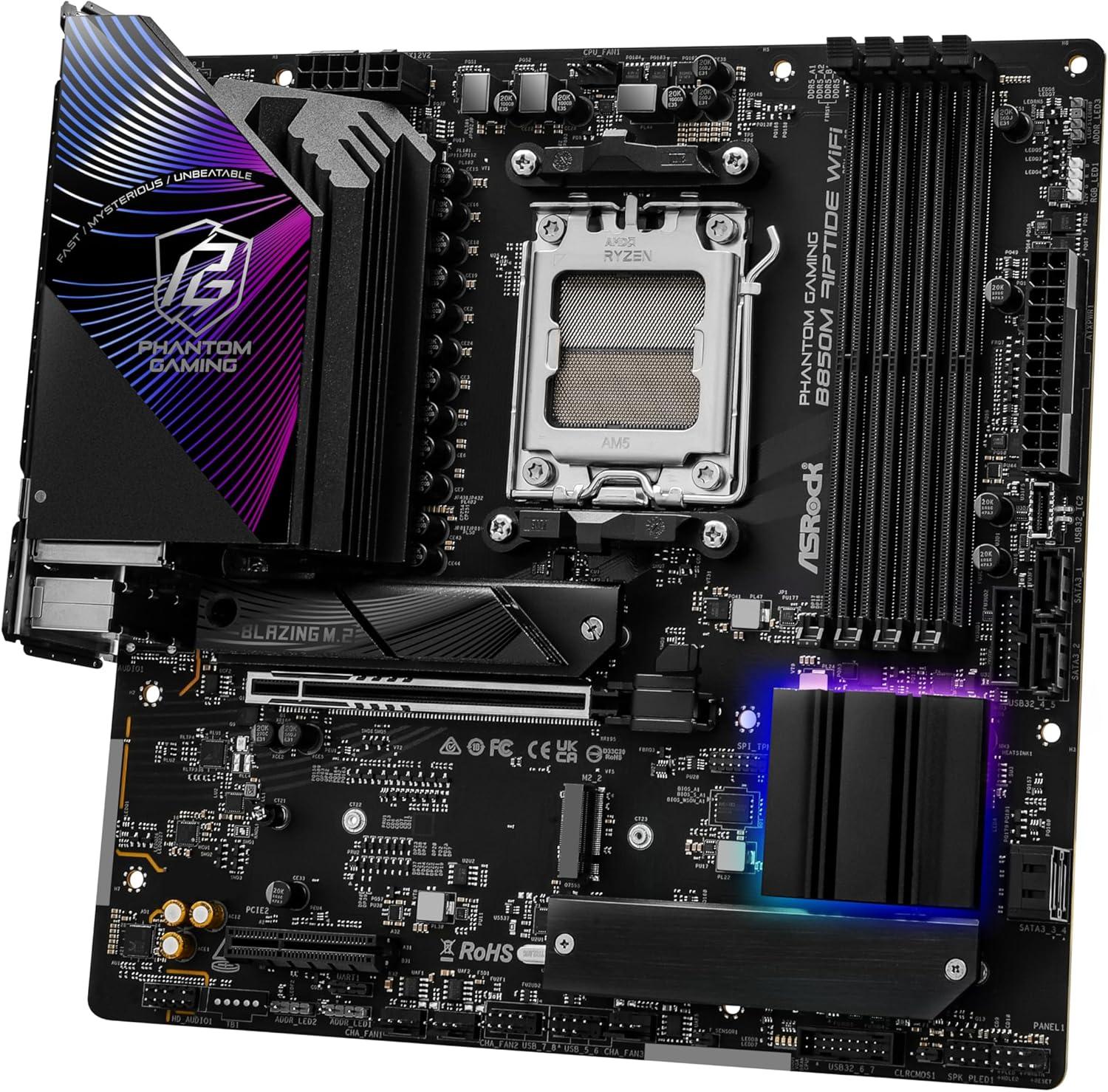

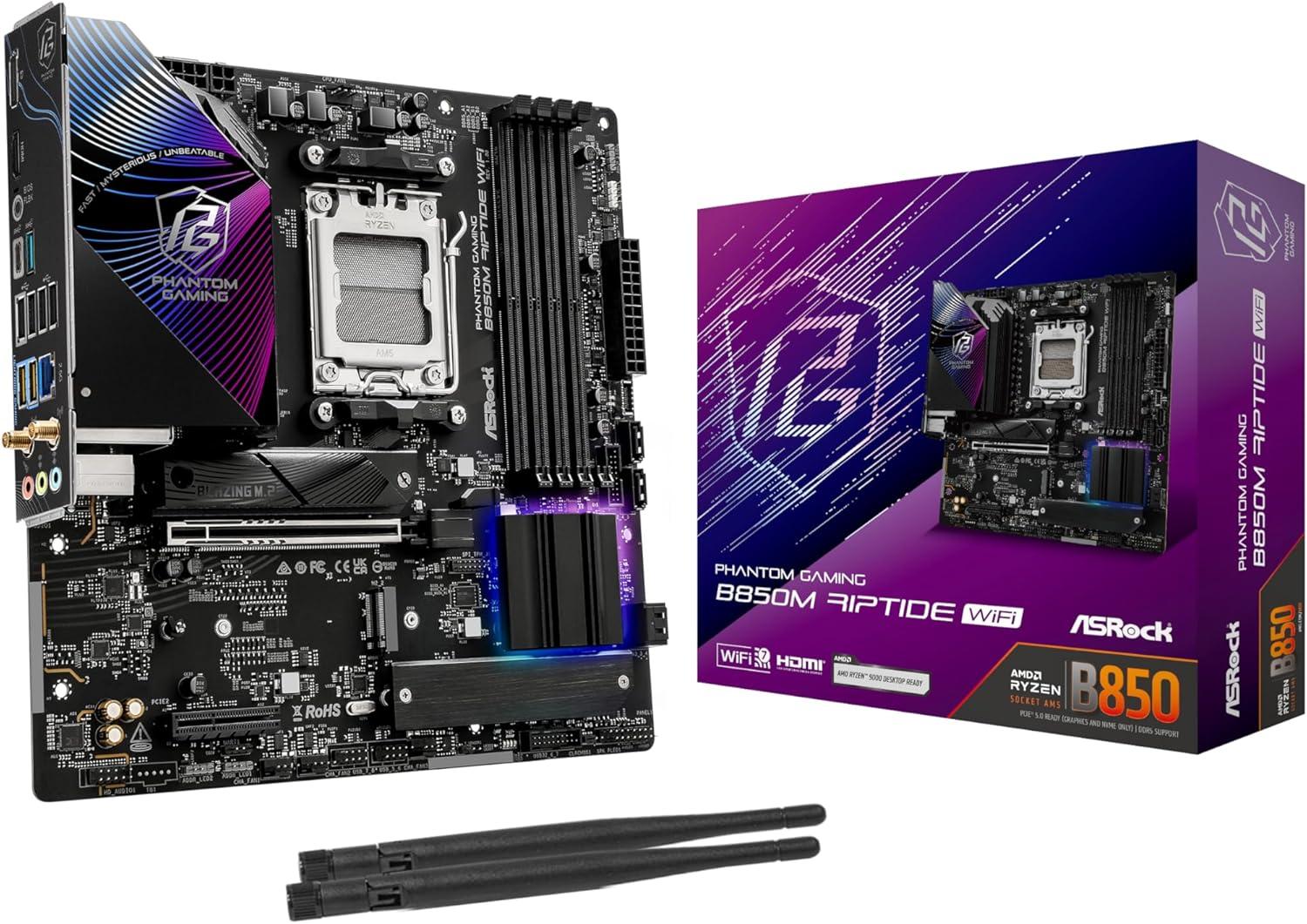

ASRock AMD B850M Phantom Gaming Riptide by ASRock is a Micro-ATX form factor motherboard based on the mid-range B850M chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8000 MHz.

VRM Quality

The ASRock AMD B850M Phantom Gaming Riptide comes with an entry-level VRM setup, delivering 60 A across 12 phases. Works best with CPUs in the ~65–105 W TDP range. Can technically run higher-TDP processors at stock, but will likely experience thermal throttling under sustained heavy loads. Suited for budget gaming, office PCs, and home builds without heavy CPU demands.

See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.

Expansion and Storage Overview

The ASRock AMD B850M Phantom Gaming Riptide offers a balanced expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 1 x16 slot , 1 x4 slot . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.

For storage, this motherboard provides 3 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.

Connectivity Overview

This motherboard includes basic to moderate connectivity options, such as wireless networking with the wireless Wi-Fi 7 and wired 2.5 Gigabit LAN 10/100/1000/2500 Mb/s 2.5 Gigabit LAN 10/100/1000/2500 Mb/s ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.4 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.

For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.

Audio Quality

This motherboard features a quality mid-range audio solution (Realtek ALC1220 Audio Codec), offering noticeably better sound than basic implementations. With dedicated audio components, it provides detailed, dynamic sound suitable for gaming headsets, bookshelf speakers, and users who appreciate good audio without external equipment.

Overall Quality and Value

ASRock AMD B850M Phantom Gaming Riptide is a dependable choice with a respectable overall quality score of 64.20. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.

This motherboard offers an impressive 76.2% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.

General Information

ManufacturerASRock
Motherboard NameASRock AMD B850M Phantom Gaming Riptide
Current Price Amazon $160❗N/A
Amazon Price Updated 3 weeks ago.
Motherboard AvailableFalse
Chipset / SocketB850M / AM5
Form Factor Micro-ATX

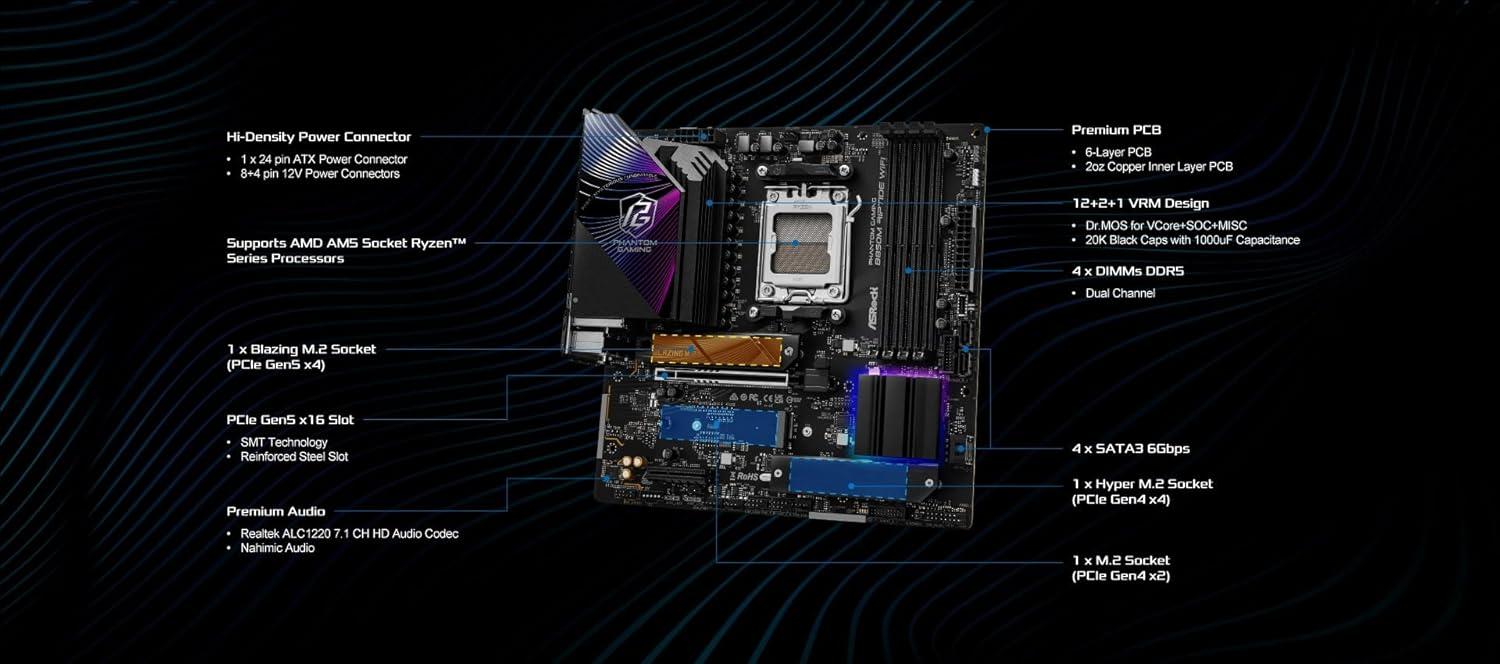

VRM Configuration

CPU Power Phases (Amps) 12 (60 A)
Power Design12+2+1

Memory Information

Type / Slots DDR5 / 4 slots
Max Capacity / Max OC 256 GB / 8000 MHz

PCIe Slot Configuration

Supported Version PCIe 5.0
Slot Size Physical Slots Gen5 Gen4
x16 1 1 0
x4 1 0 1

Storage Configuration

M.2 Slot Count 3 slots
M.2 Supported Lengths 2280, 2260
SATA Ports 4

Onboard Audio Features

Audio Chipset Realtek ALC1220 Audio Codec
Analog Audio Jacks 3 jacks
Spatial/Surround Audio ✔️ Rear Output Supports Spatial Audio

Motherboard Display Outputs

HDMI Output HDMI - Version 2.1 (Max: 4K 120Hz)
DisplayPort Output DisplayPort - Version 1.4 (Max: 4K 120Hz)

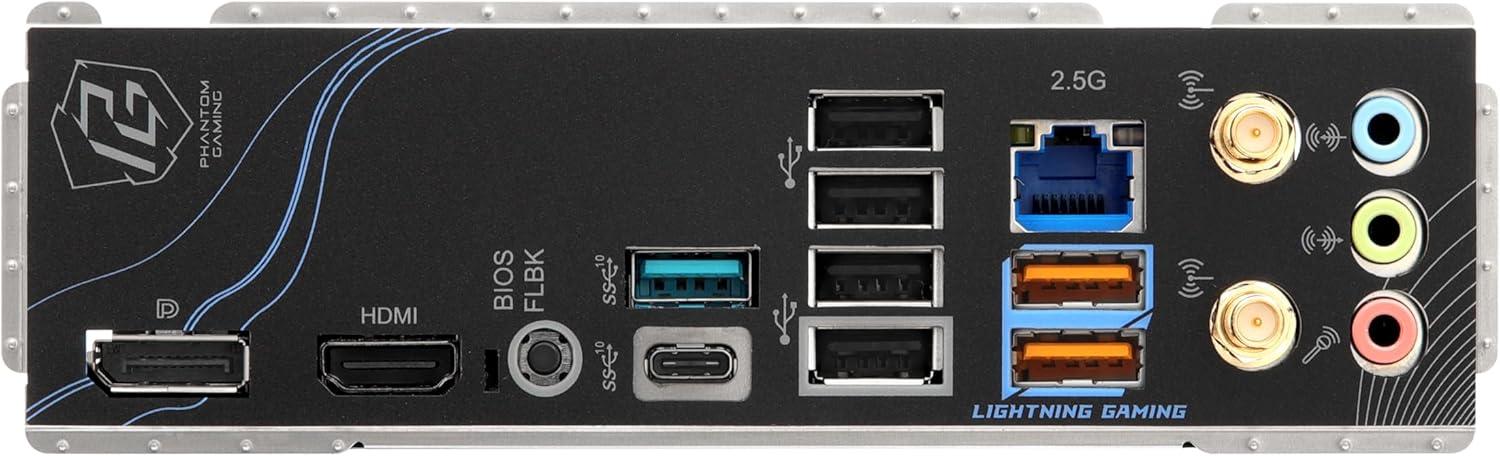

USB and Thunderbolt Connectivity

Rear USB Ports

USB 2.0 Type-A (480 Mbps)4
USB 3.2 Gen 1 Type-A (5 Gbps)2
USB 3.2 Gen 2 Type-A (10 Gbps)1
USB 3.2 Gen 2 Type-C (10 Gbps)1

Front USB Ports

USB 2.0 Type-A (480 Mbps)4
USB 3.2 Gen 1 Type-A (5 Gbps)4
USB 3.2 Gen 1 Type-C (5 Gbps)1

Internal USB Headers

USB 2.0 Header (480 Mbps)4
USB 3.2 Gen 1 Header (5 Gbps)5

Networking Information

Ethernet Chipset: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
LAN Ports: 1
Wi-Fi Version: Wi-Fi Wi-Fi 7
Bandwidth: 160MHz
Frequency Bands: 2.4GHz/5GHz/6GHz
Antenna Connectors: 2
Bluetooth Version: 5.4

Button Features

Buttons BIOS Flashback

Quality & Features

Additional Information

RAMFeatures Dual Channel DDR5 Memory Technology. Supports un-buffered memory. Also supports EXTended Profiles for Overclocking (EXPO) memory modules.
DisplayGraphics are integrated AMD RDNA™ graphics, but actual support may vary by CPU. The HDMI port is TMDS/FRL 8G Compatible and supports HDR and HDCP 2.3. The DisplayPort supports DSC (compressed) and HDCP 2.3.
ExpansionPCIE1 (x16 slot) will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors, and Gen4x4 with 8000 (Phoenix 2) series processors. The board also includes one Vertical M.2 Socket (Key E) for a WiFi/BT module.
Storage M.2 Slot Details:
  • M2_1 – 5.0 , Lengths: 2280 , Source: CPU
    M2_1 will run at Gen5x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.
  • M2_2 – 4.0 , Lengths: 2260, 2280 , Source: Chipset
  • M2_3 – 4.0 , Lengths: 2260, 2280 , Source: Chipset
Supports NVMe SSD as boot disks. M2_1 is the first priority for M.2 installation.
Audio 7.1 CH HD Audio with Content Protection. Impedance Sensing on Rear Out port. Individual PCB Layers for R/L Audio Channel. Nahimic Audio.
Networking Supports IEEE 802.11a/b/g/n/ac/ax/axe/be. 2x2 diversity technology. Supports MU-MIMO. The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region.
Dimensions 24.4cm x 24.4cm

Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.


ASRock AMD B850M Phantom Gaming Riptide Compared to Motherboards with Similar Performance and Features

Motherboard Quality & Features per Price Table

Motherboard (Desc) Price (Desc) Overall_Q (Desc) VRM_Q (Desc) Chipset (Desc) Exp_Str (Desc) Connect (Desc) Audio (Desc) Q&F/Price (Desc)
B850 MAX GAMING WIFI W
$265 | ↑ 0.8%
65.2%
25.0%
89.0%
106.0%
66.0%
40.0%
46.7%
ASRock AMD B850 Pro RS WiFi
$160❗ | 0.0%
64.8%
54.0%
78.0%
78.0%
74.0%
40.0%
77.0%
ASUS ROG Strix B850-I Gaming WiFi
$301 | ↓ -0.8%
64.8%
36.0%
89.0%
44.0%
67.0%
88.0%
41.0%
GIGABYTE B850 AORUS Elite WIFI7
$200 | ↑ 5.3%
64.4%
41.0%
80.0%
77.0%
76.0%
48.0%
61.2%
ASRock AMD B850M Phantom Gaming Riptide
$160❗ | 0.0%
64.2%
37.0%
78.0%
66.0%
62.0%
78.0%
76.2%
Pro WS B850M-ACE SE
$355❗ | ↑ 6.6%
64.0%
32.0%
94.0%
82.0%
72.0%
40.0%
34.2%
PRO B850-P WIFI
$170 | 0.0%
64.0%
37.0%
81.0%
91.0%
68.0%
43.0%
71.5%
PRO B850-P WIFI
$168 | 0.0%
64.0%
37.0%
81.0%
91.0%
68.0%
43.0%
72.4%
ASUS TUF GAMING B650-PLUS
$170 | ↑ 17.9%
63.8%
38.0%
78.0%
100.0%
55.0%
48.0%
71.3%

Motherboard Comparison and Detail Specifications Table

Specification
B850 MAX GAMING WIFI W
B850 MAX GAMING WIFI W
ASRock AMD B850 Pro RS WiFi
ASRock AMD B850 Pro RS WiFi
ASUS ROG Strix B850-I Gaming WiFi
ASUS ROG Strix B850-I Gaming WiFi
GIGABYTE B850 AORUS Elite WIFI7
GIGABYTE B850 AORUS Elite WIFI7
ASRock AMD B850M Phantom Gaming Riptide
ASRock AMD B850M Phantom Gaming Riptide
Pro WS B850M-ACE SE
Pro WS B850M-ACE SE
PRO B850-P WIFI
PRO B850-P WIFI
PRO B850-P WIFI
PRO B850-P WIFI
ASUS TUF GAMING B650-PLUS
ASUS TUF GAMING B650-PLUS
Perf Chart
Price
$265 | ↑ 0.8%
$160❗ | 0.0%
$301 | ↓ -0.8%
$200 | ↑ 5.3%
$160❗ | 0.0%
$355❗ | ↑ 6.6%
$170 | 0.0%
$168 | 0.0%
$170 | ↑ 17.9%
Manufacturer ASUS ASRock ASUS GIGABYTE ASRock ASUS MSI MSI ASUS
Chip/Socket AMD B850 Chipset / AM5 B850 / AM5 B850I / AM5 B850 / AM5 B850M / AM5 AMD B850 Chipset / AM5 AMD B850 / AM5 AMD B850 / AM5 B650 / AM5
Form Standard-ATX Standard-ATX Mini-ITX Standard-ATX Micro-ATX Micro-ATX Standard-ATX Standard-ATX Standard-ATX
CPU Phases 8 (60 A) 14 (80 A) 10 (90 A) 14 (60 A) 12 (60 A) 8 (80 A) 12 (60 A) 12 (60 A) 12 (60 A)
PWR Design 8 + 2 + 1 14+2+1 10+2+1 14+2+2 12+2+1 8 + 2 + 1 12 + 2 + 1 12 + 2 + 1 12+2+2
Mem Slots 4 / DDR5 4 / DDR5 2 / DDR5 4 / DDR5 4 / DDR5 4 / DDR5 4 / DDR5 4 / DDR5 4 / DDR5
Max Mem 256 GB / 8000 MHz 256 GB / 8000 MHz 128 GB / 8400 MHz 256 GB / 8200 MHz 256 GB / 8000 MHz 256 GB / 8000 MHz 256 GB / 8200 MHz 256 GB / 8200 MHz 128 GB / 7600 MHz
PCIe PCIe 5.0 PCIe 5.0 PCIe 5.0 PCIe 5.0 PCIe 5.0 PCIe 5.0 PCIe 5.0 PCIe 5.0 PCIe 4.0
PCIe Slots 1x16 Gen5 | 2x16 Gen4 | 2x16 Gen3 1x16 Gen5 | 1x16 Gen4 1x16 Gen5 1x16 Gen5 | 2x16 Gen3 1x16 Gen5 | 1x4 Gen4 1x16 Gen5 | 2x16 Gen4 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 3x16 Gen4 | 2x1 Gen4
M.2 3 4 2 3 3 2 3 3 3
SATA 4 4 2 4 4 4 4 4 4
Audio Realtek 7.1 Surround Sound Hi… Realtek ALC897 Audio Codec ALC4080 Realtek® ALC892/ALC897 Realtek ALC1220 Audio Codec Realtek 7.1 Surround Sound Hi… Realtek ® ALC897 Realtek ® ALC897 Realtek® ALC892/ALC897
S/PDIF ✔️ ✔️ ✔️ ✔️
HDMI ✔️ (2.1) ✔️ (2.1) ✔️ (2.1) ✔️ (1.4) ✔️ (2.1) ✔️ (2.1) ✔️ (2.1) ✔️ (2.1) ✔️ (2.1)
DP ✔️ (1.4) ✔️ (1.4) ✔️ (1.4) ✔️ (1.4) ✔️ (1.4)
LAN 1 x Realtek 2.5Gb Ethern… (1 ports) 2.5 Gigabit LAN 10/100/1… (1 ports) 1 x Intel® 2.5Gb Ethernet (1 ports) Realtek® 2.5GbE LAN chip… (1 ports) 2.5 Gigabit LAN 10/100/1… (1 ports) 1 x Realtek 10Gb Etherne… (3 ports) Realtek ® 8126VB 5G LAN (1 ports) Realtek ® 8126VB 5G LAN (1 ports) Realtek 2.5Gb Ethernet (1 ports)
Wi-Fi Wi-Fi Wi-Fi 6E (802.11ax) Wi-Fi Wi-Fi 6E Wi-Fi 7 Wi-Fi 7 Wi-Fi Wi-Fi 7 Wi-Fi Wi-Fi 7 (802.11be) Wi-Fi Wi-Fi 7 (802.11be) Wi-Fi 6 (802.11ax)
BT v5.3 v5.2 v5.4 v5.4 v5.4 v5.4 v5.4 v5.2
Rear USB
USB 2.0 Type-A (480 Mbps)2
USB 3.2 Gen 1 Type-A (5 Gbps)2
USB 3.2 Gen 2 Type-A (10 Gbps)3
USB 3.2 Gen 2 Type-C (10 Gbps)1
USB 2.0 Type-A (480 Mbps)6
USB 3.2 Gen 1 Type-A (5 Gbps)4
USB 3.2 Gen 1 Type-C (5 Gbps)1
USB 3.2 Gen 2 Type-C (10 Gbps)1
USB 2.0 Type-A (480 Mbps)2
USB 3.2 Gen 2 Type-A (10 Gbps)4
USB 3.2 Gen 2 Type-C (10 Gbps)1
USB 3.2 Gen 2x2 Type-C (20 Gbps)1
USB 2.0 Type-A (480 Mbps)4
USB 3.2 Gen 1 Type-A (5 Gbps)5
USB 3.2 Gen 2 Type-A (10 Gbps)2
USB 3.2 Gen 2 Type-C (10 Gbps)1
USB 2.0 Type-A (480 Mbps)4
USB 3.2 Gen 1 Type-A (5 Gbps)2
USB 3.2 Gen 2 Type-A (10 Gbps)1
USB 3.2 Gen 2 Type-C (10 Gbps)1
USB 2.0 Type-A (480 Mbps)2
USB 3.2 Gen 2 Type-A (10 Gbps)3
USB 3.2 Gen 2 Type-C (10 Gbps)2
USB 2.0 Type-A (480 Mbps)4
USB 3.2 Gen 1 Type-A (5 Gbps)1
USB 3.2 Gen 2 Type-A (10 Gbps)1
USB 3.2 Gen 2 Type-C (10 Gbps)2
USB 2.0 Type-A (480 Mbps)4
USB 3.2 Gen 1 Type-A (5 Gbps)1
USB 3.2 Gen 2 Type-A (10 Gbps)1
USB 3.2 Gen 2 Type-C (10 Gbps)2
USB 2.0 Type-A (480 Mbps)4
USB 3.2 Gen 2 Type-A (10 Gbps)2
USB 3.2 Gen 2 Type-C (10 Gbps)1
USB 3.2 Gen 2x2 Type-C (20 Gbps)1
USB Headers
USB 2.0 Header (480 Mbps)6
USB 3.2 Gen 1 Header (5 Gbps)2
USB4 / Thunderbolt Header (40 Gbps)1
USB 2.0 Header (480 Mbps)4
USB 3.2 Gen 1 Header (5 Gbps)4
USB 3.2 Gen 2x2 Header (20 Gbps)1
USB 2.0 Header (480 Mbps)2
USB 3.2 Gen 1 Header (5 Gbps)2
USB 2.0 Header (480 Mbps)4
USB 3.2 Gen 1 Header (5 Gbps)2
USB 3.2 Gen 2x2 Header (20 Gbps)1
USB 2.0 Header (480 Mbps)4
USB 3.2 Gen 1 Header (5 Gbps)5
USB 2.0 Header (480 Mbps)4
USB 3.2 Gen 1 Header (5 Gbps)2

USB 2.0 Header (480 Mbps)4
USB 3.2 Gen 1 Header (5 Gbps)2
Front USB
USB 3.2 Gen 1 Type-C (5 Gbps)1
Power Delivery (W)15W
USB 2.0 Type-A (480 Mbps)4
USB 3.2 Gen 1 Type-A (5 Gbps)4
USB 3.2 Gen 2x2 Type-C (20 Gbps)1
USB 3.2 Gen 2 Type-C (10 Gbps)1
Power Delivery (W)15W

USB 2.0 Type-A (480 Mbps)4
USB 3.2 Gen 1 Type-A (5 Gbps)4
USB 3.2 Gen 1 Type-C (5 Gbps)1
USB 3.2 Gen 2x2 Type-C (20 Gbps)1
Power Delivery (W)15W
USB 2.0 Type-A (480 Mbps)4
USB 3.2 Gen 1 Type-A (5 Gbps)4
USB 3.2 Gen 1 Type-C (5 Gbps)1
USB 2.0 Type-A (480 Mbps)4
USB 3.2 Gen 1 Type-A (5 Gbps)4
USB 3.2 Gen 1 Type-C (5 Gbps)1
USB 3.2 Gen 1 Type-C (5 Gbps)1

VRM Appropriate CPU Specification Table

CPU Price App_Performance Game_Performance TDP/Max C/SC/T L2/L3 Cache Base/Boost Code Name GPU
AMD Ryzen 9 7900
$316 | ↓ 0.0%
63.0%
76.4%
65 W / 88 W 12 / 0 / 24 1024.0 kB / 64.0 MB 3.70 GHz / 5.40 GHz Raphael Radeon Graphics
AMD Ryzen 7 9700F
$0 | 0.0%
51.9%
80.9%
65 W / 88 W 8 / 0 / 16 1024.0 kB / 32.0 MB 3.80 GHz / 5.50 GHz Granite Ridge None
AMD Ryzen 7 9700X
$303 | 0.0%
51.9%
80.9%
65 W / 88 W 8 / 0 / 16 1024.0 kB / 32.0 MB 3.80 GHz / 5.50 GHz Granite Ridge Radeon Graphics
AMD Ryzen 7 7700
$190 | ↓ -32.1%
47.8%
78.1%
65 W / 88 W 8 / 0 / 16 1024.0 kB / 32.0 MB 3.80 GHz / 5.30 GHz Raphael Radeon Graphics
AMD Ryzen 7 8700G
$266 | 0.0%
45.2%
63.7%
65 W / 61 W 8 / 0 / 16 1024.0 kB / 16.0 MB 4.20 GHz / 5.10 GHz Phoenix Radeon 780M
AMD Ryzen 7 8700F
$180 | ↓ -14.3%
45.1%
63.5%
65 W / 61 W 8 / 0 / 16 1024.0 kB / 16.0 MB 4.10 GHz / 5.00 GHz Phoenix None
AMD Ryzen 5 9600X
$185 | 0.0%
43.7%
80.4%
65 W / 88 W 6 / 0 / 12 1024.0 kB / 32.0 MB 3.90 GHz / 5.40 GHz Granite Ridge Radeon Graphics
AMD Ryzen 5 9500F
$0 | 0.0%
41.0%
77.9%
65 W / 88 W 6 / 0 / 12 1024.0 kB / 32.0 MB 3.80 GHz / 5.00 GHz Granite Ridge None
AMD Ryzen 5 7600X3D
$240 | 0.0%
38.8%
86.0%
65 W / 88 W 6 / 0 / 12 1024.0 kB / 96.0 MB 4.10 GHz / 4.70 GHz Raphael Radeon Graphics
AMD Ryzen 5 7600
$169 | ↓ -0.6%
38.2%
75.3%
65 W / 88 W 6 / 0 / 12 1024.0 kB / 32.0 MB 3.80 GHz / 5.10 GHz Raphael Radeon Graphics
AMD Ryzen 5 7500F
$103❗ | 0.0%
37.8%
74.1%
65 W / 88 W 6 / 0 / 12 1024.0 kB / 32.0 MB 3.70 GHz / 5.00 GHz Raphael None
AMD Ryzen 5 8600G
$188 | 0.0%
35.8%
63.7%
65 W / 61 W 6 / 0 / 12 1024.0 kB / 16.0 MB 4.30 GHz / 5.00 GHz Phoenix Radeon 760M
AMD Ryzen 5 7400F
$0 | 0.0%
34.9%
73.1%
65 W / 88 W 6 / 0 / 12 1024.0 kB / 32.0 MB 3.70 GHz / 4.70 GHz Raphael None
AMD Ryzen 5 8400F
$149 | 0.0%
34.7%
62.3%
65 W / 61 W 6 / 0 / 12 1024.0 kB / 16.0 MB 4.20 GHz / 4.70 GHz Phoenix None
AMD Ryzen 5 8500G
$149 | 0.0%
31.3%
57.3%
65 W / 61 W 6 / 0 / 12 1024.0 kB / 16.0 MB 3.50 GHz / 5.00 GHz Phoenix2 Radeon 740M

Official Manufacturer Data

Memory:

Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Graphics:

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Storage:

CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks
M2_1 is the first priority for M.2 installation.
M2_1 will run at Gen5x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.

Expansion Slots:

CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*
Chipset:
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
Supports NVMe SSD as boot disks

USB:

CPU:
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_2))
Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)

* All USB ports support ESD Protection

Internal I/O:

1 x SPI TPM Header
- 1 x Thermistor Cable Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**

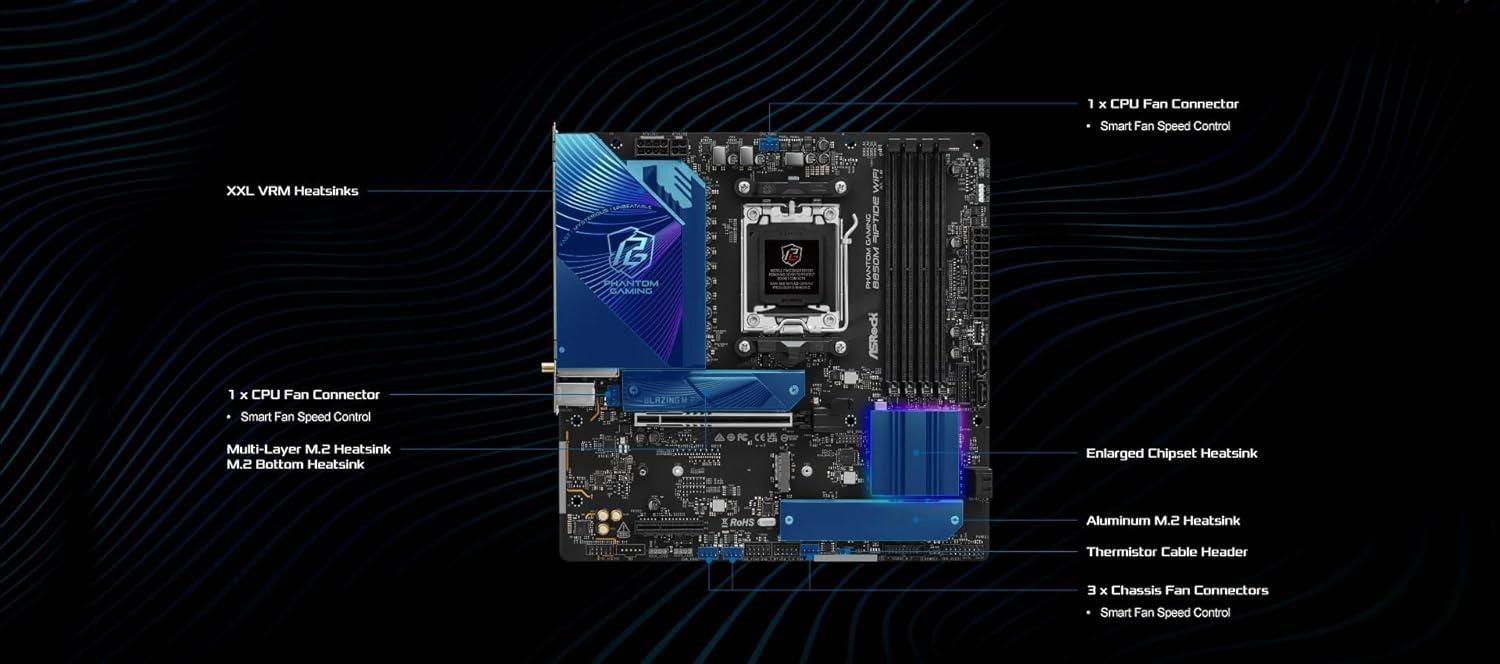

- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header

* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2 and CHA_FAN1~3 support the fan power up to 3A (36W).
CPU_FAN2 and CHA_FAN1~3 can auto detect if 3-pin or 4-pin fan is in use.

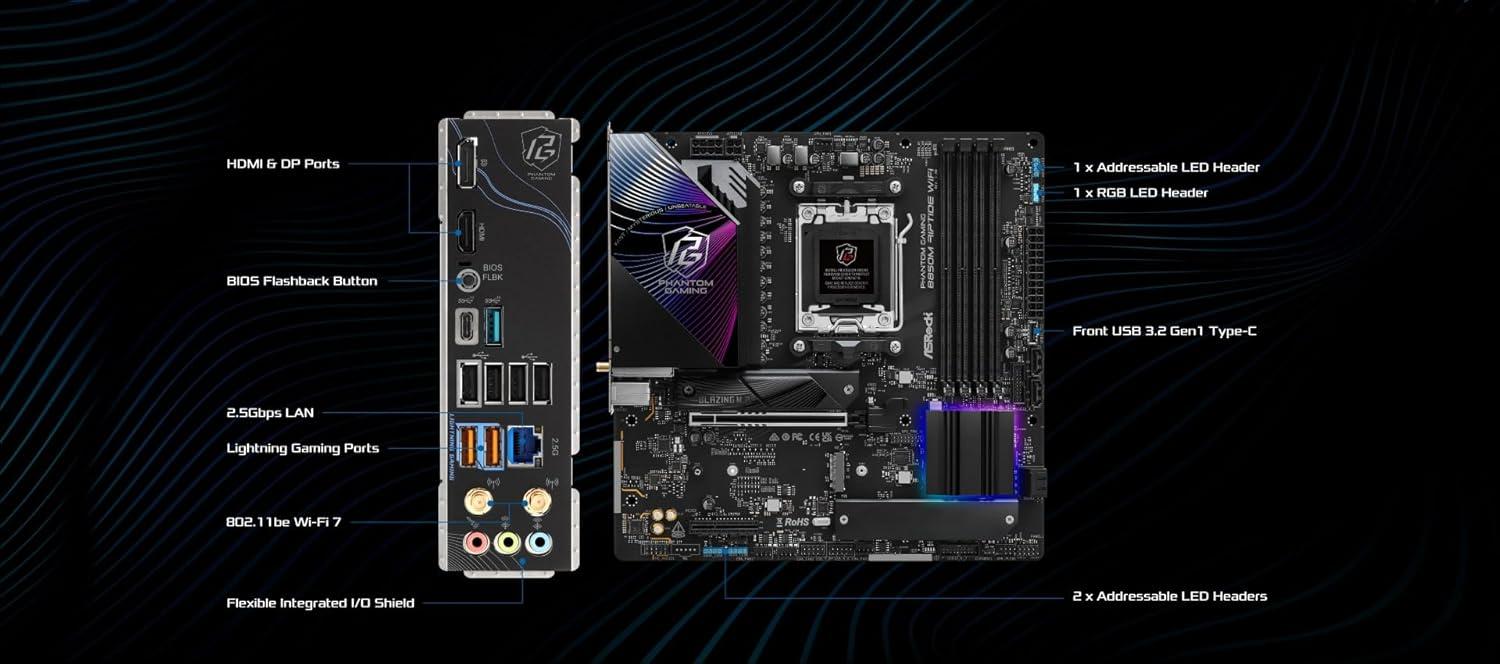

Back Panel I/O:

2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone

WiFi:

802.11be 2x2 Wi-Fi 7 Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
- Supports 2.4GHz/5GHz/6GHz* frequency band
- Supports 160MHz channel bandwidth with 6GHz* frequency band
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.4
- Supports MU-MIMO

* The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.

Audio:

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio

Special Features:

Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop

Add Comment on ASRock AMD B850M Phantom Gaming Riptide
