GIGABYTE B850 AORUS Elite WIFI7
GIGABYTE B850 AORUS Elite WIFI7 Specifications Review

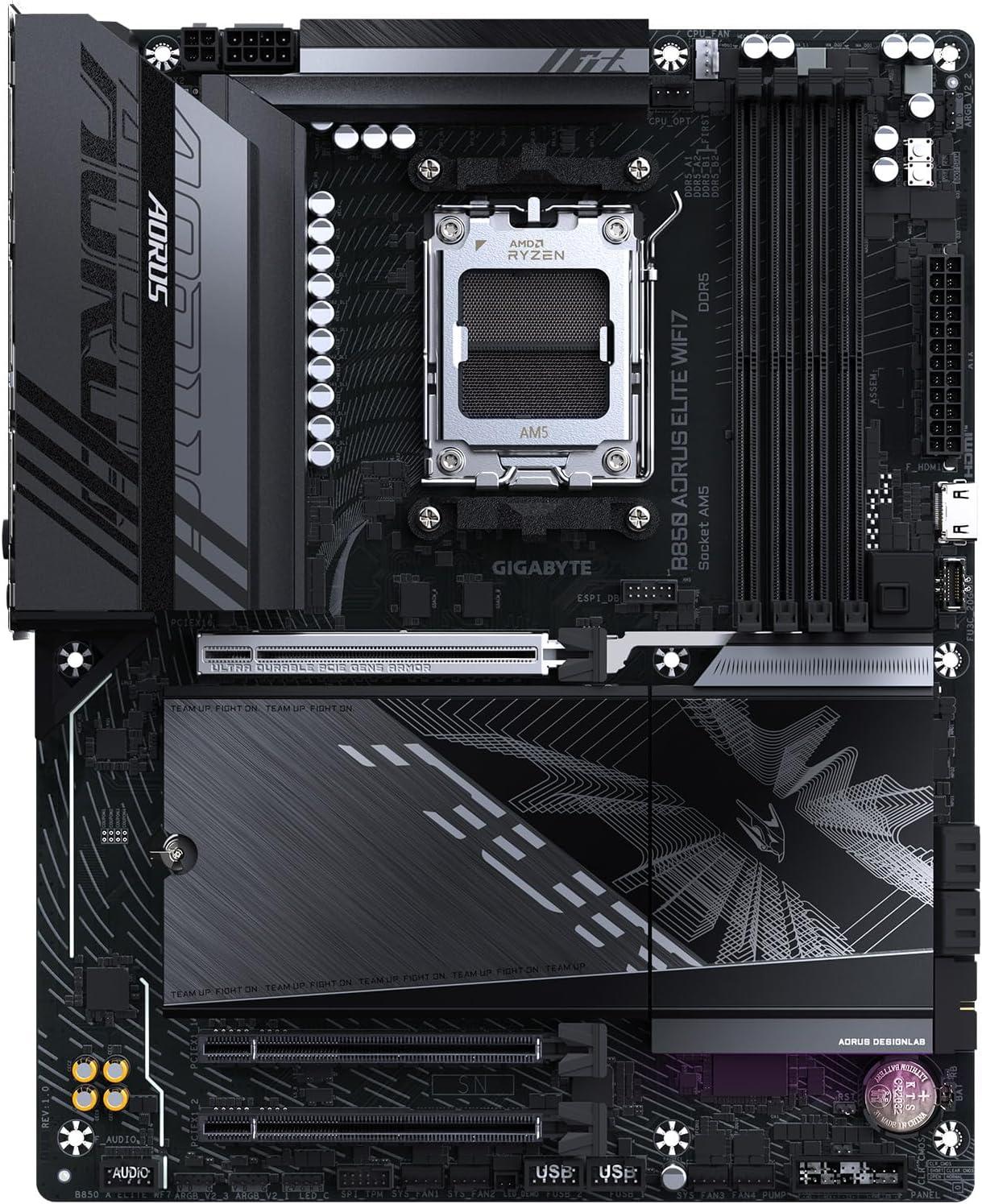

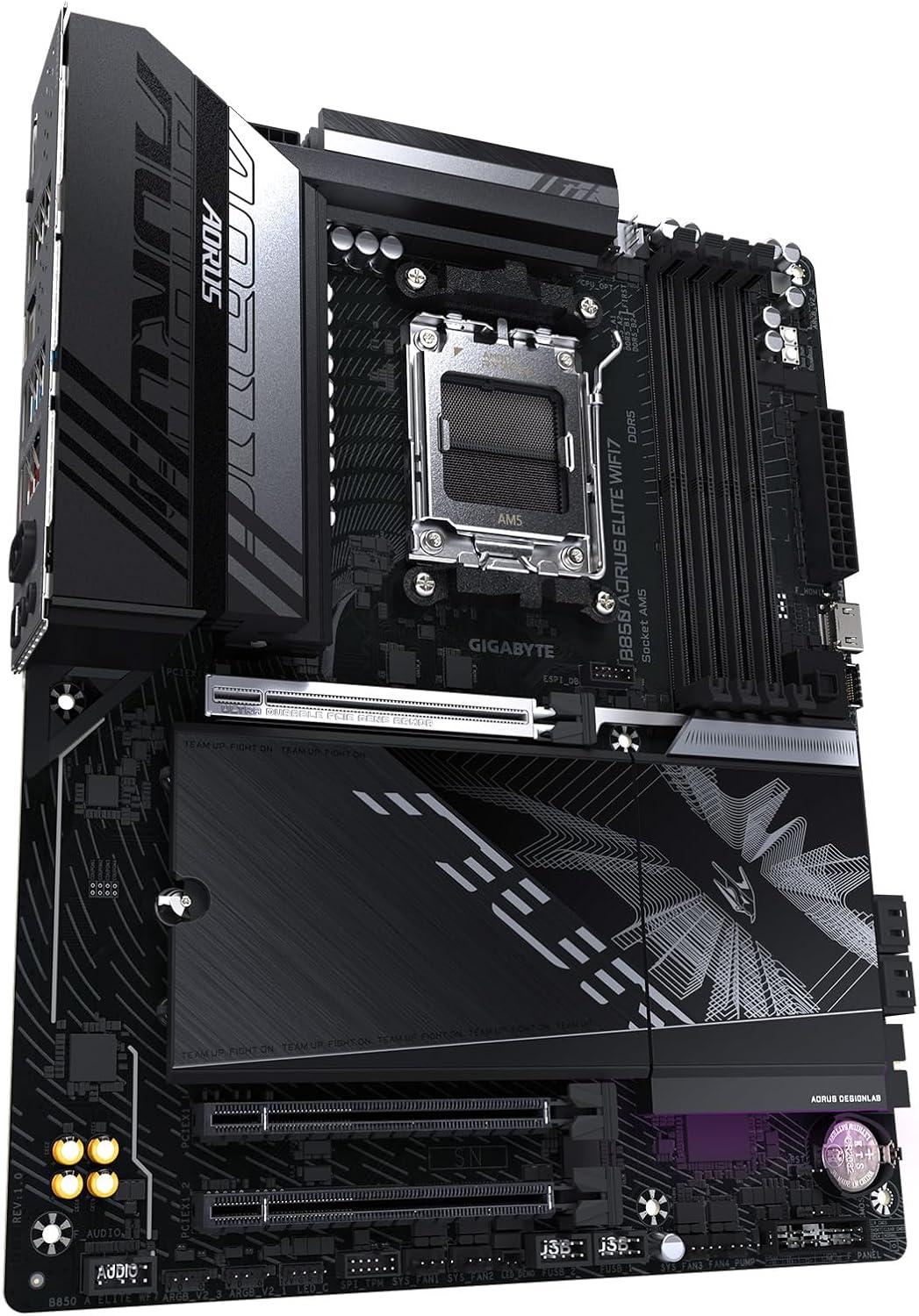

GIGABYTE B850 AORUS Elite WIFI7 by GIGABYTE is a Standard-ATX form factor motherboard based on the mid-range B850 chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8200 MHz.
VRM Quality
The GIGABYTE B850 AORUS Elite WIFI7 has a mid-range VRM configuration, providing 60 A over 14 phases. Suitable for CPUs in the ~140 W TDP range, it can power higher-TDP chips at stock, but sustained overclocking is not recommended due to thermal and voltage ripple considerations. Ideal for mainstream gaming, light workstation work, and general-purpose builds.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The GIGABYTE B850 AORUS Elite WIFI7 offers a well-equipped expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 3 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 3 M.2 slots (5.0, 4.0) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the Wi-Fi 7 standard, and wired Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.4 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 1.4 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek® ALC892/ALC897) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
GIGABYTE B850 AORUS Elite WIFI7 is a dependable choice with a respectable overall quality score of 64.40. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard has a solid 61.2% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | GIGABYTE |
|---|---|
| Motherboard Name | GIGABYTE B850 AORUS Elite WIFI7 |
| Current Price Amazon | $200 |
| Amazon Price Updated | 9 hours, 10 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | B850 / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 14 (60 A) |
|---|---|
| Power Design | 14+2+2 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen3 |
|---|---|---|---|
| x16 | 3 | 1 | 2 |
Storage Configuration
| M.2 Slot Count | 3 slots |
|---|---|
| M.2 Supported Lengths | 25110, 22110, 2580, 2280 |
| M.2 PCIe Modes | 5.0, 4.0 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC892/ALC897 |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 1.4 (Max: 1920x1080@30 Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 3840x2160@144 Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 5 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 Bandwidth: 160MHz Frequency Bands: 2.4/5/6 GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
Q-Flash Plus Start Button Reset Button |
|---|
Quality & Features
Additional Information
| RAM | Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Also supports AMD EXtended Profiles for Overclocking (AMD EXPO™). The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules; refer to the 'Memory Support List' on GIGABYTE's website for more information. |
|---|---|
| Display | The HDMI port is a front-facing port. The DisplayPort supports HDR. Graphics specifications may vary depending on CPU support. |
| Expansion | The main PCIEX16 slot's operating mode is dependent on the installed CPU: AMD Ryzen 9000/7000 Series support PCIe 5.0 x16 mode, AMD Ryzen 8000 Series-Phoenix 1 support PCIe 4.0 x8 mode, and AMD Ryzen 8000 Series-Phoenix 2 support PCIe 4.0 x4 mode. The two chipset-driven PCI Express x16 slots (PCIEX1_1, PCIEX1_2) support PCIe 3.0 but run at x1 speed. The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Storage |
M.2 Slot Details:
RAID 5 for NVMe SSDs is only available on AMD Ryzen™ 9000 Series Processors. |
| Audio | High Definition Audio; Supports 2/4/5.1/7.1-channel audio. The functionality of an audio jack can be changed using the audio software to configure 7.1-channel audio. |
| Networking | The Wi-Fi module is a Realtek RTL8922AE. Actual data rate may vary depending on environment and equipment. Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. |
| Buttons | The board includes a power button, a reset button, a reset jumper, and a Clear CMOS jumper. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
GIGABYTE B850 AORUS Elite WIFI7 Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$265
|
↑
0.8%
|
65.2%
|
25.0%
|
89.0%
|
106.0%
|
66.0%
|
40.0%
|
46.7%
|
|
|
$380
|
↓
-0.8%
|
65.2%
|
41.0%
|
81.0%
|
51.0%
|
65.0%
|
88.0%
|
32.6%
|
|
|
$160❗
|
0.0%
|
64.8%
|
54.0%
|
78.0%
|
78.0%
|
74.0%
|
40.0%
|
77.0%
|
|
|
$301
|
↓
-0.8%
|
64.8%
|
36.0%
|
89.0%
|
44.0%
|
67.0%
|
88.0%
|
41.0%
|
|
|
$200
|
↑
5.3%
|
64.4%
|
41.0%
|
80.0%
|
77.0%
|
76.0%
|
48.0%
|
61.2%
|
|
|
$160❗
|
0.0%
|
64.2%
|
37.0%
|
78.0%
|
66.0%
|
62.0%
|
78.0%
|
76.2%
|
|
|
$355❗
|
↑
6.6%
|
64.0%
|
32.0%
|
94.0%
|
82.0%
|
72.0%
|
40.0%
|
34.2%
|
|
|
$170
|
0.0%
|
64.0%
|
37.0%
|
81.0%
|
91.0%
|
68.0%
|
43.0%
|
71.5%
|
|
|
$168
|
0.0%
|
64.0%
|
37.0%
|
81.0%
|
91.0%
|
68.0%
|
43.0%
|
72.4%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$265
|
↑
0.8%
|
$380
|
↓
-0.8%
|
$160❗
|
0.0%
|
$301
|
↓
-0.8%
|
$200
|
↑
5.3%
|
$160❗
|
0.0%
|
$355❗
|
↑
6.6%
|
$170
|
0.0%
|
$168
|
0.0%
|
||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASUS | Asus | ASRock | ASUS | GIGABYTE | ASRock | ASUS | MSI | MSI | ||||||||||||||||||||||||||||||||||||||
| Chip/Socket | AMD B850 Chipset / AM5 | B650E-I / AM5 | B850 / AM5 | B850I / AM5 | B850 / AM5 | B850M / AM5 | AMD B850 Chipset / AM5 | AMD B850 / AM5 | AMD B850 / AM5 | ||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Mini-ITX | Standard-ATX | Mini-ITX | Standard-ATX | Micro-ATX | Micro-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||
| CPU Phases | 8 (60 A) | 10 (80 A) | 14 (80 A) | 10 (90 A) | 14 (60 A) | 12 (60 A) | 8 (80 A) | 12 (60 A) | 12 (60 A) | ||||||||||||||||||||||||||||||||||||||
| PWR Design | 8 + 2 + 1 | 10+1+2 | 14+2+1 | 10+2+1 | 14+2+2 | 12+2+1 | 8 + 2 + 1 | 12 + 2 + 1 | 12 + 2 + 1 | ||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8000 MHz | 96 GB / 8000 MHz | 256 GB / 8000 MHz | 128 GB / 8400 MHz | 256 GB / 8200 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | 256 GB / 8200 MHz | ||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 2x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen5 | 2x16 Gen3 | 1x16 Gen5 | 1x4 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | ||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 2 | 4 | 2 | 3 | 3 | 2 | 3 | 3 | ||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 2 | 4 | 2 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||
| Audio | Realtek 7.1 Surround Sound Hi… | ROG SupremeFX ALC4080, Savite… | Realtek ALC897 Audio Codec | ALC4080 | Realtek® ALC892/ALC897 | Realtek ALC1220 Audio Codec | Realtek 7.1 Surround Sound Hi… | Realtek ® ALC897 | Realtek ® ALC897 | ||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ✔️ | ❌ | ✔️ | ✔️ | ❌ | ❌ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ❌ | ❌ | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||
| LAN | 1 x Realtek 2.5Gb Ethern… (1 ports) | Intel® 2.5Gb Ethernet (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | 1 x Realtek 10Gb Etherne… (3 ports) | Realtek ® 8126VB 5G LAN (1 ports) | Realtek ® 8126VB 5G LAN (1 ports) | ||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 6E (802.11ax) | Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi Wi-Fi 7 | ❌ | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | ||||||||||||||||||||||||||||||||||||||
| BT | v5.3 | v5.2 | v5.2 | v5.4 | v5.4 | v5.4 | ❌ | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
❌ |
❌ |
||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
❌ |
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Graphics:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version
(Graphics specifications may vary depending on CPU support.)
Storage:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Expansion Slots:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)
USB:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O:
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
* Actual support may vary by CPU.

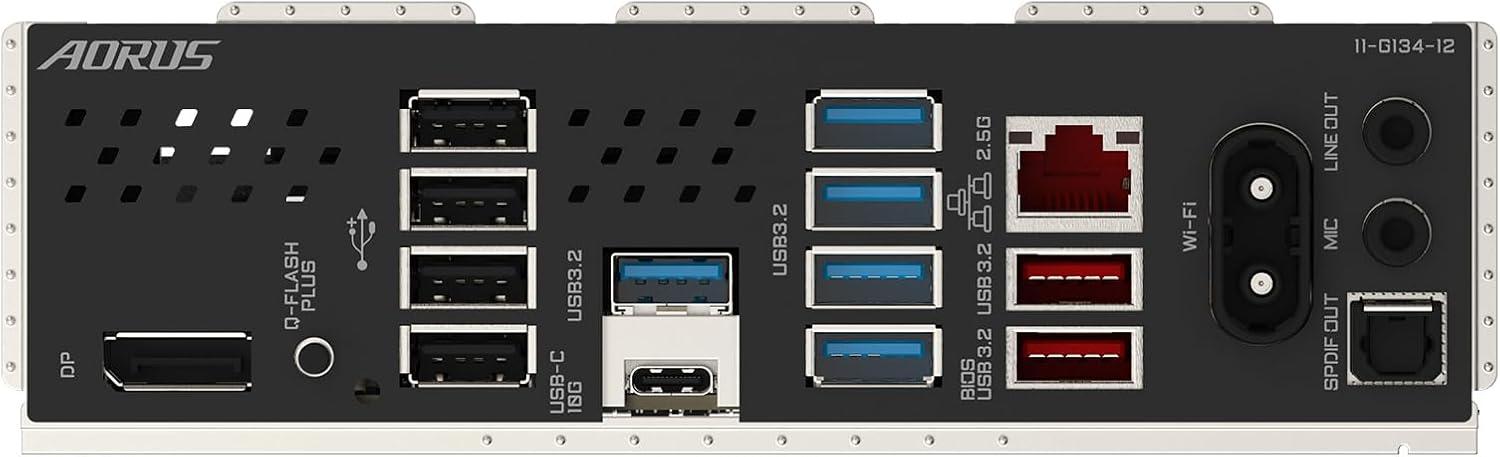

Back Panel I/O:
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
* Actual support may vary by CPU.
WiFi:
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations
Audio:
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Special Features:
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Add Comment on GIGABYTE B850 AORUS Elite WIFI7
