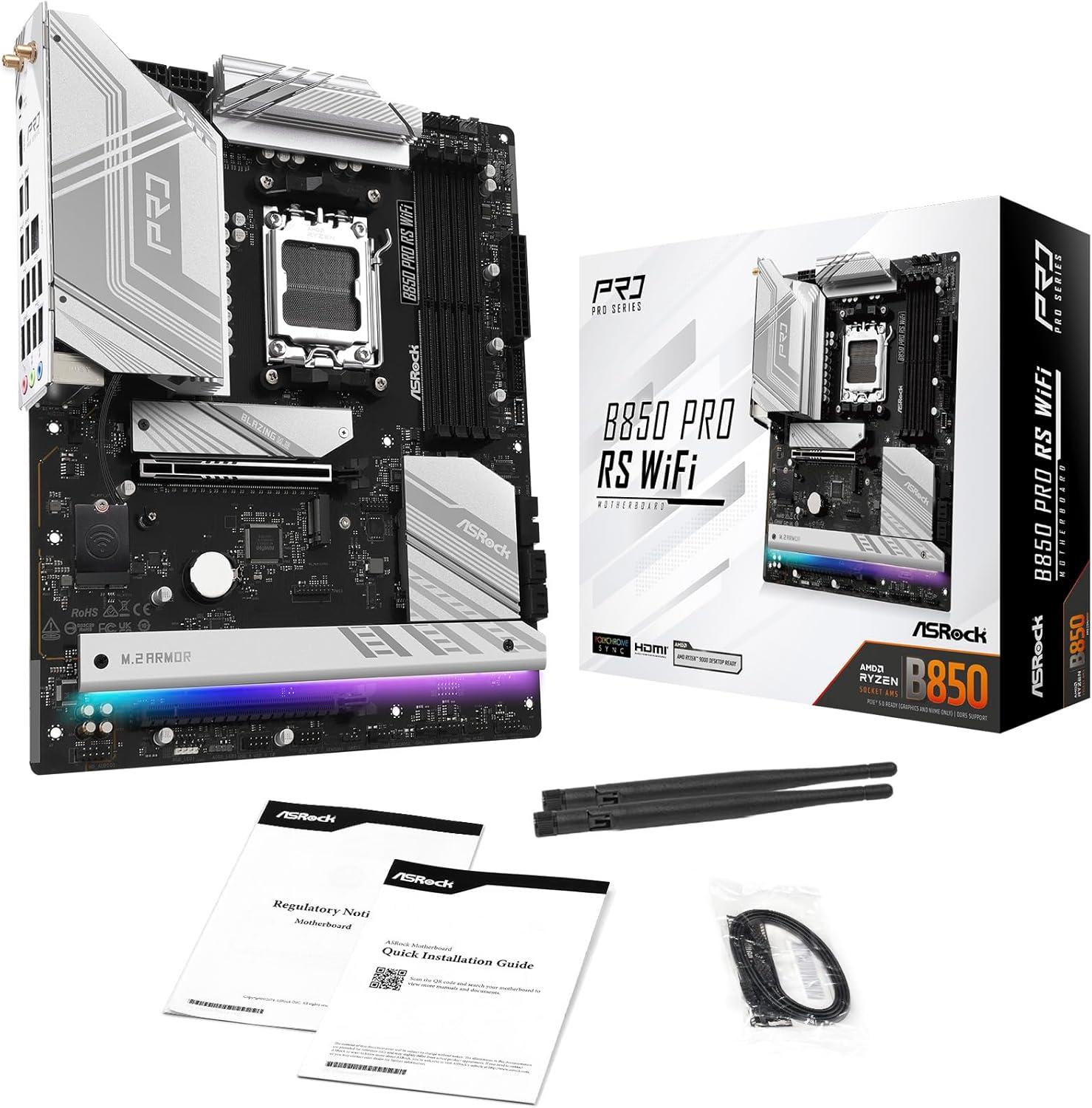

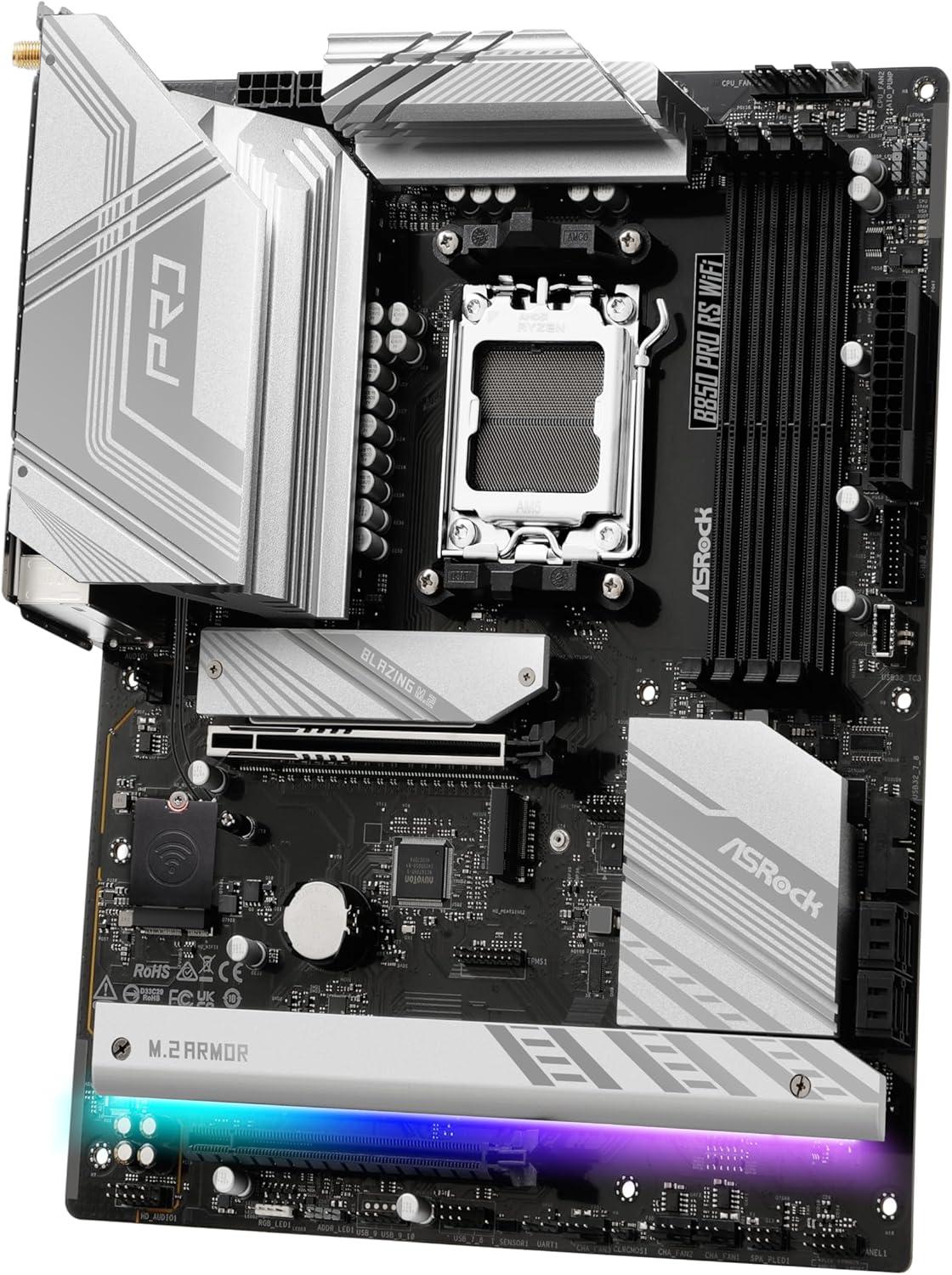

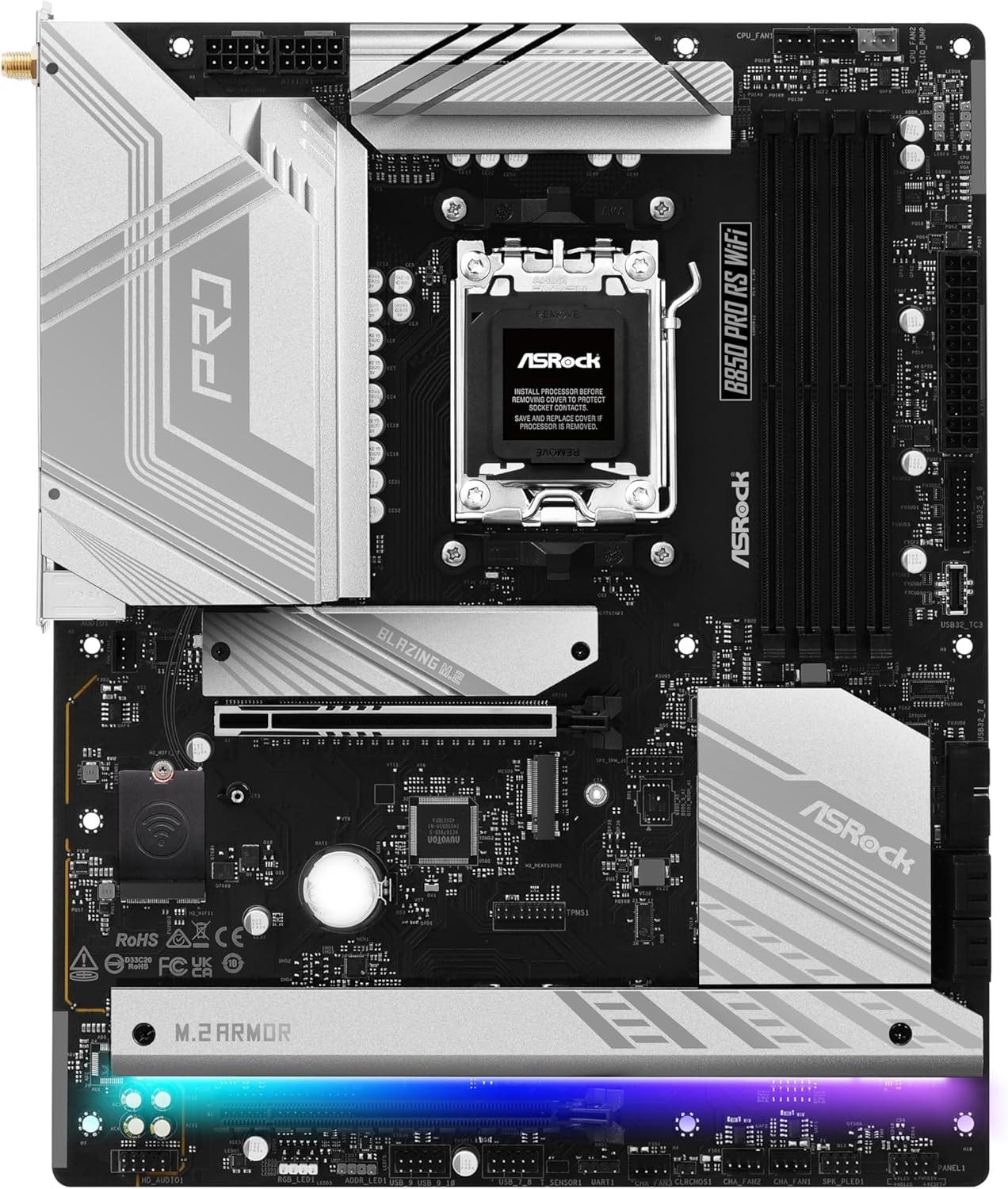

ASRock AMD B850 Pro RS WiFi
ASRock AMD B850 Pro RS WiFi Specifications Review
ASRock AMD B850 Pro RS WiFi by ASRock is a Standard-ATX form factor motherboard based on the mid-range B850 chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8000 MHz.
VRM Quality
The ASRock AMD B850 Pro RS WiFi has a mid-range VRM configuration, providing 80 A over 14 phases. Suitable for CPUs in the ~140 W TDP range, it can power higher-TDP chips at stock, but sustained overclocking is not recommended due to thermal and voltage ripple considerations. Ideal for mainstream gaming, light workstation work, and general-purpose builds.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASRock AMD B850 Pro RS WiFi offers a well-equipped expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the wireless Wi-Fi 6E and wired 2.5 Gigabit LAN 10/100/1000/2500 Mb/s ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.2 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek ALC897 Audio Codec) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
ASRock AMD B850 Pro RS WiFi is a dependable choice with a respectable overall quality score of 64.80. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard offers an impressive 77.0% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | ASRock |
|---|---|
| Motherboard Name | ASRock AMD B850 Pro RS WiFi |
| Current Price Amazon | $160âť—N/A |
| Amazon Price Updated | 4Â weeks, 1Â day ago. |
| Motherboard Available | False |
| Chipset / Socket | B850 / AM5 |
| Form Factor | Standard-ATX |

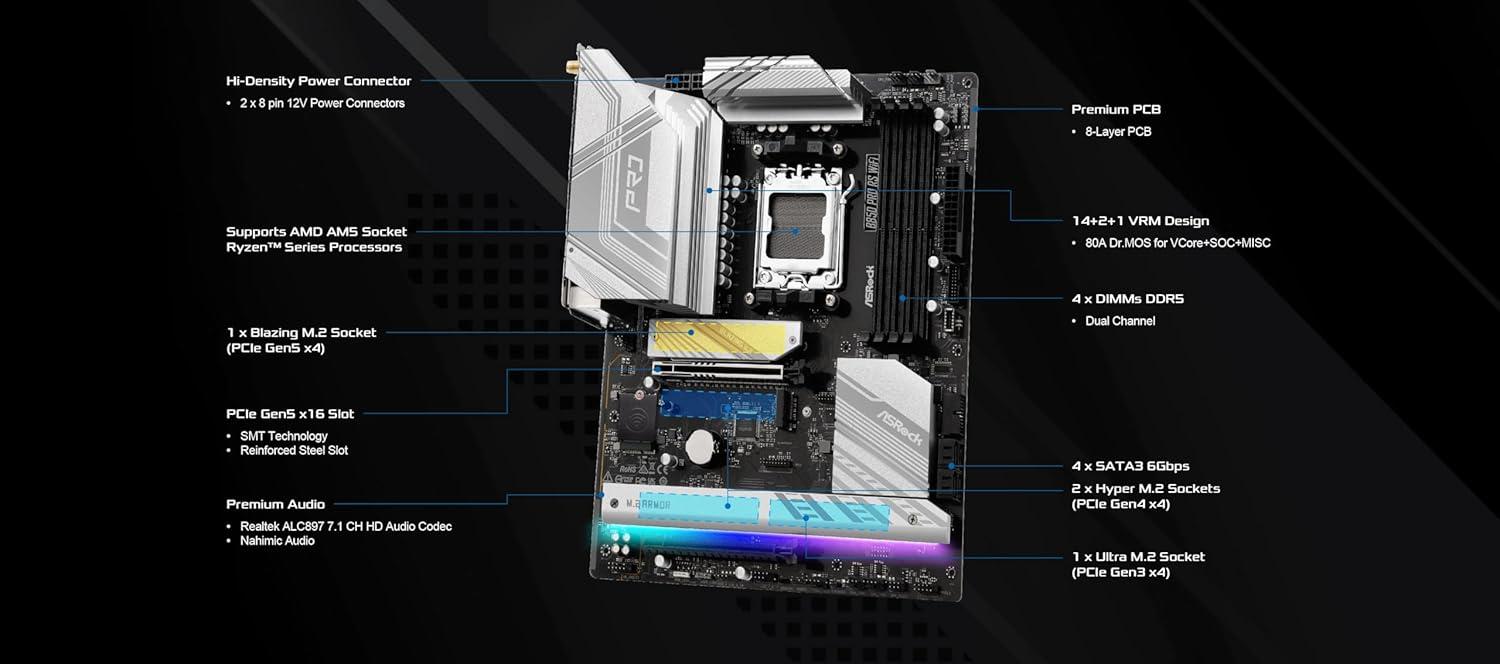

VRM Configuration
| CPU Power Phases (Amps) | 14 (80 A) |
|---|---|
| Power Design | 14+2+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8000 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 2 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 2230, 2242, 2260, 2280 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek ALC897 Audio Codec |
|---|---|
| Analog Audio Jacks | 3 jacks |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K 120Hz) |
|---|---|
| DP over USB-C | DisplayPort over USB-C - Version 1.4 (Max: 4K 60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 6 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 1 Type-C (5 Gbps) | 1 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 6E Frequency Bands: 2.4GHz, 5GHz, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.2 |
Button Features
| Buttons |
BIOS Flashback |
|---|
Quality & Features
Additional Information
| RAM | Supports un-buffered memory and EXTended Profiles for Overclocking (EXPO) memory modules. |
|---|---|
| Display | Integrated AMD RDNA™ graphics support may vary by CPU. The HDMI port is TMDS/FRL 8G Compatible, supports HDR, and HDCP 2.3. The USB Type-C port supports DP 1.4 HBR3, and its DP-alt mode supports DP1.4a. |
| Expansion | PCIE1 speed depends on the installed CPU: it runs at Gen5x16 with 9000/7000 series, Gen4x8 with 8000 (Phoenix 1) series, and Gen4x4 with 8000 (Phoenix 2) series processors. The PCIE2 slot (supports x4 mode) is disabled if the M2_3 socket is occupied. The PCIE1 slot features 15ÎĽ Gold Contact. |
| Storage |
M.2 Slot Details:
|
| Audio | 7.1 CH HD Audio, Nahimic Audio |
| Networking | Supports IEEE 802.11a/b/g/n/ac/ax/axe. Supports Dual-Band 2x2 with extended 6GHz band support. 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology. Supports MU-MIMO. The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. A 6GHz compatible router is required for 6E functionality. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASRock AMD B850 Pro RS WiFi Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$181
|
↓
-14.9%
|
65.4%
|
32.0%
|
84.0%
|
104.0%
|
62.0%
|
45.0%
|
68.7%
|
|
|
$265
|
↑
0.8%
|
65.2%
|
25.0%
|
89.0%
|
106.0%
|
66.0%
|
40.0%
|
46.7%
|
|
|
$380
|
↓
-0.8%
|
65.2%
|
41.0%
|
81.0%
|
51.0%
|
65.0%
|
88.0%
|
32.6%
|
|
|
$160âť—
|
0.0%
|
64.8%
|
54.0%
|
78.0%
|
78.0%
|
74.0%
|
40.0%
|
77.0%
|
|
|
$301
|
↓
-0.8%
|
64.8%
|
36.0%
|
89.0%
|
44.0%
|
67.0%
|
88.0%
|
41.0%
|
|
|
$200
|
↑
5.3%
|
64.4%
|
41.0%
|
80.0%
|
77.0%
|
76.0%
|
48.0%
|
61.2%
|
|
|
$160âť—
|
0.0%
|
64.2%
|
37.0%
|
78.0%
|
66.0%
|
62.0%
|
78.0%
|
76.2%
|
|
|
$170
|
0.0%
|
64.0%
|
37.0%
|
81.0%
|
91.0%
|
68.0%
|
43.0%
|
71.5%
|
|
|
$168
|
0.0%
|
64.0%
|
37.0%
|
81.0%
|
91.0%
|
68.0%
|
43.0%
|
72.4%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$181
|
↓
-14.9%
|
$265
|
↑
0.8%
|
$380
|
↓
-0.8%
|
$160âť—
|
0.0%
|
$301
|
↓
-0.8%
|
$200
|
↑
5.3%
|
$160âť—
|
0.0%
|
$170
|
0.0%
|
$168
|
0.0%
|
||||||||||||||||||||||||||||||||||||
| Manufacturer | ASUS | ASUS | Asus | ASRock | ASUS | GIGABYTE | ASRock | MSI | MSI | ||||||||||||||||||||||||||||||||||||
| Chip/Socket | B850 / AM5 | AMD B850 Chipset / AM5 | B650E-I / AM5 | B850 / AM5 | B850I / AM5 | B850 / AM5 | B850M / AM5 | AMD B850 / AM5 | AMD B850 / AM5 | ||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Mini-ITX | Standard-ATX | Mini-ITX | Standard-ATX | Micro-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||
| CPU Phases | 8 (80 A) | 8 (60 A) | 10 (80 A) | 14 (80 A) | 10 (90 A) | 14 (60 A) | 12 (60 A) | 12 (60 A) | 12 (60 A) | ||||||||||||||||||||||||||||||||||||
| PWR Design | 8+2+1 | 8 + 2 + 1 | 10+1+2 | 14+2+1 | 10+2+1 | 14+2+2 | 12+2+1 | 12 + 2 + 1 | 12 + 2 + 1 | ||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 96 GB / 8000 MHz | 256 GB / 8000 MHz | 128 GB / 8400 MHz | 256 GB / 8200 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | 256 GB / 8200 MHz | ||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 2x16 Gen4 | 1x1 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen5 | 2x16 Gen3 | 1x16 Gen5 | 1x4 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | ||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 3 | 2 | 4 | 2 | 3 | 3 | 3 | 3 | ||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 2 | 4 | 2 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC892/ALC897 | Realtek 7.1 Surround Sound Hi… | ROG SupremeFX ALC4080, Savite… | Realtek ALC897 Audio Codec | ALC4080 | Realtek® ALC892/ALC897 | Realtek ALC1220 Audio Codec | Realtek ® ALC897 | Realtek ® ALC897 | ||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ❌ | ✔️ | ❌ | ✔️ | ✔️ | ❌ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ✔️ (1.4) | ❌ | ❌ | ❌ | ✔️ (1.4) | ✔️ (1.4) | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||
| LAN | Realtek 2.5Gb Ethernet (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Intel® 2.5Gb Ethernet (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek ® 8126VB 5G LAN (1 ports) | Realtek ® 8126VB 5G LAN (1 ports) | ||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 6E | Wi-Fi Wi-Fi 6E (802.11ax) | Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi Wi-Fi 7 | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | ||||||||||||||||||||||||||||||||||||
| BT | v5.3 | v5.3 | v5.2 | v5.2 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
❌ |
❌ |
||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
❌ |
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103âť—
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data

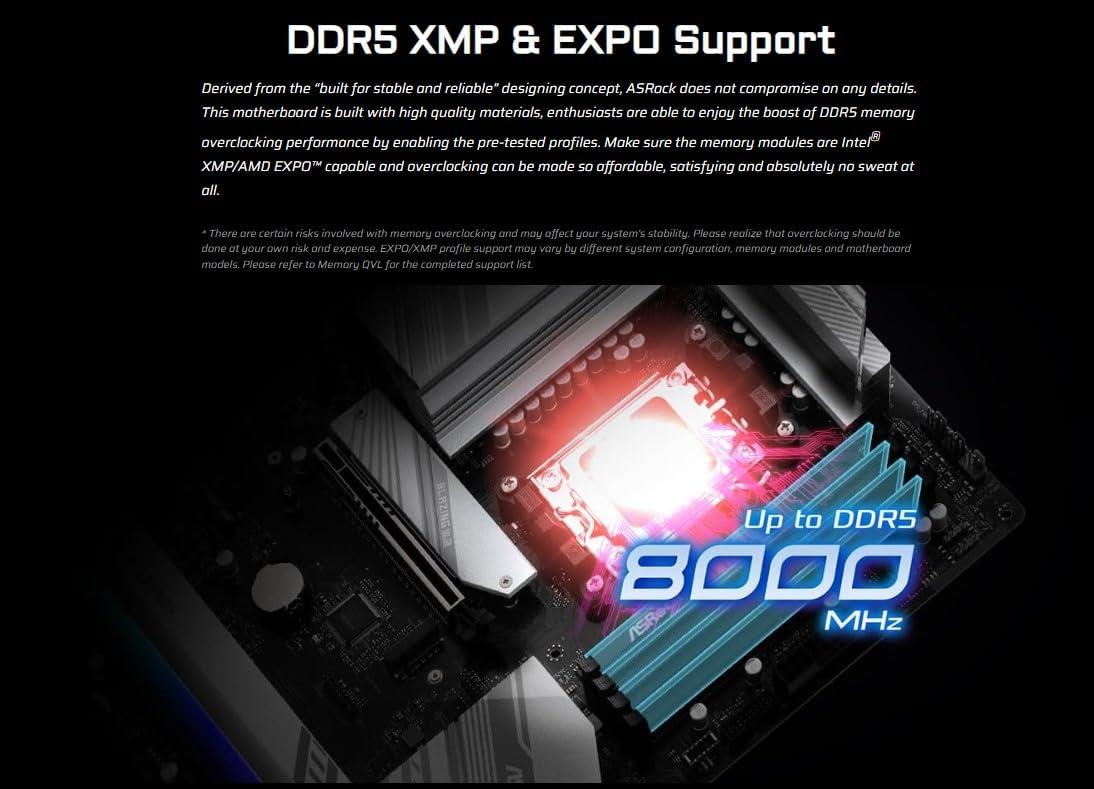

Memory:
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Graphics:
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x USB 3.2 Gen1 Type-C, supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DP-alt mode supports DP1.4a)
Storage:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*
- 2 x SATA3 6.0 Gb/s Connectors
ASMedia ASM1061:
- 2 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
M2_1 is the first priority for M.2 installation.
M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.
If M2_3 is occupied, PCIE2 will be disabled.
If SATA3_1 or SATA3_2 is occupied, M2_4 will downgrade to Gen3x2 mode.
Expansion Slots:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15ÎĽ Gold Contact in VGA PCIe Slot (PCIE1)
* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
If M2_3 is occupied, PCIE2 will be disabled.
Supports NVMe SSD as boot disks
USB:
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2))
Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 4 Front)
- 10 x USB 2.0 (6 Rear, 4 Front)
* All USB ports support ESD Protection

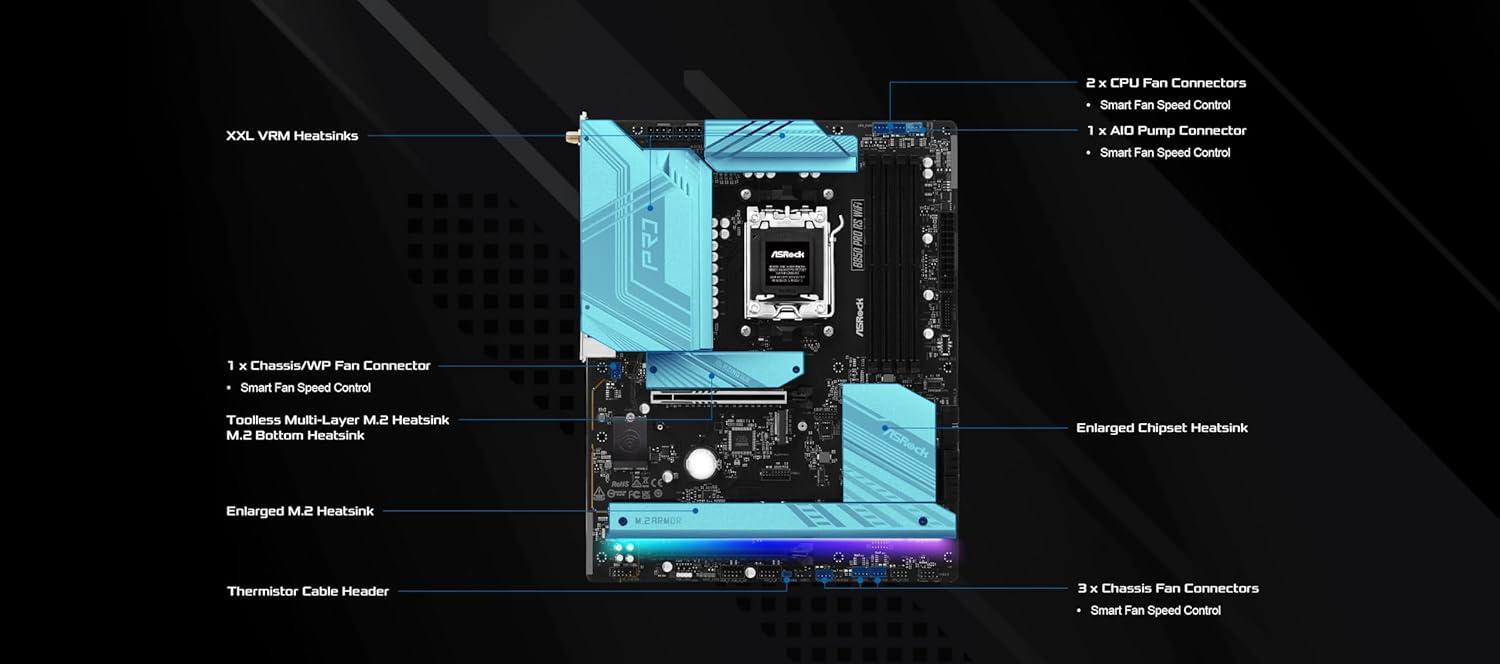

Internal I/O:
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

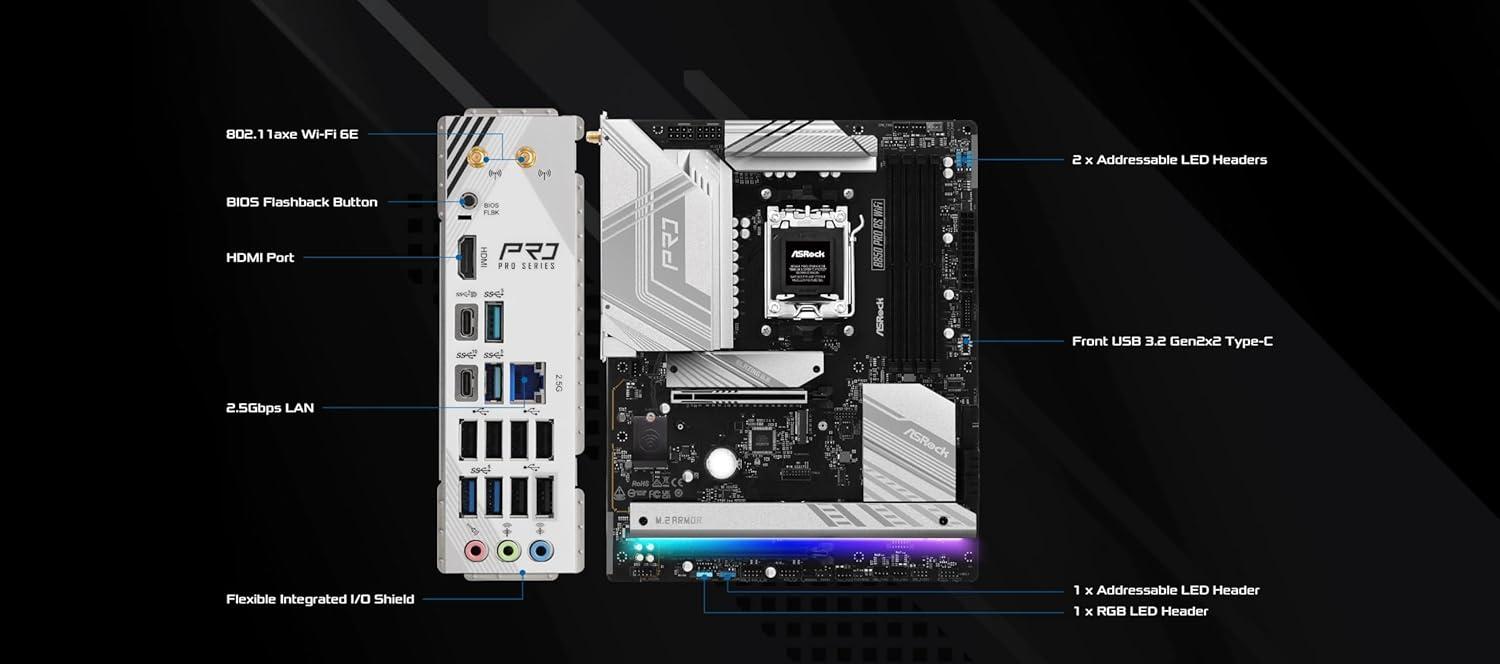

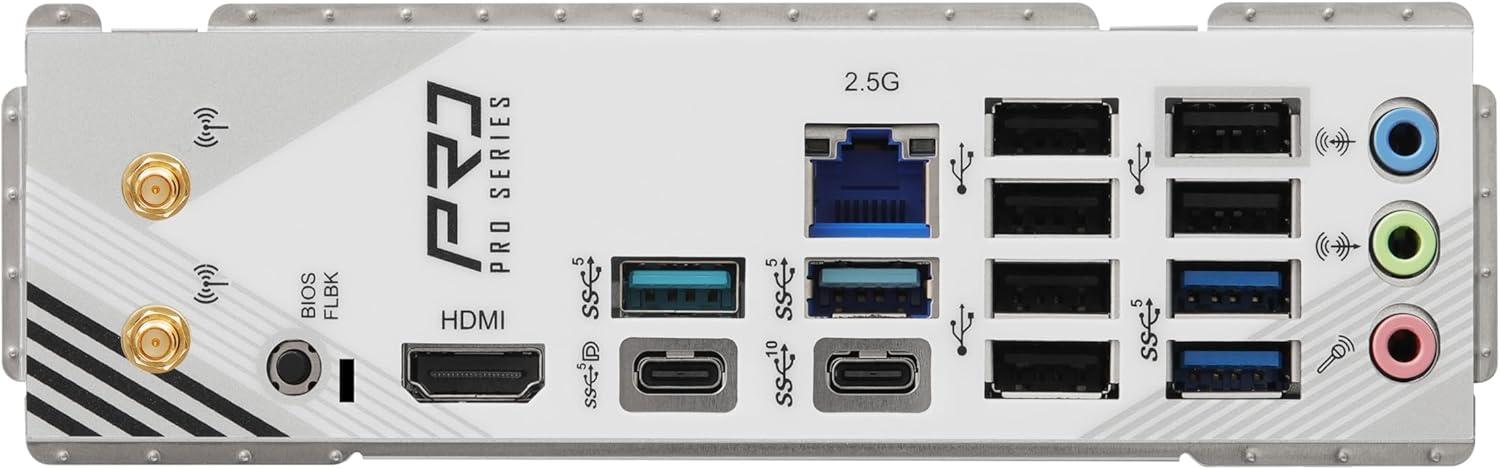

Back Panel I/O:
- 1 x HDMI Port
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 1 x USB 3.2 Gen1 Type-C Port (DP-alt mode supports DP1.4a)
- 4 x USB 3.2 Gen1 Type-A Ports
- 6 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
WiFi:
- Supports IEEE 802.11a/b/g/n/ac/ax/axe
- Supports Dual-Band 2x2 with extended 6GHz band* support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.2
- Supports MU-MIMO
*The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Audio:
- Nahimic Audio
Special Features:
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Add Comment on ASRock AMD B850 Pro RS WiFi
