Pro WS B850M-ACE SE
Pro WS B850M-ACE SE Specifications Review

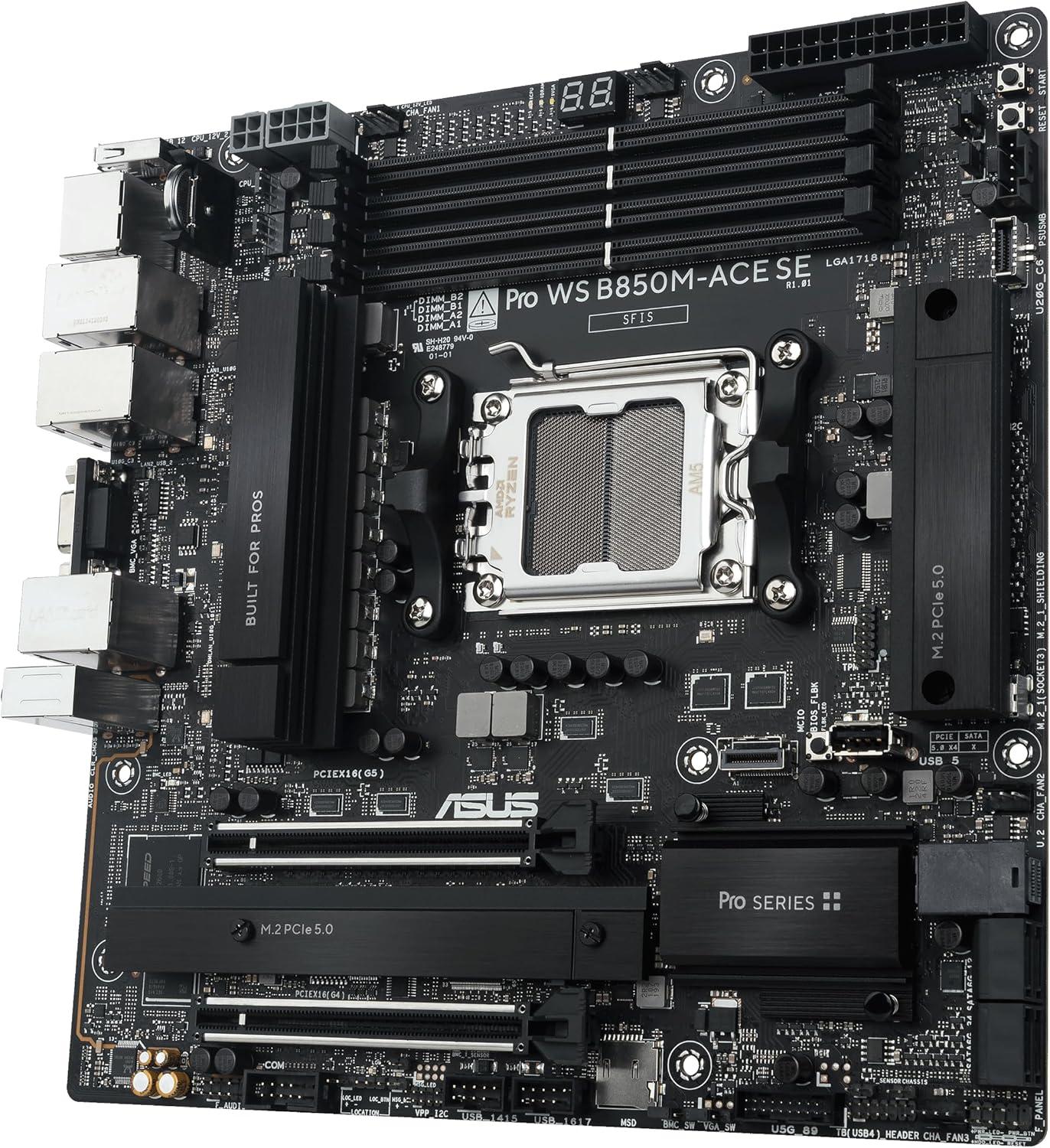

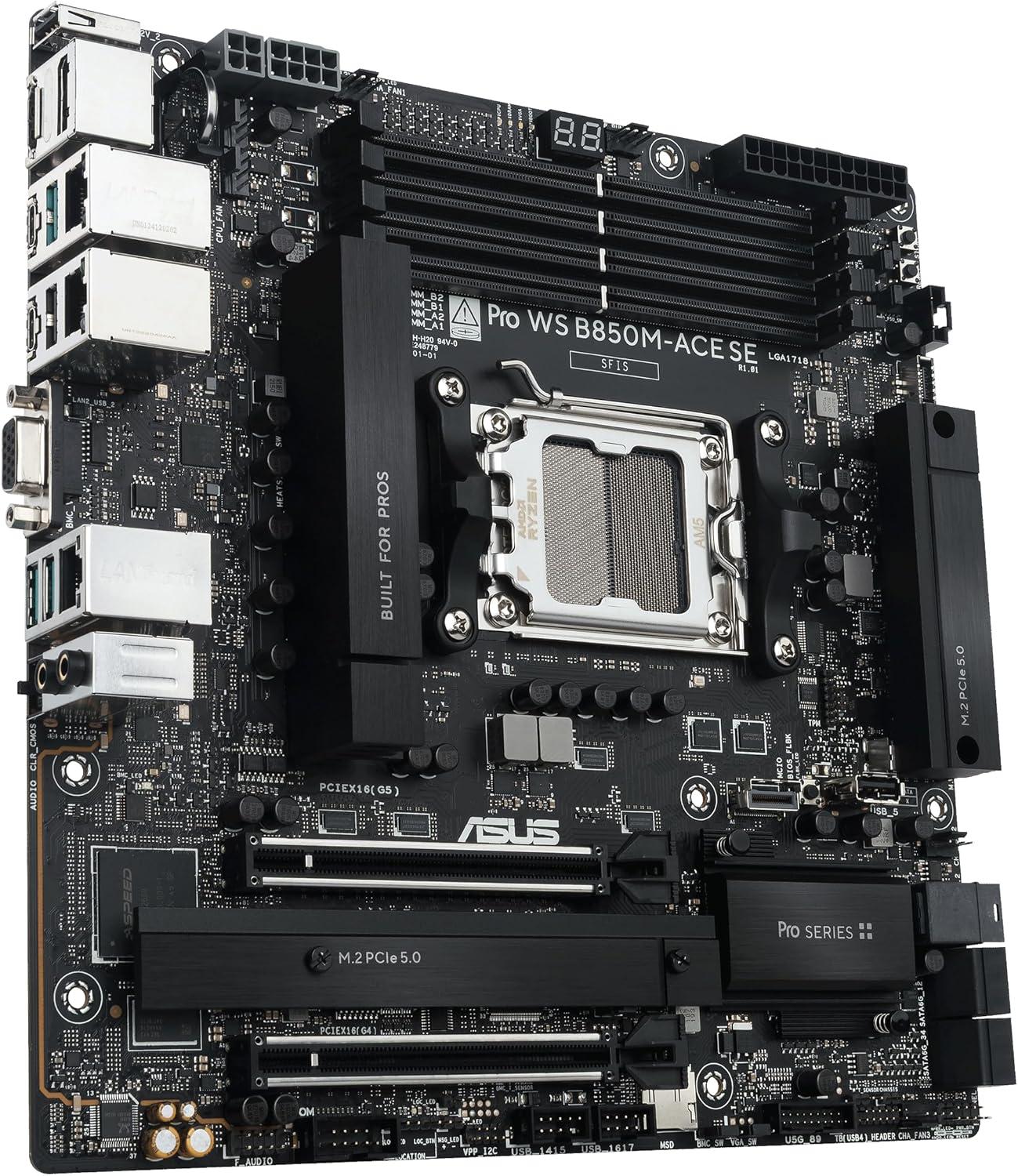

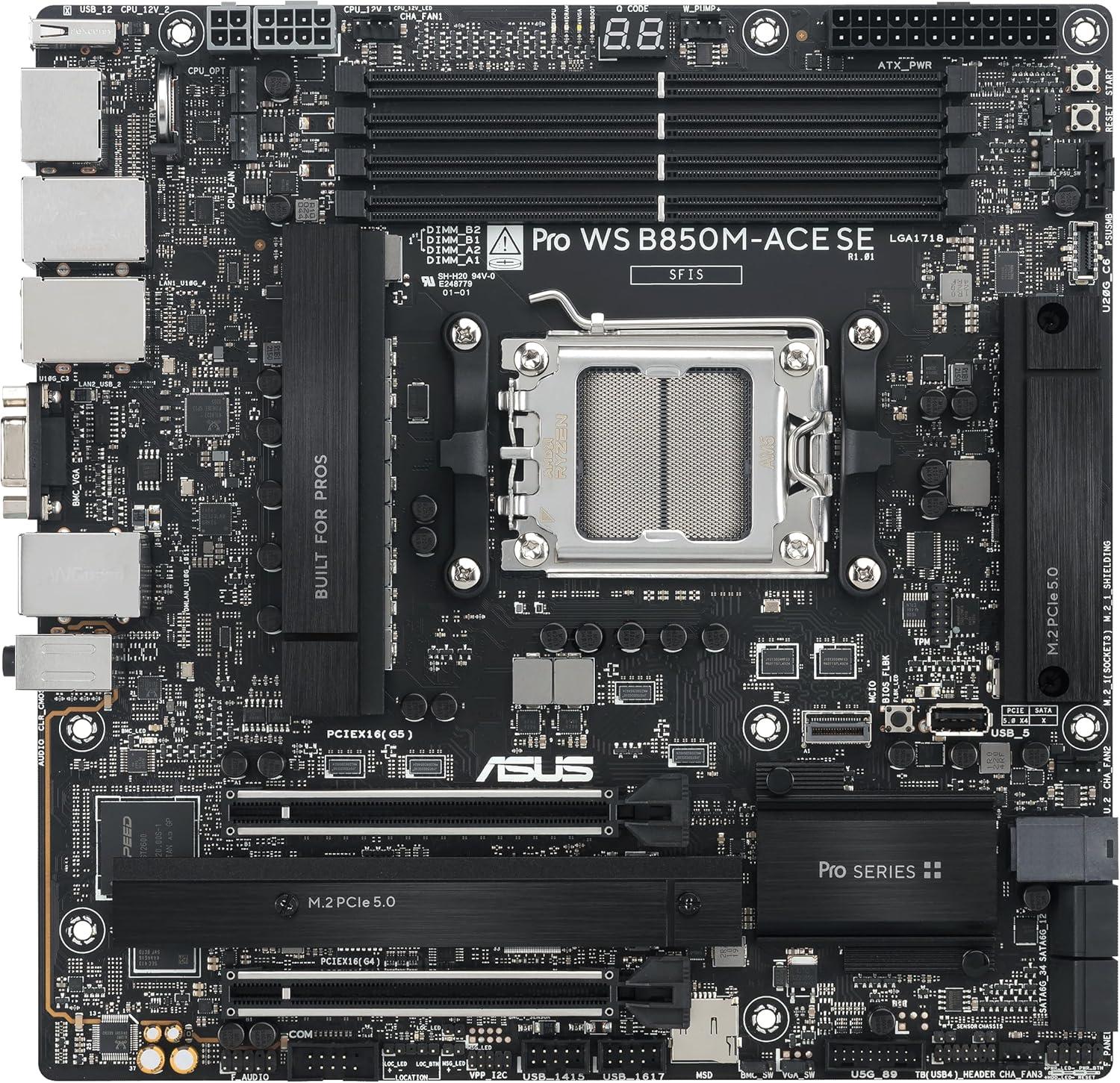

Pro WS B850M-ACE SE by ASUS is a Micro-ATX form factor motherboard based on the mid-range AMD B850 Chipset chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8000 MHz. It features channels, a voltage of V and supports Error-Correcting Code (ECC) memory.
VRM Quality
The Pro WS B850M-ACE SE comes with an entry-level VRM setup, delivering 80 A across 8 phases. Works best with CPUs in the ~65–105 W TDP range. Can technically run higher-TDP processors at stock, but will likely experience thermal throttling under sustained heavy loads. Suited for budget gaming, office PCs, and home builds without heavy CPU demands.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The Pro WS B850M-ACE SE offers a well-equipped expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 3 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots (M.2_1: PCIe5.0x4/PCIe4.0x4; M.2_2: PCIe5.0x4/PCIe4.0x4,x2; MCIO: PCIe5.0x4/PCIe4.0x4,x2; U.2: PCIe3.0x4) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wired 1 x Realtek 10Gb Ethernet1 x Intel® 2.5Gb Ethernet1 x Realtek 1Gb Ethernet*ASUS LANGuard* This dedicated LAN port is for BMC and IPMI connections only; internet access is not supported. ethernet supporting speeds up to 10000 Gbps. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek 7.1 Surround Sound High Definition Audio CODEC*) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
Pro WS B850M-ACE SE is a dependable choice with a respectable overall quality score of 64.00. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard shows a 34.2% value score indicating less favorable price-to-performance compared to mainstream models. For budget-conscious buyers, there may be better value options available at this price point.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | Pro WS B850M-ACE SE |
| Current Price Amazon | $355❗N/A |
| Amazon Price Updated | 4 weeks, 1 day ago. |
| Motherboard Available | False |
| Chipset / Socket | AMD B850 Chipset / AM5 |
| Form Factor | Micro-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 8 (80 A) |
|---|---|
| Power Design | 8 + 2 + 1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8000 MHz |
| ECC Support | ✔️ ECC (Error-Correcting Code) Supported |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 3 | 1 | 2 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 2280 |
| M.2 PCIe Modes | M.2_1: PCIe5.0x4/PCIe4.0x4; M.2_2: PCIe5.0x4/PCIe4.0x4,x2; MCIO: PCIe5.0x4/PCIe4.0x4,x2; U.2: PCIe3.0x4 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
|---|---|
| Analog Audio Jacks | 2 jacks |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 8K@30Hz) |
| DP over USB-C | DisplayPort over USB-C - Version 1.4 (Max: 8K@30Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 3 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 2 |
Front USB Ports
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
|---|---|
| Power Delivery (W) | 15W |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: 1 x Realtek 10Gb Ethernet1 x Intel® 2.5Gb Ethernet1 x Realtek 1Gb Ethernet*ASUS LANGuard* This dedicated LAN port is for BMC and IPMI connections only; internet access is not supported. LAN Ports: 3 |
|---|---|
| Wi-Fi |
Module: Not Included |
| Bluetooth | Supported: No |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Start Button Reset Button |
|---|
Quality & Features
Additional Information
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
|---|---|
| OS Support | Windows 11, Windows 10 64-bit (with AMD Ryzen™ Desktop Processors) |
| RAM | Supports DDR5 ECC and Non‑ECC unbuffered DIMMs. AMD EXPO (Extended Profiles for Overclocking) supported. Actual supported memory types, speeds and module counts depend on CPU and memory configuration — refer to the CPU/Memory Support list on the product support site. Non‑ECC unbuffered DDR5 memory supports On‑Die ECC function. Speeds and compatibility may be adjusted based on mass‑produced memory products available on the market. |
| Display | Also includes 1 x VGA port provided by the AST2600 (analog BMC-sourced output). USB Type-C port is USB 10Gbps and supports DisplayPort video output (DP 1.4 capability noted). Graphics capabilities may vary by CPU — refer to AMD CPU specifications for onboard GPU support. Resolutions: DisplayPort/Type-C (DP 1.4) up to 8K@30Hz; HDMI (HDMI 2.1) up to 4K@60Hz. |
| Expansion | Maximum supported generation: PCIe 5.0 (one physical x16 slot is PCIe 5.0 when paired with Ryzen 9000/7000 series or EPYC 4005). PCIe 5.0 provides roughly double the per-lane bandwidth of PCIe 4.0 (~32 GT/s raw per lane; ~63 GB/s aggregate for an x16 link), and is backward compatible with previous PCIe versions. Notes: there are three physical x16 slots total — one is PCIe 5.0 x16 (supports x16 mode with specific CPUs), one is PCIe 4.0 x16 (CPU-dependent; supports x8/x4 modes with some CPUs), and one is a chipset-provided PCIe 4.0 x16 wired for x4 mode. Slot generation and available lanes/modes vary by CPU type and chipset; consult the ASUS PCIe bifurcation table and CPU-specific specifications for exact lane bifurcation, shared bandwidth, and device compatibility. Specifications may change based on CPU installed; see the support/download pages for supported peripherals. |
| Storage |
M.2 Slot Details:
|
| Audio | Supports jack-detection, multi-streaming, front panel jack-retasking; up to 24-Bit/192 kHz playback; audio shielding, premium audio capacitors, dedicated audio PCB layers. Note: Due to HDA bandwidth limitations, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Networking | Ports: 1 x Realtek 10Gb Ethernet, 1 x Intel 2.5Gb Ethernet, 1 x Realtek 1Gb Ethernet (dedicated management LAN for AST2600). ASUS LANGuard mentioned. Dedicated LAN port for BMC/IPMI connections only (internet access not supported). |
| Buttons | Other front/board controls and headers: Start button, Reset button. Additional headers/features: Chassis Intrusion header, COM Port header, Front Panel Audio (F_AUDIO) header, SPI TPM header (14-1 pin), 10-1 pin Front Panel System header, RTC Battery header, Thermal Sensor header, Thunderbolt (USB4) header. Notes: multiple USB headers/ports and dedicated management LAN are present; no explicit Smart or Q-Flash Plus buttons listed. |

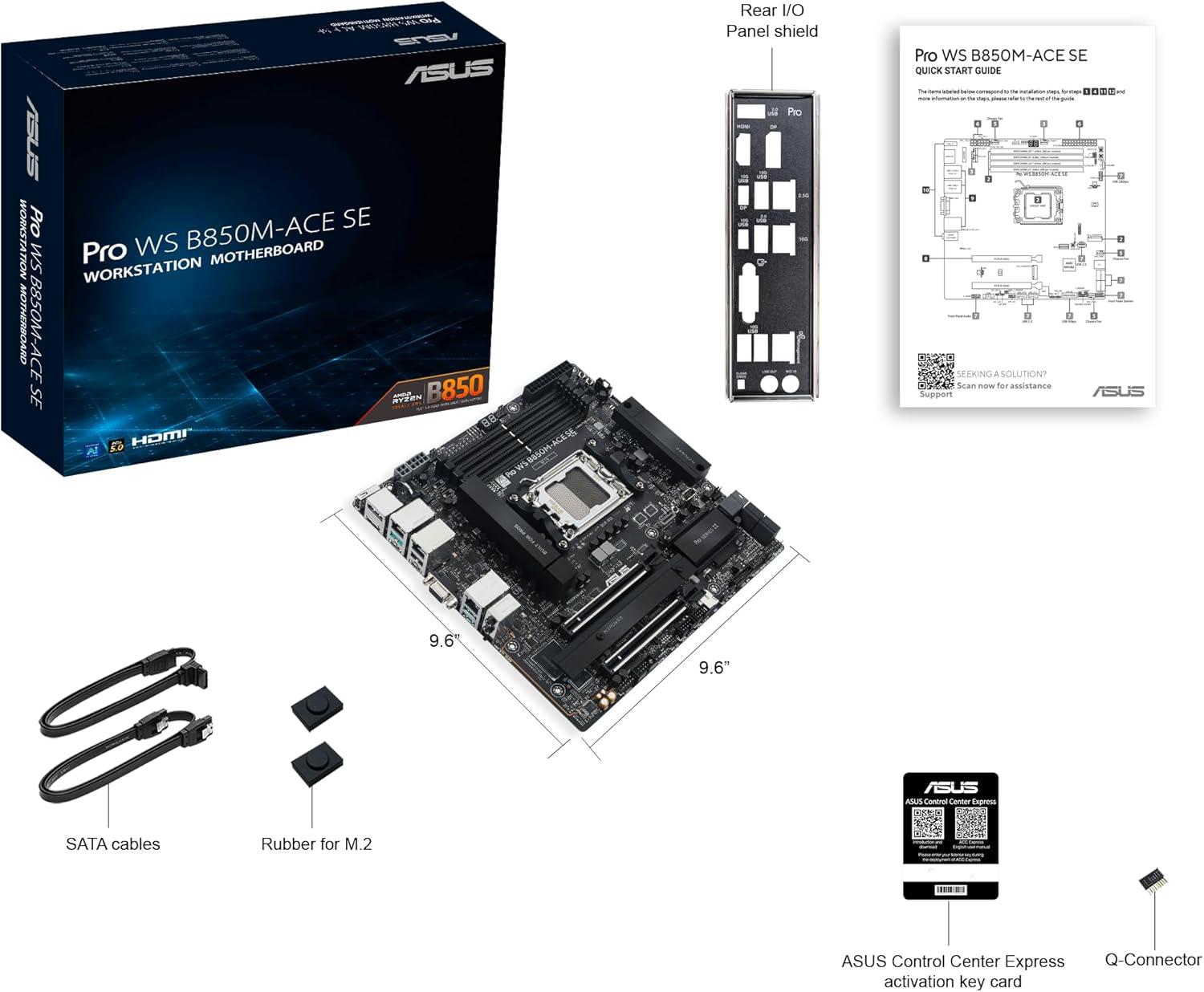

| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x Q-connector 1 x M.2 rubber package(s) Documentation 1 x ACC Express activation key card 1 x Quick start guide |
| Dimensions | micro-ATX Form Factor9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
Pro WS B850M-ACE SE Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$200
|
↑
5.3%
|
64.4%
|
41.0%
|
80.0%
|
77.0%
|
76.0%
|
48.0%
|
61.2%
|
|
|
$160❗
|
0.0%
|
64.2%
|
37.0%
|
78.0%
|
66.0%
|
62.0%
|
78.0%
|
76.2%
|
|
|
$355❗
|
↑
6.6%
|
64.0%
|
32.0%
|
94.0%
|
82.0%
|
72.0%
|
40.0%
|
34.2%
|
|
|
$170
|
0.0%
|
64.0%
|
37.0%
|
81.0%
|
91.0%
|
68.0%
|
43.0%
|
71.5%
|
|
|
$168
|
0.0%
|
64.0%
|
37.0%
|
81.0%
|
91.0%
|
68.0%
|
43.0%
|
72.4%
|
|
|
$215
|
↓
-4.4%
|
63.8%
|
40.0%
|
79.0%
|
54.0%
|
61.0%
|
85.0%
|
56.3%
|
|
|
$170
|
↑
17.9%
|
63.8%
|
38.0%
|
78.0%
|
100.0%
|
55.0%
|
48.0%
|
71.3%
|
|
|
$200
|
0.0%
|
63.4%
|
24.0%
|
74.0%
|
67.0%
|
71.0%
|
81.0%
|
60.2%
|
|
|
$170
|
0.0%
|
63.0%
|
37.0%
|
81.0%
|
84.0%
|
70.0%
|
43.0%
|
70.4%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$200
|
↑
5.3%
|
$160❗
|
0.0%
|
$355❗
|
↑
6.6%
|
$170
|
0.0%
|
$168
|
0.0%
|
$215
|
↓
-4.4%
|
$170
|
↑
17.9%
|
$200
|
0.0%
|
$170
|
0.0%
|
||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | ASRock | ASUS | MSI | MSI | GIGABYTE | ASUS | GIGABYTE | MSI | ||||||||||||||||||||||||||||||||||
| Chip/Socket | B850 / AM5 | B850M / AM5 | AMD B850 Chipset / AM5 | AMD B850 / AM5 | AMD B850 / AM5 | B650I / AM5 | B650 / AM5 | B650 / AM5 | B850 / AM5 | ||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Micro-ATX | Micro-ATX | Standard-ATX | Standard-ATX | Mini-ITX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||
| CPU Phases | 14 (60 A) | 12 (60 A) | 8 (80 A) | 12 (60 A) | 12 (60 A) | 8 (105 A) | 12 (60 A) | 8 (60 A) | 12 (60 A) | ||||||||||||||||||||||||||||||||||
| PWR Design | 14+2+2 | 12+2+1 | 8 + 2 + 1 | 12 + 2 + 1 | 12 + 2 + 1 | 8+2+1 | 12+2+2 | 8+2+1 | 12+2+1 | ||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8200 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | 256 GB / 8200 MHz | 128 GB / 7200 MHz | 128 GB / 7600 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | ||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 2x16 Gen3 | 1x16 Gen5 | 1x4 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen4 | 3x16 Gen4 | 2x1 Gen4 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | ||||||||||||||||||||||||||||||||||
| M.2 | 3 | 3 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC892/ALC897 | Realtek ALC1220 Audio Codec | Realtek 7.1 Surround Sound Hi… | Realtek ® ALC897 | Realtek ® ALC897 | Realtek® ALC4080 CODEC | Realtek® ALC892/ALC897 | Realtek® ALC1220-VB CODEC | Realtek® ALC897 | ||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ❌ | ❌ | ✔️ | ✔️ | ❌ | ❌ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (1.4) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ❌ | ||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ❌ | ❌ | ✔️ (1.4) | ✔️ (1.4) | ❌ | ✔️ (1.2) | ||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5GbE LAN chip… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | 1 x Realtek 10Gb Etherne… (3 ports) | Realtek ® 8126VB 5G LAN (1 ports) | Realtek ® 8126VB 5G LAN (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek 2.5Gb Ethernet (1 ports) | Intel® 2.5GbE LAN chip (… (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | ||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi Wi-Fi 7 | ❌ | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi Wi-Fi 6E | Wi-Fi 6 (802.11ax) | Wi-Fi 6E | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | ❌ | v5.4 | v5.4 | v5.3 | v5.2 | v5.2 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||
| USB Headers |
|
|
|
❌ |
❌ |
|
|
|
|
||||||||||||||||||||||||||||||||||
| Front USB |
❌ |
|
|
|
|
❌ |
|
❌ |
❌ |
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Supports up to 5600MT/s with AMD EPYC™ 4005 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based
on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports
On-Die ECC function.
Graphics:
1 x VGA port from AST2600
1 x HDMI™ port***
1 x USB 10Gbps port (USB Type-C®) supports
DisplayPort video output**
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Storage:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
MCIO connector (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
MCIO connector (supports PCIe 4.0 x4/x2 mode)**
AMD B850 Chipset
U.2_1 connector supports PCIe 3.0 x4 mode via an SFF-8643 adapter cable. The cable is purchased separately.
4 x SATA 6Gb/s ports***
* Specifications vary by CPU types.
** MCIO connector shares bandwidth with M.2_2 slot. When MCIO connector is operating, M.2_2 slot will be disabled.
*** U.2 shares bandwidth with SATA ports; Enable U.2 in BIOS menu to support a NVMe storage device, and SATA ports will be disabled.
Expansion Slots:
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/download-center/ for the list of supported peripherals.
USB:
5 x USB 10Gbps port(s) (3 x Type-A + 2 x USB Type-C®)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps (supports USB Type-C®)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A Onboard USB port(s)
1 x USB 2.0 port (1 x Type-A) for BIOS FlashBack™
Internal I/O:
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
3 x 4-pin Chassis Fan header(s)
1 x W_PUMP+ header(s)
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x U.2 connector
1 x MCIO connector
USB
1 x USB 20Gbps connector (support(s) USB Type-C® )
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
1 x USB 2.0 port (1 x Type-A)
Miscellaneous
1 x BIOS FlashBack™ button
1 x Chassis Intrusion header
1 x COM Port header
1 x Reset button
1 x Front Panel Audio header (F_AUDIO)
1 x SPI TPM header (14-1 pin)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x RTC Battery header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Back Panel I/O:
1 x USB 10Gbps port(s) (USB Type-C®)
1 x USB 10Gbps port(s) (USB Type-C®) supports DisplayPort video output
2 x USB 2.0 port(s) (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI™ port
1 x Realtek 10Gb Ethernet port
1 x Intel® 2.5Gb Ethernet ports
1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
2 x Audio jacks
1 x Clear CMOS button
Audio:
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* Due to limitations in HDA bandwidth,
32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Special Features:
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Code
- Q-Connector
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- Dual DIMM clips
- ProCool II
- SafeSlot
- SafeDIMM
Bespoke Motherboard Design & Business Focused Features
- 24/7 reliability
- Overcurrent protection
Add Comment on Pro WS B850M-ACE SE
