X870 TaichiCreator
X870 TaichiCreator Specifications Review

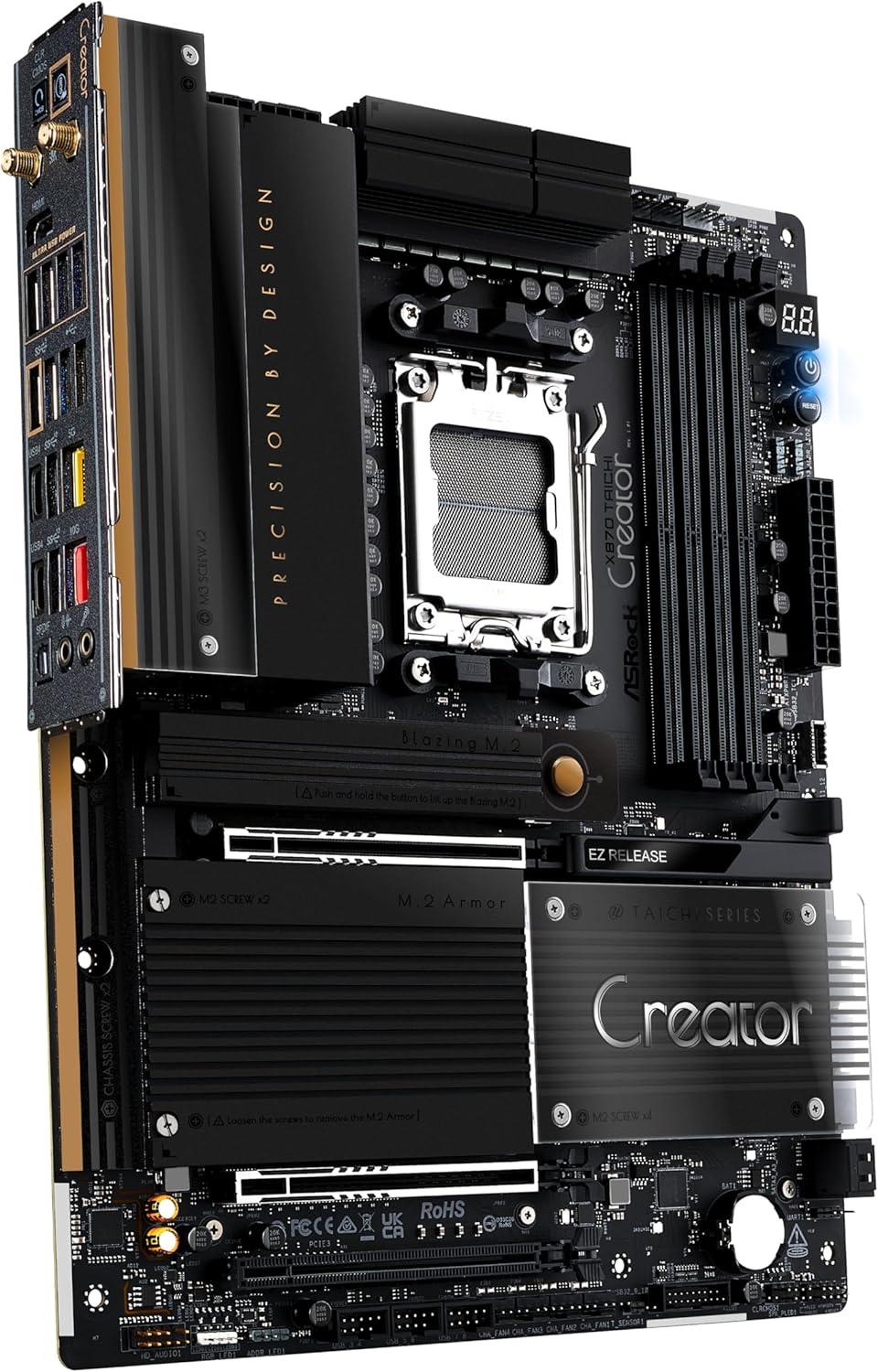

X870 TaichiCreator by ASRock is a Standard-ATX form factor motherboard based on the high-end AMD X870 chipset and AM5 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8000 MHz. It features channels, a voltage of V and supports Error-Correcting Code (ECC) memory.
VRM Quality
The X870 TaichiCreator features a high-end VRM setup, supplying 80 A across 18 phases. Capable of handling high-wattage CPUs (200 W+) and supporting moderate to heavy overclocking, while keeping thermals and voltage regulation under control. Well-suited for gaming builds with top-tier CPUs, workstation tasks, and enthusiasts seeking reliable high performance.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The X870 TaichiCreator offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 3 x16 slots , and 1 x1 slot. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots (PCIe Gen5x4, PCIe Gen4x4, PCIe Gen3x4) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard provides extensive and premium connectivity options, including wireless networking with the wireless 802.11be (Wi-Fi 7) and wired 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113) LAN support capable of speeds up to 10000 Gbps, ensuring ultra-fast network connections. Bluetooth 5.4 is included for seamless wireless connections to peripherals. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
For video output, this motherboard includes HDMI version 2.1 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
This motherboard features an ultra-premium audio solution — the Realtek ALC4082 Audio Codec — rivaling professional-grade DACs. With its ESS Sabre-class DAC implementation, it delivers reference-quality sound featuring exceptional clarity, dynamic range, and near-zero distortion. This is the ultimate choice for audiophiles, professional audio work, and high-impedance headphones, eliminating the need for external amplification in most cases. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
X870 TaichiCreator is a premium motherboard boasting a high overall quality score of 94.00. It offers excellent build quality and a rich feature set, delivering top-tier performance suitable for gamers and power users seeking robust and reliable hardware with extensive connectivity and expandability.
This motherboard has a solid 55.8% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | ASRock |
|---|---|
| Motherboard Name | X870 TaichiCreator |
| Current Price Amazon | $320 |
| Amazon Price Updated | 5 hours, 53 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | AMD X870 / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 18 (80 A) |
|---|---|
| Power Design | 18+2+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8000 MHz |
| ECC Support | ✔️ ECC (Error-Correcting Code) Supported |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen3 |
|---|---|---|---|
| x16 | 3 | 2 | 1 |
| x1 | 1 | 0 | 0 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 2280 |
| M.2 PCIe Modes | PCIe Gen5x4, PCIe Gen4x4, PCIe Gen3x4 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek ALC4082 Audio Codec |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Gold-Plated Jacks | ✔️ Yes |
| Optical S/PDIF Output | ✔️ Present |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K 120Hz) |
|---|---|
| DP over USB-C | DisplayPort over USB-C - Version USB4 (supports Gen4x2 with Phoenix 2 / 8000 series CPUs) (Max: 8K 30Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 6 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 2 |
| Power Delivery (W) | 15W |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 6 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
| Power Delivery (W) | 36W |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 6 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113) LAN Ports: 2 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 802.11be (Wi-Fi 7) Bandwidth: 160 MHz Frequency Bands: ['2.4GHz', '5GHz', '6GHz'] Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Start Button Reset Button |
|---|
Quality & Features
Additional Information
| CPU Support | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors * * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. |
|---|---|
| OS Support | Microsoft Windows ® 10 64-bit / 11 64-bit |
| RAM | 4 x DDR5 DIMM slots, supports un-buffered DDR5 ECC and non-ECC modules. Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO). Overclocked speeds listed as 8000+ MT/s. Max system memory 256GB (implying up to 64GB per DIMM). Refer to ASRock's Memory Support List on their website for validated modules and further compatibility details. |
| Display | Integrated AMD RDNA graphics; actual support depends on CPU. HDMI: 1 x HDMI 2.1 TMDS/FRL 8G compatible, supports HDR and HDCP 2.3. USB-C: 2 x USB4 ports support HDCP 2.3 and up to 8K@30Hz for video output, but only the CPU's embedded graphics can be displayed through the USB4 ports. To drive a Type-C monitor, use AM5 Ryzen 9000, 8000 or 7000 processors with integrated graphics. USB4 controller (USB4_TC1 and USB4_TC2) runs at Gen4x2 with 8000 (Phoenix 2) series processors. |
| Expansion | PCIE1 & PCIE2: two physical PCIe x16 slots rated PCIe 5.0, support x16 or x8/x8 bifurcation. PCIE1 highest-capable is Gen5x16 with 9000/7000 series CPUs but may run Gen4x8 (8000 Phoenix1) or Gen4x4 (8000 Phoenix2) depending on CPU. PCIE3: physical x16 slot provided by chipset as PCIe 3.0 (supports x4 mode electrically). If M2_4 is occupied, both PCIE3 and M2_4 will downgrade to x2. Vertical M.2 Socket (Key E, 2230) present for PCIe WiFi/BT module (acts as a PCIe x1 interface). Supports NVMe SSDs as boot devices. |
| Storage |
M.2 Slot Details:
ASMedia ASM1164 provides 4 x SATA3 6.0 Gb/s connectors. NVMe SSDs supported as boot disks. M.2 sockets are keyed M and support 2280 type. M2_1 is primary installation slot. BIOS can change M2_2 mode to x4 at cost of disabling USB4 ports. M2_2 may be unavailable with certain 8000-series CPUs. |
| Audio | 7.1 CH HD Audio with Content Protection; Individual PCB layers for R/L audio channels; Nahimic Audio present. |
| Networking | Supports IEEE 802.11a/b/g/n/ac/ax/be; 2x2 MU-MIMO and 2 (Transmit) x 2 (Receive) diversity. Wi-Fi 7 module supported on Windows 11 only (no Windows 10 driver). 6GHz band availability depends on regional regulation and will be enabled via Windows Update/software updates. 2 x antenna ports listed; also mentions '1 antenna to support 2x2 diversity'. 1 x 10 Gigabit LAN (Marvell/Aquantia AQC113) supports 100/1000/2500/5000/10000 Mb/s. 2 x RJ-45 LAN ports listed. |
| Buttons | Includes 1x BIOS Flashback button and 1x Clear CMOS button. Also provides a Power Button with LED, Reset Button with LED, and a Dr. Debug LED indicator. No Smart Button or Q-Flash Plus button was identified. Front-panel Power LED and speaker header are present; several buttons/features include LED indicators. |
| Accessories | - 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 1 x ARGB Splitter Cable - 1 x Thermistor Cable |
| Dimensions | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm8 Layer PCB |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
X870 TaichiCreator Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$360
|
0.0%
|
100.0%
|
98.0%
|
100.0%
|
104.0%
|
110.0%
|
88.0%
|
52.8%
|
|
|
$300
|
0.0%
|
98.8%
|
110.0%
|
95.0%
|
94.0%
|
99.0%
|
96.0%
|
62.6%
|
|
|
$286
|
↓
-1.6%
|
98.8%
|
110.0%
|
95.0%
|
94.0%
|
99.0%
|
96.0%
|
65.6%
|
|
|
$260❗
|
0.0%
|
95.4%
|
110.0%
|
95.0%
|
77.0%
|
99.0%
|
96.0%
|
69.7%
|
|
|
$320
|
0.0%
|
94.0%
|
72.0%
|
91.0%
|
101.0%
|
110.0%
|
96.0%
|
55.8%
|
|
|
$586
|
0.0%
|
93.6%
|
70.0%
|
100.0%
|
110.0%
|
110.0%
|
78.0%
|
30.3%
|
|
|
$260
|
↓
-8.8%
|
91.2%
|
74.0%
|
100.0%
|
97.0%
|
97.0%
|
88.0%
|
66.7%
|
|
|
$605❗
|
0.0%
|
91.2%
|
90.0%
|
100.0%
|
81.0%
|
97.0%
|
88.0%
|
28.6%
|
|
|
$499
|
↓
-0.5%
|
91.0%
|
86.0%
|
97.0%
|
93.0%
|
98.0%
|
81.0%
|
34.6%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$360
|
0.0%
|
$300
|
0.0%
|
$286
|
↓
-1.6%
|
$260❗
|
0.0%
|
$320
|
0.0%
|
$586
|
0.0%
|
$260
|
↓
-8.8%
|
$605❗
|
0.0%
|
$499
|
↓
-0.5%
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | MSI | ASRock | ASRock | ASRock | ASRock | ASUS | ASUS | ASUS | GIGABYTE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | X870E / AM5 | X870E / AM5 | X870E / AM5 | X870E / AM5 | AMD X870 / AM5 | X870E / AM5 | X870-A / AM5 | AMD X870 / AM5 | X870E / AM5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | E-ATX | E-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 18 (110 A) | 24 (110 A) | 24 (110 A) | 20 (110 A) | 18 (80 A) | 16 (80 A) | 16 (90 A) | 16 (110 A) | 16 (110 A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 18+2+1 | 24+2+1 | 24+2+1 | 20+2+1 | 18+2+1 | 16+2+2 | 16(90A)+ 2(90A)+ 2(80A) | 16 + 2 +2 | 16+2+2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8400 MHz | 256 GB / 8200 MHz | 256 GB / 8200 MHz | 256 GB / 8200 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8600 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 2x16 Gen5 | 1x16 Gen4 | 2x16 Gen5 | 2x16 Gen5 | 1x16 Gen5 | 1x16 Gen3 | 1x1 Gen3 | 2x16 Gen5 | 1x16 Gen3 | 1x1 | 2x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 4 | 4 | 4 | 5 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 6 | 6 | 4 | 4 | 4 | 2 | 2 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC4080 Codec | Realtek ALC4082 | Realtek ALC4082 Audio Codec | Realtek ALC4082 | Realtek ALC4082 Audio Codec | Realtek ALC1220P | ALC4080 | ROG SupremeFX ALC4080 | Realtek® ALC1220 CODEC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ❌ | ✔️ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ✔️ (1.4) | ✔️ (1.4) | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | 1x Realtek® 8126 5G LAN … (2 ports) | 5 Gigabit LAN 10/100/100… (1 ports) | 5 Gigabit LAN 10/100/100… (1 ports) | 5 Gigabit LAN 10/100/100… (1 ports) | 1 x 10 Gigabit LAN 100/1… (2 ports) | 1 x Marvell® AQtion 10Gb… (2 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | 1 x Intel ® 2.5Gb Ethern… (1 ports) | Realtek® 5GbE LAN chip (… (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi Wi-Fi 7 | Wi-Fi 802.11be (Wi-Fi 7) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
❌ |
|
|
|
|
❌ |
❌ |
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$670
|
0.0%
|
95.6%
|
94.9%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$511
|
↑
2.2%
|
93.0%
|
82.2%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$501
|
0.0%
|
87.0%
|
79.7%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.50 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$500
|
0.0%
|
76.1%
|
92.0%
|
120 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$316
|
↓
0.0%
|
69.6%
|
78.7%
|
170 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.70 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics |
Official Manufacturer Data
Memory:
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) *
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules *
* Please refer to Memory Support List on ASRock's website for more information.
Graphics:
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz *
* Only the CPU's embedded graphics can be displayed through USB4 ports.
If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.
USB4 controller(for USB4_TC1 and USB4_TC2) will run at Gen4x2 with with 8000 (Phoenix 2) series processors.
Storage:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode *
- 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode *
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode *
- 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode *
ASMedia ASM1164:
- 4 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
M2_1 is the first priority for M.2 installation.
M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
M2_2 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1) series processors. M2_2 will be unavailable with 8000 (Phoenix 2) series processors.
If M2_2 is occupied, both rear USB4 Type-C Ports and M2_2 will downgrade to x2 mode. You can switch M2_2 to x4 mode in BIOS setting, but doing so will disable USB4_TC1 and USB4_TC2.
If M2_4 is occupied, both PCIE3 and M2_4 will downgrade to x2 mode., - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Expansion Slots:
- 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes *
Chipset:
- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode *
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
If M2_4 is occupied, both PCIE3 and M2_4 will downgrade to x2 mode.
Supports NVMe SSD as boot disks
USB:
- 2 x USB4 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_8))
- 4 x USB 3.2 Gen1 Type-A (Rear (USB32_1234))
Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_7))
- 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_56), 4 Front)
- 8 x USB 2.0 (2 Rear, 6 Front)
* All USB ports support ESD Protection
Internal I/O:
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header *
- 3 x Addressable LED Headers * *
- 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) * * *
- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) * * *
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) * * *
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 3 x USB 2.0 Headers (Support 6 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) * * * *
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED
* Supports in total up to 12V/3A, 36W LED Strip
* * Support in total up to 5V/3A, 15W LED Strip
* * * CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
* * * * Supports USB PD 3.0 up to 12V@3A (36W) charging

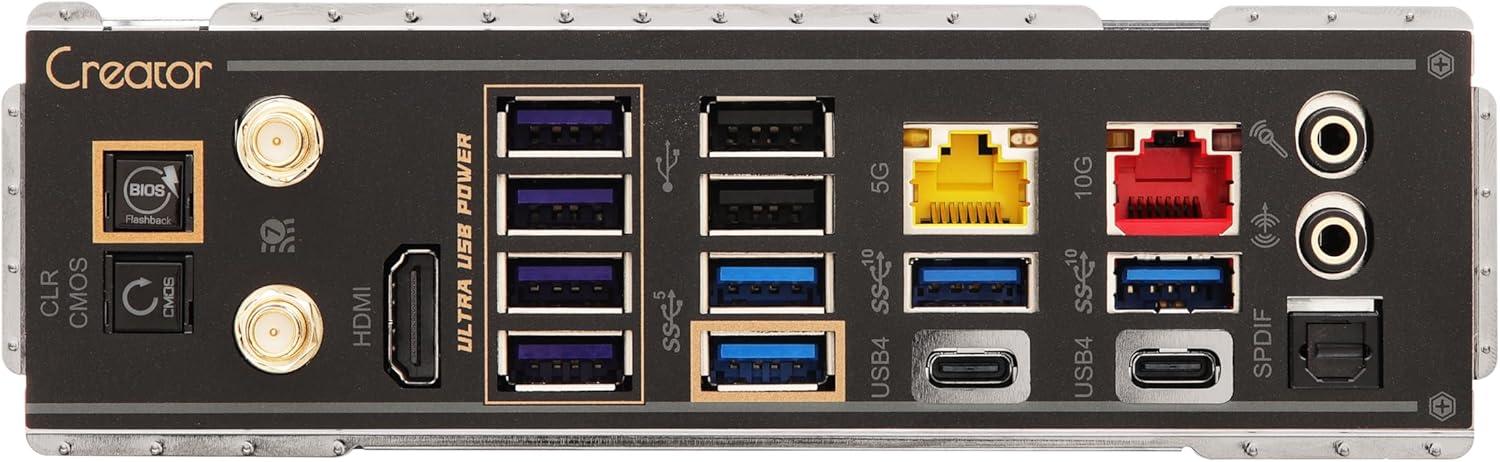

Back Panel I/O:
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x USB4 Type-C Ports (40 Gb/s) *
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- 6 x USB 3.2 Gen1 Type-A Ports (USB32_1234 supports Ultra USB Power.) * *
- 2 x USB 2.0 Ports
- 2 x RJ-45 LAN Ports
- 1 x Clear CMOS Button
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 5V@3A (15W) charging
USB4 controller(for USB4_TC1 and USB4_TC2) will run at Gen4x2 with with 8000 (Phoenix 2) series processors.
* * Device exceeds USB 3.2 Type-A power rating of [email protected] (4.5W) may trigger over-current protection (OCP), will require system reboot to restore USB power.
WiFi:
- Supports IEEE 802.11a/b/g/n/ac/ax/be
- Supports 2.4GHz/5GHz/6GHz * frequency band
- Supports 160MHz channel bandwidth with 6GHz * frequency band
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.4
- Supports MU-MIMO
* The Wi-Fi 7 module is supported by Microsoft Windows ® 11 only. There is no driver available for Windows ® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows ® Update and software updates once available.
Audio:
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
Special Features:
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
- 18+2+1 Power Phase, 80A SPS for Vcore+SOC with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming
- Marvell (Aquantia) 10GbE LAN, 5G LAN, 802.11be Wi-Fi 7 Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
Add Comment on X870 TaichiCreator
