ASUS ROG Strix X870-A
ASUS ROG Strix X870-A Specifications Review

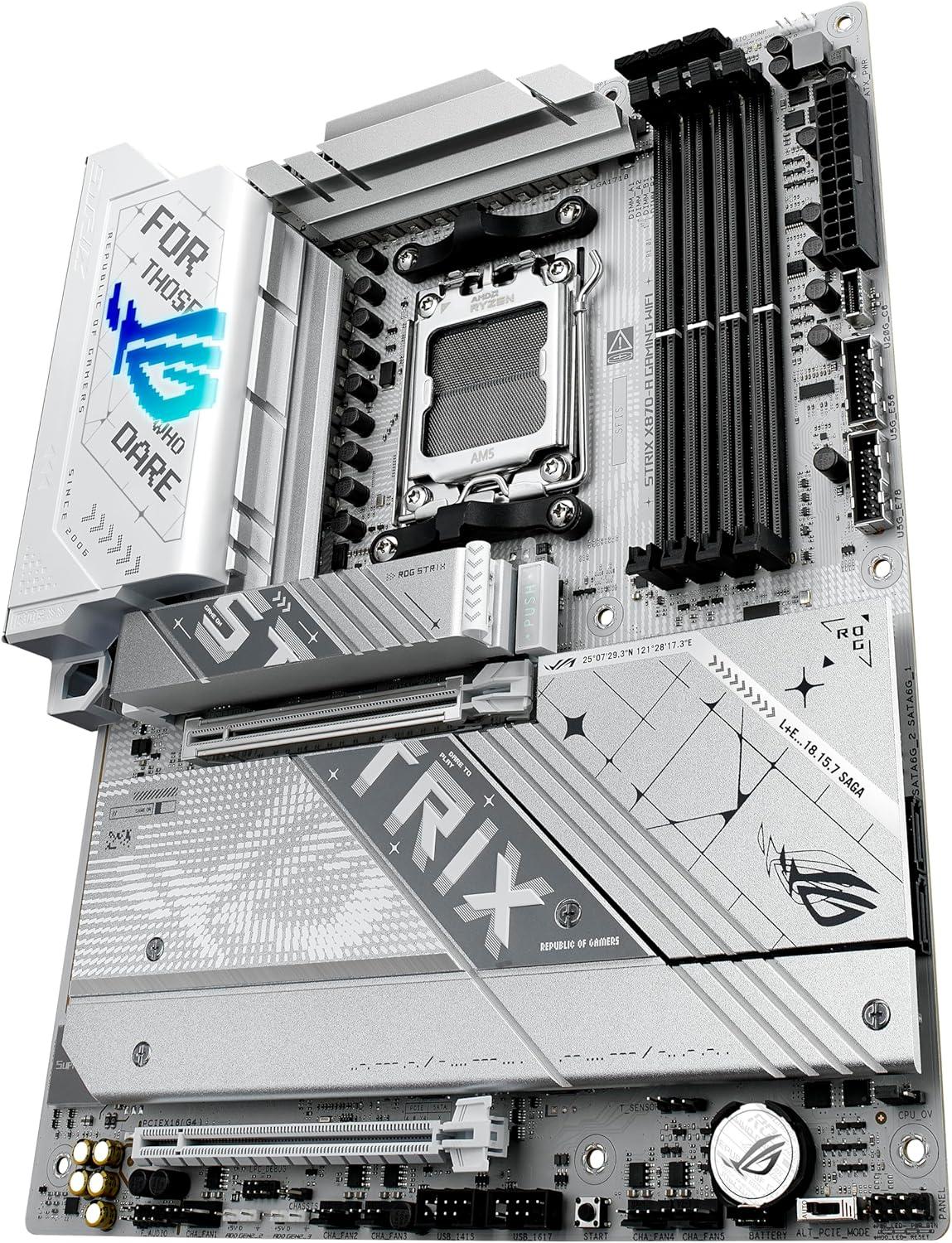

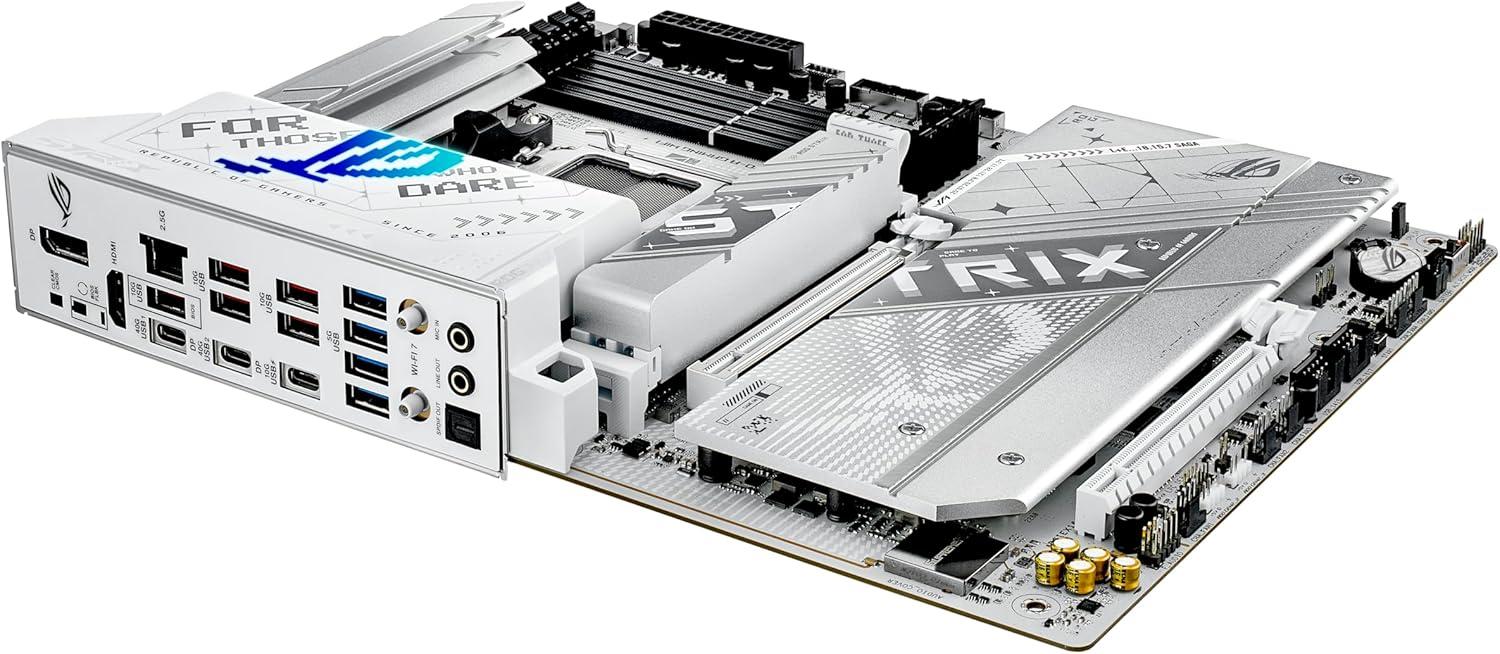

ASUS ROG Strix X870-A by ASUS is a Standard-ATX form factor motherboard based on the high-end X870-A chipset and AM5 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8000 MHz. It features channels, a voltage of V and supports Error-Correcting Code (ECC) memory.
VRM Quality

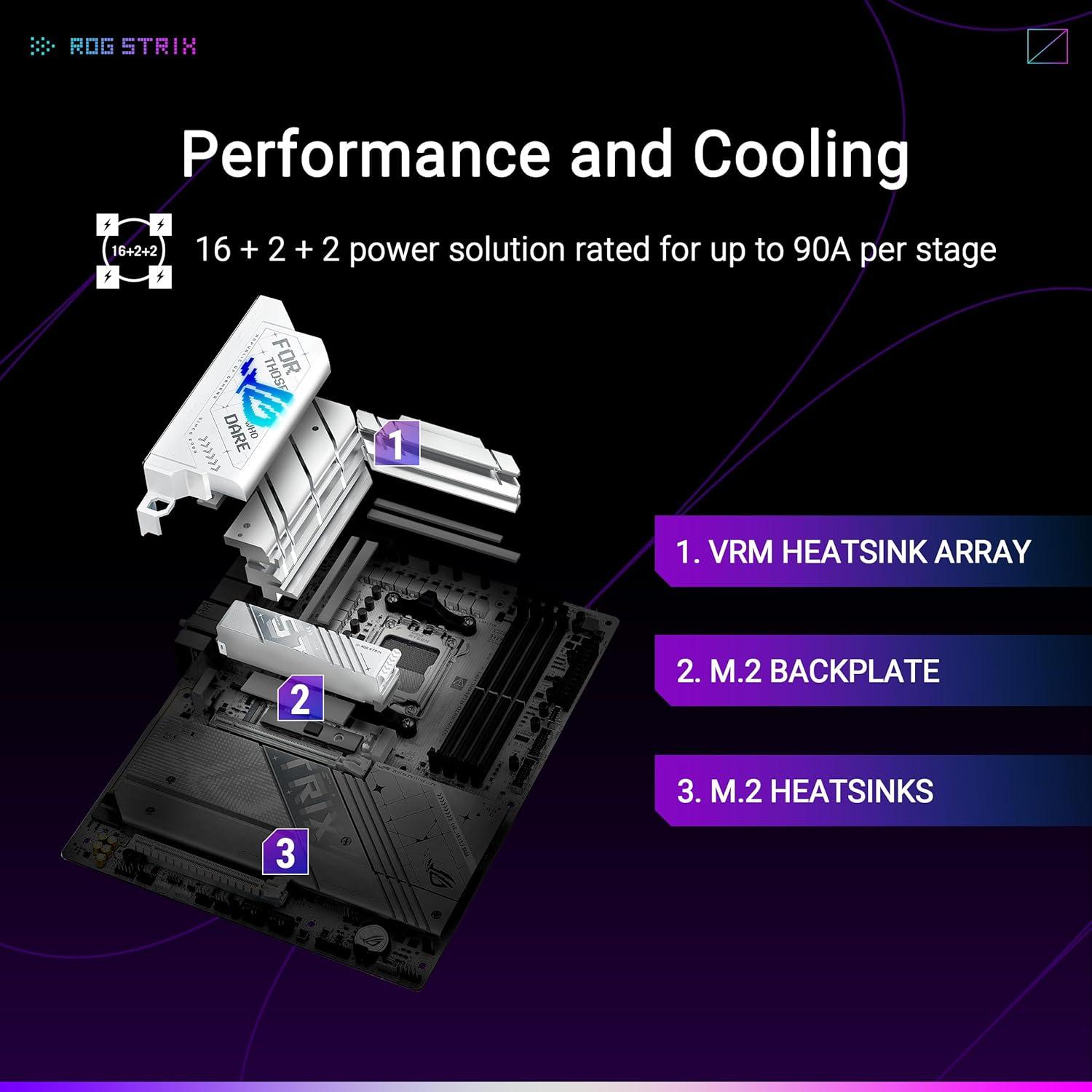

The ASUS ROG Strix X870-A features a high-end VRM setup, supplying 90 A across 16 phases. Capable of handling high-wattage CPUs (200 W+) and supporting moderate to heavy overclocking, while keeping thermals and voltage regulation under control. Well-suited for gaming builds with top-tier CPUs, workstation tasks, and enthusiasts seeking reliable high performance.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASUS ROG Strix X870-A offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 3 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2) and 2 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard provides extensive and premium connectivity options, including wireless networking with the Wi-Fi 7 (802.11be) standard, delivering fast and reliable internet speeds and wired 1 x Intel® 2.5Gb Ethernet LAN support capable of speeds up to 2500 Gbps, ensuring ultra-fast network connections. Bluetooth 5.4 is included for seamless wireless connections to peripherals. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the ALC4080 — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
ASUS ROG Strix X870-A is a premium motherboard boasting a high overall quality score of 91.20. It offers excellent build quality and a rich feature set, delivering top-tier performance suitable for gamers and power users seeking robust and reliable hardware with extensive connectivity and expandability.
This motherboard offers an impressive 66.7% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | ASUS ROG Strix X870-A |
| Current Price Amazon | $260 |
| Amazon Price Updated | 14 hours, 6 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | X870-A / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 16 (90 A) |
|---|---|
| Power Design | 16(90A)+ 2(90A)+ 2(80A) |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8000 MHz |
| ECC Support | ✔️ ECC (Error-Correcting Code) Supported |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 3 | 1 | 2 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| M.2 PCIe Modes | PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2 |
| SATA Ports | 2 |
Onboard Audio Features
| Audio Chipset | ALC4080 |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 8K@30Hz) |
| DP over USB-C | DisplayPort over USB-C - Version 1.4a (Max: 4K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 5 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 2 |
| Power Delivery (W) | 30W |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: 1 x Intel® 2.5Gb Ethernet LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 (802.11be) Bandwidth: 160MHz Frequency Bands: 2.4/5/6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Start Button |
|---|
Quality & Features
Additional Information
| RAM | Supports AMD Extended Profiles for Overclocking (EXPO™) and ASUS Enhanced Memory Profile (AEMP). Memory is un-buffered. Supported memory types, data rate, and number of DRAM modules vary depending on the CPU and memory configuration. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
|---|---|
| Display | Video output specifications depend on AMD CPU specifications. VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion | The primary slot is PCIe 5.0 x16 with AMD Ryzen 9000 & 7000 Series CPUs, but becomes a PCIe 4.0 x16 slot (running at x8/x4) with Ryzen 8000 Series CPUs. The chipset provides an additional PCIe 4.0 x16 slot that supports x4 mode. Specifications vary by CPU type and users should consult the PCIe bifurcation table on the ASUS support site. |
| Storage |
M.2 Slot Details:
AMD RAIDXpert2 Technology supports both PCIe and SATA RAID. RAID 5 is only supported by AMD Ryzen 9000 series CPUs. |
| Audio | ROG SupremeFX 7.1 Surround Sound. Features Savitech SV3H712 AMP, SupremeFX Shielding Technology, and premium audio capacitors. Supports impedance sense for front and rear headphone outputs, jack-detection, multi-streaming, and front panel jack-retasking. Provides 120 dB SNR stereo playback output and 110 dB SNR recording input. Supports up to 32-Bit/384 kHz playback on the front panel. The LINE OUT port on the rear panel does not support spatial audio; use the front panel or a USB device for this feature. |
| Networking | Wi-Fi transfer rate up to 2.9Gbps. Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 requires 24H2 or later for full functions; Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, no driver is available. Wi-Fi 6GHz frequency band and bandwidth regulations may vary between countries. The Bluetooth version may vary. |
| Buttons | The text also lists an 'Alteration PCIe mode switch' and a 'Start button'. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASUS ROG Strix X870-A Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$260❗
|
0.0%
|
95.4%
|
110.0%
|
95.0%
|
77.0%
|
99.0%
|
96.0%
|
69.7%
|
|
|
$320
|
0.0%
|
94.0%
|
72.0%
|
91.0%
|
101.0%
|
110.0%
|
96.0%
|
55.8%
|
|
|
$586
|
0.0%
|
93.6%
|
70.0%
|
100.0%
|
110.0%
|
110.0%
|
78.0%
|
30.3%
|
|
|
$260
|
↓
-8.8%
|
91.2%
|
74.0%
|
100.0%
|
97.0%
|
97.0%
|
88.0%
|
66.7%
|
|
|
$605❗
|
0.0%
|
91.2%
|
90.0%
|
100.0%
|
81.0%
|
97.0%
|
88.0%
|
28.6%
|
|
|
$350
|
↑
0.1%
|
91.0%
|
86.0%
|
80.0%
|
107.0%
|
101.0%
|
81.0%
|
49.4%
|
|
|
$499
|
↓
-0.5%
|
91.0%
|
86.0%
|
97.0%
|
93.0%
|
98.0%
|
81.0%
|
34.6%
|
|
|
$716
|
↓
-0.2%
|
89.4%
|
98.0%
|
98.0%
|
92.0%
|
78.0%
|
81.0%
|
23.7%
|
|
|
$515❗
|
↓
-14.1%
|
89.0%
|
70.0%
|
100.0%
|
94.0%
|
100.0%
|
81.0%
|
32.8%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$260❗
|
0.0%
|
$320
|
0.0%
|
$586
|
0.0%
|
$260
|
↓
-8.8%
|
$605❗
|
0.0%
|
$350
|
↑
0.1%
|
$499
|
↓
-0.5%
|
$716
|
↓
-0.2%
|
$515❗
|
↓
-14.1%
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASRock | ASRock | ASUS | ASUS | ASUS | GIGABYTE | GIGABYTE | Gigabyte | ASUS | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | X870E / AM5 | AMD X870 / AM5 | X870E / AM5 | X870-A / AM5 | AMD X870 / AM5 | B850 / AM5 | X870E / AM5 | AMD X870 / AM5 | AMD X870E / AM5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | E-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 20 (110 A) | 18 (80 A) | 16 (80 A) | 16 (90 A) | 16 (110 A) | 16 (110 A) | 16 (110 A) | 18 (110 A) | 16 (80 A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 20+2+1 | 18+2+1 | 16+2+2 | 16(90A)+ 2(90A)+ 2(80A) | 16 + 2 +2 | 16+2+2 | 16+2+2 | 18 + 2 +2 | 16+2+1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8200 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8600 MHz | 256 GB / 8600 MHz | 128 GB / 9600 MHz | 256 GB / 8000 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen3 | 1x1 Gen3 | 2x16 Gen5 | 1x16 Gen3 | 1x1 | 2x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 2x16 Gen5 | 1x16 Gen5 | 2x16 Gen4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 5 | 4 | 4 | 4 | 4 | 3 | 4 | 3 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 2 | 2 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek ALC4082 | Realtek ALC4082 Audio Codec | Realtek ALC1220P | ALC4080 | ROG SupremeFX ALC4080 | Realtek® ALC1220 CODEC | Realtek® ALC1220 CODEC | Realtek® ALC1220 CODEC | Realtek ALC1220P | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ❌ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ❌ | ✔️ (1.4) | ✔️ (1.4) | ❌ | ❌ | ✔️ (1.4) | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | 5 Gigabit LAN 10/100/100… (1 ports) | 1 x 10 Gigabit LAN 100/1… (2 ports) | 1 x Marvell® AQtion 10Gb… (2 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | 1 x Intel ® 2.5Gb Ethern… (1 ports) | 2 x Marvell® AQtion AQC1… (2 ports) | Realtek® 5GbE LAN chip (… (1 ports) | Realtek® 5GbE LAN chip (… (1 ports) | 1 x Realtek 5Gb Ethernet… (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 7 | Wi-Fi 802.11be (Wi-Fi 7) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi Wi-Fi 7 (Realtek RTL8922AE, 802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.3 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
❌ |
❌ |
❌ |
|
❌ |
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$896
|
0.0%
|
100.0%
|
95.5%
|
200 W / 270 W | 16 / 0 / 32 | 1024.0 kB / 192.0 MB | 4.30 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$670
|
0.0%
|
95.6%
|
94.9%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$511
|
↑
2.2%
|
93.0%
|
82.2%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$501
|
0.0%
|
87.0%
|
79.7%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.50 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$500
|
0.0%
|
76.1%
|
92.0%
|
120 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$316
|
↓
0.0%
|
69.6%
|
78.7%
|
170 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.70 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics |
Official Manufacturer Data
Memory:
Supports up to 8000+MT/s(OC) with Ryzen™
9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered
Memory*"
Dual channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate
(speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list
under the Support tab of product information site or visit
https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports
On-Die ECC function.
Graphics:
1 x HDMI™ port***
2 x USB4® (40Gbps) ports support USB
Type-C® display outputs****
* Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in
DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI
2.1.
****Supports max. 4K@60Hz as specified in
DisplayPort 1.4a
**** VGA resolution support depends on
processors' or graphic cards' resolution.
Storage:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors**
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)****
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
*** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled.
**** M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.
Expansion Slots:
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
USB:
2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)*
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

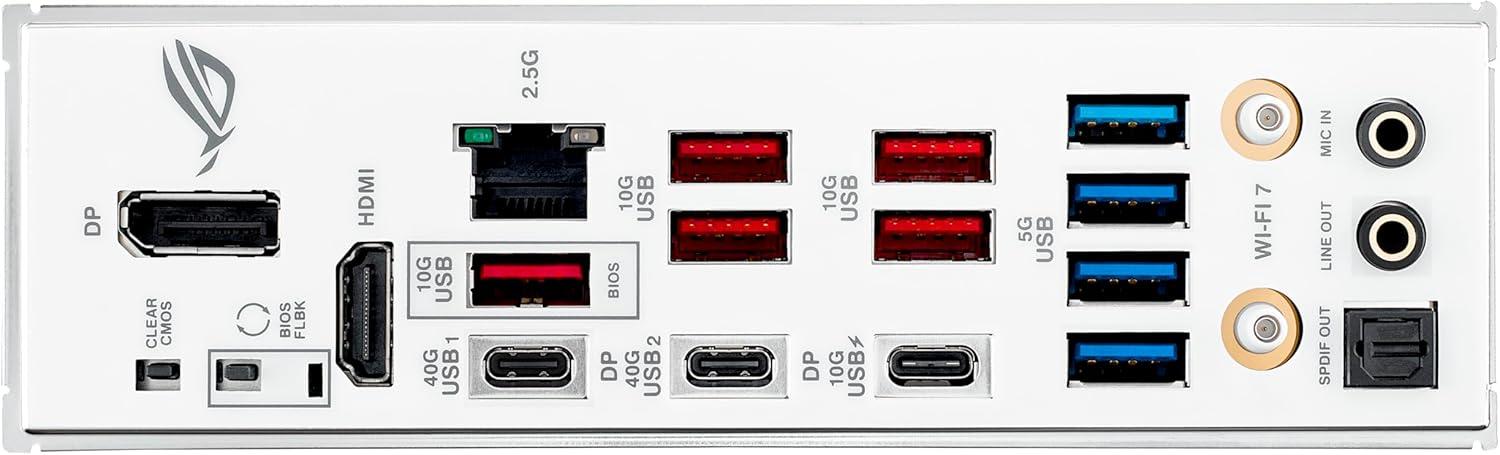

Back Panel I/O:
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
WiFi:
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio:
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Special Features:
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Add Comment on ASUS ROG Strix X870-A
