MAG X870E TOMAHAWK MAX WIFI PZ
MAG X870E TOMAHAWK MAX WIFI PZ Specifications Review

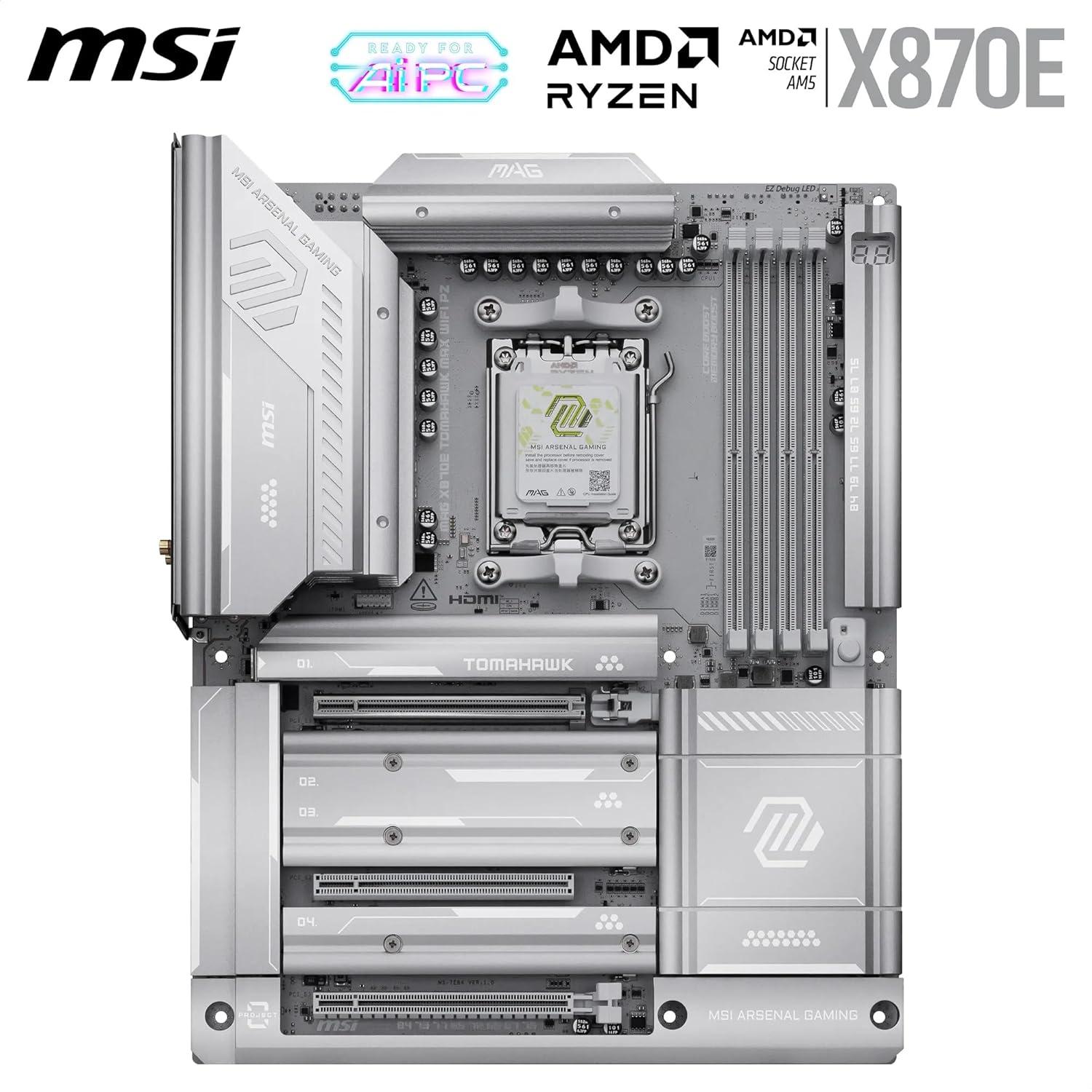

MAG X870E TOMAHAWK MAX WIFI PZ by MSI is a Standard-ATX form factor motherboard based on the high-end AMD X870E chipset and AM5 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8400 MHz.
VRM Quality
The MAG X870E TOMAHAWK MAX WIFI PZ has a mid-range VRM configuration, providing 80 A over 14 phases. Suitable for CPUs in the ~140 W TDP range, it can power higher-TDP chips at stock, but sustained overclocking is not recommended due to thermal and voltage ripple considerations. Ideal for mainstream gaming, light workstation work, and general-purpose builds.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The MAG X870E TOMAHAWK MAX WIFI PZ offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 3 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots (M2_1:PCIe5.0x4(9/7)/PCIe4.0x4(8);M2_2:PCIe5.0x4/PCIe4.0x4,disabled on8500/8300;shared w/USB-C:x2/x2;M2_3/4:PCIe4.0x4) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard provides extensive and premium connectivity options, including wireless networking with the wireless Wi-Fi 7 (802.11be) and wired 1x Realtek ® 8126 5G LAN LAN support capable of speeds up to 5000 Gbps, ensuring ultra-fast network connections. Bluetooth 5.4 is included for seamless wireless connections to peripherals. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
For video output, this motherboard includes HDMI version HDMI 2.1 FRL , DisplayPort , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the Realtek ® ALC4080 Codec — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
MAG X870E TOMAHAWK MAX WIFI PZ is a premium motherboard boasting a high overall quality score of 86.20. It offers excellent build quality and a rich feature set, delivering top-tier performance suitable for gamers and power users seeking robust and reliable hardware with extensive connectivity and expandability.
This motherboard has a solid 56.6% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | MSI |
|---|---|
| Motherboard Name | MAG X870E TOMAHAWK MAX WIFI PZ |
| Current Price Amazon | $290 |
| Amazon Price Updated | 22 hours, 30 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | AMD X870E / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 14 (80 A) |
|---|---|
| Power Design | 14 + 2 + 1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8400 MHz |

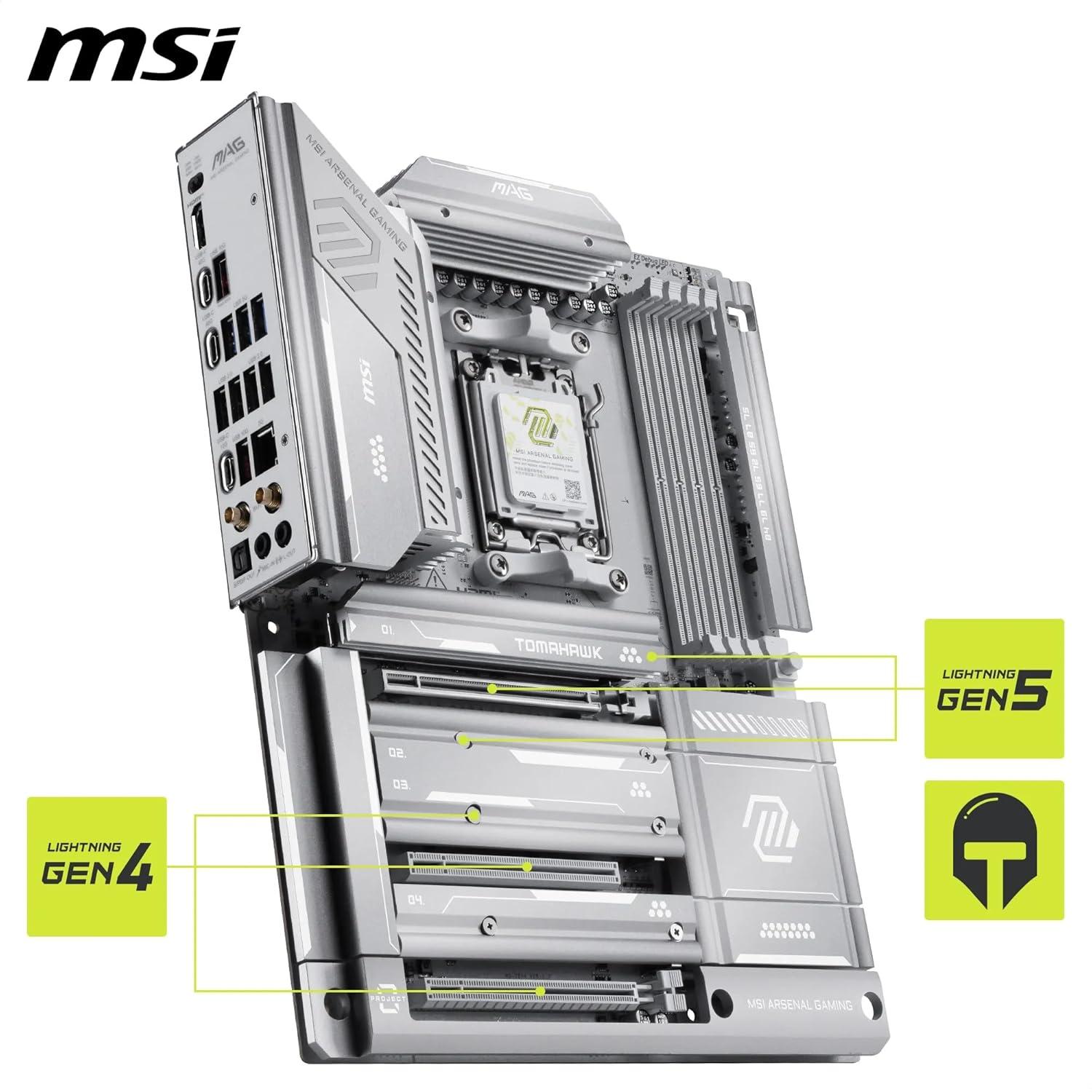

PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 | Gen3 |
|---|---|---|---|---|
| x16 | 3 | 1 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260 |
| M.2 PCIe Modes | M2_1:PCIe5.0x4(9/7)/PCIe4.0x4(8);M2_2:PCIe5.0x4/PCIe4.0x4,disabled on8500/8300;shared w/USB-C:x2/x2;M2_3/4:PCIe4.0x4 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek ® ALC4080 Codec |
|---|---|
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version HDMI 2.1 FRL (Max: 8K 60Hz) |
|---|---|
| DisplayPort Output | DisplayPort |
| DP over USB-C | DisplayPort over USB-C - Version DisplayPort 1.4 (HBR3) (Max: 4K 120Hz) |

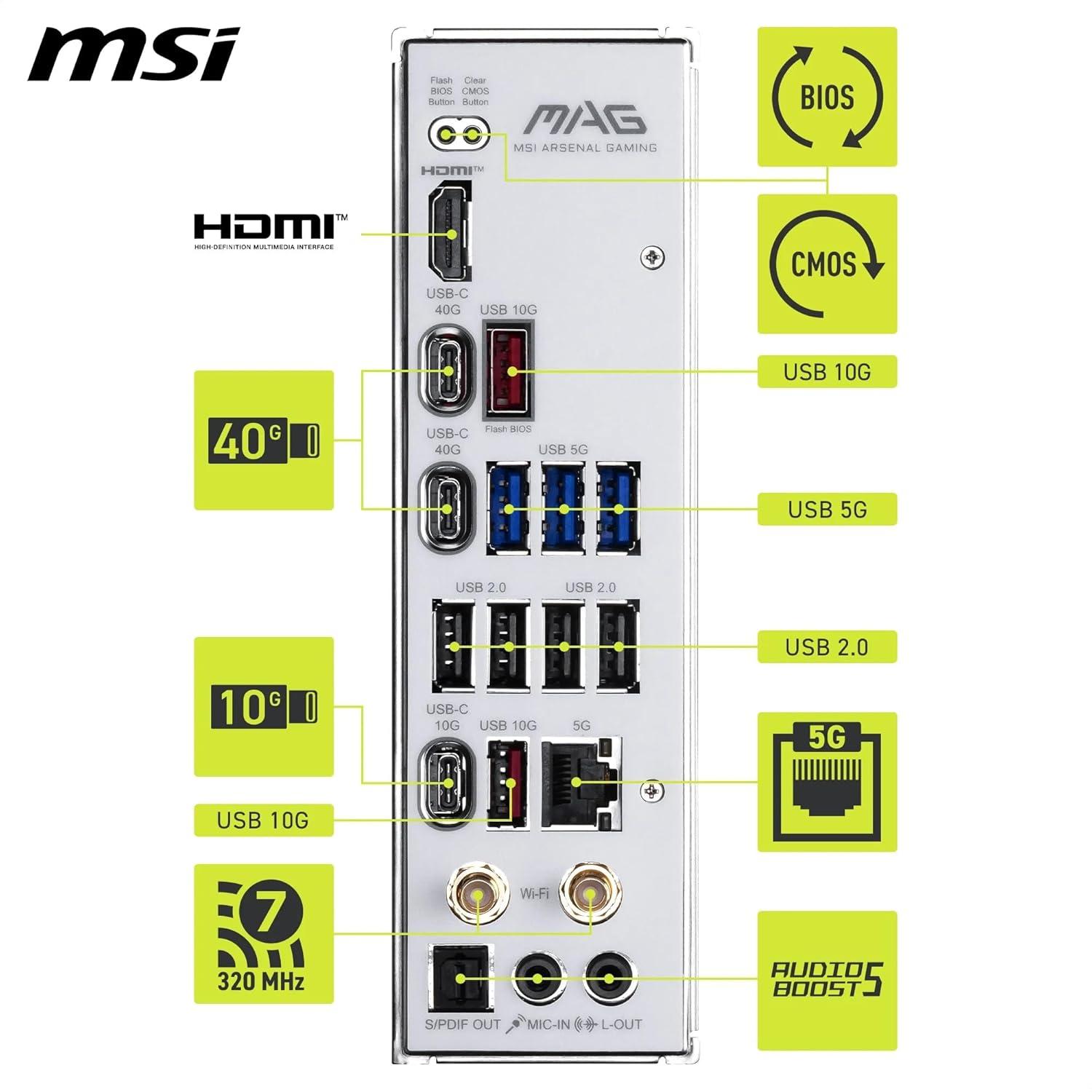

USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 3 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 2 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: 1x Realtek ® 8126 5G LAN LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 7 (802.11be) Bandwidth: 320MHz (up to 5.8Gbps) Frequency Bands: ['2.4GHz', '5GHz', '6GHz'] |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS |
|---|
Quality & Features
Additional Information
| CPU Support | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors, Socket AM5, |
|---|---|
| OS Support | Support for Windows ® 11 64-bit, |
| RAM | Supports AMD POR Speed and JEDEC Speed. Supports memory overclocking and AMD EXPO (profile-based overclocking). Dual-channel mode supported. CUDIMM support is provided in clock driver bypass mode only; CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot initially; future BIOS updates may improve compatibility. DIMM slots have double-sided latches. Memory compatibility and supported speeds depend on CPU and memory configuration—see the product Memory Compatibility List on MSI's Support page (https://www.msi.com/support) for details. |
| Display | 1x HDMI port supporting HDMI 2.1 FRL (max 8K@60Hz). 2x USB Type-C (USB4) ports provide DisplayPort over USB-C (DisplayPort 1.4 with HBR3, max 4K@120Hz). Video outputs and maximum resolutions are available only with processors that include integrated graphics; graphics specifications may vary depending on the installed CPU. |
| Expansion | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor), Explanation: Supports PCIe 5.0, offering up to ~63 GB/s total bandwidth for x16 slots, backward compatible with previous PCIe versions. |
| Storage |
M.2 Slot Details:
Board has 4x M.2 slots (two from CPU, two from chipset) and 4x SATA 6Gbps ports. M2_1 and M2_2 are CPU-attached with variable PCIe version depending on CPU; M2_2 has CPU-model availability limits and shares bandwidth with rear USB-C. USB4 host controller supports up to PCIe4.0x4. RAID support: SATA RAID 0/1/10; M.2 NVMe RAID 0/1/5/10 with CPU-dependent availability for RAID5 and NVMe RAID10. |
| Audio | 7.1-Channel USB high-performance audio; supports up to 32-bit/384kHz playback on front panel; supports S/PDIF output; mentions audio connectors. |
| Networking | Wireless module pre-installed in M.2 (Key-E) slot. Supports MU-MIMO TX/RX, MLO, 4K QAM. 6GHz band availability depends on country regulations; Wi-Fi 7 and Bluetooth 5.4 readiness tied to Windows 11 version 24H2. Listed ports include '5G LAN' references. |
| Buttons | Also mentions Flash BIOS Button (BIOS Flashback) and numerous I/O and internal headers: USB 40Gbps Type-C, USB 20Gbps Type-C, USB 10Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps Type-A (x4 external), USB 2.0 (x4 external), 5G LAN, Wi‑Fi/Bluetooth, Audio connectors, HDMI, Optical S/PDIF Out. Internal headers/connectors: 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR (8-pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 6x System Fan, 1x EZ Conn-header (JAF_2), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 3x Addressable V2 RGB LED connectors (JARGB_V2), 1x RGB LED connector (JRGB), 1x TPM header (supports TPM 2.0), 2x Direct OC Jumpers (JBCLK), plus 4x USB 2.0 ports, 4x USB 5Gbps Type-A ports, and 1x USB 20Gbps Type-C port. |

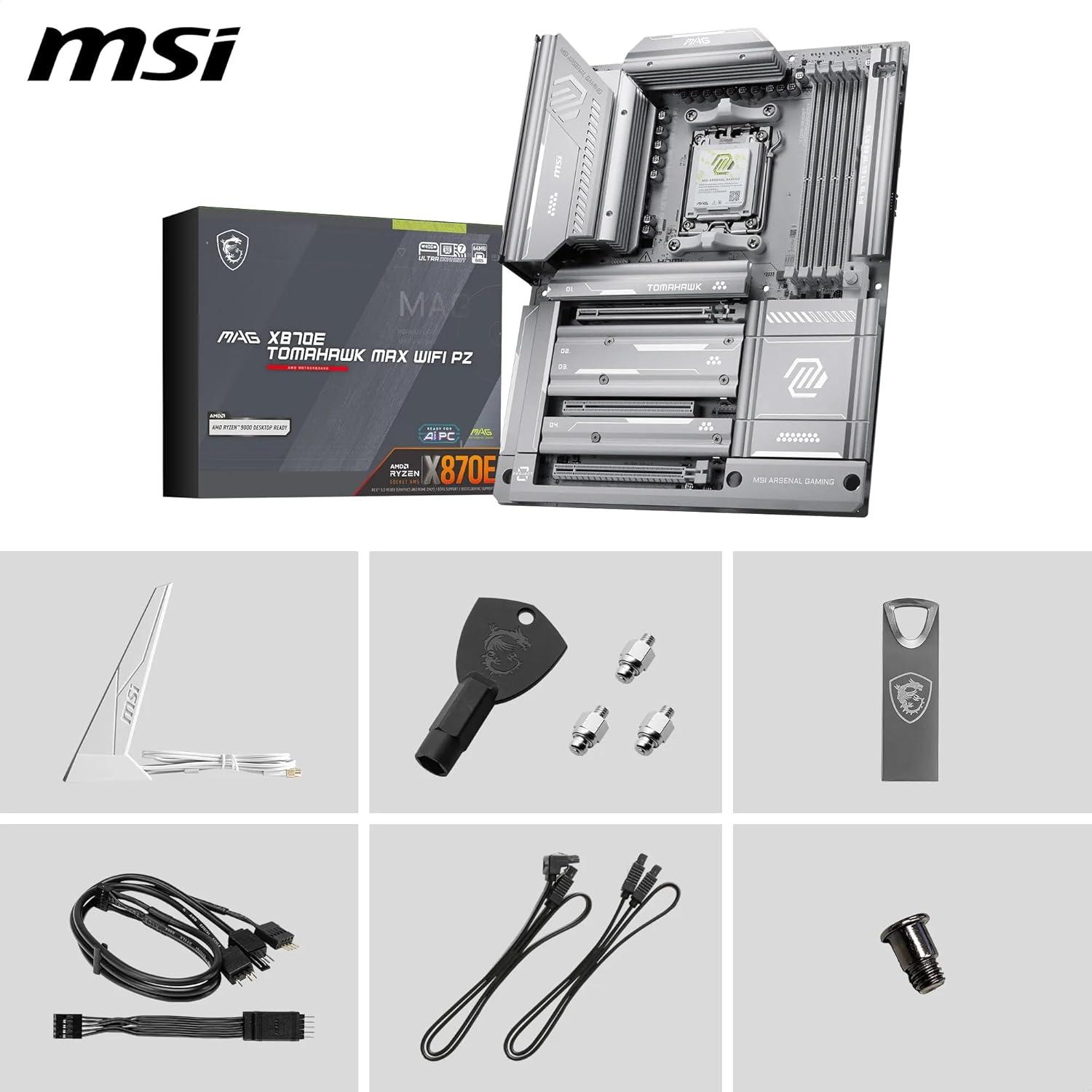

| Accessories | , |
| Dimensions | ATX, 243.84mmx304.8mm, |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
MAG X870E TOMAHAWK MAX WIFI PZ Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$716
|
↓
-0.2%
|
89.4%
|
98.0%
|
98.0%
|
92.0%
|
78.0%
|
81.0%
|
23.7%
|
|
|
$515❗
|
↓
-14.1%
|
89.0%
|
70.0%
|
100.0%
|
94.0%
|
100.0%
|
81.0%
|
32.8%
|
|
|
$437
|
↑
0.6%
|
88.4%
|
74.0%
|
94.0%
|
93.0%
|
90.0%
|
91.0%
|
38.4%
|
|
|
$440
|
0.0%
|
88.0%
|
74.0%
|
94.0%
|
87.0%
|
91.0%
|
94.0%
|
38.0%
|
|
|
$290
|
0.0%
|
86.2%
|
54.0%
|
100.0%
|
94.0%
|
95.0%
|
88.0%
|
56.6%
|
|
|
$214
|
0.0%
|
86.0%
|
54.0%
|
99.0%
|
94.0%
|
95.0%
|
88.0%
|
76.2%
|
|
|
$237
|
0.0%
|
84.8%
|
70.0%
|
93.0%
|
97.0%
|
83.0%
|
81.0%
|
68.0%
|
|
|
$260
|
0.0%
|
84.8%
|
70.0%
|
97.0%
|
90.0%
|
89.0%
|
78.0%
|
62.0%
|
|
|
$329
|
↑
0.8%
|
84.6%
|
54.0%
|
99.0%
|
84.0%
|
98.0%
|
88.0%
|
48.8%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$716
|
↓
-0.2%
|
$515❗
|
↓
-14.1%
|
$437
|
↑
0.6%
|
$440
|
0.0%
|
$290
|
0.0%
|
$214
|
0.0%
|
$237
|
0.0%
|
$260
|
0.0%
|
$329
|
↑
0.8%
|
||||||||||||||||||||||||||||||||||||||
| Manufacturer | Gigabyte | ASUS | ASUS | ASUS | MSI | MSI | ASUS | ASUS | MSI | ||||||||||||||||||||||||||||||||||||||
| Chip/Socket | AMD X870 / AM5 | AMD X870E / AM5 | B850-E / AM5 | AMD X670 / AM5 | AMD X870E / AM5 | AMD X870E / AM5 | X870 / AM5 | AMD X870E / AM5 | X870E / AM5 | ||||||||||||||||||||||||||||||||||||||
| Form | E-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||
| CPU Phases | 18 (110 A) | 16 (80 A) | 16 (90 A) | 16 (90 A) | 14 (80 A) | 14 (80 A) | 16 (80 A) | 16 (80 A) | 14 (80 A) | ||||||||||||||||||||||||||||||||||||||
| PWR Design | 18 + 2 +2 | 16+2+1 | 16 + 2 + 2 | 16 + 2 + 2 | 14 + 2 + 1 | 14 + 2 + 1 | 16(80A)+1(80A)+2(80A)+2(80A) | 16 + 2 + 1 | 14+2+1 | ||||||||||||||||||||||||||||||||||||||
| Mem Slots | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||
| Max Mem | 128 GB / 9600 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 192 GB / 8000 MHz | 256 GB / 8400 MHz | 256 GB / 8400 MHz | 192 GB / 8000 MHz | 256 GB / 8000 MHz | 256 GB / 8400 MHz | ||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 2x16 Gen5 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | ||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 4 | 5 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 2 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC1220 CODEC | Realtek ALC1220P | ALC4080 | ROG SupremeFX 7.1 Surround So… | Realtek ® ALC4080 Codec | Realtek ® ALC4080 Codec | Realtek ALC1220P | Realtek ALC1220P | Realtek® ALC4080 Codec | ||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ❌ | ❌ | ✔️ | ||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (HDMI 2.1 FRL) | ✔️ (2.1 FRL) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (None) | ❌ | ❌ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 5GbE LAN chip (… (1 ports) | 1 x Realtek 5Gb Ethernet… (1 ports) | 1 x Realtek 5Gb Ethernet (1 ports) | 1 x Intel ® 2.5Gb Ethern… (1 ports) | 1x Realtek ® 8126 5G LAN (1 ports) | 1x Realtek ® 8126 5G LAN (1 ports) | Realtek 2.5Gb Ethernet (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | 1x Realtek® 8126 5G LAN (1 ports) | ||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 7 (Realtek RTL8922AE, 802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.2 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
❌ |
❌ |
|
|
|
||||||||||||||||||||||||||||||||||||||
| Front USB |
❌ |
|
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
• 1DPC 1R Max speed up to 8400+ MT/s,
• 1DPC 2R Max speed up to 6400+ MT/s,
• 2DPC 1R Max speed up to 6400+ MT/s,
• 2DPC 2R Max speed up to 6400+ MT/s, , Supports AMD POR Speed and JEDEC Speed,
Supports Memory Overclocking and AMD EXPO™,
Supports Dual-Channel mode,
Supports Non-ECC, Un-buffered memory,
Supports CUDIMM, Clock Driver bypass mode only*, , * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility., • The DIMM slots on this motherboard have double-sided latches.,
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.,
Graphics:
Storage:
M.2_1 slot (From CPU),
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors),
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors), ,
M.2_2 slot (From CPU),
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors),
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors), , *The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors., **USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.,, •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices,
•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices, , *RAID 5 configuration is only supported by Ryzen™ 9000 series processors., *RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.,
Expansion Slots:
PCI_E1 slot,
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors),
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors),
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor),
USB:
Internal I/O:
Back Panel I/O:
WiFi:
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps,
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be, , Supports Bluetooth ® 5.4**, MLO, 4KQAM, , * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.,
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.,
Audio:
Supports up to 32-bit/384kHz playback on front panel,
Supports S/PDIF output,
