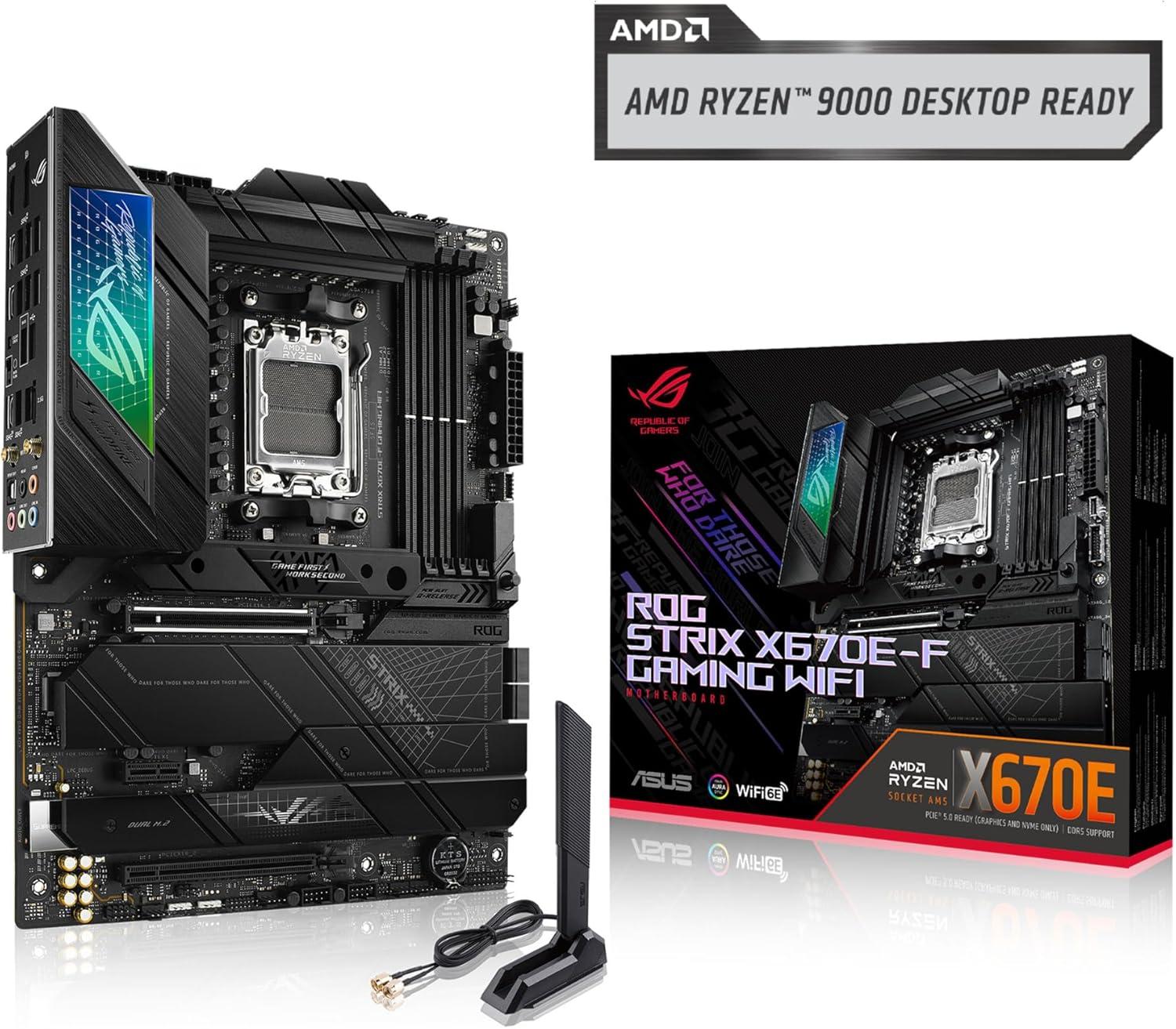

ROG STRIX X670E-F GAMING WIFI
ROG STRIX X670E-F GAMING WIFI Specifications Review
ROG STRIX X670E-F GAMING WIFI by ASUS is a Standard-ATX form factor motherboard based on the high-end AMD X670 chipset and AM5 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 192 GB, and an overclocking speed of up to 8000 MHz. It features channels, a voltage of V and supports Error-Correcting Code (ECC) memory.
VRM Quality
The ROG STRIX X670E-F GAMING WIFI features a high-end VRM setup, supplying 90 A across 16 phases. Capable of handling high-wattage CPUs (200 W+) and supporting moderate to heavy overclocking, while keeping thermals and voltage regulation under control. Well-suited for gaming builds with top-tier CPUs, workstation tasks, and enthusiasts seeking reliable high performance.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ROG STRIX X670E-F GAMING WIFI offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots , and 1 x1 slot. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots (M.2_1 & M.2_2: PCIe 5.0 x4 (from CPU); M.2_3 & M.2_4: PCIe 4.0 x4 (from AMD X670 Chipset)) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard provides extensive and premium connectivity options, including wireless networking with the wireless Wi-Fi 6E (802.11 a/b/g/n/ac/ax) and wired 1 x Intel ® 2.5Gb EthernetASUS LANGuard LAN support capable of speeds up to 2500 Gbps, ensuring ultra-fast network connections. Bluetooth 5.2 is included for seamless wireless connections to peripherals. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
This motherboard features an ultra-premium audio solution — the ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080; Savitech SV3H712 AMP — rivaling professional-grade DACs. With its ESS Sabre-class DAC implementation, it delivers reference-quality sound featuring exceptional clarity, dynamic range, and near-zero distortion. This is the ultimate choice for audiophiles, professional audio work, and high-impedance headphones, eliminating the need for external amplification in most cases. Additional features include optical S/PDIF output for clean digital audio, plus multiple audio jacks (5) for flexible connectivity.
Overall Quality and Value
ROG STRIX X670E-F GAMING WIFI is a premium motherboard boasting a high overall quality score of 88.00. It offers excellent build quality and a rich feature set, delivering top-tier performance suitable for gamers and power users seeking robust and reliable hardware with extensive connectivity and expandability.
This motherboard shows a 38.0% value score indicating less favorable price-to-performance compared to mainstream models. This is typical for high-end motherboards, which prioritize premium features, durability, and advanced capabilities over raw value. It is an excellent choice for users who favor top quality, cutting-edge technology, and robust performance and are willing to invest more without focusing primarily on price.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | ROG STRIX X670E-F GAMING WIFI |
| Current Price Amazon | $440 |
| Amazon Price Updated | 19 hours, 51 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | AMD X670 / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 16 (90 A) |
|---|---|
| Power Design | 16 + 2 + 2 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 192 GB / 8000 MHz |
| ECC Support | ✔️ ECC (Error-Correcting Code) Supported |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 | Gen3 |
|---|---|---|---|---|
| x16 | 2 | 1 | 1 | 0 |
| x1 | 1 | 0 | 0 | 1 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| M.2 PCIe Modes | M.2_1 & M.2_2: PCIe 5.0 x4 (from CPU); M.2_3 & M.2_4: PCIe 4.0 x4 (from AMD X670 Chipset) |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080; Savitech SV3H712 AMP |
|---|---|
| Analog Audio Jacks | 5 jacks |
| Gold-Plated Jacks | ✔️ Yes |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 8K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 7 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 2 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Front USB Ports
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
|---|
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
| USB4 / Thunderbolt Header (40 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: 1 x Intel ® 2.5Gb EthernetASUS LANGuard LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Frequency Bands: ['2.4GHz', '5GHz', '6GHz'] Antenna Connectors: 2 |
| Bluetooth |
Version: 5.2 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS |
|---|
Quality & Features
Additional Information
| CPU Support | AMD Socket AM5 for AMD Ryzen™ Desktop Processors* * Refer to www.asus.com for CPU support list. |
|---|---|
| OS Support | Windows ® 10 64-bit, Windows ® 11 64-bit |
| RAM | Supports AMD EXPO (AMD Extended Profiles for Overclocking). OptiMem II signal optimization. Supported memory types, data rates (speeds), and number of DRAM modules vary depending on CPU and memory configuration—refer to ASUS memory support list. Un-buffered DDR5 supported. Non-ECC DDR5 modules support On-Die ECC function. |
| Display | Provides 1 x DisplayPort and 1 x HDMI port. DisplayPort supports up to 8K@60Hz (per DisplayPort 1.4). HDMI supports up to 4K@60Hz (per HDMI 2.1). |
| Expansion | Maximum supported generation: PCIe 5.0 (provided by the CPU-attached slot). PCIe 5.0 provides ~32 GT/s per lane (approximately 63–64 GB/s aggregate for a full x16 slot) and is backward compatible with PCIe 4.0/3.0. Present slots: 1x PCIe 5.0 physical x16 (operates at x16), 1x PCIe 4.0 physical x16 (electrically x4), and 1x PCIe 3.0 x1. Note that the second physical x16 slot is limited to x4 electrically and may share lanes or have allocation/bifurcation rules; consult the ASUS PCIe bifurcation table/manual for lane sharing, bifurcation, and slot limitations: https://www.asus.com/support/FAQ/1037507/. |
| Storage |
M.2 Slot Details:
Total: 4 M.2 slots and 4 x SATA 6Gb/s ports. M.2_1 and M.2_2 are CPU-connected and support PCIe 5.0 x4; M.2_3 and M.2_4 are X670-chipset-connected and support PCIe 4.0 x4. AMD RAIDXpert2 supports both PCIe and SATA RAID levels 0/1/10. |
| Audio | Impedance sense for front and rear headphone outputs; supports jack-detection, multi-streaming, front panel jack-retasking; 120 dB SNR stereo playback and 113 dB SNR recording; supports up to 32-Bit/384 kHz playback; audio shielding, premium audio capacitors, audio cover; rear Line Out does not support spatial audio (use front panel for spatial audio). |
| Networking | ASUS LANGuard; 2x2 MIMO Wi‑Fi 6E module; '1 x Wi-Fi Module' listed; 6GHz regulatory availability may vary between countries. |
| Buttons | BIOS FlashBack™ and Clear CMOS buttons are present (listed in the rear I/O). No Smart Button or Q-Flash Plus button mentioned. Note: rear panel Line Out does not support spatial audio — use the front panel audio jack for spatial audio. Additional I/O and features listed include multiple USB Type-A/Type-C ports (including USB 3.2 Gen 2x2 and USB4/Thunderbolt header), Wi‑Fi module, Intel 2.5Gb Ethernet, 5 gold‑plated audio jacks plus optical S/PDIF, numerous fan/pump headers, multiple M.2 and SATA storage connectors, CPU Over Voltage jumper, chassis intrude function, and RGB/addressable headers. |

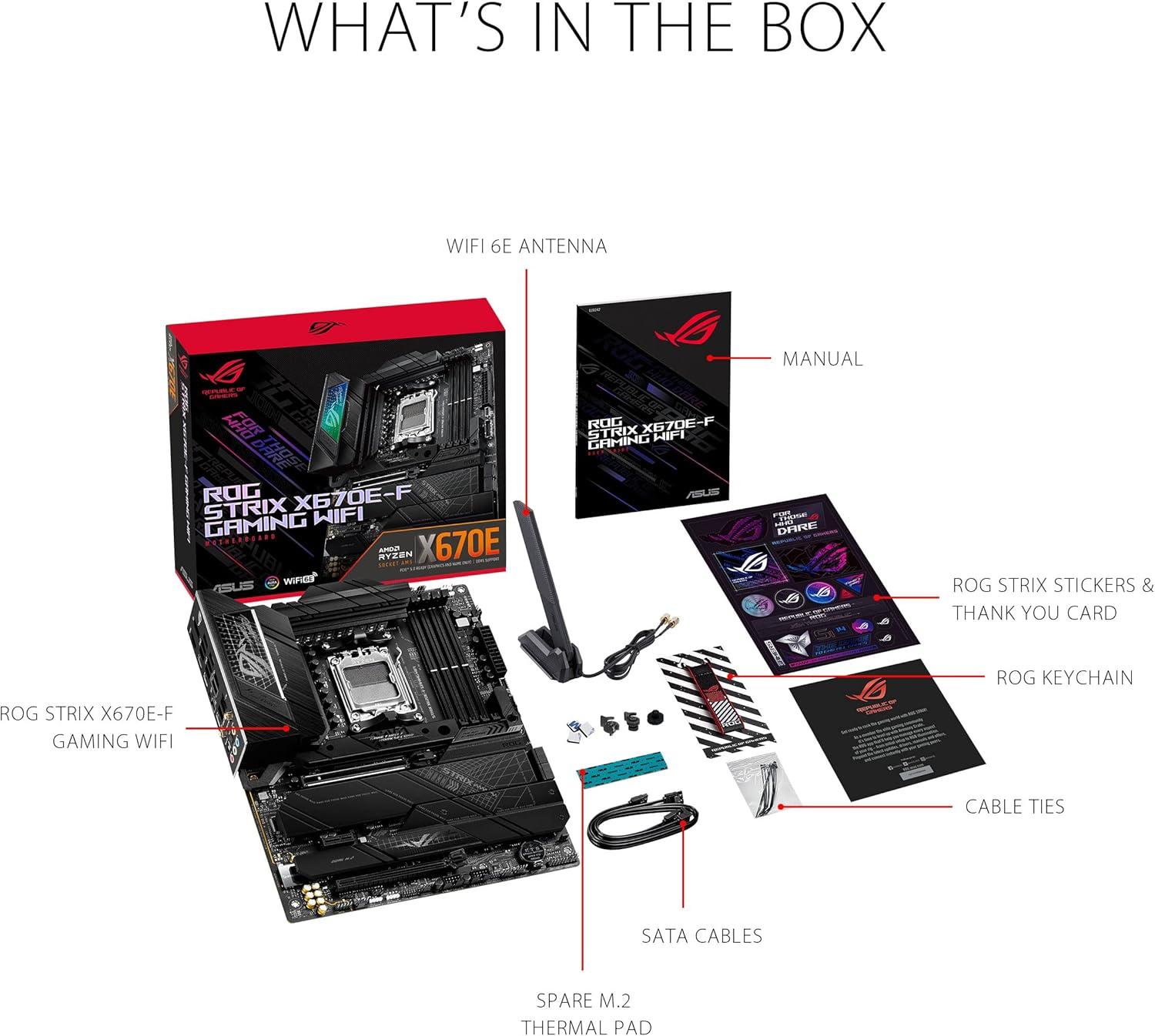

| Accessories | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package for M.2 backplate 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x Rubber Packages for M.2 1 x Rubber Package for M.2 backplate Documentation 1 x User guide |
| Dimensions | ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ROG STRIX X670E-F GAMING WIFI Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$350
|
↑
0.1%
|
91.0%
|
86.0%
|
80.0%
|
107.0%
|
101.0%
|
81.0%
|
49.4%
|
|
|
$716
|
↓
-0.2%
|
89.4%
|
98.0%
|
98.0%
|
92.0%
|
78.0%
|
81.0%
|
23.7%
|
|
|
$515❗
|
↓
-14.1%
|
89.0%
|
70.0%
|
100.0%
|
94.0%
|
100.0%
|
81.0%
|
32.8%
|
|
|
$437
|
↑
0.6%
|
88.4%
|
74.0%
|
94.0%
|
93.0%
|
90.0%
|
91.0%
|
38.4%
|
|
|
$440
|
0.0%
|
88.0%
|
74.0%
|
94.0%
|
87.0%
|
91.0%
|
94.0%
|
38.0%
|
|
|
$290
|
0.0%
|
86.2%
|
54.0%
|
100.0%
|
94.0%
|
95.0%
|
88.0%
|
56.6%
|
|
|
$214
|
0.0%
|
86.0%
|
54.0%
|
99.0%
|
94.0%
|
95.0%
|
88.0%
|
76.2%
|
|
|
$237
|
0.0%
|
84.8%
|
70.0%
|
93.0%
|
97.0%
|
83.0%
|
81.0%
|
68.0%
|
|
|
$260
|
0.0%
|
84.8%
|
70.0%
|
97.0%
|
90.0%
|
89.0%
|
78.0%
|
62.0%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$350
|
↑
0.1%
|
$716
|
↓
-0.2%
|
$515❗
|
↓
-14.1%
|
$437
|
↑
0.6%
|
$440
|
0.0%
|
$290
|
0.0%
|
$214
|
0.0%
|
$237
|
0.0%
|
$260
|
0.0%
|
||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | Gigabyte | ASUS | ASUS | ASUS | MSI | MSI | ASUS | ASUS | ||||||||||||||||||||||||||||||||||||
| Chip/Socket | B850 / AM5 | AMD X870 / AM5 | AMD X870E / AM5 | B850-E / AM5 | AMD X670 / AM5 | AMD X870E / AM5 | AMD X870E / AM5 | X870 / AM5 | AMD X870E / AM5 | ||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | E-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||
| CPU Phases | 16 (110 A) | 18 (110 A) | 16 (80 A) | 16 (90 A) | 16 (90 A) | 14 (80 A) | 14 (80 A) | 16 (80 A) | 16 (80 A) | ||||||||||||||||||||||||||||||||||||
| PWR Design | 16+2+2 | 18 + 2 +2 | 16+2+1 | 16 + 2 + 2 | 16 + 2 + 2 | 14 + 2 + 1 | 14 + 2 + 1 | 16(80A)+1(80A)+2(80A)+2(80A) | 16 + 2 + 1 | ||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8600 MHz | 128 GB / 9600 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 192 GB / 8000 MHz | 256 GB / 8400 MHz | 256 GB / 8400 MHz | 192 GB / 8000 MHz | 256 GB / 8000 MHz | ||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||
| PCIe Slots | 2x16 Gen5 | 1x16 Gen4 | 2x16 Gen5 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | ||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 3 | 4 | 5 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2 | 4 | ||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC1220 CODEC | Realtek® ALC1220 CODEC | Realtek ALC1220P | ALC4080 | ROG SupremeFX 7.1 Surround So… | Realtek ® ALC4080 Codec | Realtek ® ALC4080 Codec | Realtek ALC1220P | Realtek ALC1220P | ||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (HDMI 2.1 FRL) | ✔️ (2.1 FRL) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||
| DP | ❌ | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (None) | ❌ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||
| LAN | 2 x Marvell® AQtion AQC1… (2 ports) | Realtek® 5GbE LAN chip (… (1 ports) | 1 x Realtek 5Gb Ethernet… (1 ports) | 1 x Realtek 5Gb Ethernet (1 ports) | 1 x Intel ® 2.5Gb Ethern… (1 ports) | 1x Realtek ® 8126 5G LAN (1 ports) | 1x Realtek ® 8126 5G LAN (1 ports) | Realtek 2.5Gb Ethernet (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | ||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi Wi-Fi 7 (Realtek RTL8922AE, 802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.4 | v5.2 | v5.4 | v5.4 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
❌ |
❌ |
|
|
||||||||||||||||||||||||||||||||||||
| Front USB |
❌ |
❌ |
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$896
|
0.0%
|
100.0%
|
95.5%
|
200 W / 270 W | 16 / 0 / 32 | 1024.0 kB / 192.0 MB | 4.30 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$670
|
0.0%
|
95.6%
|
94.9%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$511
|
↑
2.2%
|
93.0%
|
82.2%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$501
|
0.0%
|
87.0%
|
79.7%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.50 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$500
|
0.0%
|
76.1%
|
92.0%
|
120 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$316
|
↓
0.0%
|
69.6%
|
78.7%
|
170 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.70 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics |
Official Manufacturer Data
Memory:
5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports
On-Die ECC function
Graphics:
1 x HDMI ® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**Supports max. 4K@60Hz as specified in HDMI 2.1.
Storage:
AMD Ryzen™ Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

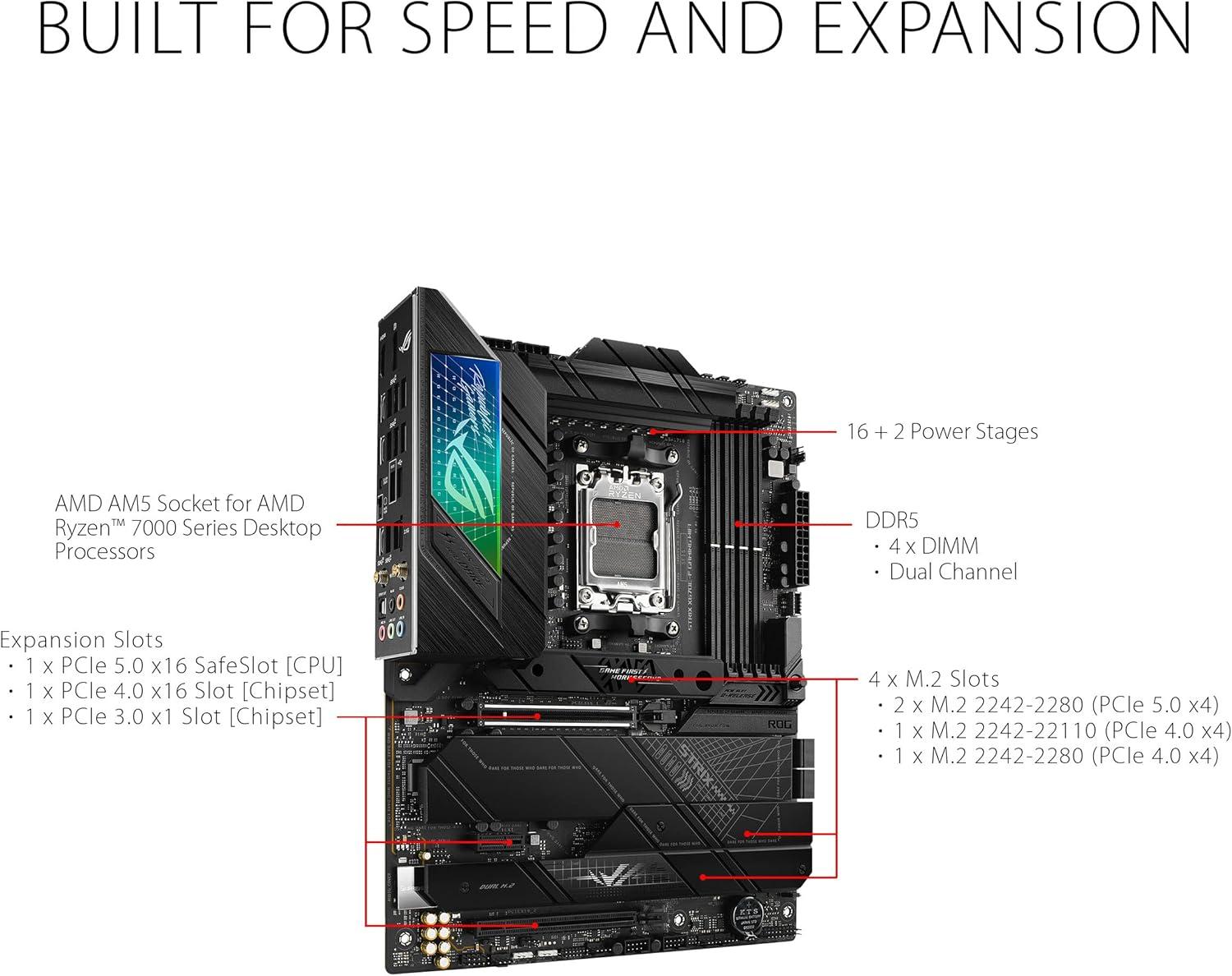

Expansion Slots:
1 x PCIe 5.0 x16 slots (supports x16 mode)
AMD X670 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
USB:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ® )
9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C ® )
2 x USB 2.0 ports
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C ® )
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C ® )
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with
Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4 ® ) header

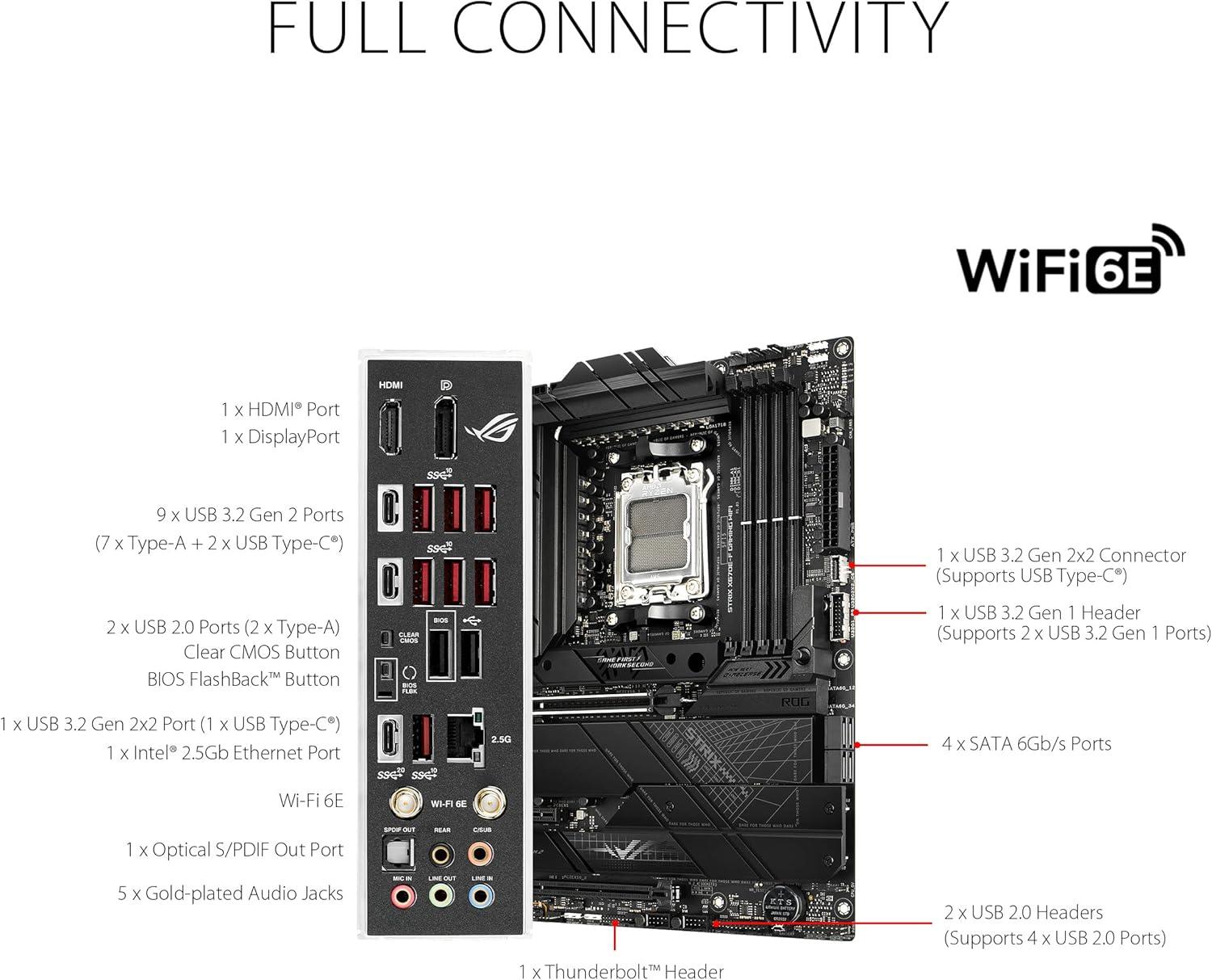

Back Panel I/O:
9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 xUSB Type-C ® )
2 x USB 2.0 ports
1 x DisplayPort
1 x HDMI ® port
1 x Wi-Fi Module
1 x Intel ® 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
WiFi:
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries.

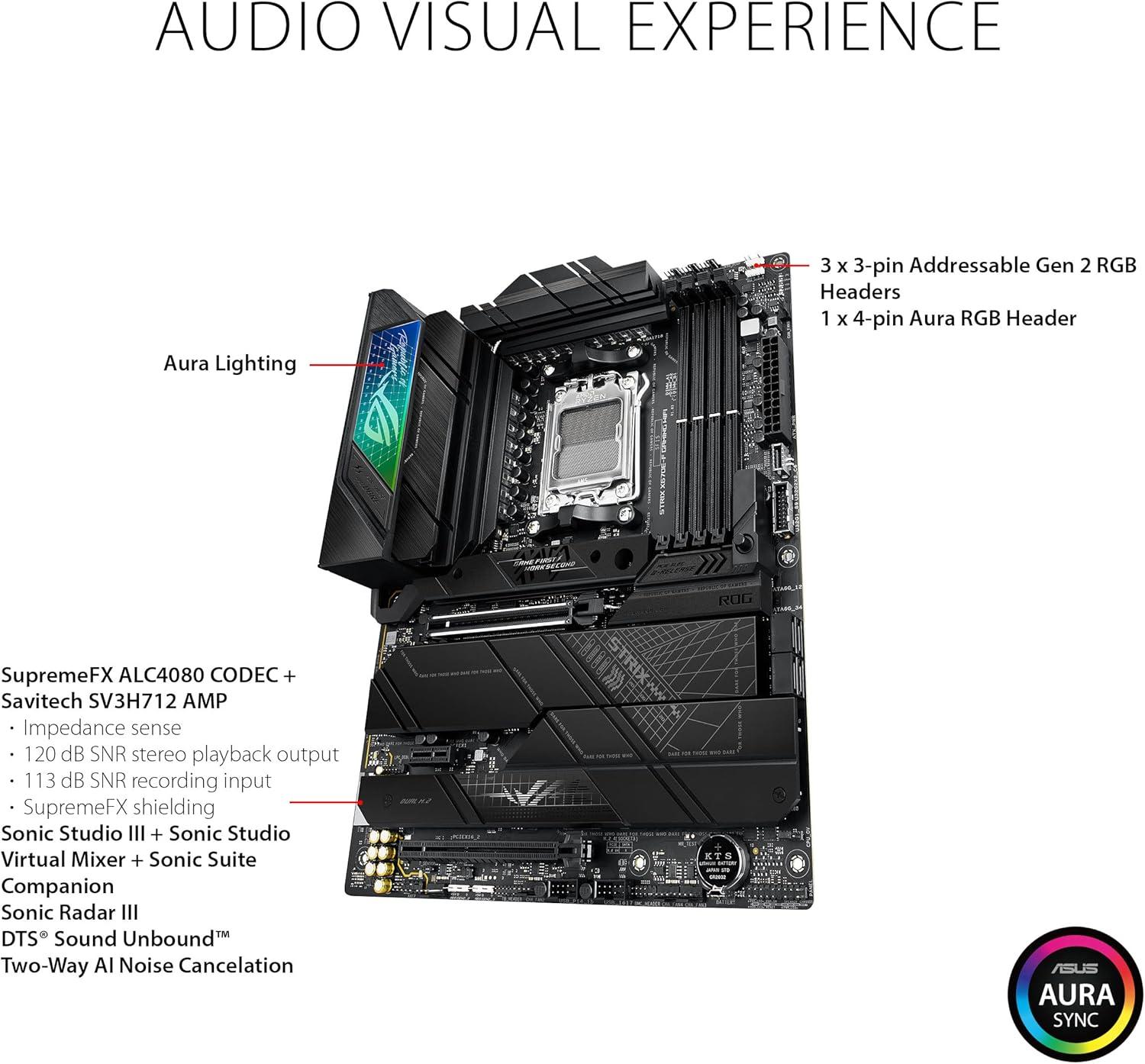

Audio:
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Special Features:
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot

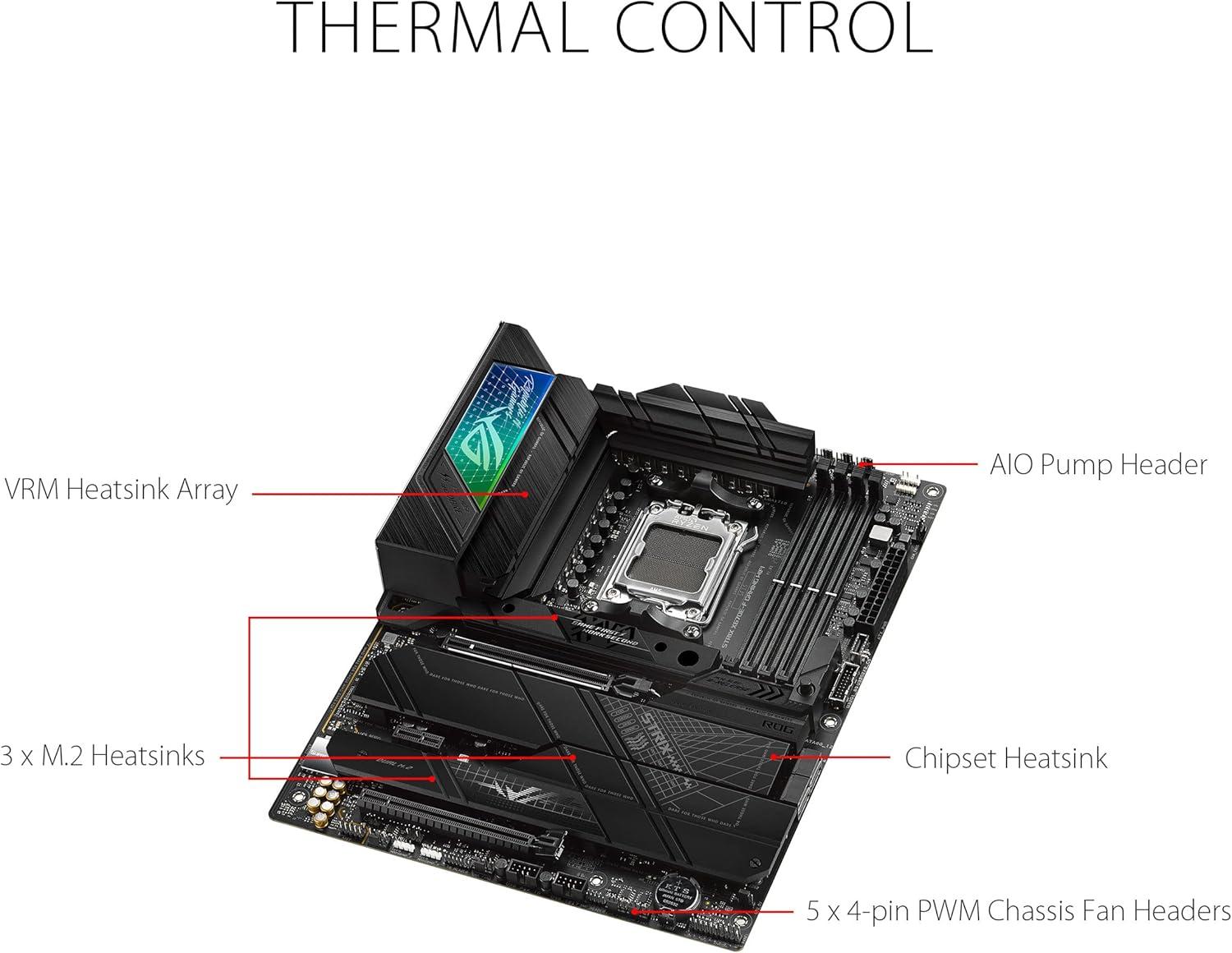

ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Add Comment on ROG STRIX X670E-F GAMING WIFI
