ASUS ROG Strix B850-E Gaming WiFi
ASUS ROG Strix B850-E Gaming WiFi Specifications Review
ASUS ROG Strix B850-E Gaming WiFi by ASUS is a Standard-ATX form factor motherboard based on the mid-range B850-E chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8000 MHz.

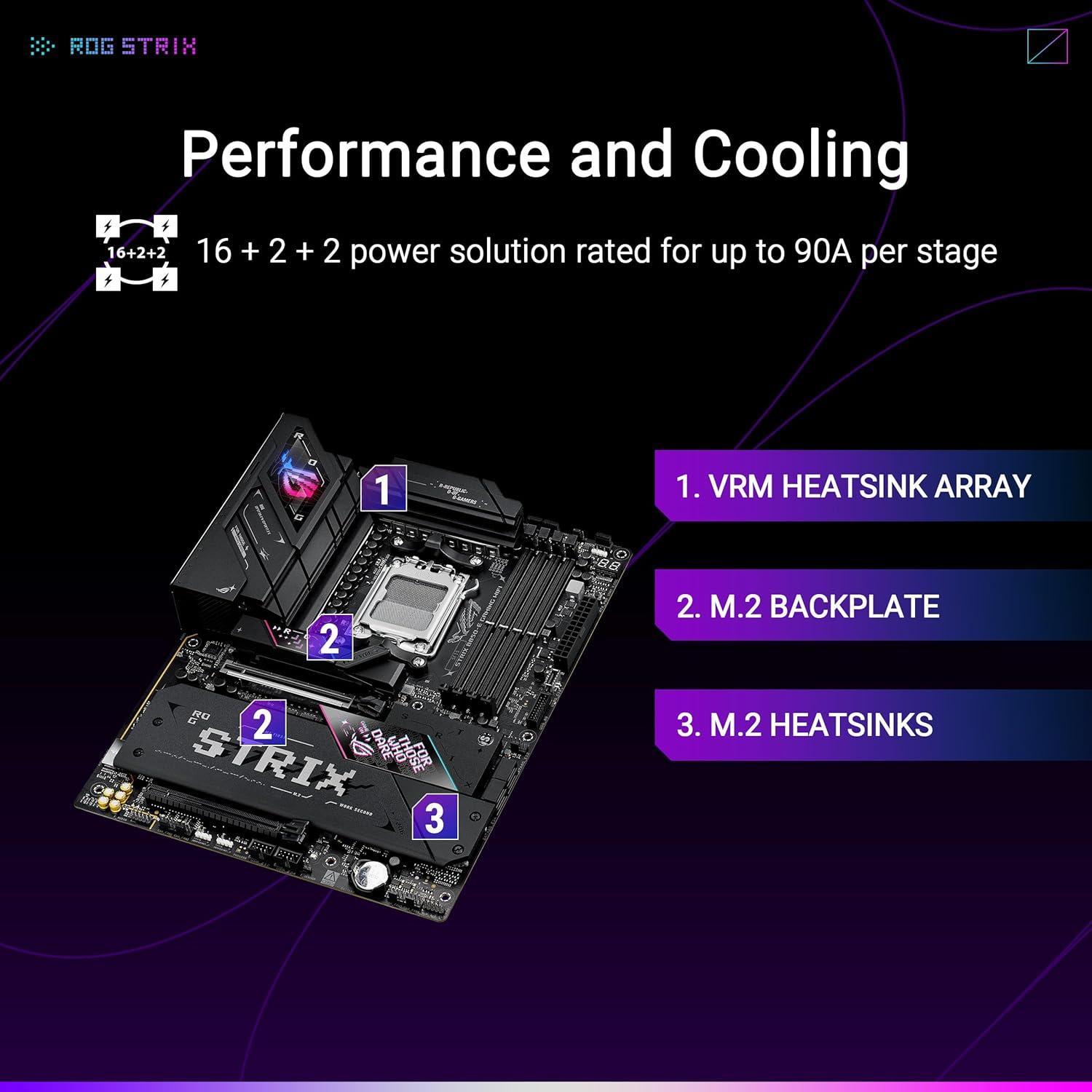

VRM Quality
The ASUS ROG Strix B850-E Gaming WiFi features a high-end VRM setup, supplying 90 A across 16 phases. Capable of handling high-wattage CPUs (200 W+) and supporting moderate to heavy overclocking, while keeping thermals and voltage regulation under control. Well-suited for gaming builds with top-tier CPUs, workstation tasks, and enthusiasts seeking reliable high performance.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASUS ROG Strix B850-E Gaming WiFi offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 5 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard provides extensive and premium connectivity options, including wireless networking with the Wi-Fi 7 standard, delivering fast and reliable internet speeds and wired 1 x Realtek 5Gb Ethernet LAN support capable of speeds up to 5000 Gbps, ensuring ultra-fast network connections. Bluetooth 5.4 is included for seamless wireless connections to peripherals. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
This motherboard features an ultra-premium audio solution — the ALC4080 — rivaling professional-grade DACs. With its ESS Sabre-class DAC implementation, it delivers reference-quality sound featuring exceptional clarity, dynamic range, and near-zero distortion. This is the ultimate choice for audiophiles, professional audio work, and high-impedance headphones, eliminating the need for external amplification in most cases. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
ASUS ROG Strix B850-E Gaming WiFi is a premium motherboard boasting a high overall quality score of 88.40. It offers excellent build quality and a rich feature set, delivering top-tier performance suitable for gamers and power users seeking robust and reliable hardware with extensive connectivity and expandability.
This motherboard shows a 38.4% value score indicating less favorable price-to-performance compared to mainstream models. This is typical for high-end motherboards, which prioritize premium features, durability, and advanced capabilities over raw value. It is an excellent choice for users who favor top quality, cutting-edge technology, and robust performance and are willing to invest more without focusing primarily on price.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | ASUS ROG Strix B850-E Gaming WiFi |
| Current Price Amazon | $437 |
| Amazon Price Updated | 19 hours, 27 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | B850-E / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 16 (90 A) |
|---|---|
| Power Design | 16 + 2 + 2 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8000 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 2 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 5 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | ALC4080 |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Gold-Plated Jacks | ✔️ Yes |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 8K@30Hz) |
| DP over USB-C | DisplayPort over USB-C - Version 1.4a (Max: 4K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 6 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 1 |
| Power Delivery (W) | 30W |
Front USB Ports
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
|---|
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: 1 x Realtek 5Gb Ethernet LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 Bandwidth: 320MHz Frequency Bands: 2.4GHz, 5GHz, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Start Button |
|---|
Quality & Features
Additional Information
| RAM | Supports Un-buffered DIMM. Supports AMD Extended Profiles for Overclocking (EXPO™) and ASUS Enhanced Memory Profile (AEMP). Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Supported memory types, data rate, and number of DRAM modules vary depending on the CPU and memory configuration. |
|---|---|
| Display | Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion | The primary PCIe 5.0 x16 slot (PCIEX16(G5)) supports x16 or x8 modes. When either M.2_2 or M.2_3 is enabled, this slot will run at x8 mode. With Ryzen 8000 Series CPUs, this slot supports PCIe 4.0 x8 or x4 mode. The second PCIe 4.0 x16 slot (PCIEX16(G4)) supports x4 mode and shares bandwidth with the M.2_4 slot; when the PCIEX16(G4) slot is in use, M.2_4 will be disabled. Specifications vary by CPU type. A PCIe bifurcation table is available on the manufacturer's support site. |
| Storage |
M.2 Slot Details:
RAID support via AMD RAIDXpert2 Technology varies by CPU: Ryzen 9000 Series supports RAID 0/1/5/10; Ryzen 7000 Series supports RAID 0/1/10; Ryzen 8000 Series supports RAID 0/1. |
| Audio | ROG SupremeFX 7.1 Surround Sound. Features Savitech SV3H712 AMP, SupremeFX Shielding Technology, and premium audio capacitors. Supports impedance sensing for front and rear outputs, 120 dB SNR playback, and 110 dB SNR recording. Front panel supports up to 32-Bit/384 kHz playback. The LINE OUT port on the rear panel does not support spatial audio. |
| Networking | Wi-Fi 7 supports up to 6.5Gbps transfer rate. Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 requires 24H2 or later for full functions; older versions only support Wi-Fi 6E. No driver is available for Windows 10. Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country. The Bluetooth version may vary; refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Buttons | The board includes a Power button. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASUS ROG Strix B850-E Gaming WiFi Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$350
|
↑
0.1%
|
91.0%
|
86.0%
|
80.0%
|
107.0%
|
101.0%
|
81.0%
|
49.4%
|
|
|
$499
|
↓
-0.5%
|
91.0%
|
86.0%
|
97.0%
|
93.0%
|
98.0%
|
81.0%
|
34.6%
|
|
|
$716
|
↓
-0.2%
|
89.4%
|
98.0%
|
98.0%
|
92.0%
|
78.0%
|
81.0%
|
23.7%
|
|
|
$515❗
|
↓
-14.1%
|
89.0%
|
70.0%
|
100.0%
|
94.0%
|
100.0%
|
81.0%
|
32.8%
|
|
|
$437
|
↑
0.6%
|
88.4%
|
74.0%
|
94.0%
|
93.0%
|
90.0%
|
91.0%
|
38.4%
|
|
|
$440
|
0.0%
|
88.0%
|
74.0%
|
94.0%
|
87.0%
|
91.0%
|
94.0%
|
38.0%
|
|
|
$290
|
0.0%
|
86.2%
|
54.0%
|
100.0%
|
94.0%
|
95.0%
|
88.0%
|
56.6%
|
|
|
$214
|
0.0%
|
86.0%
|
54.0%
|
99.0%
|
94.0%
|
95.0%
|
88.0%
|
76.2%
|
|
|
$260
|
0.0%
|
84.8%
|
70.0%
|
97.0%
|
90.0%
|
89.0%
|
78.0%
|
62.0%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$350
|
↑
0.1%
|
$499
|
↓
-0.5%
|
$716
|
↓
-0.2%
|
$515❗
|
↓
-14.1%
|
$437
|
↑
0.6%
|
$440
|
0.0%
|
$290
|
0.0%
|
$214
|
0.0%
|
$260
|
0.0%
|
||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | GIGABYTE | Gigabyte | ASUS | ASUS | ASUS | MSI | MSI | ASUS | ||||||||||||||||||||||||||||||||||||
| Chip/Socket | B850 / AM5 | X870E / AM5 | AMD X870 / AM5 | AMD X870E / AM5 | B850-E / AM5 | AMD X670 / AM5 | AMD X870E / AM5 | AMD X870E / AM5 | AMD X870E / AM5 | ||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | E-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||
| CPU Phases | 16 (110 A) | 16 (110 A) | 18 (110 A) | 16 (80 A) | 16 (90 A) | 16 (90 A) | 14 (80 A) | 14 (80 A) | 16 (80 A) | ||||||||||||||||||||||||||||||||||||
| PWR Design | 16+2+2 | 16+2+2 | 18 + 2 +2 | 16+2+1 | 16 + 2 + 2 | 16 + 2 + 2 | 14 + 2 + 1 | 14 + 2 + 1 | 16 + 2 + 1 | ||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8600 MHz | 256 GB / 8600 MHz | 128 GB / 9600 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 192 GB / 8000 MHz | 256 GB / 8400 MHz | 256 GB / 8400 MHz | 256 GB / 8000 MHz | ||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||
| PCIe Slots | 2x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 2x16 Gen5 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | ||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 4 | 3 | 4 | 5 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC1220 CODEC | Realtek® ALC1220 CODEC | Realtek® ALC1220 CODEC | Realtek ALC1220P | ALC4080 | ROG SupremeFX 7.1 Surround So… | Realtek ® ALC4080 Codec | Realtek ® ALC4080 Codec | Realtek ALC1220P | ||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ❌ | ||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (HDMI 2.1 FRL) | ✔️ (2.1 FRL) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (None) | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||
| LAN | 2 x Marvell® AQtion AQC1… (2 ports) | Realtek® 5GbE LAN chip (… (1 ports) | Realtek® 5GbE LAN chip (… (1 ports) | 1 x Realtek 5Gb Ethernet… (1 ports) | 1 x Realtek 5Gb Ethernet (1 ports) | 1 x Intel ® 2.5Gb Ethern… (1 ports) | 1x Realtek ® 8126 5G LAN (1 ports) | 1x Realtek ® 8126 5G LAN (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | ||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi Wi-Fi 7 (Realtek RTL8922AE, 802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.3 | v5.4 | v5.4 | v5.4 | v5.2 | v5.4 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
❌ |
❌ |
|
||||||||||||||||||||||||||||||||||||
| Front USB |
❌ |
|
❌ |
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$896
|
0.0%
|
100.0%
|
95.5%
|
200 W / 270 W | 16 / 0 / 32 | 1024.0 kB / 192.0 MB | 4.30 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$670
|
0.0%
|
95.6%
|
94.9%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$511
|
↑
2.2%
|
93.0%
|
82.2%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$501
|
0.0%
|
87.0%
|
79.7%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.50 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$500
|
0.0%
|
76.1%
|
92.0%
|
120 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$316
|
↓
0.0%
|
69.6%
|
78.7%
|
170 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.70 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics |
Official Manufacturer Data
Memory:
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics:
1 x HDMI™ port**
1 x USB4® (40Gbps) port supports USB Type-C® display outputs***
- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
* Supports max. 8K@30Hz as specified in DisplayPort 1.4
** Supports 4K@60Hz as specified in HDMI 2.1
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
***** VGA resolution support depends on processors' or graphic cards' resolution.
Storage:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)*
M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)**
M.2_3 slot (Key M), type 2280 (Not supports)***
AMD B850 Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8.
** M.2_2 and M.2_3 slot will be disabled while using the AMD Ryzen™ 8000 Series Desktop Processors.
*** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
Expansion Slots:
1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes)**
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)***
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)****
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8.
*** Specifications vary by CPU types.
**** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
USB:
1 x USB4® (40Gbps) port(1 x USB Type-C®)*
1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge)**
6 x USB 10Gbps ports (6 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (1 x USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Power button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header

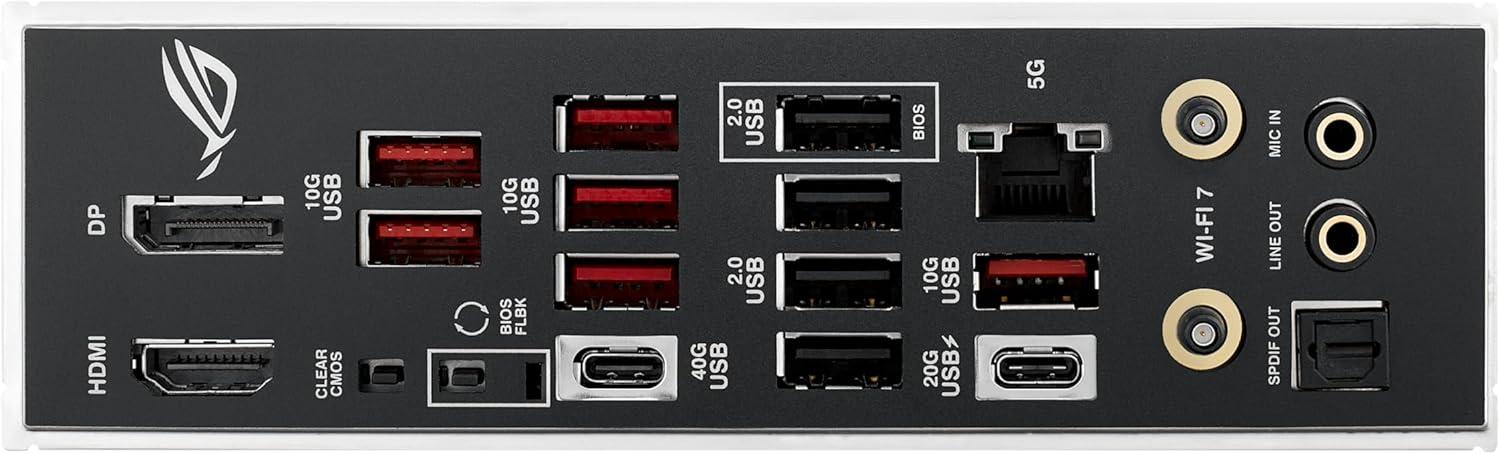

Back Panel I/O:
1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge)
6 x USB 10Gbps ports (6 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
WiFi:
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio:
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Special Features:
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
Rear USB 20Gbps with PD Fast Charge Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3A, 12V max 2.5A, 15V max2.0A
- Compatible with PD3.0
Add Comment on ASUS ROG Strix B850-E Gaming WiFi
