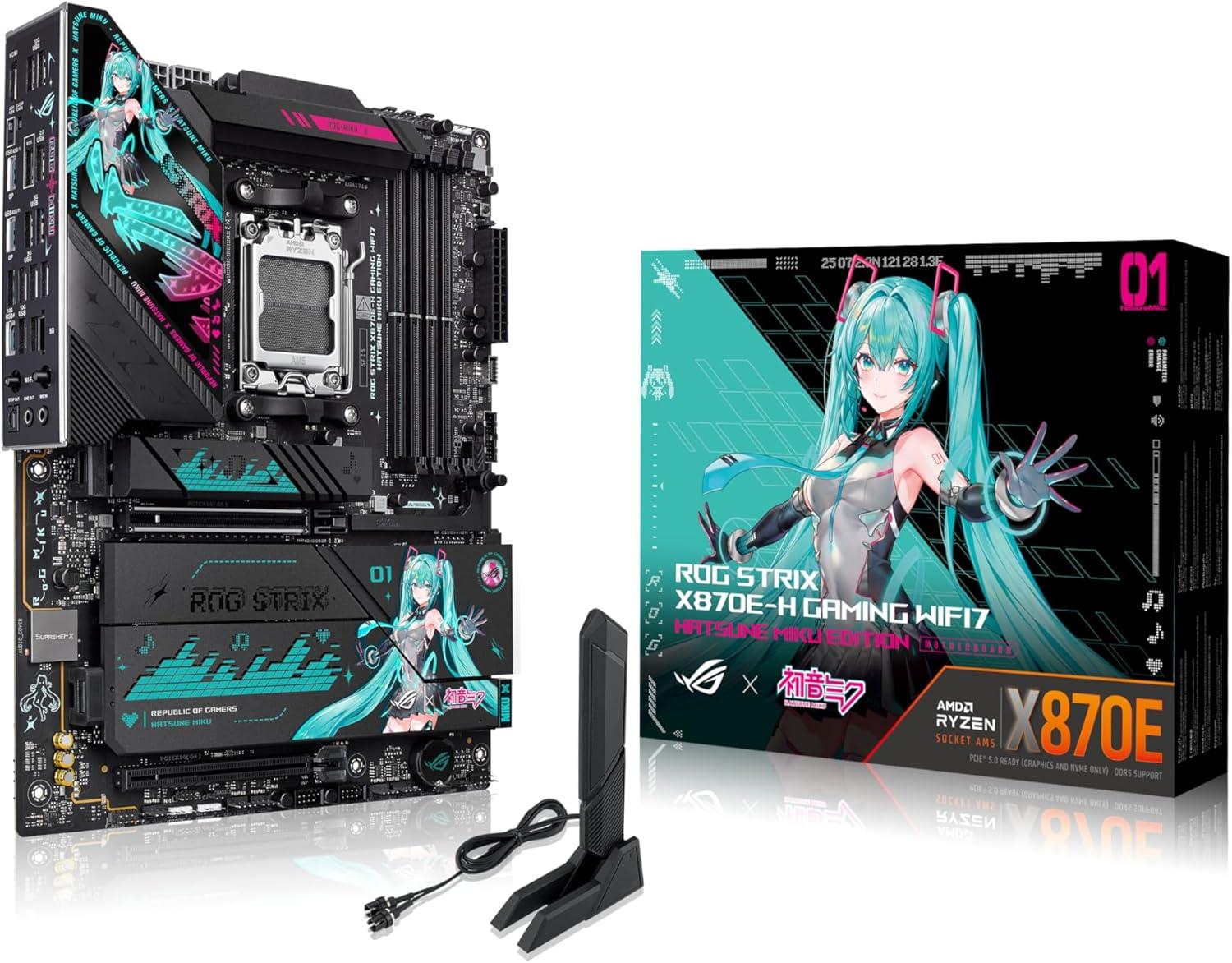

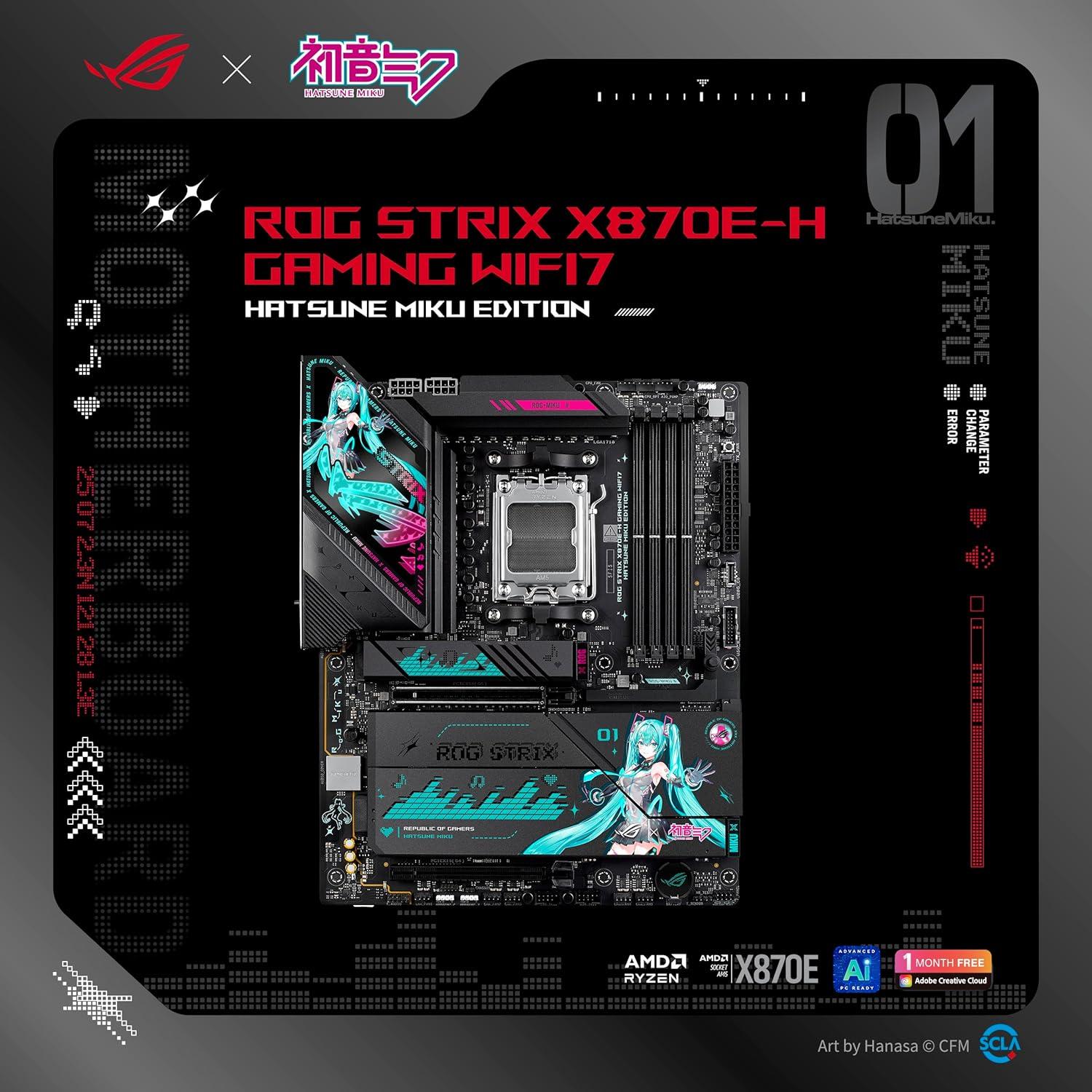

ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION
ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION Specifications Review

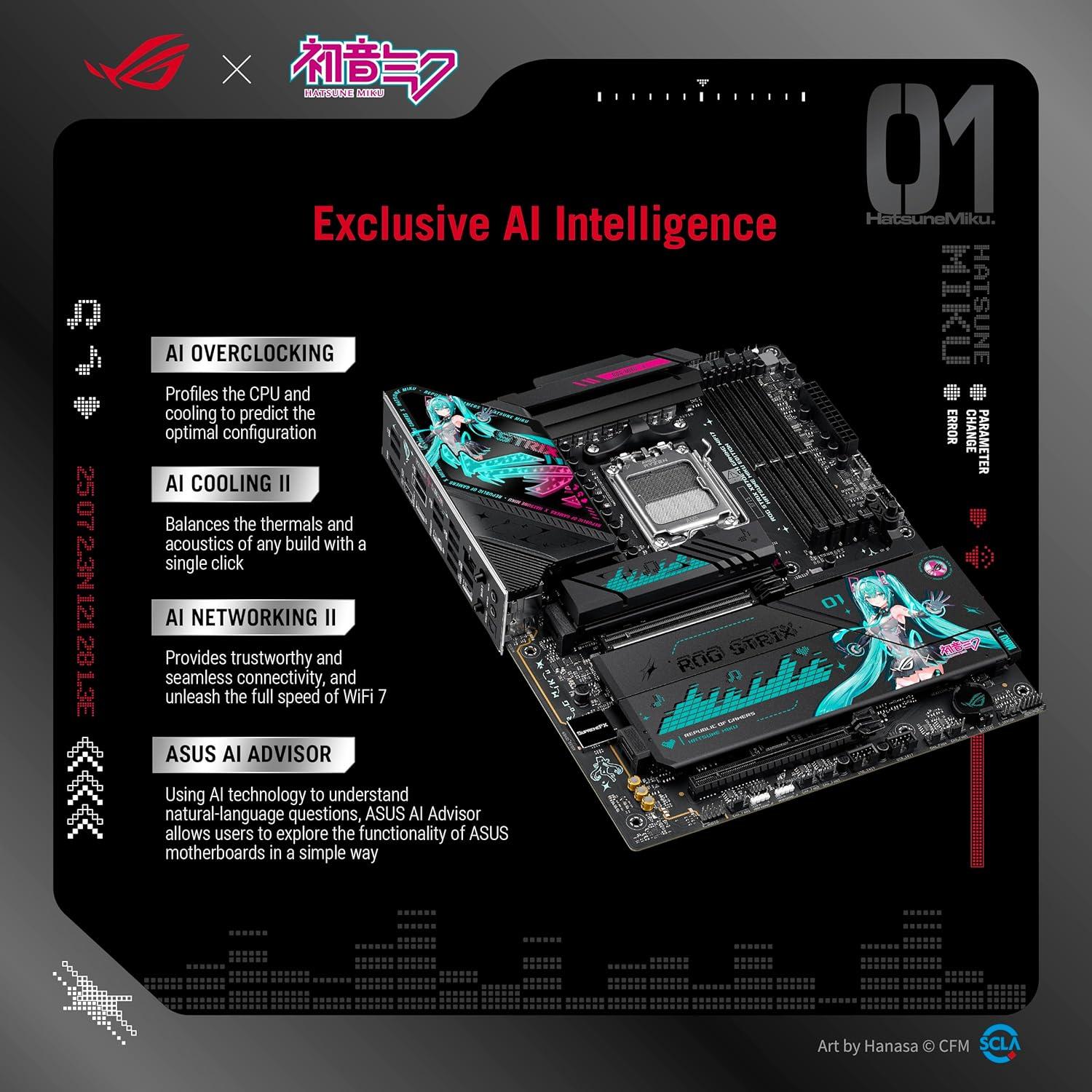

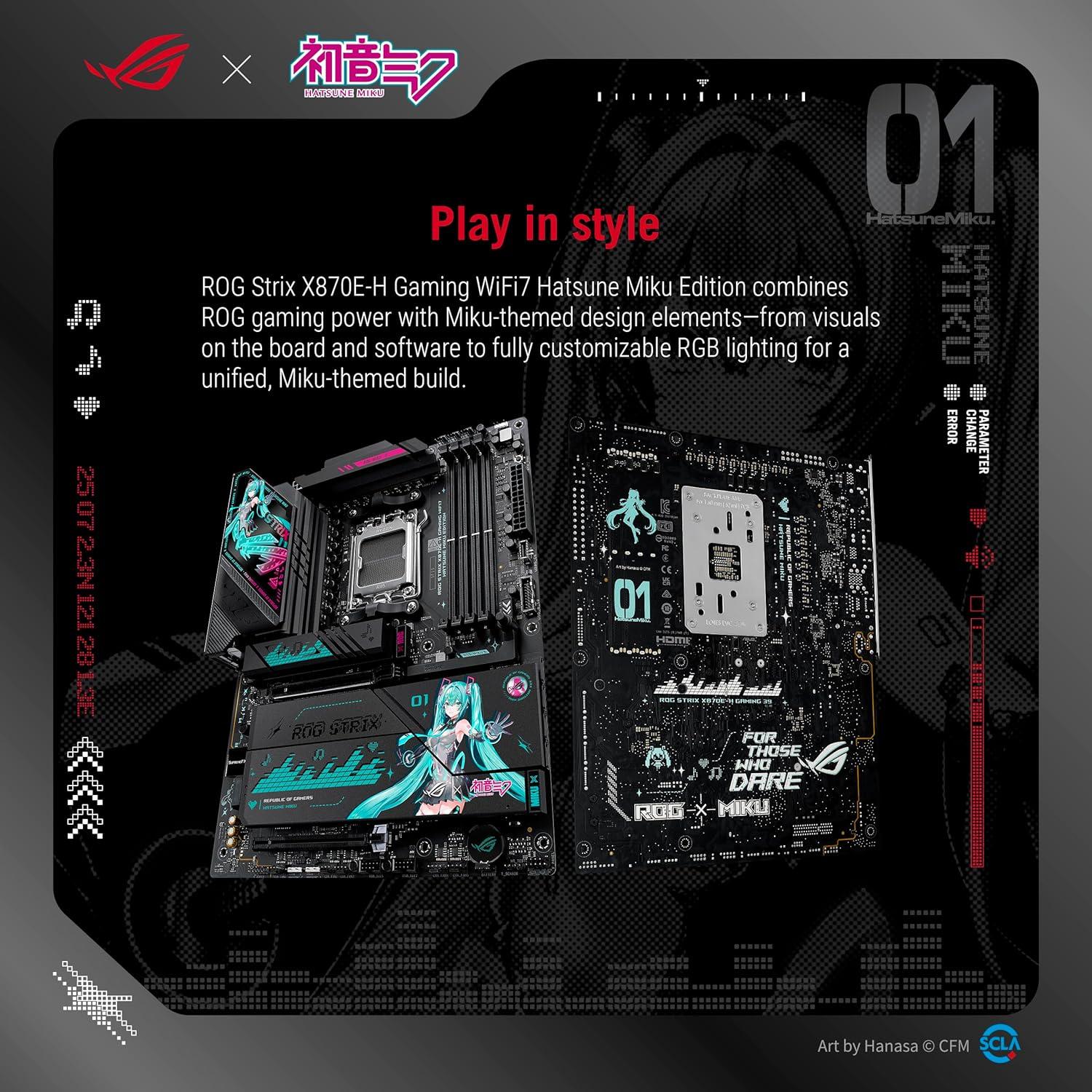

ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION by ASUS is a Standard-ATX form factor motherboard based on the high-end AMD X870E chipset and AM5 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8000 MHz.
VRM Quality

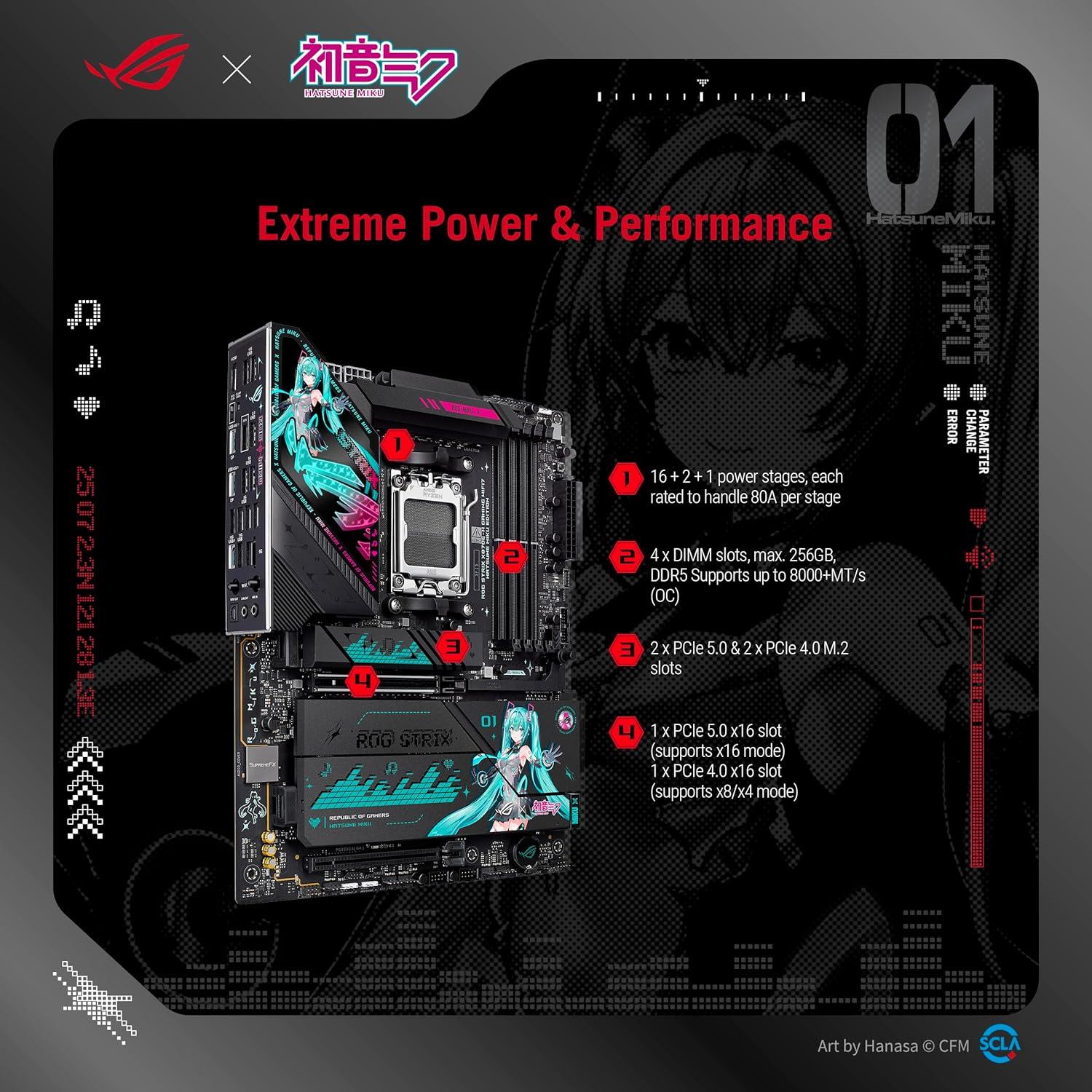

The ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION includes an upper mid-range VRM configuration, delivering 80 A through 16 phases. This tier comfortably supports CPUs in the ~170 W TDP range and can run high-wattage CPUs at stock settings, though sustained heavy overclocking may reduce stability. A good choice for performance-oriented gamers and productivity users who don’t require extreme tuning.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 3 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard provides extensive and premium connectivity options, including wireless networking with the wireless Wi-Fi 7 (802.11be) and wired 1 x Realtek 5Gb EthernetASUS LANGuard LAN support capable of speeds up to 5000 Gbps, ensuring ultra-fast network connections. Bluetooth 5.4 is included for seamless wireless connections to peripherals. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
For video output, this motherboard includes HDMI version 2.1 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the Realtek ALC1220P — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION is a premium motherboard boasting a high overall quality score of 89.00. It offers excellent build quality and a rich feature set, delivering top-tier performance suitable for gamers and power users seeking robust and reliable hardware with extensive connectivity and expandability.
This motherboard shows a 32.8% value score indicating less favorable price-to-performance compared to mainstream models. This is typical for high-end motherboards, which prioritize premium features, durability, and advanced capabilities over raw value. It is an excellent choice for users who favor top quality, cutting-edge technology, and robust performance and are willing to invest more without focusing primarily on price.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION |
| Current Price Amazon | $515❗N/A |
| Amazon Price Updated | 2 weeks, 1 day ago. |
| Motherboard Available | False |
| Chipset / Socket | AMD X870E / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 16 (80 A) |
|---|---|
| Power Design | 16+2+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8000 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 3 | 1 | 2 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 2242, 2260, 2280, 22110 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek ALC1220P |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DP over USB-C | DisplayPort over USB-C - Version 1.4a (Max: 4K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 6 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 3 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 2 |
| Power Delivery (W) | 30W |
Front USB Ports
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
|---|---|
| Power Delivery (W) | 15W |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: 1 x Realtek 5Gb EthernetASUS LANGuard LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 7 (802.11be) Bandwidth: 160 Frequency Bands: ['2.4 GHz', '5 GHz', '6 GHz'] Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Start Button |
|---|
Quality & Features
Additional Information
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
|---|---|
| OS Support | Windows 11 |
| RAM | Supports AMD EXPO (Extended Profiles for Overclocking) and ASUS Enhanced Memory Profile (AEMP). Supports DIMM Fit / DIMM Fit Pro. Supported memory types, data rates (speeds), and number of DRAM modules vary depending on CPU and memory configuration—refer to the CPU/Memory Support list on the product support site. Adjustments may be made based on specifications of mass-produced memory products. Non-ECC, un-buffered DDR5 memory with On-Die ECC function is supported. OC speeds up to 8000+ MT/s are achievable with Ryzen 9000, 8000, and 7000 Series processors. |
| Display | 1x HDMI port (HDMI 2.1) supporting 4K@60Hz. 2x USB4 (40 Gbps) Type-C ports provide DisplayPort Alt Mode outputs (as DisplayPort 1.4a), supporting up to 4K@60Hz. Graphics capabilities and available resolutions vary by CPU/processor or discrete graphics card — refer to AMD CPU specifications; VGA resolution support depends on the processor or graphics card. USB4 port bandwidth is 40Gbps. |
| Expansion | Maximum supported generation: PCIe 5.0 (one physical PCIe 5.0 x16 slot). PCIe 5.0 offers roughly ~4 GB/s per lane (about ~64 GB/s for a full x16 slot) and is backward compatible with PCIe 4.0/3.0. The board lists two additional physical x16 slots as PCIe 4.0: one labeled 'PCIe 4.0 x16 (supports x8/x4 mode)' which is CPU-dependent (lane allocation and effective width vary by CPU and may drop to x8/x4), and one from the X870E chipset listed as 'PCIe 4.0 x16 (supports x4 mode)' (likely electrically x4). Specifications vary by CPU type; consult ASUS PCIe bifurcation table and support pages. Bandwidth sharing, bifurcation limits, and mode reductions may apply depending on CPU and slot configuration. |
| Storage |
M.2 Slot Details:
|

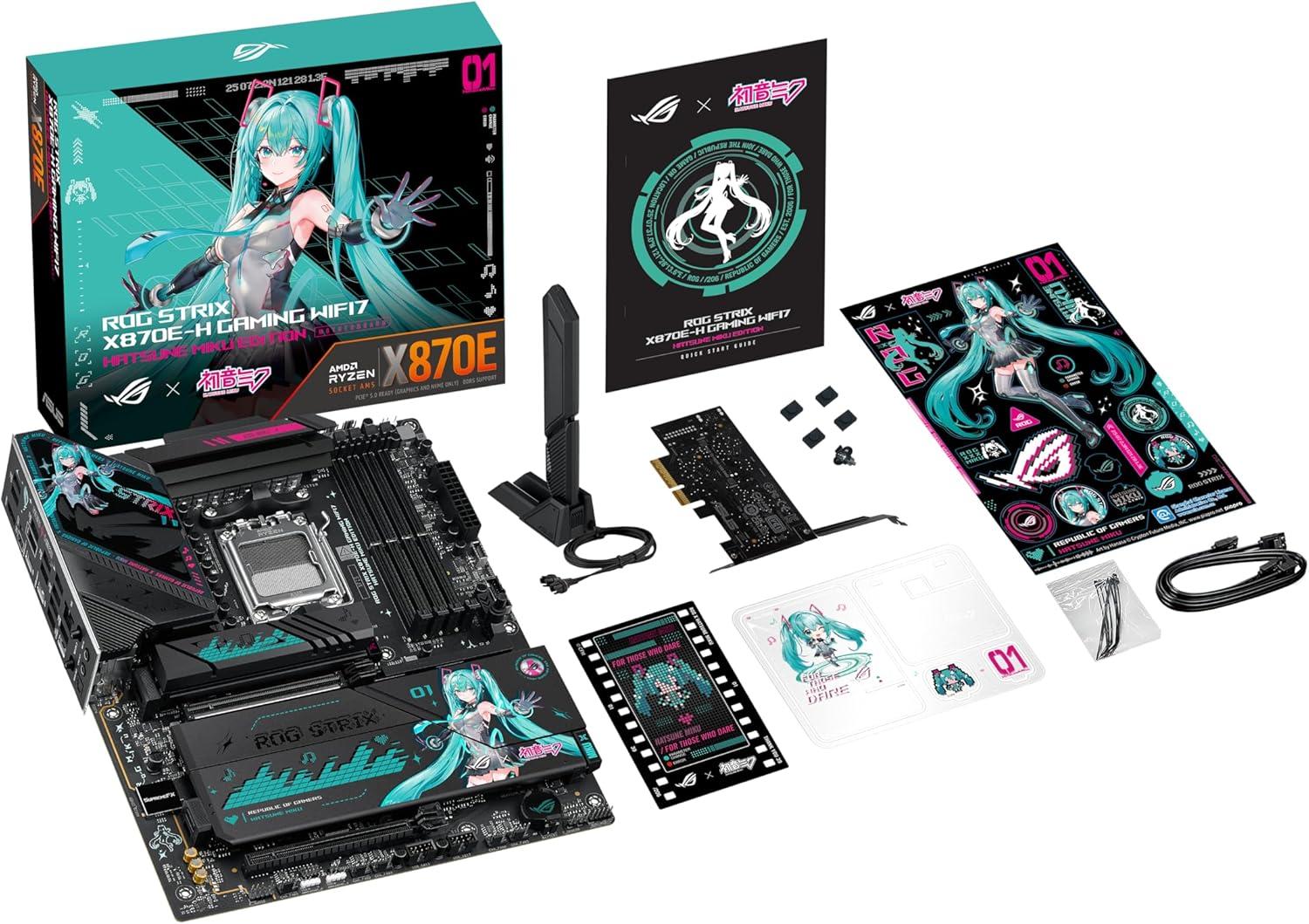

| Audio | Impedance sense for front and rear headphone outputs; internal audio amplifier; Savitech SV3H712 headphone amp; SupremeFX shielding technology; premium audio capacitors; audio cover; supports jack-detection, multi-streaming, front panel jack-retasking; 120 dB SNR stereo playback and 113 dB SNR recording; up to 32-bit/192 kHz playback. LINE OUT on the rear panel does not support spatial audio (use front panel jack or USB audio for spatial audio). |
| Networking | Wi-Fi chipset: MediaTek MT7925; 2x2 Wi-Fi 7 (802.11be) supporting 160MHz bandwidth. Wi-Fi module listed as '1 x Wi-Fi module'. Wi-Fi 6GHz/regulatory availability may vary by country. OS/driver notes: full Wi-Fi 7 functions require Windows 11 24H2 or later; older Windows versions have limited support or no driver. Bluetooth version may vary per Wi-Fi module manufacturer. Ethernet features ASUS LANGuard branding. Realtek 5Gb Ethernet appears listed twice (likely single 5Gb port). |
| Buttons | Includes a Start button. No Smart Button or Q-Flash Plus button mentioned. Also lists a CPU Over voltage jumper and multiple related headers (10-1 front panel system header, Front Panel Audio header, Thermal Sensor header, Chassis Intrusion header) which may be relevant to front-panel controls. |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ASUS PCIe to Front USB Card (supports 2 x USB 5Gbps Type-A + 1 x USB 10Gbps Type-C ports) 1 x PHONE STAND HATSUNE MIKU EDITION 1 x THANK YOU CARD HATSUNE MIKU EDITION 1 x STICKER HATSUNE MIKU EDITION 4 x M.2 rubbers Documentation 1 x Quick start guide |
| Dimensions | ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$260
|
↓
-8.8%
|
91.2%
|
74.0%
|
100.0%
|
97.0%
|
97.0%
|
88.0%
|
66.7%
|
|
|
$350
|
↑
0.1%
|
91.0%
|
86.0%
|
80.0%
|
107.0%
|
101.0%
|
81.0%
|
49.4%
|
|
|
$499
|
↓
-0.5%
|
91.0%
|
86.0%
|
97.0%
|
93.0%
|
98.0%
|
81.0%
|
34.6%
|
|
|
$716
|
↓
-0.2%
|
89.4%
|
98.0%
|
98.0%
|
92.0%
|
78.0%
|
81.0%
|
23.7%
|
|
|
$515❗
|
↓
-14.1%
|
89.0%
|
70.0%
|
100.0%
|
94.0%
|
100.0%
|
81.0%
|
32.8%
|
|
|
$437
|
↑
0.6%
|
88.4%
|
74.0%
|
94.0%
|
93.0%
|
90.0%
|
91.0%
|
38.4%
|
|
|
$440
|
0.0%
|
88.0%
|
74.0%
|
94.0%
|
87.0%
|
91.0%
|
94.0%
|
38.0%
|
|
|
$290
|
0.0%
|
86.2%
|
54.0%
|
100.0%
|
94.0%
|
95.0%
|
88.0%
|
56.6%
|
|
|
$214
|
0.0%
|
86.0%
|
54.0%
|
99.0%
|
94.0%
|
95.0%
|
88.0%
|
76.2%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$260
|
↓
-8.8%
|
$350
|
↑
0.1%
|
$499
|
↓
-0.5%
|
$716
|
↓
-0.2%
|
$515❗
|
↓
-14.1%
|
$437
|
↑
0.6%
|
$440
|
0.0%
|
$290
|
0.0%
|
$214
|
0.0%
|
||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASUS | GIGABYTE | GIGABYTE | Gigabyte | ASUS | ASUS | ASUS | MSI | MSI | ||||||||||||||||||||||||||||||||||||||
| Chip/Socket | X870-A / AM5 | B850 / AM5 | X870E / AM5 | AMD X870 / AM5 | AMD X870E / AM5 | B850-E / AM5 | AMD X670 / AM5 | AMD X870E / AM5 | AMD X870E / AM5 | ||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | E-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||
| CPU Phases | 16 (90 A) | 16 (110 A) | 16 (110 A) | 18 (110 A) | 16 (80 A) | 16 (90 A) | 16 (90 A) | 14 (80 A) | 14 (80 A) | ||||||||||||||||||||||||||||||||||||||
| PWR Design | 16(90A)+ 2(90A)+ 2(80A) | 16+2+2 | 16+2+2 | 18 + 2 +2 | 16+2+1 | 16 + 2 + 2 | 16 + 2 + 2 | 14 + 2 + 1 | 14 + 2 + 1 | ||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8000 MHz | 256 GB / 8600 MHz | 256 GB / 8600 MHz | 128 GB / 9600 MHz | 256 GB / 8000 MHz | 256 GB / 8000 MHz | 192 GB / 8000 MHz | 256 GB / 8400 MHz | 256 GB / 8400 MHz | ||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 2x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 2x16 Gen5 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | ||||||||||||||||||||||||||||||||||||||
| M.2 | 4 | 3 | 4 | 3 | 4 | 5 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||
| SATA | 2 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||
| Audio | ALC4080 | Realtek® ALC1220 CODEC | Realtek® ALC1220 CODEC | Realtek® ALC1220 CODEC | Realtek ALC1220P | ALC4080 | ROG SupremeFX 7.1 Surround So… | Realtek ® ALC4080 Codec | Realtek ® ALC4080 Codec | ||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (HDMI 2.1 FRL) | ✔️ (2.1 FRL) | ||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ❌ | ❌ | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (None) | ❌ | ||||||||||||||||||||||||||||||||||||||
| LAN | 1 x Intel® 2.5Gb Ethernet (1 ports) | 2 x Marvell® AQtion AQC1… (2 ports) | Realtek® 5GbE LAN chip (… (1 ports) | Realtek® 5GbE LAN chip (… (1 ports) | 1 x Realtek 5Gb Ethernet… (1 ports) | 1 x Realtek 5Gb Ethernet (1 ports) | 1 x Intel ® 2.5Gb Ethern… (1 ports) | 1x Realtek ® 8126 5G LAN (1 ports) | 1x Realtek ® 8126 5G LAN (1 ports) | ||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi Wi-Fi 7 (Realtek RTL8922AE, 802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | ||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.3 | v5.4 | v5.4 | v5.4 | v5.2 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
❌ |
❌ |
||||||||||||||||||||||||||||||||||||||
| Front USB |
❌ |
❌ |
|
❌ |
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$670
|
0.0%
|
95.6%
|
94.9%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$511
|
↑
2.2%
|
93.0%
|
82.2%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$501
|
0.0%
|
87.0%
|
79.7%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.50 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$500
|
0.0%
|
76.1%
|
92.0%
|
120 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$316
|
↓
0.0%
|
69.6%
|
78.7%
|
170 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.70 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics |
Official Manufacturer Data
Memory:
Supports up to 8000+MT/s(OC) with Ryzen™
9000 & 8000 & 7000 Series Processors
Dual channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO™)
Supports DIMM Fit / DIMM Fit Pro
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate
(speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list
under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Adjustments will be made based on the specifications of mass-produced memory
products available on the market.
** Non-ECC, un-buffered DDR5 memory
supports On-Die ECC function.
Graphics:
2 x USB4 ® (40Gbps) ports support USB
Type-C ® display outputs***
* Graphics specifications may vary between
CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI
2.1.
*** Supports max. 4K@60Hz as specified in
DisplayPort 1.4a
**** VGA resolution support depends on
processors' or graphic cards' resolution.
Storage:
ports
AMD Ryzen™ 9000 & 7000 Series Desktop
Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110
(supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not
supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* M.2_2 shares bandwidth with PCIEX16(G5).
When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
** M.2_2 will be disabled when using AMD
Ryzen™ 8000 Series Desktop Processors.
Expansion Slots:
Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4
mode)**
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table
on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device
installed, please refer to https://www.asus.com/support/download-center/ for
the list of supported peripherals.
USB:
2 x USB4 ® (40Gbps) ports (2 x USB Type-C ® )
4 x USB 10Gbps ports (3 x Type-A + 1 x USB
Type-C ® with up to 30W PD/PPS Fast-charge)**
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB
Type-C ® )
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
2 x USB 2.0 headers support 4 additional
USB 2.0 ports
* USB Type-C ® power delivery output: max.
5V/3A
** USB Type-C ® power delivery output: 5V/9V
max. 3A, 12V max 2.5A, 15V max. 2.0A
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB
Type-C ® )
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
2 x USB 2.0 headers support 4 additional
USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Back Panel I/O:
4 x USB 10Gbps ports (3 x Type-A + 1 x USB
Type-C ® with up to 30W PD/PPS Fast-charge)**
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
WiFi:
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth ® v5.4***
*Wi-Fi features may vary depending on the
operating system
For
Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions,
Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For
Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth
regulatory may vary between countries.
*** The Bluetooth ® version may vary, please
refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio:
High Definition Audio CODEC*
- Impedance sense for front and rear
headphone outputs
- Internal audio Amplifier to enhance the
highest quality sound for headphone and speakers
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz
playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does
not support spatial audio. If you wish to use spatial audio, make sure to
connect your audio output device to the audio jack on the front panel of your
chassis or use a USB interface audio device.
Special Features:
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot

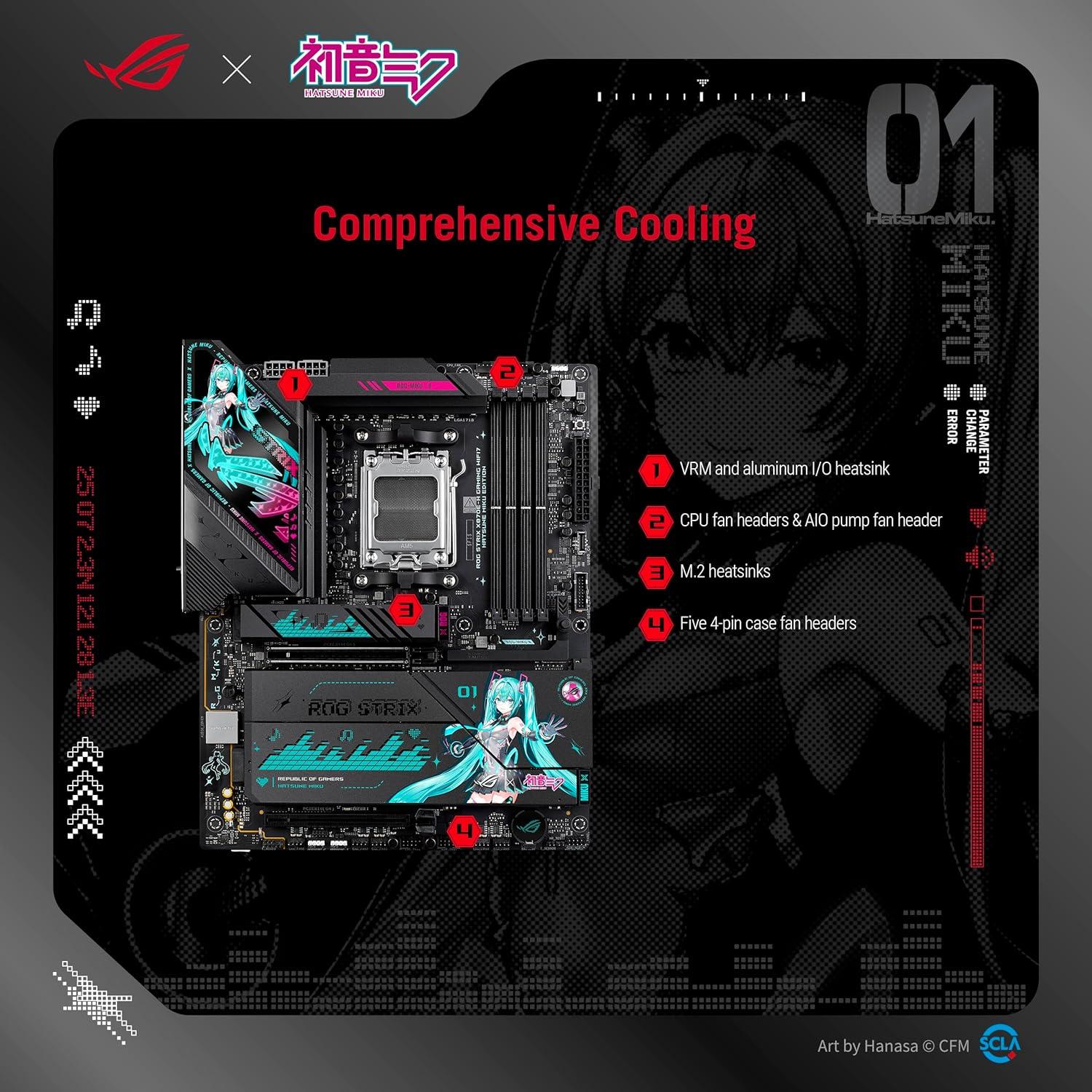

ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers
Add Comment on ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION
