ROG MAXIMUS Z790 DARK HERO
ROG MAXIMUS Z790 DARK HERO Specifications Review

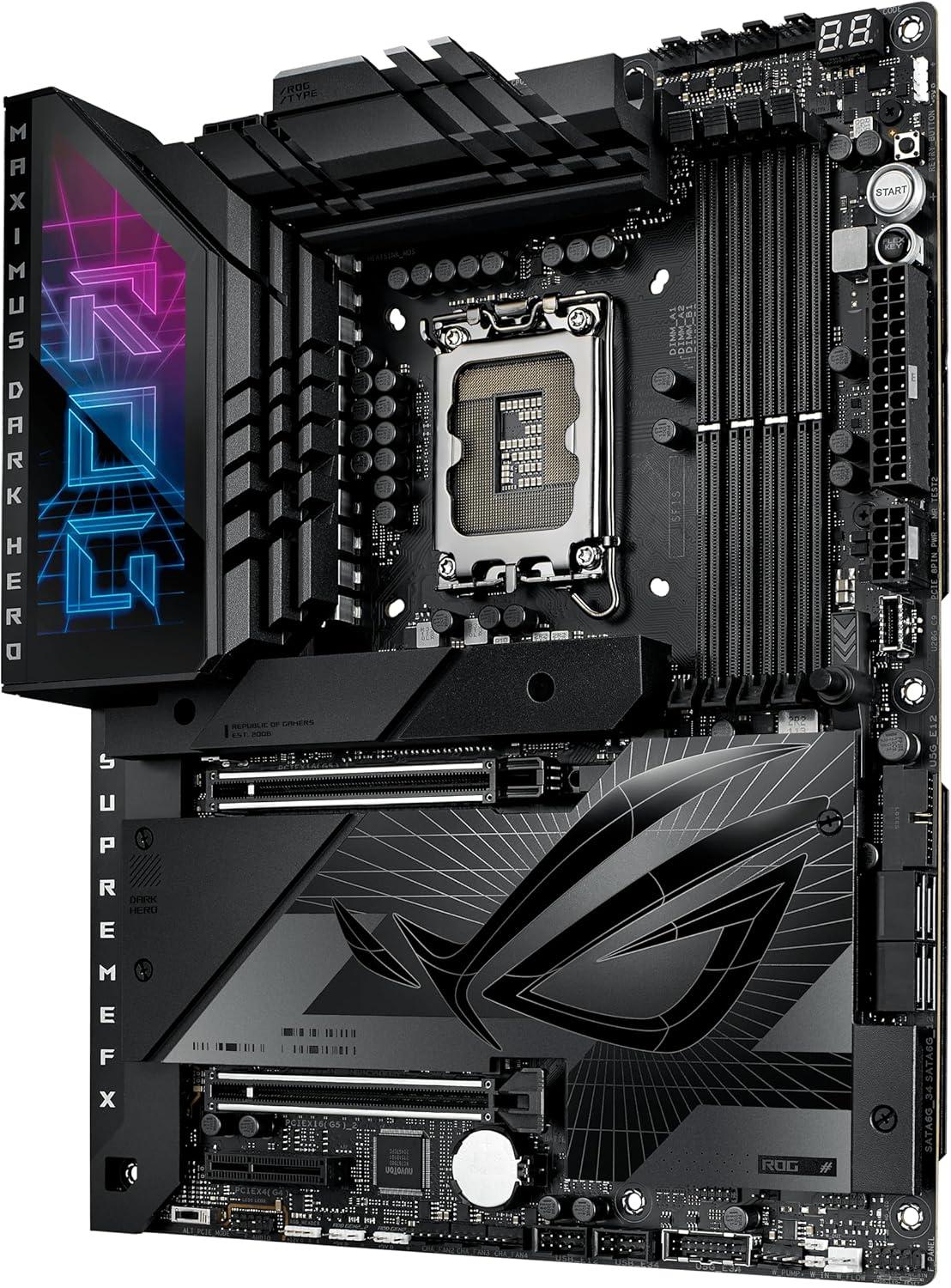

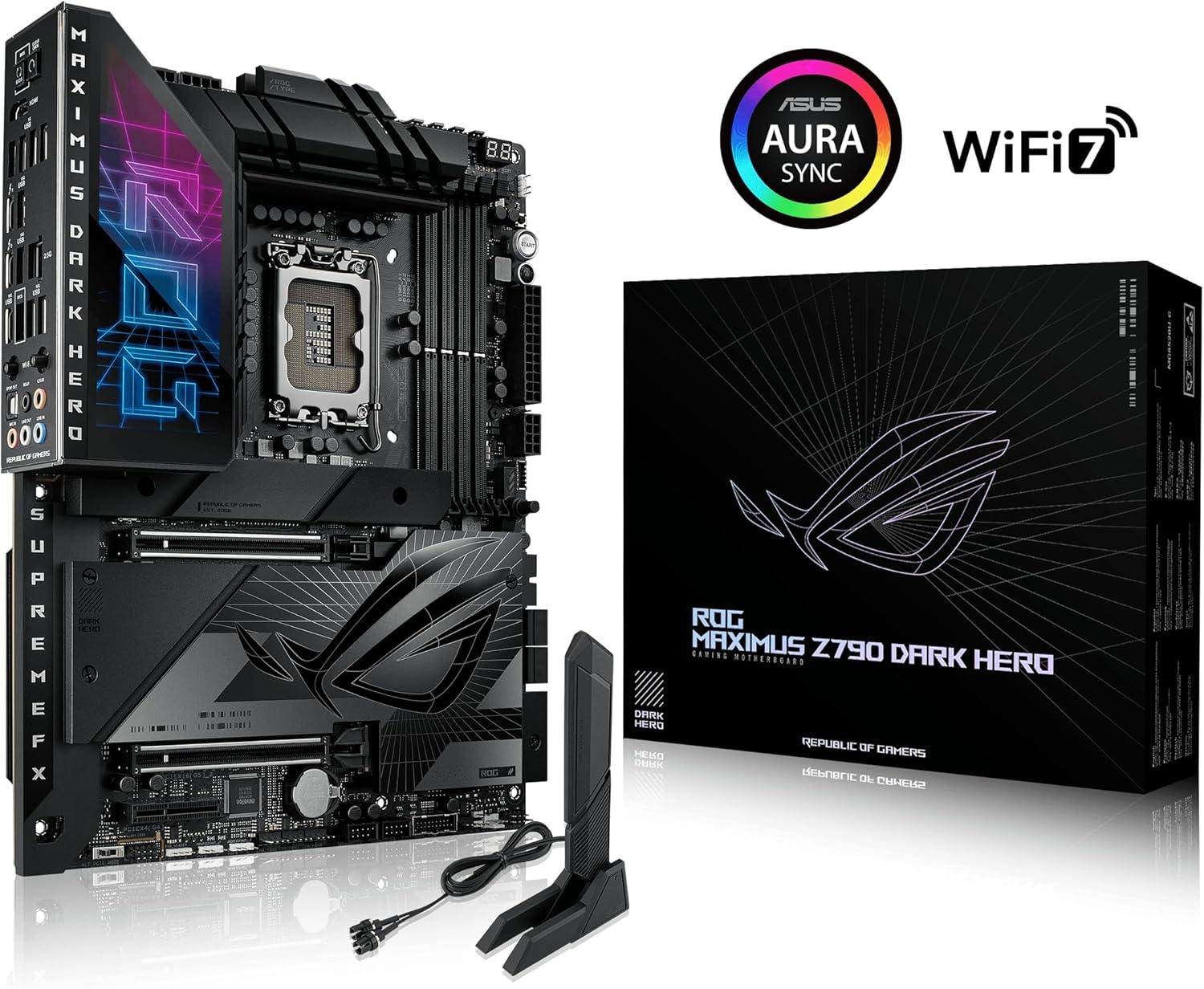

ROG MAXIMUS Z790 DARK HERO by ASUS is a Standard-ATX form factor motherboard based on the high-end Intel ® Z790 Chipset chipset and AM5 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 192 GB, and an overclocking speed of up to 8000 MHz.
VRM Quality
The ROG MAXIMUS Z790 DARK HERO features an ultra high-end VRM configuration, delivering 90 A across 20 phases. This level of VRM quality is ideal for powering the most demanding high-TDP CPUs (200 W+), including overclocked flagship models, with exceptional voltage stability and thermal headroom. Perfect for extreme overclockers, high-refresh gamers, and professionals running heavy compute or rendering workloads.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ROG MAXIMUS Z790 DARK HERO offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots , 1 x4 slot . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 5 M.2 slots (PCIe 5.0 x4 (M.2_1); PCIe 4.0 x4 (M.2_2/M.2_3/M.2_4/M.2_5)) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard provides extensive and premium connectivity options, including wireless networking with the Wi-Fi Wi‑Fi 7 (802.11be) standard, delivering fast and reliable internet speeds and wired 1 x Intel ® 2.5Gb EthernetASUS LANGuard LAN support capable of speeds up to 2500 Gbps, ensuring ultra-fast network connections. Bluetooth 5.4 is included for seamless wireless connections to peripherals. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
For video output, this motherboard includes HDMI version 2.1 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
This motherboard features an ultra-premium audio solution — the ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*; ESS ® ES9218 QUAD DAC — rivaling professional-grade DACs. With its ESS Sabre-class DAC implementation, it delivers reference-quality sound featuring exceptional clarity, dynamic range, and near-zero distortion. This is the ultimate choice for audiophiles, professional audio work, and high-impedance headphones, eliminating the need for external amplification in most cases. Additional features include optical S/PDIF output for clean digital audio, plus multiple audio jacks (5) for flexible connectivity.
Overall Quality and Value
ROG MAXIMUS Z790 DARK HERO represents the pinnacle of design and engineering with an outstanding overall quality score of 103.80. It features the absolute best components available and is built for extreme performance with no compromises—ideal for enthusiasts, overclockers, and professionals demanding flawless stability and cutting-edge features.
This motherboard shows a 28.2% value score indicating less favorable price-to-performance compared to mainstream models. This is typical for high-end motherboards, which prioritize premium features, durability, and advanced capabilities over raw value. It is an excellent choice for users who favor top quality, cutting-edge technology, and robust performance and are willing to invest more without focusing primarily on price.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | ROG MAXIMUS Z790 DARK HERO |
| Current Price Amazon | $700 |
| Amazon Price Updated | 1 week, 1 day ago. |
| Motherboard Available | True |
| Chipset / Socket | Intel ® Z790 Chipset / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 20 (90 A) |
|---|---|
| Power Design | 20 + 2 + 1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 192 GB / 8000 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 2 | 2 | 0 |
| x4 | 1 | 0 | 1 |
Storage Configuration
| M.2 Slot Count | 5 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| M.2 PCIe Modes | PCIe 5.0 x4 (M.2_1); PCIe 4.0 x4 (M.2_2/M.2_3/M.2_4/M.2_5) |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*; ESS ® ES9218 QUAD DAC |
|---|---|
| Analog Audio Jacks | 5 jacks |
| Gold-Plated Jacks | ✔️ Yes |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DP over USB-C | DisplayPort over USB-C |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 5 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 2 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
| Power Delivery (W) | 60W |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
Networking Information
| Ethernet | Chipset: 1 x Intel ® 2.5Gb EthernetASUS LANGuard LAN Ports: 2 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi‑Fi 7 (802.11be) Bandwidth: 320MHz Frequency Bands: ['2.4 GHz', '5 GHz', '6 GHz'] Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Start Button |
|---|
Quality & Features
Additional Information
| CPU Support | Intel ® Socket LGA1700 for Intel ® Core™ 14 th & 13 th Gen Processors, Intel ® Core™ 12 th Gen, Pentium ® Gold and Celeron ® Processors Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|---|---|
| OS Support | Windows ® 11, Windows ® 10 64-bit |
| RAM | 4 DIMM slots, DDR5, non-ECC un-buffered modules supported. Supports many overclocked memory speeds (listed above), with highest listed 8000+ (OC). Supports Intel XMP and ASUS Enhanced Memory Profile II (AEMP II). Supports DIMM Flex. On-Die ECC is supported by DDR5 modules but module/server ECC is not supported. Supported memory types, speeds, and number of modules vary by CPU and configuration — refer to ASUS memory support list for compatibility. |
| Display | 1 x HDMI port (HDMI 2.1) supporting 4K@60Hz. 2 x Intel Thunderbolt 4 (USB Type-C) ports support DisplayPort and Thunderbolt video outputs. VGA resolution support depends on the processor's or graphics card's capabilities. Graphics specifications may vary between CPU types; refer to intel.com for updates. |
| Expansion | Two physical PCIe 5.0 x16 slots (operable as x16 or x8/x8). One PCIe 4.0 x4 slot. Bandwidth sharing: M.2_1 shares bandwidth with PCIEX16(G5)_2 — when M.2_1 is enabled PCIEX16(G5)_2 is disabled and PCIEX16(G5)_1 will run at x8 only. Refer to ASUS PCIe bifurcation table/support page for detailed bifurcation and compatibility information. |
| Storage |
M.2 Slot Details:
Board supports 5 M.2 slots and 4 SATA 6Gb/s ports. Compatible with Intel 12th/13th/14th Gen CPUs and Intel Z790 chipset. Intel Rapid Storage Technology provides PCIe and SATA RAID (0/1/5/10). M.2 length support varies by slot (up to 22110 on M.2_1). |
| Audio | Impedance sense for front and rear headphone outputs; supports jack-detection, multi-streaming, front panel jack-retasking; 120 dB SNR stereo playback and 110 dB SNR recording; supports up to 32-bit/384 kHz playback; SupremeFX shielding technology; premium audio capacitors; rear LINE OUT port does not support spatial audio (use front-panel jack or USB audio device for spatial audio). |
| Networking | Intel Wi‑Fi 7 2x2 with MLO support (full functions available in Windows 11 24H2 or later). Wi‑Fi supports up to 5.76Gbps transfer rate. 6GHz band and bandwidth regulatory availability may vary by country. Bluetooth version may vary — refer to Wi‑Fi module manufacturer for latest specs. Listed as having 1 x Wi‑Fi Module. |
| Buttons | Additional onboard controls: FlexKey button (programmable), Start button (onboard power), ReTry button (reset/boot recovery). Also includes a CPU over voltage jumper and an Alternative PCIe mode switch. BIOS FlashBack and Clear CMOS buttons are present (captured above). |

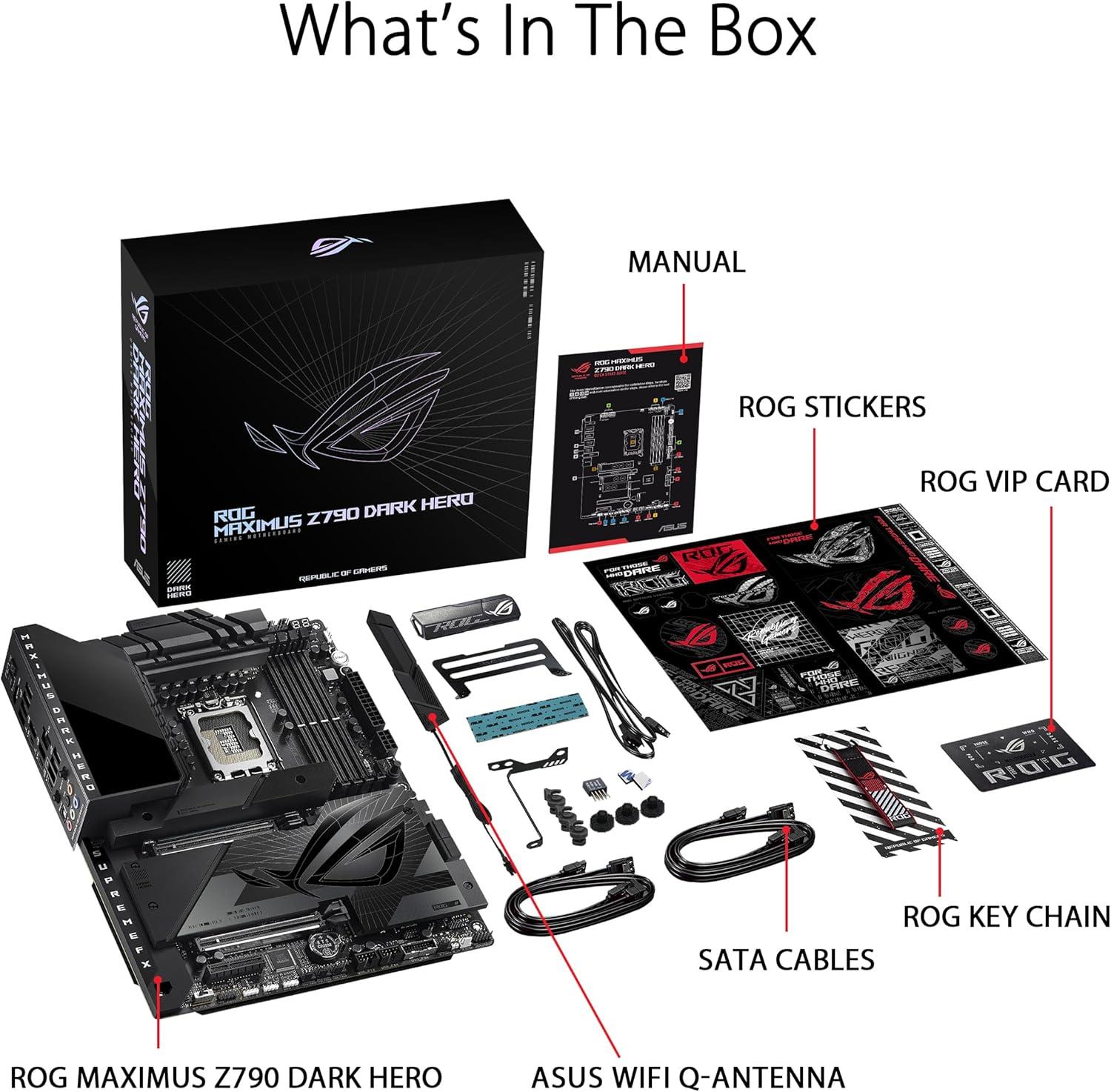

| Accessories | Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 1 x DDR5 fan holder Miscellaneous 1 x ASUS WiFi Q-Antenna 3 x M.2 backplate Q-Latch packages 3 x M.2 backplate Rubber Packages 1 x Q-connector 1 x ROG stickers 1 x ROG key chain 1 x M.2 rubber package 1 x ROG VIP card Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide |
| Dimensions | ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ROG MAXIMUS Z790 DARK HERO Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$796
|
0.0%
|
105.4%
|
110.0%
|
99.0%
|
110.0%
|
110.0%
|
98.0%
|
25.2%
|
|
|
$700
|
0.0%
|
103.8%
|
95.0%
|
100.0%
|
110.0%
|
110.0%
|
104.0%
|
28.2%
|
|
|
$565
|
0.0%
|
103.4%
|
103.0%
|
100.0%
|
103.0%
|
110.0%
|
101.0%
|
34.8%
|
|
|
$700
|
0.0%
|
103.2%
|
98.0%
|
100.0%
|
110.0%
|
110.0%
|
98.0%
|
28.0%
|
|
|
$400
|
0.0%
|
102.6%
|
103.0%
|
100.0%
|
109.0%
|
110.0%
|
91.0%
|
48.7%
|
|
|
$800
|
0.0%
|
102.4%
|
98.0%
|
97.0%
|
110.0%
|
109.0%
|
98.0%
|
24.3%
|
|
|
$450
|
0.0%
|
101.6%
|
95.0%
|
100.0%
|
110.0%
|
99.0%
|
104.0%
|
42.9%
|
|
|
$700❗
|
↑
14.8%
|
101.2%
|
101.0%
|
93.0%
|
110.0%
|
104.0%
|
98.0%
|
27.5%
|
|
|
$727
|
0.0%
|
100.6%
|
103.0%
|
97.0%
|
107.0%
|
105.0%
|
91.0%
|
26.3%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$796
|
0.0%
|
$700
|
0.0%
|
$565
|
0.0%
|
$700
|
0.0%
|
$400
|
0.0%
|
$800
|
0.0%
|
$450
|
0.0%
|
$700❗
|
↑
14.8%
|
$727
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | MSI | ASUS | ASUS | MSI | ASUS | GIGABYTE | ASUS | MSI | ASUS | ||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | X870E / AM5 | Intel ® Z790 Chipset / AM5 | X870E / AM5 | AMD X870E / AM5 | X870E / AM5 | X870E / AM5 | Intel ® Z790 Chipset / AM5 | X670E / AM5 | AMD X870E / AM5 | ||||||||||||||||||||||||||||||||||||||||||||||
| Form | E-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 24 (110 A) | 20 (90 A) | 18 (110 A) | 18 (110 A) | 18 (110 A) | 18 (110 A) | 20 (90 A) | 22 (90 A) | 18 (110 A) | ||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 24+2+1 | 20 + 2 + 1 | 18(110A)+ 2(110A)+ 2(80A) | 18 + 2 + 1 | 18(110A)+ 2(110A)+ 2(80A) | 18+2+2 | 20+1+2 | 22+2+1 | 18 + 2 + 2 | ||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 9000 MHz | 192 GB / 8000 MHz | 256 GB / 8600 MHz | 256 GB / 8400 MHz | 256 GB / 8400 MHz | 256 GB / 8800 MHz | 192 GB / 7800 MHz | 256 GB / 8000 MHz | 128 GB / 9600 MHz | ||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 (when used with AMD Ryzen 9000 & 7000 series CPUs) | ||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 2x16 Gen5 | 1x4 Gen4 | 2x16 Gen5 | 1x4 Gen4 | 2x16 Gen5 | 2x16 Gen5 | 1x4 Gen5 | 1x16 Gen5 | 2x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 3x16 Gen5 | 2x16 Gen5 | 1x4 Gen4 | 1x1 Gen3 | ||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 7 | 5 | 5 | 5 | 5 | 4 | 5 | 4 | 5 | ||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 6 | 6 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC4082 Codec + ESS9… | ROG SupremeFX 7.1 Surround So… | ALC4082, ESS® ES9219 QUAD DAC | Realtek ® ALC4082 Codec + ESS… | ALC4080 | Realtek ALC1220, ESS ES9118 D… | ROG SupremeFX 7.1 Surround So… | Realtek® ALC4082 Codec + ESS … | ALC4080 | ||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ❌ | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1 FRL) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||
| LAN | 1x Marvell® AQC113CS 10G… (2 ports) | 1 x Intel ® 2.5Gb Ethern… (2 ports) | Ethernet 1 x Intel® 2.5G… (2 ports) | 1x Marvell ® AQC113CS 10… (2 ports) | 1 x Realtek 5Gb Ethernet (2 ports) | 2 x Marvell® AQtion AQC1… (2 ports) | 1 x Intel ® 2.5Gb Ethern… (1 ports) | Marvell® AQC113CS-B1-C 1… (1 ports) | 1 x Realtek 5Gb Ethernet… (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi Wi‑Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 7 (802.11be) | ||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.3 | v5.3 | v5.3 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
❌ |
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
❌ |
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$899
|
0.0%
|
100.0%
|
95.5%
|
200 W / 270 W | 16 / 0 / 32 | 1024.0 kB / 192.0 MB | 4.30 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$670
|
0.0%
|
95.6%
|
94.9%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$507
|
↓
-0.6%
|
93.0%
|
82.2%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$501
|
0.0%
|
87.0%
|
79.7%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.50 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$500❗
|
0.0%
|
76.1%
|
92.0%
|
120 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$308
|
↑
0.9%
|
69.6%
|
78.7%
|
170 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.70 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$484
|
↓
-1.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$170
|
↑
2.4%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics |
Official Manufacturer Data
Memory:
8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel ® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
Supports DIMM Flex
* Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics:
2 x Intel ® Thunderbolt™ 4 ports (USB Type-C ® ) support DisplayPort and Thunderbolt™ video outputs***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.
Storage:
Intel ® Core TM Processors (14 th & 13 th & 12 th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.)
Intel ® Z790 Chipset**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel ® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
Expansion Slots:
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
Intel ® Z790 Chipset
1 x PCIe 4.0 x4 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
USB:
2 x Thunderbolt™ 4 ports (2 x USB Type-C ® )
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C ® )
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C ® with up to 60W PD/QC4+)**
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
*USB Type-C ® power delivery output: max. 5V/3A
** USB Type-C ® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

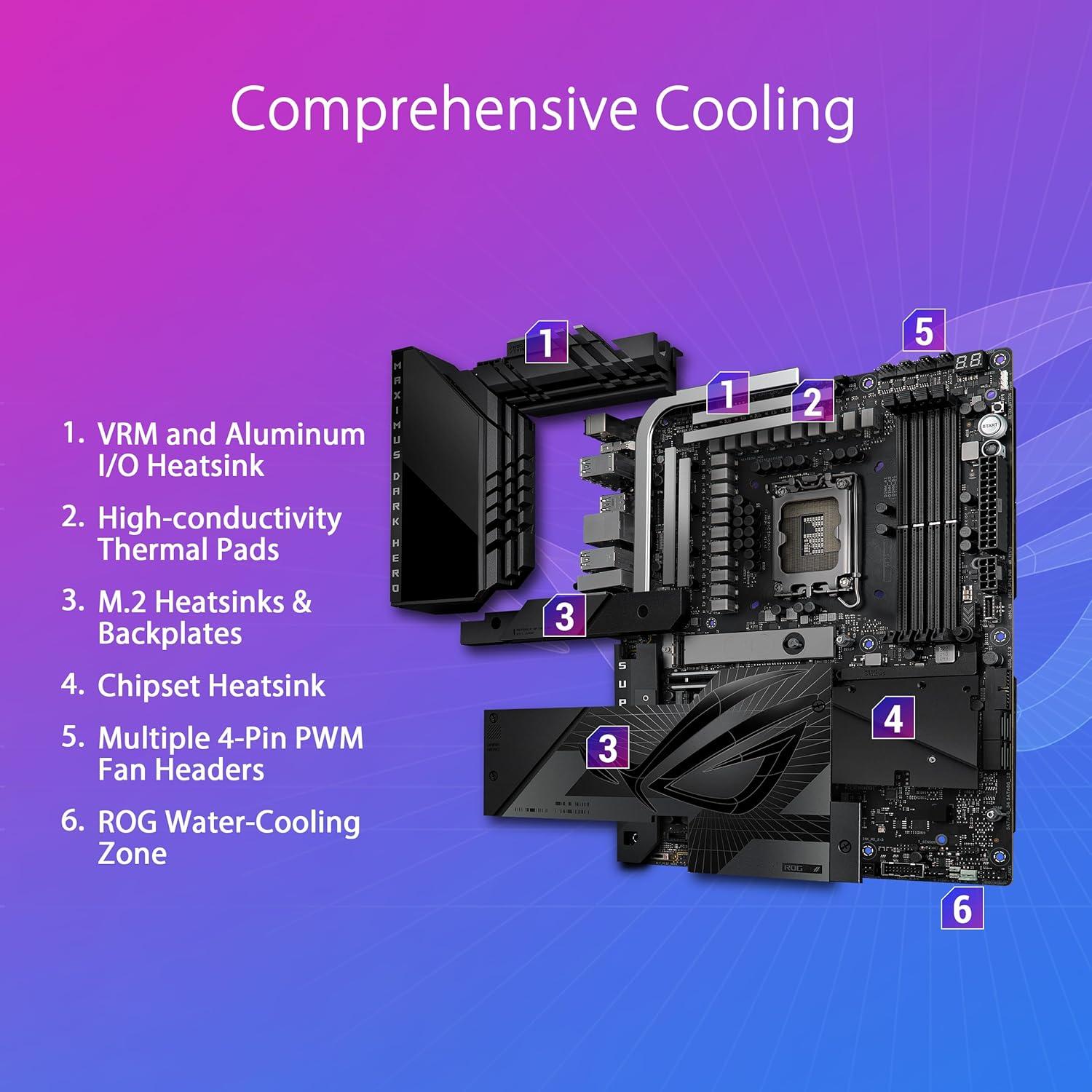

Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin main power connector
2 x 8-pin +12V power connector
1 x 8-pin PCIe power connector
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C ® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x ReTry button
1 x 10-1 pin system panel header
1 x Thermal sensor header
1 x CPU over voltage jumper
1 x Alternative PCIe mode switch

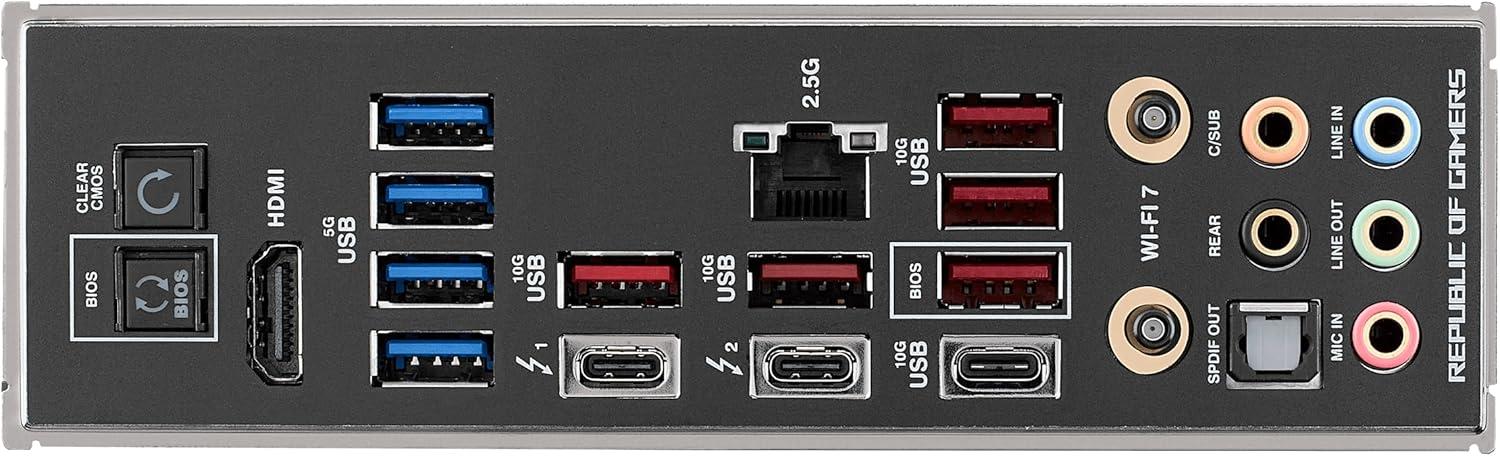

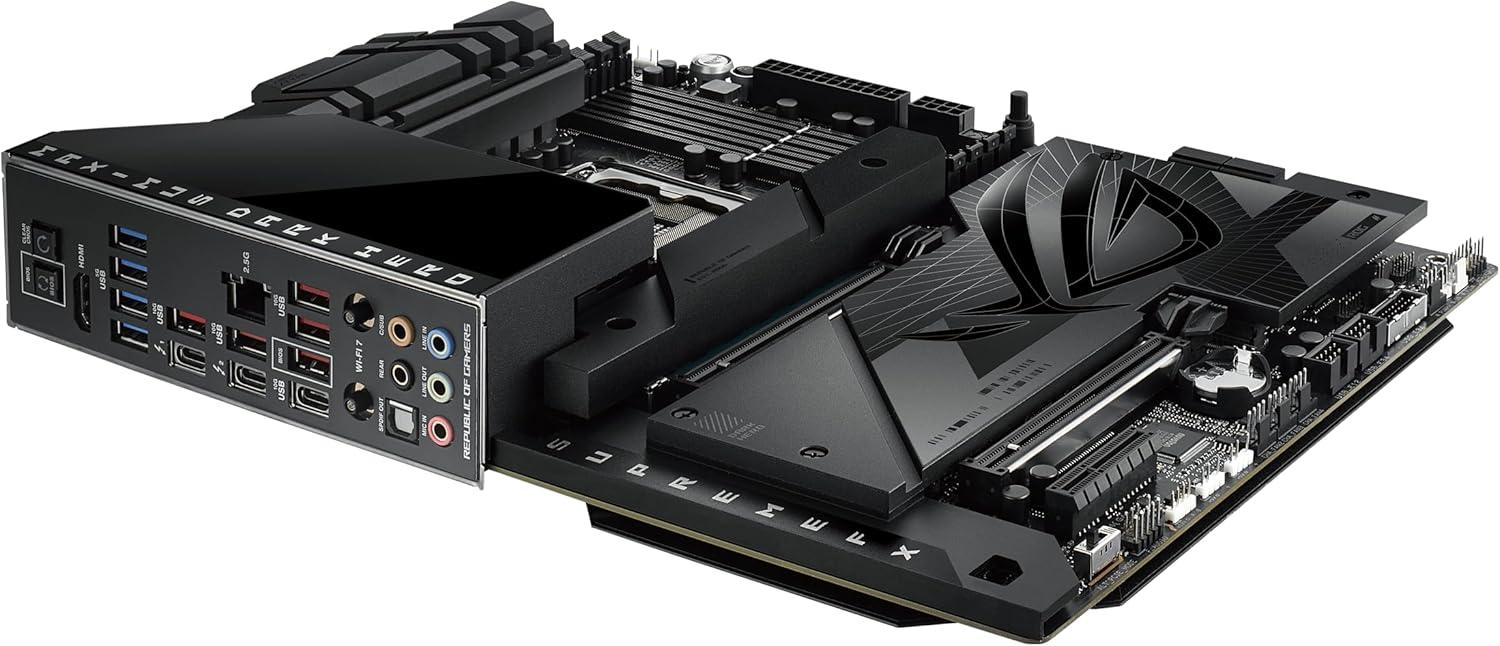

Back Panel I/O:
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C ® )
4 x USB 5Gbps ports (4 x Type-A)
1 x HDMI TM port
1 x Wi-Fi Module
1 x Intel ® 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
WiFi:
2x2 Wi-Fi 7 (802.11be)**
Supports 2.4/5/6GHz frequency band***
Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.
Bluetooth ® v5.4****
* Compatible with Windows 11 or later.
** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.
*** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
**** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio:
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- ESS ® ES9218 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
*The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Special Features:
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release

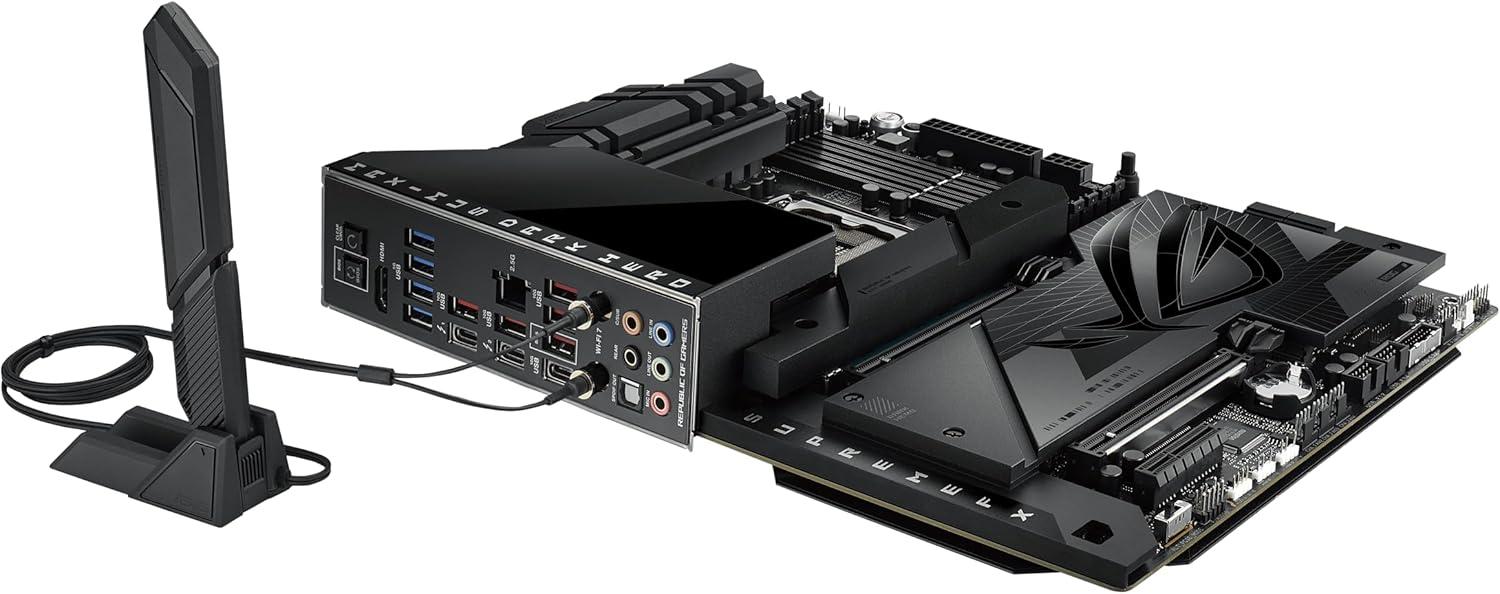

- Q-Antenna
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
Front Panel USB 20G with Quick Charge 4+ Support
- Support: up to 60W fast charging and USB Wattage Watcher*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to 8-pin PCIe power connector or else only 27W will be supported.
Add Comment on ROG MAXIMUS Z790 DARK HERO
