MEG X870E ACE MAX
MEG X870E ACE MAX Specifications Review

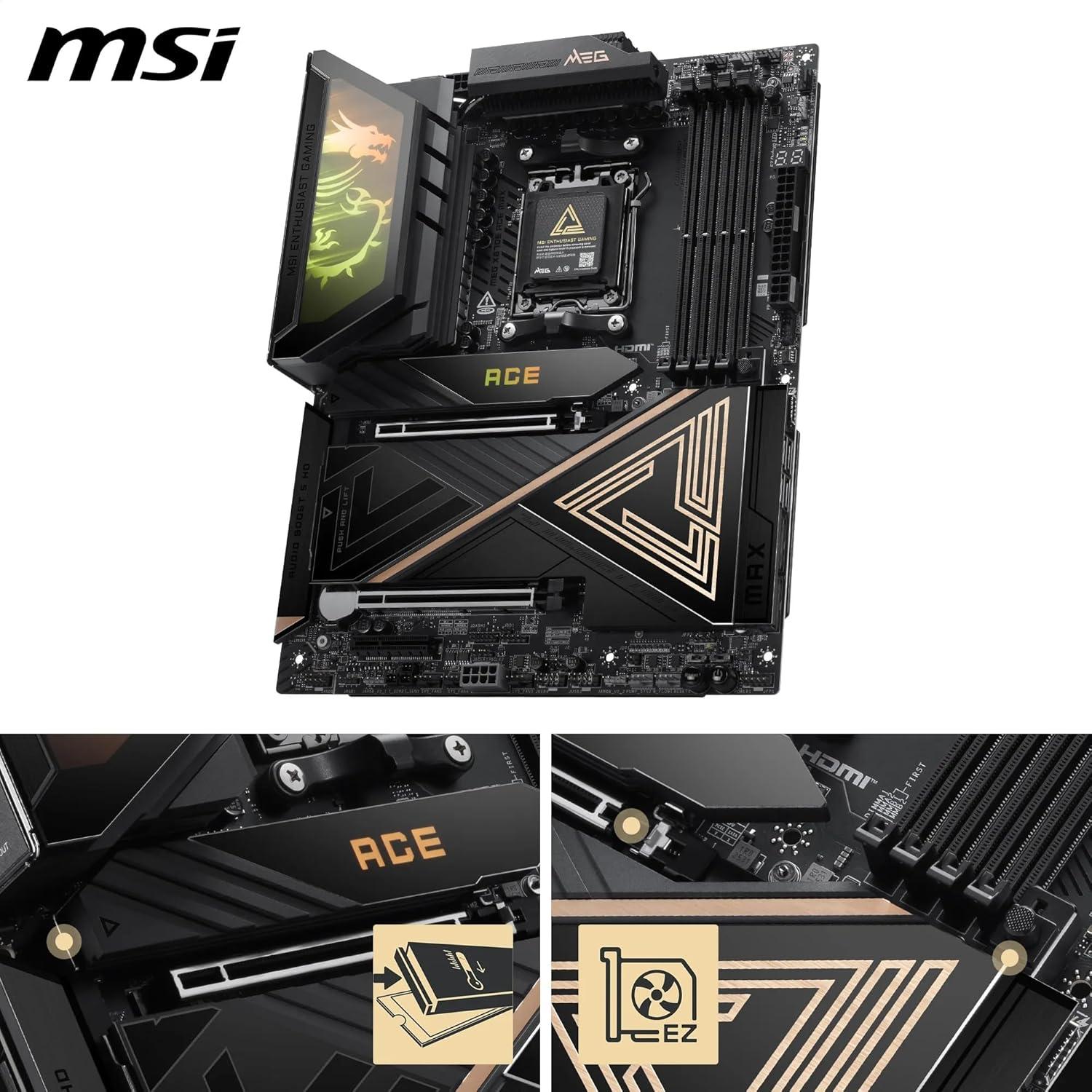

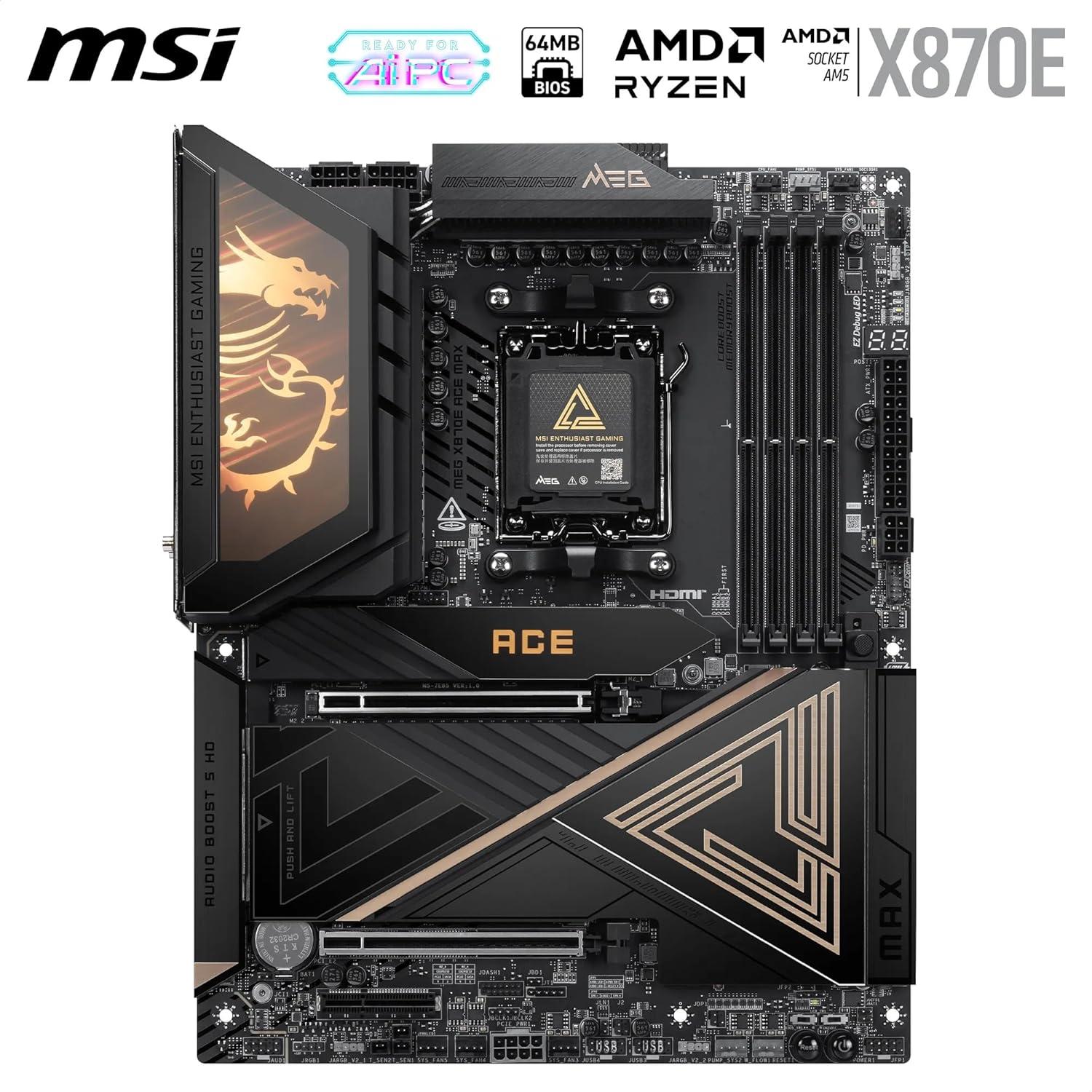

MEG X870E ACE MAX by MSI is a Standard-ATX form factor motherboard based on the high-end AMD X870E chipset and AM5 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8400 MHz.

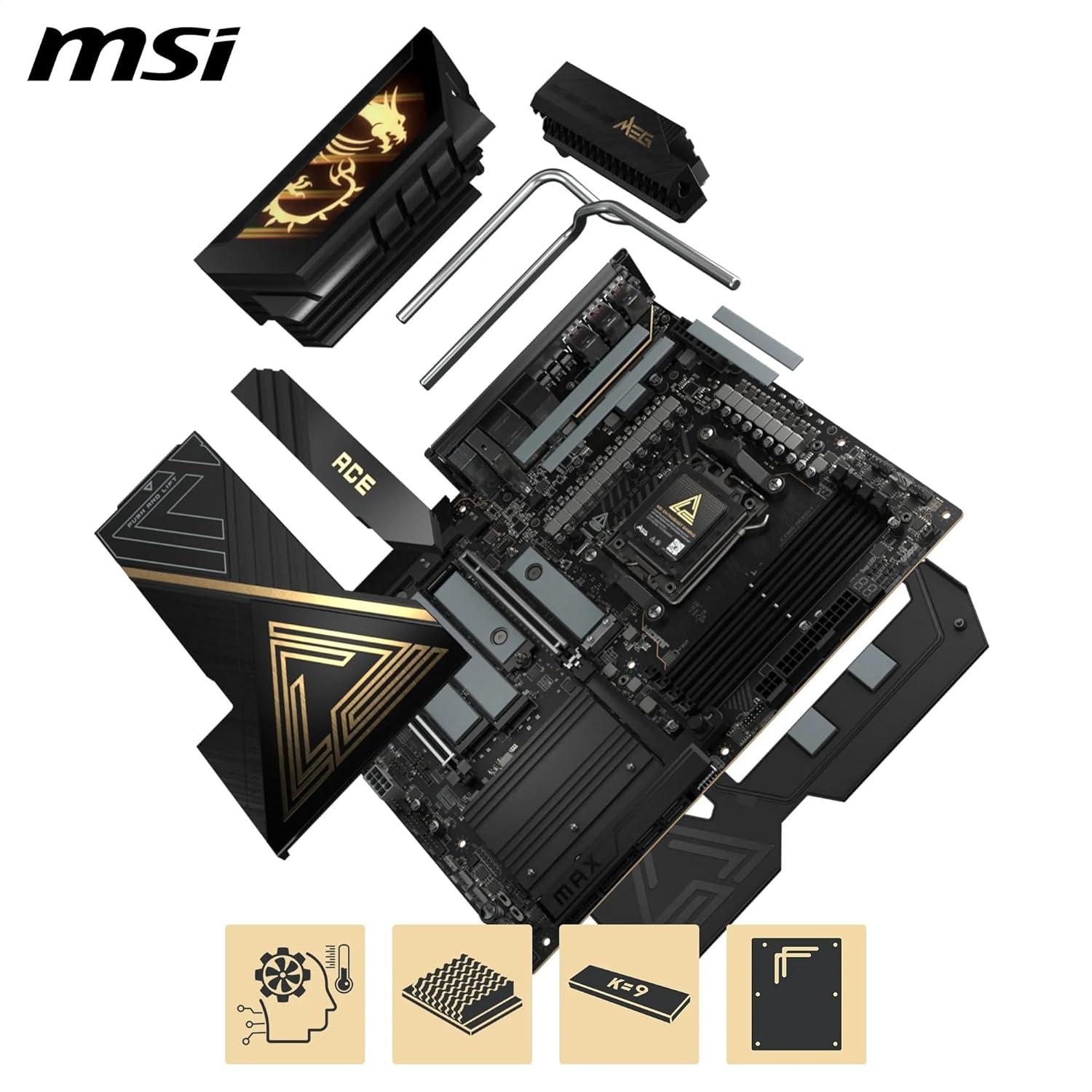

VRM Quality
The MEG X870E ACE MAX features an ultra high-end VRM configuration, delivering 110 A across 18 phases. This level of VRM quality is ideal for powering the most demanding high-TDP CPUs (200 W+), including overclocked flagship models, with exceptional voltage stability and thermal headroom. Perfect for extreme overclockers, high-refresh gamers, and professionals running heavy compute or rendering workloads.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview

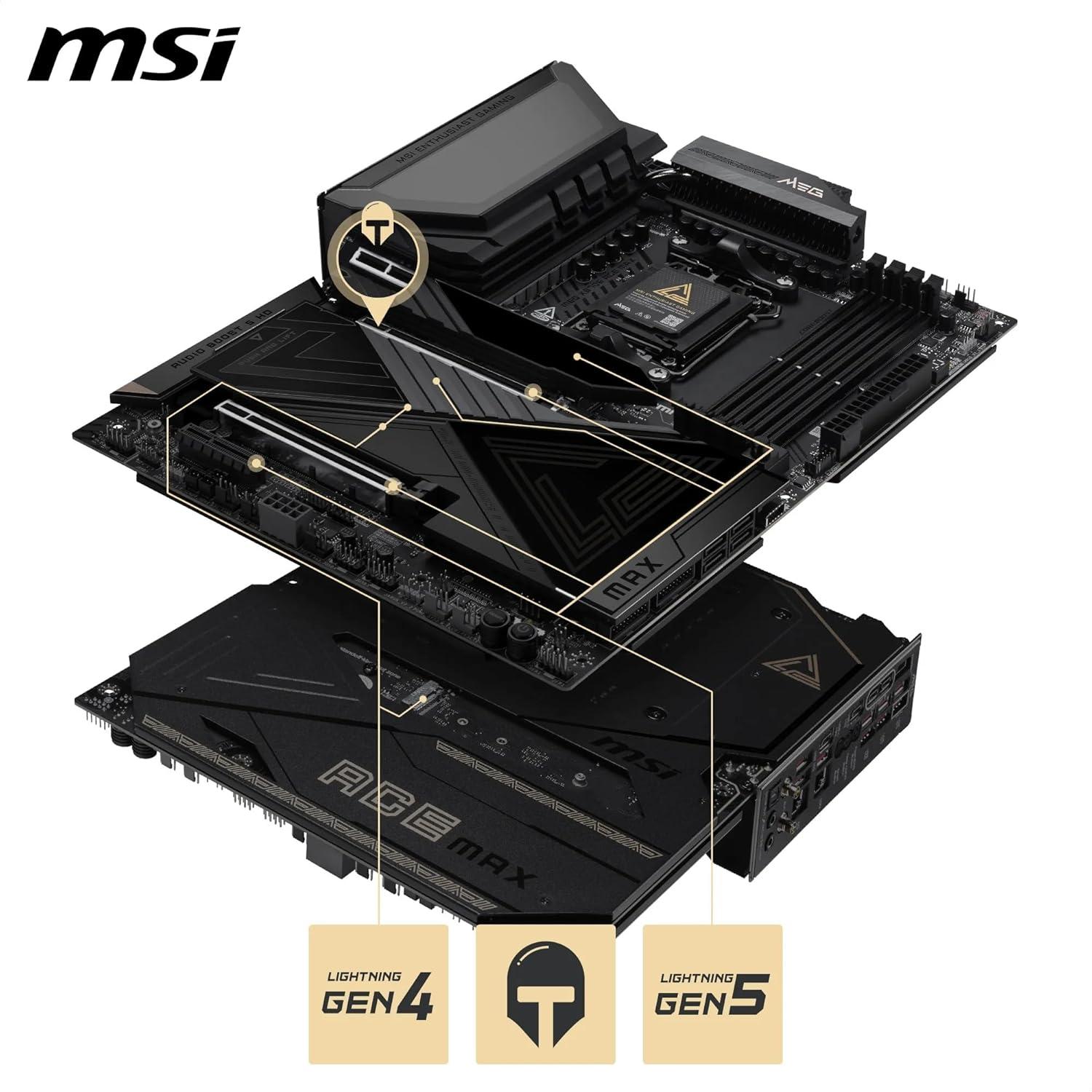

The MEG X870E ACE MAX offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots , 1 x4 slot . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 5 M.2 slots (NVMe (PCIe x4); no M.2 SATA mode specified) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard provides extensive and premium connectivity options, including wireless networking with the wireless Wi-Fi 7 (802.11be) and wired 1x Marvell ® AQC113CS 10Gbps LAN, 1x Realtek ® 8126 5Gbps LAN LAN support capable of speeds up to 10000 Gbps, ensuring ultra-fast network connections. Bluetooth 5.4 is included for seamless wireless connections to peripherals. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
For video output, this motherboard includes HDMI version 2.1 FRL , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
This motherboard features an ultra-premium audio solution — the Realtek ® ALC4082 Codec + ESS9219Q Combo DAC/HPA — rivaling professional-grade DACs. With its ESS Sabre-class DAC implementation, it delivers reference-quality sound featuring exceptional clarity, dynamic range, and near-zero distortion. This is the ultimate choice for audiophiles, professional audio work, and high-impedance headphones, eliminating the need for external amplification in most cases. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
MEG X870E ACE MAX represents the pinnacle of design and engineering with an outstanding overall quality score of 103.20. It features the absolute best components available and is built for extreme performance with no compromises—ideal for enthusiasts, overclockers, and professionals demanding flawless stability and cutting-edge features.
This motherboard shows a 28.0% value score indicating less favorable price-to-performance compared to mainstream models. This is typical for high-end motherboards, which prioritize premium features, durability, and advanced capabilities over raw value. It is an excellent choice for users who favor top quality, cutting-edge technology, and robust performance and are willing to invest more without focusing primarily on price.
General Information
| Manufacturer | MSI |
|---|---|
| Motherboard Name | MEG X870E ACE MAX |
| Current Price Amazon | $700 |
| Amazon Price Updated | 3 hours, 26 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | AMD X870E / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 18 (110 A) |
|---|---|
| Power Design | 18 + 2 + 1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8400 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 |
|---|---|---|
| x16 | 2 | 2 |
| x4 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 5 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260 |
| M.2 PCIe Modes | NVMe (PCIe x4); no M.2 SATA mode specified |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek ® ALC4082 Codec + ESS9219Q Combo DAC/HPA |
|---|---|
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 FRL (Max: 8K@60Hz) |
|---|---|
| DP over USB-C | DisplayPort over USB-C - Version 1.4 (HBR3) (Max: 4K@120Hz) |

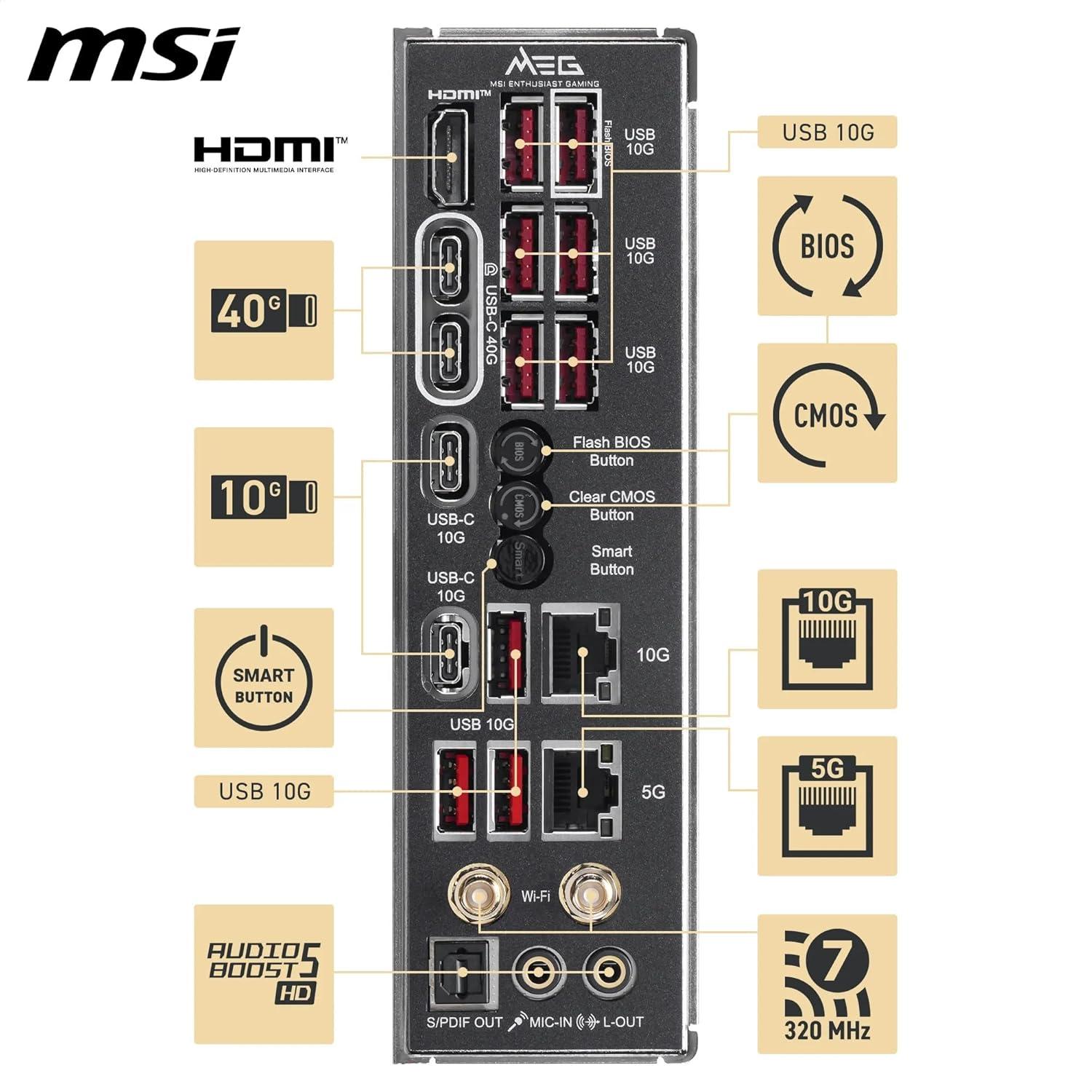

USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 2 Type-A (10 Gbps) | 9 |
|---|---|
| USB 3.2 Gen 2 Type-C (10 Gbps) | 2 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 2 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: 1x Marvell ® AQC113CS 10Gbps LAN, 1x Realtek ® 8126 5Gbps LAN LAN Ports: 2 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 7 (802.11be) Bandwidth: 320MHz (up to 5.8Gbps) Frequency Bands: ['2.4GHz', '5GHz', '6GHz'] |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Smart Button |
|---|
Quality & Features
Additional Information
| CPU Support | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors, Socket AM5, |
|---|---|
| OS Support | Support for Windows ® 11 64-bit, |
| RAM | Supports AMD POR speed and JEDEC speed. Supports memory overclocking and AMD EXPO; manual overclocking available after boot. CUDIMM supported only in clock-driver bypass mode. DIMM slots have single-sided latches. POR boot frequency and CUDIMM support may vary by CPU series; some CPUs may fail to boot until BIOS updates improve compatibility. Memory compatibility and supported speeds depend on CPU and memory configuration — consult the vendor Memory Compatibility List on the product support page (https://www.msi.com/support/). |
| Display | 1x HDMI (HDMI 2.1 FRL). 2x USB Type-C (USB4) ports provide DisplayPort 1.4 with HBR3 over USB Type-C. HDMI maximum 8K@60Hz and DP over Type-C maximum 4K@120Hz are available only on processors featuring integrated graphics. Graphics specifications may vary depending on the installed CPU. |
| Expansion | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU), PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU), • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors), • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors), • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors), * PCI_E3 & M.2_1 share the bandwidth. M.2_1 will run at x2 speed when installing device in the PCI_E3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M.2_1 slot. |
| Storage |
M.2 Slot Details:
5x M.2 slots (two CPU-fed supporting up to PCIe 5.0 on select CPUs, three chipset-fed at PCIe 4.0). 4x SATA 6G ports. M.2_2 may be unavailable on Ryzen 8500/8300 CPUs. BIOS options can change M.2_1/M.2_2 speeds but will disable PCI_E3 or USB Type-C respectively. Heatsink restrictions apply for M.2 SSDs per manual. RAID support differs by device type and some RAID levels require Ryzen 9000/7000 series CPUs. |
| Audio | 7.1-Channel USB high-performance audio; supports S/PDIF output; supports up to 32-Bit/384 kHz playback on front panel; HD Audio connectors; combo DAC/HPA included (ESS9219Q). |
| Networking | Wireless module pre-installed in M.2 Key-E slot. Supports MU-MIMO TX/RX, MLO, 4KQAM. Wi-Fi 7 up to 320MHz channels and up to 5.8Gbps; 6GHz band support may depend on country regulations and Windows 11 readiness. Bluetooth 5.4 support/versions may be updated per chipset vendor/MSFT schedule. Ethernet: 1x Marvell AQC113CS (10Gbps) and 1x Realtek 8126 (5Gbps). |
| Buttons | No Q-Flash Plus mentioned. Rear I/O and features include USB 40Gbps (Type-C), USB 20Gbps (Type-C), USB 10Gbps (Type-C and Type-A), USB 5Gbps Type-A ports, USB 2.0 ports, HDMI 2.1, Optical S/PDIF-Out, 10G LAN, 5G LAN, Wi‑Fi/Bluetooth, and HD audio. Power connectors: 1x ATX_PWR, 2x CPU_PWR, 1x PCIe_PWR (8-pin), 1x Front Type-C Quick Charge (PD_PWR1). Headers and sensors: 1x CPU fan, 2x PUMP_SYS fan, 5x system fan, 1x ARGB+FAN+USB2.0 header (JAF_2), 2x front panel (JFP), 1x chassis intrusion (JCI), 1x water flow connector, 1x front audio (JAUD), 2x thermal sensor connectors (T_SEN), 1x tuning controller (JDASH), 3x addressable V2 RGB (JARGB_V2), 1x RGB (JRGB), TPM header (supports TPM 2.0), V-check points, and 2x BCLK frequency jumpers (JBCLK). |
| Accessories | , |
| Dimensions | ATX, 243.84mmx304.8mm, |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
MEG X870E ACE MAX Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$796
|
0.0%
|
105.4%
|
110.0%
|
99.0%
|
110.0%
|
110.0%
|
98.0%
|
25.2%
|
|
|
$700❗
|
0.0%
|
103.8%
|
95.0%
|
100.0%
|
110.0%
|
110.0%
|
104.0%
|
28.2%
|
|
|
$558
|
↓
-2.1%
|
103.4%
|
103.0%
|
100.0%
|
103.0%
|
110.0%
|
101.0%
|
35.2%
|
|
|
$700
|
0.0%
|
103.2%
|
98.0%
|
100.0%
|
110.0%
|
110.0%
|
98.0%
|
28.0%
|
|
|
$400
|
0.0%
|
102.6%
|
103.0%
|
100.0%
|
109.0%
|
110.0%
|
91.0%
|
48.7%
|
|
|
$800
|
0.0%
|
102.4%
|
98.0%
|
97.0%
|
110.0%
|
109.0%
|
98.0%
|
24.3%
|
|
|
$796
|
↑
59.1%
|
101.6%
|
95.0%
|
100.0%
|
110.0%
|
99.0%
|
104.0%
|
24.3%
|
|
|
$700❗
|
↑
14.8%
|
101.2%
|
101.0%
|
93.0%
|
110.0%
|
104.0%
|
98.0%
|
27.5%
|
|
|
$727
|
0.0%
|
100.6%
|
103.0%
|
97.0%
|
107.0%
|
105.0%
|
91.0%
|
26.3%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$796
|
0.0%
|
$700❗
|
0.0%
|
$558
|
↓
-2.1%
|
$700
|
0.0%
|
$400
|
0.0%
|
$800
|
0.0%
|
$796
|
↑
59.1%
|
$700❗
|
↑
14.8%
|
$727
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | MSI | ASUS | ASUS | MSI | ASUS | GIGABYTE | ASUS | MSI | ASUS | ||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | X870E / AM5 | Intel ® Z790 Chipset / AM5 | X870E / AM5 | AMD X870E / AM5 | X870E / AM5 | X870E / AM5 | Intel ® Z790 Chipset / AM5 | X670E / AM5 | AMD X870E / AM5 | ||||||||||||||||||||||||||||||||||||||||||||||
| Form | E-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 24 (110 A) | 20 (90 A) | 18 (110 A) | 18 (110 A) | 18 (110 A) | 18 (110 A) | 20 (90 A) | 22 (90 A) | 18 (110 A) | ||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 24+2+1 | 20 + 2 + 1 | 18(110A)+ 2(110A)+ 2(80A) | 18 + 2 + 1 | 18(110A)+ 2(110A)+ 2(80A) | 18+2+2 | 20+1+2 | 22+2+1 | 18 + 2 + 2 | ||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 9000 MHz | 192 GB / 8000 MHz | 256 GB / 8600 MHz | 256 GB / 8400 MHz | 256 GB / 8400 MHz | 256 GB / 8800 MHz | 192 GB / 7800 MHz | 256 GB / 8000 MHz | 128 GB / 9600 MHz | ||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 (when used with AMD Ryzen 9000 & 7000 series CPUs) | ||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 2x16 Gen5 | 1x4 Gen4 | 2x16 Gen5 | 1x4 Gen4 | 2x16 Gen5 | 2x16 Gen5 | 1x4 Gen5 | 1x16 Gen5 | 2x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 3x16 Gen5 | 2x16 Gen5 | 1x4 Gen4 | 1x1 Gen3 | ||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 7 | 5 | 5 | 5 | 5 | 4 | 5 | 4 | 5 | ||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 6 | 6 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC4082 Codec + ESS9… | ROG SupremeFX 7.1 Surround So… | ALC4082, ESS® ES9219 QUAD DAC | Realtek ® ALC4082 Codec + ESS… | ALC4080 | Realtek ALC1220, ESS ES9118 D… | ROG SupremeFX 7.1 Surround So… | Realtek® ALC4082 Codec + ESS … | ALC4080 | ||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ❌ | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1 FRL) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||
| LAN | 1x Marvell® AQC113CS 10G… (2 ports) | 1 x Intel ® 2.5Gb Ethern… (2 ports) | Ethernet 1 x Intel® 2.5G… (2 ports) | 1x Marvell ® AQC113CS 10… (2 ports) | 1 x Realtek 5Gb Ethernet (2 ports) | 2 x Marvell® AQtion AQC1… (2 ports) | 1 x Intel ® 2.5Gb Ethern… (1 ports) | Marvell® AQC113CS-B1-C 1… (1 ports) | 1 x Realtek 5Gb Ethernet… (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi Wi‑Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 7 (802.11be) | ||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.3 | v5.3 | v5.3 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
❌ |
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
❌ |
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$896
|
0.0%
|
100.0%
|
95.5%
|
200 W / 270 W | 16 / 0 / 32 | 1024.0 kB / 192.0 MB | 4.30 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$670
|
0.0%
|
95.6%
|
94.9%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$511
|
↑
2.2%
|
93.0%
|
82.2%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$501
|
0.0%
|
87.0%
|
79.7%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.50 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$500
|
0.0%
|
76.1%
|
92.0%
|
120 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$316
|
↓
0.0%
|
69.6%
|
78.7%
|
170 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.70 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics |
Official Manufacturer Data
Memory:
• 1DPC 1R Max speed up to 8400+ MT/s,
• 1DPC 2R Max speed up to 6400+ MT/s,
• 2DPC 1R Max speed up to 6400+ MT/s,
• 2DPC 2R Max speed up to 6400+ MT/s, , Supports AMD POR Speed and JEDEC Speed,
Supports Memory Overclocking and AMD EXPO™,
Supports Dual-Channel mode,
Supports Non-ECC, Un-buffered memory,
Supports CUDIMM, Clock Driver bypass mode only*, , * The DIMM slots on this motherboard only have single-sided latches., ** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility., *** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/,
Graphics:
Storage:
M.2_1:,
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors),
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors),
M.2_2:,
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors),
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors), ,
* The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.,
** M.2_1 & PCI_E3 share the bandwidth. M.2_1 will run at x2 speed when installing device in the PCI_E3 slot. You can switch M.2_1 slot to x4 in the BIOS, but this will disable the PCI_E3 slot.,
*** USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M.2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports., **** Please refer to the manual for M.2 SSD heatsink restrictions.,, Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices,
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices, , *RAID 5/ 10 configuration is only supported by Ryzen™ 9000/ 7000 series processors.,
Expansion Slots:
PCI_E1 & PCI_E2 slots,
• Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors),
• Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors),
• Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors), , * PCI_E3 & M.2_1 share the bandwidth. M.2_1 will run at x2 speed when installing device in the PCI_E3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M.2_1 slot., ** Please refer to the PCIe configuration table in the manual for more details.,
USB:
Internal I/O:
Back Panel I/O:
WiFi:
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps,
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be, , Supports Bluetooth ® 5.4**, MLO, 4KQAM, , * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.,
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.,
Audio:
Supports S/PDIF output,
Supports up to 32-Bit/384 kHz playback on front panel,
