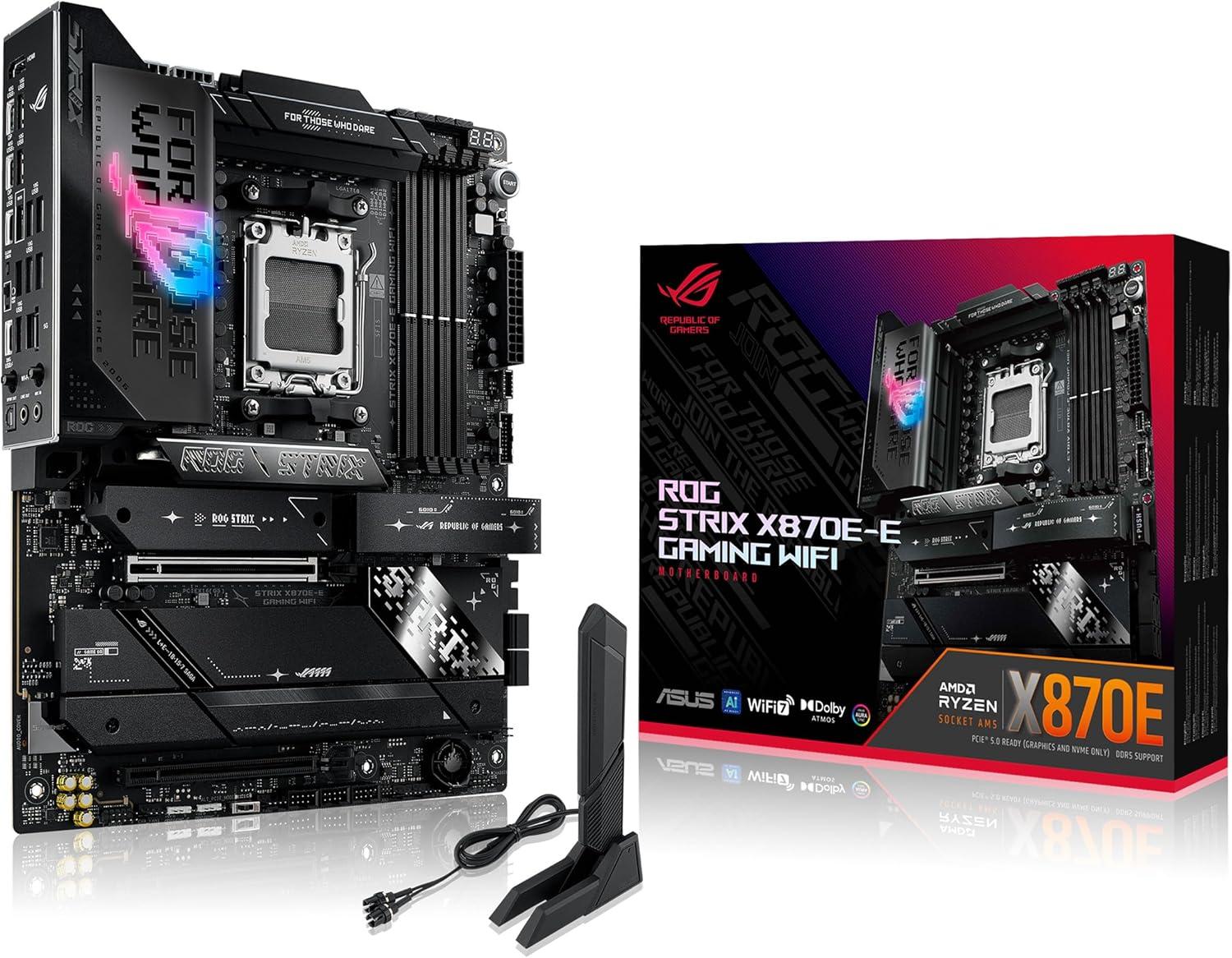

ASUS ROG Strix X870E-E Gaming WiFi
ASUS ROG Strix X870E-E Gaming WiFi Specifications Review

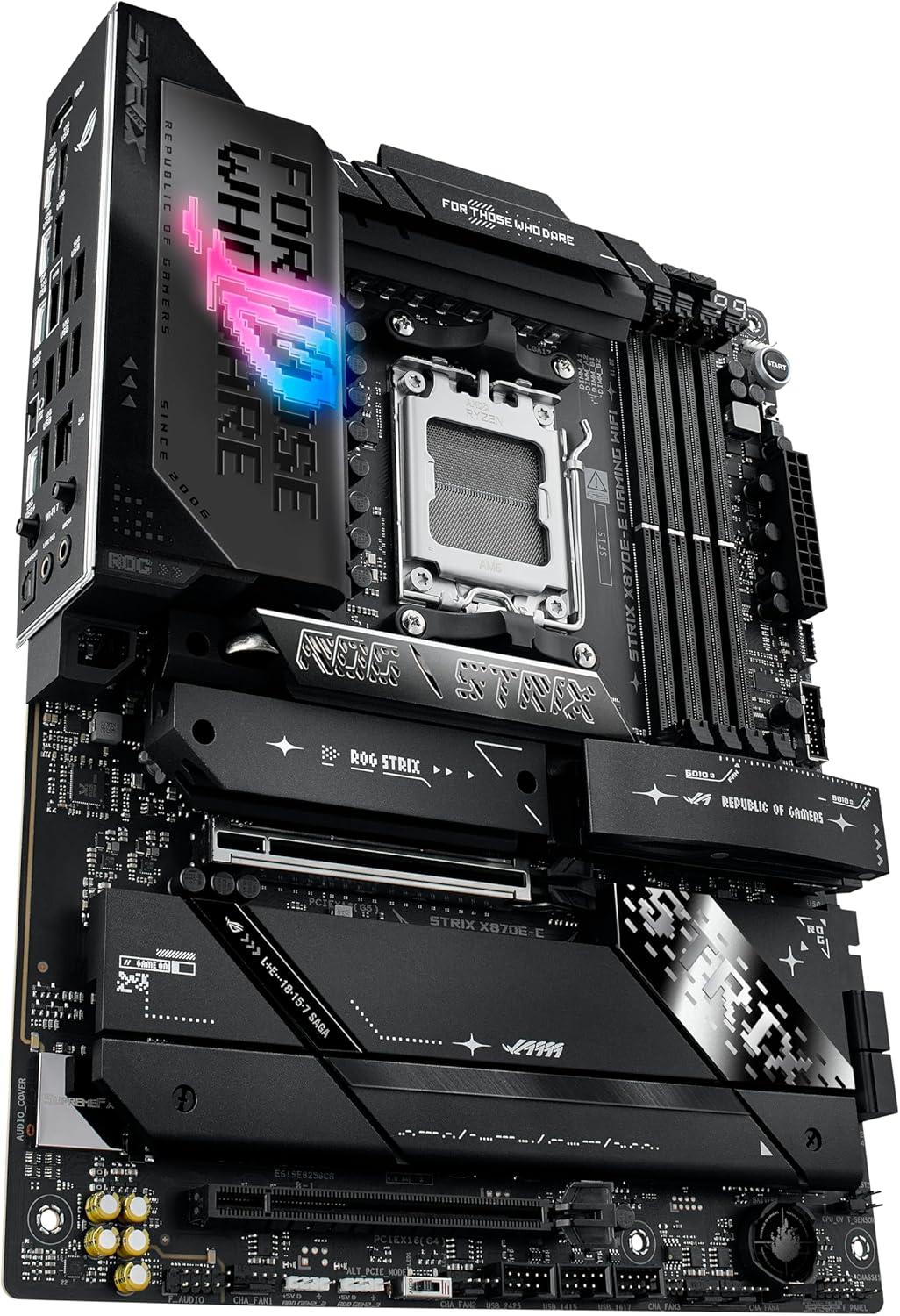

ASUS ROG Strix X870E-E Gaming WiFi by ASUS is a Standard-ATX form factor motherboard based on the high-end X870E chipset and AM5 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8400 MHz.
VRM Quality
The ASUS ROG Strix X870E-E Gaming WiFi features an ultra high-end VRM configuration, delivering 110 A across 18 phases. This level of VRM quality is ideal for powering the most demanding high-TDP CPUs (200 W+), including overclocked flagship models, with exceptional voltage stability and thermal headroom. Perfect for extreme overclockers, high-refresh gamers, and professionals running heavy compute or rendering workloads.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASUS ROG Strix X870E-E Gaming WiFi offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 3 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 5 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard provides extensive and premium connectivity options, including wireless networking with the Wi-Fi 7 (802.11be) standard, delivering fast and reliable internet speeds and wired 1 x Realtek 5Gb Ethernet LAN support capable of speeds up to 5000 Gbps, ensuring ultra-fast network connections. Bluetooth 5.4 is included for seamless wireless connections to peripherals. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
For video output, this motherboard includes HDMI version 2.1 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
This motherboard features an ultra-premium audio solution — the ALC4080 — rivaling professional-grade DACs. With its ESS Sabre-class DAC implementation, it delivers reference-quality sound featuring exceptional clarity, dynamic range, and near-zero distortion. This is the ultimate choice for audiophiles, professional audio work, and high-impedance headphones, eliminating the need for external amplification in most cases. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
ASUS ROG Strix X870E-E Gaming WiFi represents the pinnacle of design and engineering with an outstanding overall quality score of 102.60. It features the absolute best components available and is built for extreme performance with no compromises—ideal for enthusiasts, overclockers, and professionals demanding flawless stability and cutting-edge features.
This motherboard has a solid 48.7% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | ASUS ROG Strix X870E-E Gaming WiFi |
| Current Price Amazon | $400 |
| Amazon Price Updated | 2Â hours, 25Â minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | X870E / AM5 |
| Form Factor | Standard-ATX |

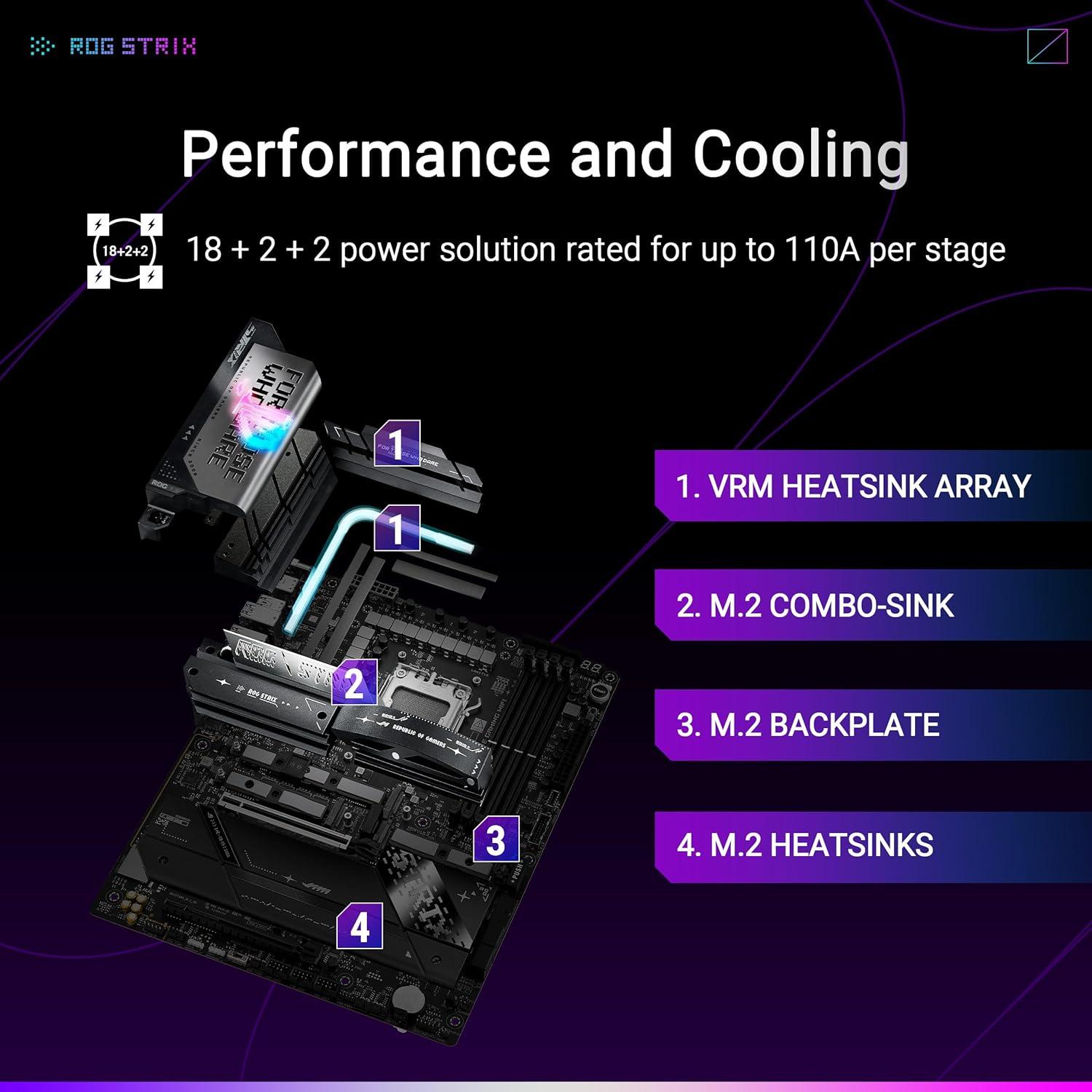

VRM Configuration
| CPU Power Phases (Amps) | 18 (110 A) |
|---|---|
| Power Design | 18(110A)+ 2(110A)+ 2(80A) |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8400 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 3 | 1 | 2 |
Storage Configuration
| M.2 Slot Count | 5 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | ALC4080 |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Gold-Plated Jacks | ✔️ Yes |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DP over USB-C | DisplayPort over USB-C - Version 1.4a (Max: 4K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 2 Type-A (10 Gbps) | 9 |
|---|---|
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 2 |
| Power Delivery (W) | 30W |
Front USB Ports
| Power Delivery (W) | 15W |
|---|
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 6 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: 1 x Realtek 5Gb Ethernet LAN Ports: 2 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 (802.11be) Bandwidth: 320MHz Frequency Bands: 2.4GHz, 5GHz, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Start Button |
|---|
Quality & Features
Additional Information
| RAM | Supports Un-buffered DIMMs. OC speeds vary by CPU series: up to 8000+MT/s with Ryzen™ 9000/7000 Series and 8400+MT/s with Ryzen™ 8000 Series. Supports AMD EXTended Profiles for Overclocking (EXPO™), NitroPath DRAM Technology, and ASUS Enhanced Memory Profile (AEMP). Supported memory types, data rate, and number of DRAM modules vary depending on the CPU and memory configuration. Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
|---|---|
| Display | Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. The 2 USB4® (40Gbps) ports support USB Type-C® display outputs. VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion | Slot configuration and specifications vary by CPU type. With Ryzen 9000/7000 CPUs, there is 1x PCIe 5.0 x16 slot (supports x16 mode). With Ryzen 8000 CPUs, there is 1x PCIe 4.0 x16 slot (supports x8/x4 mode). The AMD X870E Chipset provides 1x PCIe 4.0 x16 slot (supports x4 mode). Please check the PCIe bifurcation table on the ASUS support site. |
| Storage |
M.2 Slot Details:
RAID 5 function is only supported by AMD Ryzen™ 9000 series CPUs. |
| Audio | ROG SupremeFX 7.1 Surround Sound; Savitech SV3H712 AMP; Impedance sense for front and rear headphone outputs; Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking; High quality 120 dB SNR stereo playback output and 110 dB SNR recording input; Supports up to 32-Bit/384 kHz playback; Features Audio Shielding, premium audio capacitors, and an audio cover. The LINE OUT port on the rear panel does not support spatial audio. |
| Networking | Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, no driver is available. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth version may vary. Wi-Fi has up to 6.5Gbps transfer rate. |
| Buttons | The board includes a FlexKey button and a Start button. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASUS ROG Strix X870E-E Gaming WiFi Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$796
|
0.0%
|
105.4%
|
110.0%
|
99.0%
|
110.0%
|
110.0%
|
98.0%
|
25.2%
|
|
|
$700âť—
|
0.0%
|
103.8%
|
95.0%
|
100.0%
|
110.0%
|
110.0%
|
104.0%
|
28.2%
|
|
|
$558
|
↓
-2.1%
|
103.4%
|
103.0%
|
100.0%
|
103.0%
|
110.0%
|
101.0%
|
35.2%
|
|
|
$700
|
0.0%
|
103.2%
|
98.0%
|
100.0%
|
110.0%
|
110.0%
|
98.0%
|
28.0%
|
|
|
$400
|
0.0%
|
102.6%
|
103.0%
|
100.0%
|
109.0%
|
110.0%
|
91.0%
|
48.7%
|
|
|
$800
|
0.0%
|
102.4%
|
98.0%
|
97.0%
|
110.0%
|
109.0%
|
98.0%
|
24.3%
|
|
|
$796
|
↑
59.1%
|
101.6%
|
95.0%
|
100.0%
|
110.0%
|
99.0%
|
104.0%
|
24.3%
|
|
|
$700âť—
|
↑
14.8%
|
101.2%
|
101.0%
|
93.0%
|
110.0%
|
104.0%
|
98.0%
|
27.5%
|
|
|
$727
|
0.0%
|
100.6%
|
103.0%
|
97.0%
|
107.0%
|
105.0%
|
91.0%
|
26.3%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$796
|
0.0%
|
$700âť—
|
0.0%
|
$558
|
↓
-2.1%
|
$700
|
0.0%
|
$400
|
0.0%
|
$800
|
0.0%
|
$796
|
↑
59.1%
|
$700âť—
|
↑
14.8%
|
$727
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | MSI | ASUS | ASUS | MSI | ASUS | GIGABYTE | ASUS | MSI | ASUS | ||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | X870E / AM5 | Intel ® Z790 Chipset / AM5 | X870E / AM5 | AMD X870E / AM5 | X870E / AM5 | X870E / AM5 | Intel ® Z790 Chipset / AM5 | X670E / AM5 | AMD X870E / AM5 | ||||||||||||||||||||||||||||||||||||||||||||||
| Form | E-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 24 (110 A) | 20 (90 A) | 18 (110 A) | 18 (110 A) | 18 (110 A) | 18 (110 A) | 20 (90 A) | 22 (90 A) | 18 (110 A) | ||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 24+2+1 | 20 + 2 + 1 | 18(110A)+ 2(110A)+ 2(80A) | 18 + 2 + 1 | 18(110A)+ 2(110A)+ 2(80A) | 18+2+2 | 20+1+2 | 22+2+1 | 18 + 2 + 2 | ||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 9000 MHz | 192 GB / 8000 MHz | 256 GB / 8600 MHz | 256 GB / 8400 MHz | 256 GB / 8400 MHz | 256 GB / 8800 MHz | 192 GB / 7800 MHz | 256 GB / 8000 MHz | 128 GB / 9600 MHz | ||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 (when used with AMD Ryzen 9000 & 7000 series CPUs) | ||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 2x16 Gen5 | 1x4 Gen4 | 2x16 Gen5 | 1x4 Gen4 | 2x16 Gen5 | 2x16 Gen5 | 1x4 Gen5 | 1x16 Gen5 | 2x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 3x16 Gen5 | 2x16 Gen5 | 1x4 Gen4 | 1x1 Gen3 | ||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 7 | 5 | 5 | 5 | 5 | 4 | 5 | 4 | 5 | ||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 6 | 6 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC4082 Codec + ESS9… | ROG SupremeFX 7.1 Surround So… | ALC4082, ESS® ES9219 QUAD DAC | Realtek ® ALC4082 Codec + ESS… | ALC4080 | Realtek ALC1220, ESS ES9118 D… | ROG SupremeFX 7.1 Surround So… | Realtek® ALC4082 Codec + ESS … | ALC4080 | ||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ❌ | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1 FRL) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||||
| LAN | 1x Marvell® AQC113CS 10G… (2 ports) | 1 x Intel ® 2.5Gb Ethern… (2 ports) | Ethernet 1 x Intel® 2.5G… (2 ports) | 1x Marvell ® AQC113CS 10… (2 ports) | 1 x Realtek 5Gb Ethernet (2 ports) | 2 x Marvell® AQtion AQC1… (2 ports) | 1 x Intel ® 2.5Gb Ethern… (1 ports) | Marvell® AQC113CS-B1-C 1… (1 ports) | 1 x Realtek 5Gb Ethernet… (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi Wi‑Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 7 (802.11be) | ||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.3 | v5.3 | v5.3 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
❌ |
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
❌ |
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$896
|
0.0%
|
100.0%
|
95.5%
|
200 W / 270 W | 16 / 0 / 32 | 1024.0 kB / 192.0 MB | 4.30 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$670
|
0.0%
|
95.6%
|
94.9%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$511
|
↑
2.2%
|
93.0%
|
82.2%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.30 GHz / 5.70 GHz | Granite Ridge | Radeon Graphics | |
|
$501
|
0.0%
|
87.0%
|
79.7%
|
170 W / 230 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.50 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
84.9%
|
84.0%
|
120 W / 162 W | 16 / 0 / 32 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.70 GHz | Raphael | Radeon Graphics | |
|
$500
|
0.0%
|
76.1%
|
92.0%
|
120 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$329
|
0.0%
|
74.7%
|
80.2%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.40 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$316
|
↓
0.0%
|
69.6%
|
78.7%
|
170 W / 230 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.70 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$700
|
0.0%
|
68.0%
|
82.3%
|
120 W / 162 W | 12 / 0 / 24 | 1024.0 kB / 128.0 MB | 4.40 GHz / 5.60 GHz | Raphael | Radeon Graphics | |
|
$484
|
0.0%
|
59.0%
|
100.0%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.60 GHz | Granite Ridge | Radeon Graphics | |
|
$445
|
0.0%
|
58.1%
|
98.8%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.70 GHz / 5.20 GHz | Granite Ridge | Radeon Graphics | |
|
$235
|
0.0%
|
50.1%
|
78.8%
|
105 W / 142 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 4.50 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$349
|
0.0%
|
47.1%
|
89.1%
|
120 W / 162 W | 8 / 0 / 16 | 1024.0 kB / 96.0 MB | 4.20 GHz / 5.00 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
39.7%
|
76.8%
|
105 W / 142 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 4.70 GHz / 5.30 GHz | Raphael | Radeon Graphics |
Official Manufacturer Data
Memory:
Supports up to
8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
8400+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics:
1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors' or graphic cards' resolution.
Storage:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)***
M.2_3 slot (Key M), type 2242/2260/2280/22110Â (Not supports)***
AMD X870E Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen™ 9000series CPU.
** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
*** M.2_2 & M.2_3 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.
Expansion Slots:
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
USB:
2 x USB4® (40Gbps) ports(2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)**
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)
Front USB (Total 11 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
* USB Type-C® power delivery output: 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

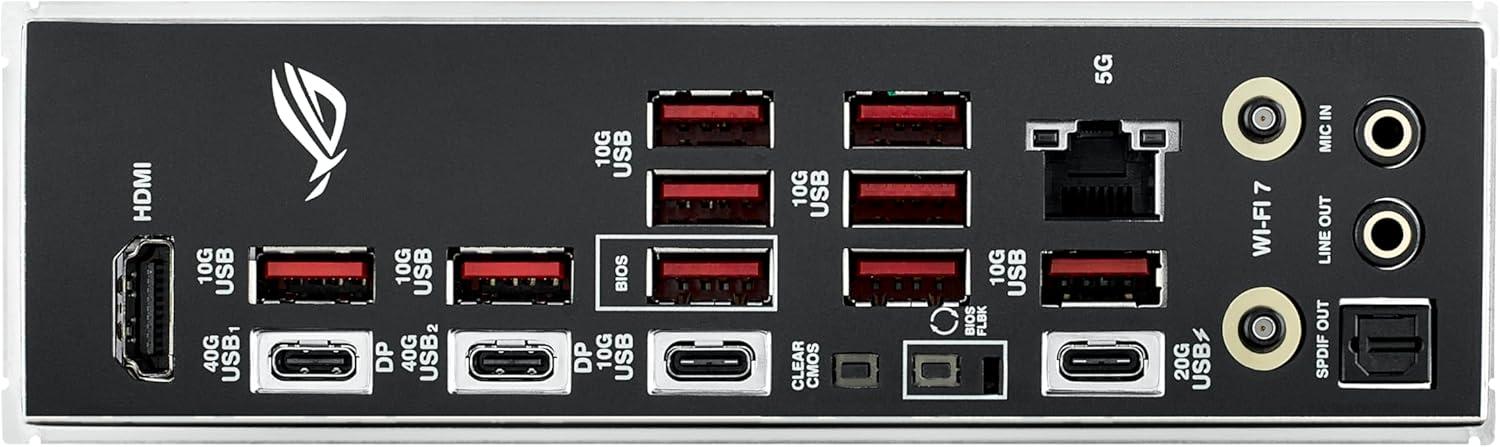

Back Panel I/O:
1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
WiFi:
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
Audio:
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Special Features:
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Add Comment on ASUS ROG Strix X870E-E Gaming WiFi
